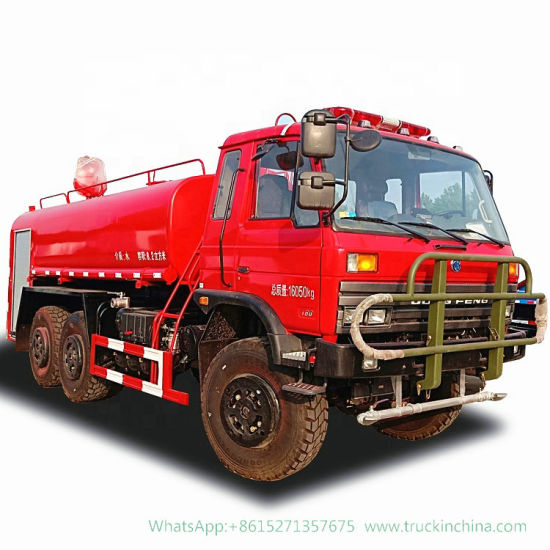

All Wheel Drive 6X6 Fire Water Tanker off Road Truck (Dongfeng Left Right Hand Drive) Water Tank 8000liters with Fire Montior, Fire Pump
All Wheel Drive 6X6 Fire Water Tanker off Road Truck (Dongfeng Left Right Hand Drive) Water Tank 8000liters with Fire Montior, Fire Pump
| Quantity: | |
|---|---|
-
Shanghai, China
-
10000
-
T/T
All Wheel Drive 6X6 Fire Water Tanker Off Road Truck (Dongfeng Left Right Hand Drive)Water Tank 8000Liters with Fire Montior, Fire Pump
DONGFENG Fire Sprinkler Tank Truck For Sale
6 Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank Off Road Truck
1.All Wheel Drive 6*6 6WD Water Tank Fire Truck,
2.with Cummins Engine 160HP -210HP,
3.12.5R20 radial off road tire
4.water tank capacity: 8000Liters
5. With Fire Monitor, FIre Pump. Multifunction with fire truck and water truck
6. 6WD All Wheel Drive good price and fast delilvery.
Main Specification
Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank
equip Fire Pump, Fire Monitor, Optional Front Spraying Nozzle. with Mulitifunction of Water truck and Fire Truck.

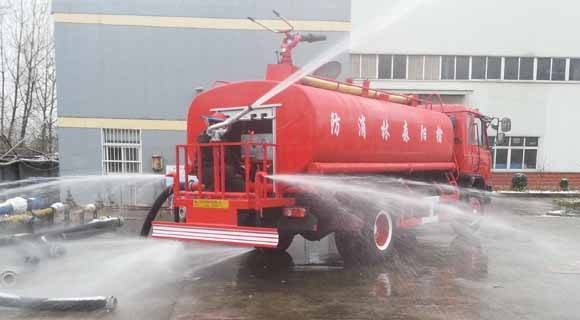

11.Spraying Range by Fire Monitor: more than 50m
Fire Water Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
The fire water tank truck with big capacity water tank body, can transport the water and fire personal away the fire to put off the fire, it also can put our the fire directly suction the water source, or supply the water to other fire truck and fire fighting equipment. The fire water tank truck also can supply and transport water to dry areas, it is suit for to put out the common fire. It is suit for police fire brigade and the fire brigade of enterprises. Meantime, the water fire fighting truck is suit for landscaping, fire sprinkler, fire, mine dust, put out the fire for living area, fire power plant.
the specification of Four Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank:
| Chassis model | Dong Feng 6*6 chassis | |
| Traction type | 6×6 | |
| The total mass(kg) | 10940 | |
| Rated loading weight(Kg) | Off-road3500kg,highway5000kg | |
| Overall size(mm) | length | 7495 |
| width | 2470 | |
| height | 2740 | |
| wheelbase(mm) | 3475+1250 | |
| Wheel span(front/rear)(mm) | 1876/1870 | |
| Minimum turning radium(m) | 18.8 | |
| Approach/departure angle( 0 ) | 35/34 | |
| engine | manufacturer | DONGFENG CUMMINS CO.LTD |
| model | EQ6BT5.9 | |
| power(Kw)/(r/min) | 118/2800 160HP | |
| Max torque(N.m)/(r/min) | 546/1700 | |
| clutch | Φ350mmsingle sheet ,dry, hydraulic | |
| gearbox | 5 speed manual | |
| Front axle | 3.7 T | |
| Rear axle | 4T double axles | |
| steering | Power steering | |
| tire | 12.5R20 radial off road tire | |
| Frame profile size(mm) | 232×75×6.5 | |
| Cab | DONGFENG FLAT DOUBLE row cab | |
| Tank volume (L) | Main tank 145L+backup tank 50L | |
| Max speed (Km/h) | 90 | |
| Grade ability | Loading 3500kg,no trailer | 60% |
| loading3500kg,pull4800kg | 40% | |
| Brake distance(loading3500kg,no trailer, speed 30km/h) | 8m | |
| Fuel consumption(L/100km)(loading3500kg,) | 26.5 | |
| Max running distance(km) | 700 | |
| Cross water depth(m) | 1 | |
| others | PTO and capstan are optional | |
| Special function: | ||
| Tank capacity | 8000 liters | |
| Material of the tank | High quality Q235 | |
| with Fire Montior, Fire Pump. Fire pump Model: CB20.10/20.40 Low-Pressure flow/pressure: 40L/S/1.0MPA Medium pressure flow/pressure: 20L/S/2.0MPA Atmospheric pump: CB10/40 Flow/Pressure: 40L/S/1.0MPA Applicable tonnage: 4 tons, 6 tons of fire trucks Applicable model: 4x2/6x4/4x4/6x6 fire truck | ||

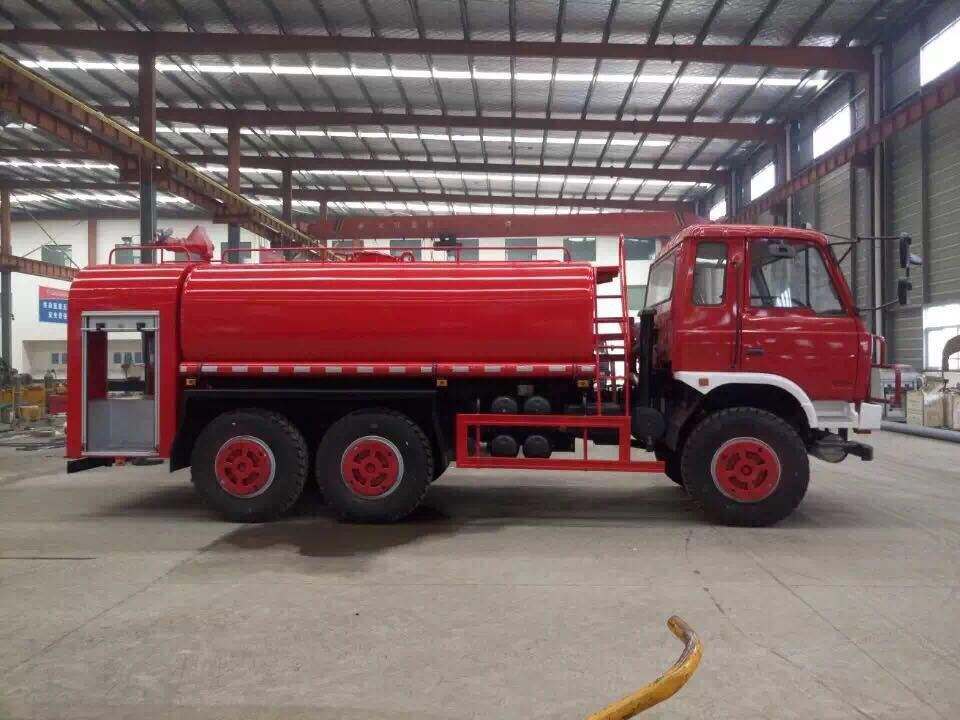

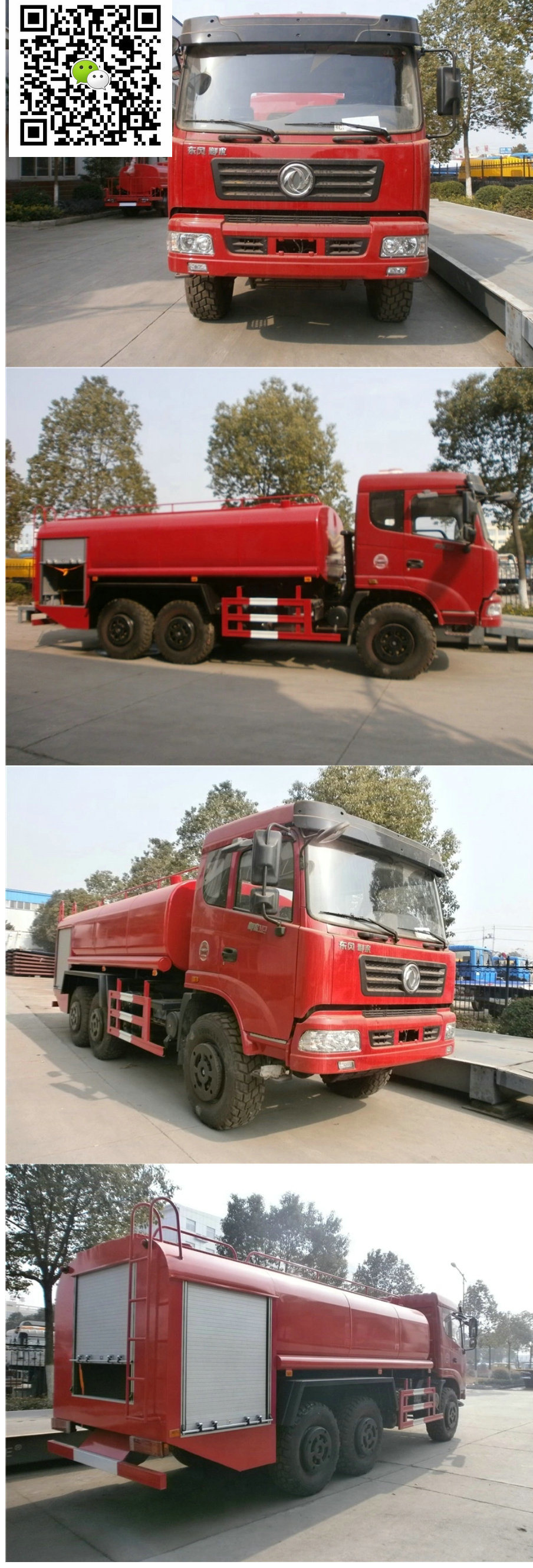

The Picture of 6 Wheel All Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank:
All Wheel Drive 6WD Water Tank Fire Truck 8Tons
1.All Wheel Drive 6*6 6WD Water Tank Fire Truck,
2.with Cummins Engine 160HP -210HP,
3.12.5R20 radial off road tire
4.water tank capacity: 8000Liters
5. With Fire Monitor, FIre Pump. Multifunction with fire truck and water truck
6. 6WD All Wheel Drive good price and fast delilvery.
Volume of Water Tank: 2Ton -3.5Tons
Categories: 6x6 Special Vehicles, Fire Water Tank TruckTags: 3.5Tons Fire Truck With Water Tank, 4WD, 4WD Fire Pumper Truck, 4WD Fire Truck, 4WD Fire Truck With Water Tank, 6WD Fire Truck, 6WD Fire Truck Water Tank, 6WD Fire Water Truck, 6WD Water Fire Truck, 6x6 Fire Truck, 6X6 Fire Truck Water Tank, 6x6 Water Truck, All Wheel Drive Fire Truck, All Wheel Drive Fire Truck Water Tank, All Wheel Drive Fire Truck With Water Tank, All Wheel Drive Water Truck, All Wheel drving, Chinese Fire Fighting Trucks, Chinese Hubei Fire Truck, Dongfeng Fire Truck, Fire Spraying Water Truck
Product Description
All Wheel Drive 6WD Water Tank Fire Truck 8Tons
1.All Wheel Drive 6*6 6WD Water Tank Fire Truck,
2.with Cummins Engine 160HP -210HP,
3.12.5R20 radial off road tire
4.water tank capacity: 8000Liters
5. With Fire Monitor, FIre Pump. Multifunction with fire truck and water truck
6. 6WD All Wheel Drive good price and fast delilvery.
6WD Fire Fighting Truck equip Fire Pump, Fire Monitor, Optional Front Spraying Nozzle. with Mulitifunction of Water truck and Fire Truck.
Spraying Range by Fire Monitor: more than 50m
Fire Water Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
The fire water tank truck with big capacity water tank body, can transport the water and fire personal away the fire to put off the fire, it also can put our the fire directly suction the water source, or supply the water to other fire truck and fire fighting equipment. The fire water tank truck also can supply and transport water to dry areas, it is suit for to put out the common fire. It is suit for police fire brigade and the fire brigade of enterprises. Meantime, the water fire fighting truck is suit for landscaping, fire sprinkler, fire, mine dust, put out the fire for living area, fire power plant.
the specification of All Wheel Drive 6WD Water Tank Fire Truck 8Tons:
| Chassis model | Dong Feng 6*6 chassis | |
| Traction type | 6×6 | |
| The total mass(kg) | 10940 | |
| Rated loading weight(Kg) | Off-road3500kg,highway5000kg | |
| Overall size(mm) | length | 7495 |
| width | 2470 | |
| height | 2740 | |
| wheelbase(mm) | 3475+1250 | |
| Wheel span(front/rear)(mm) | 1876/1870 | |
| Minimum turning radium(m) | 18.8 | |
| Approach/departure angle( 0 ) | 35/34 | |
| engine | manufacturer | DONGFENG CUMMINS CO.LTD |
| model | EQ6BT5.9 | |
| power(Kw)/(r/min) | 118/2800 160HP | |
| Max torque(N.m)/(r/min) | 546/1700 | |
| clutch | Φ350mmsingle sheet ,dry, hydraulic | |
| gearbox | 5 speed manual | |
| Front axle | 3.7 T | |
| Rear axle | 4T double axles | |
| steering | Power steering | |
| tire | 12.5R20 radial off road tire | |
| Frame profile size(mm) | 232×75×6.5 | |
| Cab | DONGFENG FLAT DOUBLE row cab | |
| Tank volume (L) | Main tank 145L+backup tank 50L | |
| Max speed (Km/h) | 90 | |
| Grade ability | Loading 3500kg,no trailer | 60% |
| loading3500kg,pull4800kg | 40% | |
| Brake distance(loading3500kg,no trailer, speed 30km/h) | 8m | |
| Fuel consumption(L/100km)(loading3500kg,) | 26.5 | |
| Max running distance(km) | 700 | |
| Cross water depth(m) | 1 | |
| others | PTO and capstan are optional | |
| Special function: | ||
| Tank capacity | 8000 liters | |
| Material of the tank | High quality Q235 | |
| with Fire Montior, Fire Pump. Fire pump Model: CB10/30 Medium Pressure pump: CB20.10/15.30 Low-Pressure flow/pressure: 30L/S/1.0MPA Medium pressure flow/pressure: 15L/S/2.0MPA Flow: 30L/S, Pressure: 1.0Mpa Applicable tonnage: 3.5 tons of fire trucks Applicable car: 4x2/6x4/4x4/6x6 fire truck | ||
The Picture of All Wheel Drive 6WD Water Tank Fire Truck 8Tons
Dongfeng All Wheel Drive 6×6 6WD Water Truck Water Tank Truck Spraying Water Trucks 10Tons :
Main specification of All Wheel Drive 6WD Water Truck 10000Liters:
on bassis of Dongfeng All Wheel Drive 6×6 6WD chassis
190HP Engine for Choice 6700CC displacement
12.5R10 Desert Off Road Tire 4+1pcs
Water Tank capacity:10000Liters / 10Tons
With Water Pump
Carbon Steel Water truck or Stainless Steel Drinking Water for Choice
All Wheel Drive 10Tons Water Trucks. 6forwards
6WD OFF Road Water Truck Produced by Hubei Runli Company
Off Road 6WD Water Truck exported to Mongolia
Good Price and quality, fast delivery.
Specification of Dongfeng All Wheel Drive 6×6 6WD Water Truck Water Tank Truck Spraying Water Trucks 10Tons :
driving typ Dongfeng All Wheel Drive 6WD Water Trucks net weight(kgs) 8955 Dimension of Vehicle 7800*2500*2840mm Wheelbase 3475+1250mm Front/rear tread 1876/1780 Min Distance from the ground 305mm Motor Model B190-33 Type Diesel, 6cylinder inline with water cooling Displacement 6700cc Power( Kw/rpm) 136/1500 Max. Torque( N.m/rpm) 630/1700 Clutch Ø350mm single dry, pneumatic booster, hydraulic contral Front axle 3.7T Rear axle 4T*2 Tyre 12.5R10 4+1 Cabin With one bed Max. braking distance 8m Climbing gradient 40% Vertical obstacle height 700mm The trench width 700mm Max. fording depth 700mm Capacity of fuel tanker Main fuel tanker: 145L Water tank capacity(L) 10000Liters Material of tank body Carbon steel Q235 4mm thicknessFire pump (atmospheric pump) Model: CB10/60Flow: 60L/S, Pressure: 1.0MpaFire gun Model: SP20, Range: 48mApplicable tonnage: 8 tons of fire trucksApplicable car: 6x4/6x6/8x4/8x8 fire truckDongfeng All Wheel Drive 6×6 6WD Water Truck Water Tank Truck Spraying Water Trucks 10Tons
Fire fighting water tank lorry truck 7200L,1600Gallon
3.5Tons Fire Truck With Water Tank , 4WD , 4WD Fire Pumper Truck , 4WD Fire Truck , 4WD Fire Truck With Water Tank , 6x6 Water Tank Fire Truck , All Wheel Drive Fire Truck , All Wheel Drive Fire Truck Water Tank , All Wheel Drive Fire Truck With Water Tank , All Wheel Drive Truck , all wheel drive water tank fire truck , All Wheel drving , Chinese Fire Fighting Trucks , Chinese Hubei Fire Truck , Dongfeng Fire Truck , Fire Spraying Water Truck , Four Wheel Drive Truck , Off Truck Water Fire Truck
Dongfeng truck part list price offer
Part Number Part Name (in English)
Part Number Updated Part Number Part Name (in English) FOB price/pcs
USD
6216 Deep groove ball bearing
6315 Deep groove ball bearing
32218 Bearing
3900250 Air valve closing piece
3906660 Exhaust manifold $99.00
3907308 C3960780 Fly Wheel gear $16.50
3913967 Oil Cooler seater $17.16
3914494 Pulley,crankshaft $202.95
3917700 Exhaust manifold $42.90
3920692 C3920692 Circlip $0.13
3921558 Engine Oil Cooler Core $29.04
3924731 Intercooler assy $148.50
3929036 Crankshaft,engine $237.60
3931623 Tappet,valve $1.82
3934047 Piston pin (A3919053) $2.64
3935945 Rocker arm end support seat $0.33
3938267 C3415501 Cylinder head gasket $13.86
3944158 C3944158 Main bearing $1.98
3944222 Preheater $181.50
3944679 Bolt $1.65
3944833 C4931173 Straight joint body $9.24
3948578 3948578 Oil seal $0.46
3957543 Core,cooler $26.40
3964093 C4935078 Respirator compartment $9.90
3966448 Head,cylinder 4BT $379.50
3966454 Cylinder head (C3934746) $415.80
3967251 Sensor,oil pressure $4.95
3973114 Water pump $23.10
3991123 Engine oil pump $37.95
4931041 Piston Pin $3.63
4931169 C4931169 Pressure alarm sensor $4.95
4931572 Oil Cooler seater $28.05
4932577 Manifold,exhaust $52.14
4939161 Flywheel with gear $115.50
4990783 Generator $128.70
C4994573 Tensioner ,belt $18.15
1001017-T2200 Left bracket, engine front mounting $14.85
1001030-K1700 Cushion assembly, engine front mounting $2.31
1001117-T0500 Left bracket, engine rear mounting $39.60
1001158-T2100 Rear mounting support of engine $9.90
1001211-T0900 Stablizer bar $18.15
1011N-010-A2 Oil pump assy. $34.65
10Q01-01020-B $4.95
10Z66-01030 Front suspension cushion assembly, Engine $6.93
10ZB7C-01024 Upper cover plate $8.58
10ZB7C-01027 Rubber bushing-transmission $2.64
10ZB7C-01029 Lower cover plate $4.95
10ZB7C-01030 Front suspension cushion assembly, Engine $7.92
10ZB8A-01025 Support sway bar $5.28
10ZB8A-01030 Rubber bushing, frame $0.99
10ZD10-01030 Cushion assembly, engine rear mounting $2.64
1101020-T0500GY Fuel tank pipe unit $363.00
1103DH39-001 #N/A $6.93
1108010-C0102 Accelerator pedal assembly,electronic throttle $31.35
1108150-T0500 Accelerator drive control cable assembly $2.64
1109010-T0100 Air cleaner assembly $105.60
1109010-T3800 Air filter assembly $99.00
1109016-T0100 Bracket, air cleaner $15.84
1109017-T0100 Reinforced plate, air cleaner bracket $7.26
1109021-T0101 Rubber hose, Turbocharger air intake $14.85
1109021-T0500 Rubber hose, Turbocharger air intake $9.24
1109024-T0500 Connection pipe $11.55
1109031-K0700 Bracket, air intake pipe $5.94
1109040-T0100 Rear air intake passage $13.86
1109094-T0500 Bracket, thermal insulation board, C $3.96
1109096-T0500 Bracket, thermal insulation board, A $3.96
1109097-T0500 Bracket, thermal insulation board, B $4.95
1109099-T0500 Heat insulation plate $10.56
1109810-C0101 Air intake leading pipe assembly $32.34
1118ZB6-001 Intercooler assembly $161.70
1118ZD2A-001 Intercooler assembly $158.40
1119010-T0400 Intercooler assembly $158.40
1119011-T3000 Air intake steel tube $15.84
1119012-T3000 Air outlet steel tube, intercooler $15.84
1119014-K0100 Connecting rubber hose $4.29
1119122-ZB7C0 Air outlet pipe, intercooler $3.63
1119123-K0700 Rubber hose, A $4.62
1119124-K0700 Rubber hose connecting,B $4.29
1119ZB6-020 Diesel pre-filter assembly $5.28
1125020-T0400 1125020-T0400 Oil and water separator assembly $80.85
11Z24-18014 Air intake pipe, transition pipe $9.24
1201010-T0400 muffier assy $138.60
1201ZB3A-001 muffier assy $231.00
1202010-X0100 Metal hose assembly $13.20
1202ZB1E-001 Metal hose assembly $12.54
12N12-03061 Gasket $0.66
12N12-03062 Sealing gasket $0.33
12N42-03051-B Circlip $0.33
12Z06-03061 Seal Ring-KinG pin $0.33
12Z24-03015 Connecting pipe, the turbocharger outlet $14.85
12ZB1E-03072 Gasket $0.53
1301010-T3000 Radiator assembly $237.60
1301Z24-001 Radiator assembly $234.30
1301ZD2A-001 Radiator assembly $191.40
1303011-T2201 Water inlet rubber hose, radiator $8.58
1303011-T3000 Water inlet rubber hose, radiator $6.93
1303013-T0500 Water outlet rubber hose, radiator $4.95
1303013-T3100 Water outlet rubber hose, radiator $4.95
1303015-KN100 Connection pipe assembly $11.88
1303030-T0500 water inlet steel pipe, Engine $14.85
1308060-T3100 Viscous fan clutch with fan assembly $122.10
1308060-T3100-2 1308060-T3100-2 Viscous fan clutch $122.10
1308Z24-001 Fan assy $11.88
1308ZB7C-001/1308010-N9FC0 #N/A $29.04
1309010-T0500 Wind shield assembly $14.85
1309010-T2201 Wind shield assembly $18.15
1309012-ZD2A0 Wind deflector $21.45
1309021-T3100 Upper strut, deflector $9.90
1311010-K0300 Auxiliary water tank assembly $18.15
1311021-T3000 Degassing steel pipe, water tank $2.64
1311022-T3000 Degassing steel pipe, engine $2.64
1311027-K0100 Degassing steel pipe bracket $2.31
1311031-T2200 Deaerator rubber hose, engine $2.31
1311036-T3000 Deaerator rubber hose, engine $1.65
13N-02020 Radiator cushion assembly $0.66
13ZD10-02045 Radiator left support assembly, frame $7.26
13ZD10-02050 Radiator right support assembly, frame $7.26
13ZD2A-09014 Flexible wind ring $3.63
1601080-T0802 Pull-type clutch bearing assembly $26.40
1601090-T0501 Clutch cover and pressure plate assembly $155.10
1601ZB1T-130 Clutch driven plate assembly $59.40
1604010-C0100 Clutch Master Cylinder $12.54
1608010-T0402 1608010-T0403 Clutch booster assy $52.80
1608010-T0501 1608010-T0502 Clutch booster $40.26
1608N-001 Booster assembly $22.44
16NM-02063 Clutch release fork $9.90
1700010-T31K0 Gearbox assy $0.00
1700N-460 Rolling bearing $0.00
1703080-T0400 Handle ball $11.88
1703405-T0401 1703405-T0401 Shift lever assembly $56.10
1712113-T0501 Rubber hose II, the oil outer cooler $8.25
1712ZB7C-010 Oil cooler assembly, gearbox $84.15
17N-03031 Bush $0.99
17Z07-03100 Ball joint $2.64
2201010-T04K0 Transmission shaft with aliding fork assembly $297.00
2201ZB8A-110 Transmission shaft with spline shaft fork assembly $227.70
2202ZB7A-010 Transmission shaft with spline shaft fork assembly $227.70
2402336-ZB01A Supporting washer half shaft gear
2402345-ZB01A Planetary gear
2402N-058 Oil seal assembly, driving bevel gear $2.64
2402ZB-060 Driving bevel gear oil seal assembly $3.96
2402ZB2-065 Flange assembly, driving bevel gear $16.50
2402ZB5-010 Rear axle final drive and bevel gear differential assembly $16.50
2402ZB839-026/25 #N/A $379.50
2402ZHS01-065 Flange assembly $23.76
2402ZHS01-131 Adjusting spacer sleeve
2402ZHS01-135 Adjusting spacer sleeve
2402ZHS01-136 Adjusting spacer sleeve
2402ZHS01-161 Adjusting shim
2402ZHS01-162 Adjusting shim
2402ZHS01-163 Adjusting shim
2402ZHS01-172 Adjusting shim
2402ZHS01-174 Adjusting shim
2402ZHS01-345 Planetary gear, inner-wheel differential $9.57
2402ZS01-315-B Bevel gear differential case
2402ZS01-345-B Planetary gear
2405ZHS01-010 Wheel side reduction assembly
24XZB-01090 Semi shaft oil seal assy. $1.32
24ZB-01090 Semi shaft oil seal assy. $1.16
24ZHS01-01068 Vent plug assembly $2.64
24ZHS01-11015 Fork shaft $0.00
2502ZAS01-038 O-ring $0.00
2502ZAS01-051 2502ZAS01-051 Middle axle cylindrical driven gear $77.55
2502ZAS01-057 seal oil fitted with PTO Drive Shaft $2.31
2502ZAS01-143 2502ZAS01-143 Middle axle drive cylinder gear $113.85
2502ZAS01-411 Axial differential case
2502ZAS01-415 2502415-ZA01B Axial differential assembly
2502ZAS01-419 Ball bearing,intermediate axle input end $15.51
2502ZAS01-431 Cross shaft,axial differential $15.51
2502ZAS01-435 Front side gear $14.19
2502ZAS01-436 Supporting washer,front gear $0.66
2502ZAS01-438 Supporting washer,rear gear $23.76
2502ZAS01-445 Planetary gear, inter-axial differential $7.26
2502ZAS01-446 Supporting gasket, planetary gear $0.69
2502ZAS01-566 Adjusting shim
2502ZAS01-567 Adjusting shim
2502ZAS01-569 Adjusting shim
2502ZHS01-065 Flange assembly, middle axle input $25.08
2510ZHS01-055 Oil seal and oil seal seat assembly, input end , middle axle
2510ZHS01-056 Oil seal assembly,input end of middle axle $2.97
2510ZHS01-410 Axial differential assembly $445.50
2510ZHS01-431 Cross shaft,axial differential assembly $21.45
2510ZHS01-445 Planetary gear, inter-axial differential $8.91
2510ZHS01-446 Base ring, differential gear $0.59
25ZAS01-02163 25ZAS01-02163 Transfixion shaft $85.80
25ZAS01-02167 Gasket,rear oil seal seat
25ZAS01-02169 O ring,flange $23.10
25ZAS01-02170 Oil seal,output end $1.65
25ZAS01-02175 Flange assembly $16.50
25ZHS01-02065 Oil seal and oil seal seat assembly-thru shaft assembly $2.97
25ZHS01-02067 Oil seal assembly-transfixion shaft $14.85
25ZHS01-11021 Sensor assembly $0.00
25ZHS01-11026 Shift fork, differential lock wheels $0.00
2701515-T0101 Bracing piece assembly, trailer valve $29.70
2801110-T0700 1st beam assembly $95.70
2921010-T0800 Shock absorber assembly $23.10
2921FC-010-A Shock absorber assembly $18.15
29N-01287 Bushing, front shackle $1.16
29ZB1-06025 Lever assembly $24.75
29ZB1-06031 Lever support $8.25
30N-01021 Knuckle king pin $5.94
30Z01-01019 Upper bushing, steering knuckle $1.32
30Z01-01020 Lower bushing, steering knuckle $1.32
30Z01-01035 Thrust bearing assembly $3.63
30ZB1-01016 Right steering knuckle assembly $122.10
30ZB1-01044 Upper arm, left knuckle $43.56
30ZB3-01035 Thrust bearing assembly $5.28
3104015-T2500 Rear hub $89.10
31F58-03055-A Wheel nut assembly $0.92
31XZB-04080 Rear hub oil seal assy. $2.31
31Z01-03080 Front hub oil seal assy. $1.98
31ZB1-03051 Front wheel bolt $3.30
31ZB1-04080 Rear hub oil seal assy. $3.96
31ZB6-03015 Front hub $80.85
31ZD10-03015 Front hub $80.85
31ZHS01-04051 Wheel bolt $2.64
31ZHS01-04080 Oil seal,rear hub $4.95
32315/P5 Tapered roller bearing
3303ZB6-059 Tie rod jonit assembly(LH) $17.16
3303ZB6-060 Tie rod jonit assembly(RH) $17.16
3401010-T0500 Power steering gear assembly $11.88
3401ZB3-001 Integral power steering gear $429.00
3404010-C0101 Steering gear assembly with regulator $80.85
3410N2-030 Oil Filter element assembly $1.98
3412110-T0500 drag link assy $42.24
3502ZS10-101 Rear brake shoe $36.30
3513B40B-010 Air reservoir assembly $25.74
3514010-C0100 Brake valve assembly $25.08
3517010-C0100 Manual brake valve assembly $14.85
3517010-C0101 Manual brake valve assembly $14.85
3522Z07-001 Trailer brake valve $44.55
3527ZB1-001 Differential valve assembly $21.45
3541Z66-001 Exhaust brake valve assembly $24.75
3543010-K0200 Air dryer assembly $69.30
3543010-T31K0 Air dryer, with muffler assembly $80.85
3543ZD2A-001 Air handling unit function assembly $77.55
3550ZB1E-021 Bushing,ABS sensor $14.85
3551020-ZB100 Adjusting arm $43.56
35T01-06202 The 1nd air hose assembly, connecting the air compressor and dryer $29.70
35Z06A-13013 Air reservoir support $1.32
3638010-C0100 Integrated alarm control assembly $17.16
3682610-C0100 Air pressure meter sensor $15.84
3690010-KC100 Water level sensor assembly $4.95
3704110-C0100 Ignition lock ,door lock cylinder,fuel tank cap with key subassembly $18.15
3724020-C0368 Main harness assembly, left body
3724030-C0368 Main harness assembly of right body
3724410-C0100 SMJ box - left
3724411-C0100 SMJ box cover, left
3724420-C0100 SMJ box - right
3724421-C0100 SMJ box cover, right
3724560-T0401 Frame ABS harness assembly
3724580-T31K0 Chassis wiring harness assy
3726240-C0100 Left turning ground lamp assembly $3.63
3726250-C0100 Right turning ground lamp assembly $3.63
3735010-C0100 Flasher assembly $2.31
3735015-C0100 Flasher unit assembly $6.60
3735020-C0100 Wiper intermittent relay assembly $7.59
3735090-C0100 Relay assy $1.65
3735095-C0100 Relay assy $1.65
3747010-C0100 3747010-C0100GY Washer assembly $9.90
3750120-C0100 Lifting switch assembly $1.65
3750410-C0100 Stop lamp switch assembly $1.98
3750650-Z07Y0 Engine starting and flameout switch box $6.60
3750730-C0101 Power window switch assembly, driver side $18.15
3750740-C0100 Power window switch assembly, passenger side $1.65
3754020-C0300 Air horn electromagnetic valve assembly $8.25
3763010-C0100 Reflector assembly $0.66
3772010-C0100 Left front combined lamp assembly $36.30
3772020-C0100 combined lamp $36.30
3774010-C0100 Combination Switch $19.80
37A-50070 Switch, glass riser, electromotion $8.58
37D52-36010 Electromagnetic power master switch $11.55
37N-35085-B1 Starter relay assembly $3.30
37ZB1-36010 Main Power Supply Switch $6.93
37ZB1-73010 Left rear tail lamp $11.55
37ZB1-73020 Right tail lamp $9.24
37ZB1T-54020 Solenoid valve $23.10
37ZB7-60010-A Side marker lamp assembly $1.32
3801030-C0179 Combination instrument assembly -Euro 3 $346.50
3827010-T0800 Fuel level sensor assembly $13.86
38ZD2A-18010 Reverse buzzer $4.62
4210ND-010 4210ND-010A Pneumatic booster $178.20
5000012-C03A0-02 5000012-C03C0-04B Cab assembly (EURO III)
5000012-C0326-03 Cab assembly (EURO II)
5001013-C0300GY Left tilt bracket & compound sleeve technological assembly $40.26
5001014-C0300GY Right tilt bracket & compound sleeve technological assembly $40.26
5001015-C0300 Compound bushing $1.32
5001022-C0300 Tilting shaft $2.31
5001025-03GY Rubber sleeve assembly $7.26
5001040-C0302 Upper stop block, front mounting $1.65
5001042-C0302 Left front mounting spring $5.61
5001043-C0302 Right front mounting spring $5.61
5001059-C0302 Front mounting left upper bracket assembly $36.30
5001060-C0302 Upper bracket assembly - before the susp $36.30
5001085-C0302 Vibration damper $9.24
5001145-C0100 Rubber sleeve assembly, Rear mounting lower bracket $1.32
5001150-C0302 Spring shock absorber assembly, rear mounting $13.86
5003010-C0300 Main oil cylinder assembly $62.70
5003011-C0300 Auxiliary hydro-cylinder assembly $62.70
5005011-C0301 Oil pump system $69.30
5005015-C0100 Oil pump assembly $105.60
5005020-C0300 Oil pump assembly $77.55
5103020-C0102 Control panel $69.30
5104010-C0100 Steering wheel assembly $32.34
5110010-C0200 Lower heat isolator assembly, left floor $8.25
5110020-C0202 Insulating pad assembly - bulge $36.30
5110030-C0200 Lower heat isolator assembly, right floor $8.25
5205023-C0100 Right side wiper arm assembly $4.62
5301510-C0101 Welding assembly.front face shield $135.30
5301600-C0300 Left front outer plate assembly,with spoiler $18.15
5301601-C0300 Right front outer plate assembly,with spoiler $18.15
5301610-C0100 right locker $1.49
5301625-C0100 Support lever assembly $4.95
5301659-C0100 5301659-C0100#8A Left the small lateral plate assembly $14.85
5301660-C0100 5301660-C0100#8A Right lateral plate assembly $14.85
53N48-01710-B Front Wall Face Shield,Cabin $24.75
5400011-C0300 Welding assembly , left side wall $297.00
5400012-C0300 Right side wall welding assembly $297.00
6100910-C0118 6100910-C0118#8A Left door assy (EURO III) $313.50
6100920-C0130 6100920-C0130#8A Right door spare part assembly (EURO III) $313.50
6100910-C0110 Left door assy (EURO II) $313.50
6100920-C0110 Right door spare part assembly (EURO II) $313.50
6104010-C0101 Left door glass regulator $18.15
6104020-C0101 Right door window regulator, electric $18.15
6105910-C0105 Ignition lock & door lock sub-assembly $37.95
6105915-C0104 Ignition lock and door lock cylinder and fuel tank cap with key subassembly $44.55
6212/C3 Deep groove ball bearing
6313N Rear ball bearing , the first shaft
8101020-C0100 Warm wind core assembly $15.84
8101020-C0100 Warm wind core assembly $15.84
8103020-C0101 8103020-C0101 Evaporator assembly with expansion valve $59.40
8103150-C0100 Motor assembly $26.40
8105010-C0100 Condenser core assembly $66.00
8108010-C0104 A/C Pipe assembly connecting compressor outlet $18.15
8108010-C0110 A/C Pipe assembly connecting compressor outlet $25.74
8108030-C0100 A/C Pipe assembly connecting condenser assembly $18.15
8108040-C0104 Air conditioner pipeline assembly-connecting evaporator inlet $21.45
8108050-C0104 Air conditioner pipeline assembly-connecting evaporator outlet $21.45
8108080-C0104 A/C Pipe assembly connecting compressor intake $19.14
8112010-C0101 Heater controller assembly with A/C switch $18.15
8112040-C0100 Regulating resistance ,wind speed $9.90
8112140-C0101 Evaporator temperature sensor $4.95
8201010-C0103 Exterior rearview mirror assembly $9.90
8201139-C0100 N-type locking nut $0.99
8203010-C0100 Ash tray assembly $2.97
8204510-C0300 Sky shade assembly $43.56
8211010-C0100 Armrest, front pillar $1.65
8403060-C0303 rear mudguard assembly $54.45
8403070-C0302 Right elbow support assembly $19.80
8405310-C0100 Right lower foot pedal $9.24
8405316-C0100 Decoration cover,right lower pedal $2.97
8405326-C0100 Right lower pedal cover,symmetrical with left part $5.28
8405340-c0100 Support beam assembly, door step,one stair $5.94
8405348-C0100 Support,door step,one stair $3.30
8405409-C0100 Bracket welding assembly $11.55
8405410-C0100 Bracket welding assembly $11.55
8406010-C0100 8406010-C0100#8A Center bumper assy $56.10
8406019-C0101 Bumper assy,LH $23.76
8406020-C0100 8406020-C0100#8A Right side bumper assembly $23.10
8406020-C0101 Right bumper assembly $23.10
8406035-C0100 Upper grid, bumper $2.97
8406036-C0100 Lower grid, bumper $2.31
8406045-C0100 Foot pedal, bumper $0.33
8406059-C0101 Left trim cover, bumper $2.31
8406060-C0100 8406060-C0100#8A Right decoration cover- bumper bar $2.31
8406085-C0100 Center foot pedal- bumper bar $0.99
8406105-C0100 8406105-C0100 Bumper bracket assembly $84.15
8510010-T0800 Left side skirt assembly $135.30
8510020-T0800 Right side skirt assembly $135.30
8510045-T0800 Front fixing support assembly of left side skirt $62.70
8511110-T3100 Left front mudguard assembly of rear wheel $18.15
8511120-T3100 Right front mudguard assembly of rear wheel $18.15
A628-020/030 Filter element $29.70
AA2960 Air Filter element $34.65
AMP1393315-9 Preheat relay $21.45
AZ9003323212 Intermediate shaft front and rear bearings
C3283570 Cylinder clover sealing pad $11.55
C3285707 Oil dipstick pipe $5.94
C3288475 Poly-grooved belt $5.94
C3415317 Combination hose $6.93
C3415603 Fan bracket $24.75
C3415603 Fan bracket $24.75
C3901356 Turbocharger gasket $0.40
C3918776 Crankshaft gear $19.80
C3921919 Oil ring,piston $4.95
C3926631 Piston $14.85
C3927642 Seal,valve stem $0.53
C3928294 Piston compression ring N $4.29
C3929011 Sealing gasket,oil cooler cover $2.64
C3934046 Piston pin $4.62
C3937478 Exhaust manifold $29.70
C3937479 C3937479 Seal, exhaust manifold $0.99
C3938086 Gear chamber $64.35
C3940152 Intake cup $0.99
C3941786 Oil seal seat $2.64
C3942764 C5398764 Fuel pump gear $49.50
C3943813 Gear chamber cover $21.45
C3944153 Crankshaft shell $1.98
C3944258 Oil pan $77.55
C3944264 Oil suction pipe $22.44
C3944452 Valve spring retainer $0.73
C3944593 C3944593 Bolt $0.50
C3950375 Gear chamber $89.10
C3950549 Piston pin $4.62
C3958112 Gear chamber cover(former no.3958112 ) $19.80
c3959031 Oil cooler core $37.95
C3959798 Seal, air vavle chamber cover $2.31
C3959799 Damping block $1.49
C3964073 C5320276 Compression ring $2.97
C3964141 High pressure pipe $12.54
C3964142 High pressure pipe $12.54
C3964143 High pressure pipe $12.54
C3964715 Push rod $1.98
C3964715 Push rod $1.82
C3965966 Tappet body $9.24
C3965966 Tappet body $9.24
C3966365 Oil cooler core $59.40
C3966708 Seal, air vavle chamber cover $2.15
C3967103 Poly-grooved belt $10.56
C3967429 C3967429 Power steering pump assembly $95.70
C3968074 Valve seat $1.32
C3968474 Inlet air connector $1.32
C3968563 C3968563 seal oil fitted with PTO Drive Shaft $4.95
C3970810 Bolt $1.65
C3970866 Air valve chamber cover $39.60
c3974539 Crankshaft $462.00
C3974548 Air compressor $102.30
C3976620 camshaft $94.05
C3977202 C3977202 Combination hose $6.60
C3977620 To oil shut off magnetic valve $34.65
C3979176 Position sensor $4.95
C3979316 Tension wheel assy $18.15
C4051033 Turbocharger $214.50
C4903290 C5298010 Fuel injector connector $9.90
C4903290 C5298010 Fuel injector connector $9.90
C4930793 C4930793 Power steering pump assembly $90.75
C4930794 Generator $125.40
C4931793 Shock Absorber $2.97
C4935078 Ventilation casing $13.86
C4935192 C4935192 Oil dipstick $2.97
C4935793 Water pump assy $17.16
C4936076 Valve spring $2.31
C4936535 C4936535 air compressor $141.90
C4936582 Seat, Oil filter $50.16
C4940640 C4940640 Fuel injector $201.30
C4941464 Oil pump $46.20
C4942138 Cylinder head $924.00
C4943247 Fuel feed pipe $13.20
C4944725 C5266303 Tappet locating pin $1.25
C4944735 Oil deliver pump $297.00
C4944735 Oil deliver pump $297.00
C4946255 C4946255 Generator $214.50
C4946256 C4946256 Starter $201.30
c4946620 Cylinder gasket $25.74
C4946744 Engine front mounting bracket $22.44
C4947472 Flywheel housing $158.40
C4948412 Air intake preheator $59.40
C4954905 Position sensor $3.30
C4988676 air compressor $283.80
C4989436 Crankshaft $495.00
C5254292 C5254292 Air compressor $297.00
C5254972 Rolling bearing $1.65
D4045054 Turbocharger $224.40
D4076493 Pressure sensor $14.85
D4088866 D4088866 Gear pump $0.00
D4921517 Pressure sensor $12.54
DC12J150T-038 Input shaft bore oil seal $3.96
DC12J150T-039 Insert type pair box synchronous spring $0.50
DC12J150T-042 O-ring
DC12J150T-105 Transmission 2nd shaft
DC12J150T-145 The second shaft front lock nut
DC12J150T-145 The second shaft front lock nut
DC12J150T-156S Rear bring clover oil seal of main shaft $5.61
DC12J150T-191 2th shaft rear bearing cover $0.00
DC12J150T-410 Input shaft bearings $37.95
DC12J150T-420 Intermediate shaft front bearing $12.54
DC12J150T-425 Middle shaft rear bearing $30.36
DC12J150T-435 Reverse needle roller bearing
DC12J150T-440 The first gear needle roller bearings
DC12J150T-445 Input shaft second gear needle roller bearings
DC12J150T-450 The fourth gread gear bearing $12.87
DC12J150T-455 3th Reverse needle roller bearings Specifications chart $0.00
DC12J150T-465 2nd shaft rear bearing $32.34
DC12J150T-495 Roller bearings, auxiliary low-grade needle $0.00
DC12J150T-617A Sliding gear sets, range box $74.58
DC12J150T-624 Stop block, range box synchronizer $3.63
DC12J150T-636 Second shaft rear lock nut
DC12J150T-639 Sealing ring, auxiliary high grade
DC12J150T-930 First shaft bearing adjusting pads
DC12J150T-931 First shaft bearing adjusting pads
DC12J150T-931 First shaft bearing adjusting pads
DC12J150T-932 First shaft bearing adjusting pads
DC12J150T-933 First shaft bearing adjusting pads
DC12J150T-934 First shaft bearing adjusting pads
DC12J150T-934 First shaft bearing adjusting pads
DC12J150T-935 First shaft bearing adjusting pads
DC12J150T-935 First shaft bearing adjusting pads
DC12J150T-936 First shaft bearing adjusting pads
DC12J150T-936 First shaft bearing adjusting pads
DC12J150T-936 First shaft bearing adjusting pads
DC12J150T-937 First shaft bearing adjusting pads
DC12J150T-937 First shaft bearing adjusting pads
DC12J150T-938 First shaft bearing adjusting pads
DC12J150T-939 First shaft bearing adjusting pads
DC12J150T-939 First shaft bearing adjusting pads
DC12J150T-940 First shaft bearing adjusting pads
DC12J150T-941 First shaft bearing adjusting pads
DC12J150T-942 First shaft bearing adjusting pads
DC12J150T-943 First shaft bearing adjusting pads
DC12J150T-944 First shaft bearing adjusting pads
DC12J150T-944 First shaft bearing adjusting pads
DC12J150T-945 First shaft bearing adjusting pads
DC12J150T-947 First shaft bearing adjusting pads
DC12J150T-949 First shaft bearing adjusting pads
DC12J150T-950 First shaft bearing adjusting pads
DC12J150T-951 First shaft bearing adjusting pads
DC12J150T-958 Synchronizer spring $0.33
DC12J150TA-056 Countershaft drivng gear $47.85
DC12J150TM-033 Insert type pair box synchronous ring $30.36
DC12J180TA-485 Front bearing, auxiliary output shaft
DC9J135T-382 Double H valve $7.92
FS19922 Filter element $15.84
LF9009 Oil filter $12.54
XLB-3401010-T0100 XLB3401-110 Repair kit $13.86
XLB-3401010-T0500 XLB3401-110 Repair kit $13.86
All Wheel Drive 6X6 Fire Water Tanker Off Road Truck (Dongfeng Left Right Hand Drive)Water Tank 8000Liters with Fire Montior, Fire Pump
DONGFENG Fire Sprinkler Tank Truck For Sale
6 Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank Off Road Truck
1.All Wheel Drive 6*6 6WD Water Tank Fire Truck,
2.with Cummins Engine 160HP -210HP,
3.12.5R20 radial off road tire
4.water tank capacity: 8000Liters
5. With Fire Monitor, FIre Pump. Multifunction with fire truck and water truck
6. 6WD All Wheel Drive good price and fast delilvery.
Main Specification
Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank
equip Fire Pump, Fire Monitor, Optional Front Spraying Nozzle. with Mulitifunction of Water truck and Fire Truck.
11.Spraying Range by Fire Monitor: more than 50m
Fire Water Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
The fire water tank truck with big capacity water tank body, can transport the water and fire personal away the fire to put off the fire, it also can put our the fire directly suction the water source, or supply the water to other fire truck and fire fighting equipment. The fire water tank truck also can supply and transport water to dry areas, it is suit for to put out the common fire. It is suit for police fire brigade and the fire brigade of enterprises. Meantime, the water fire fighting truck is suit for landscaping, fire sprinkler, fire, mine dust, put out the fire for living area, fire power plant.
the specification of Four Wheel Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank:
| Chassis model | Dong Feng 6*6 chassis | |
| Traction type | 6×6 | |
| The total mass(kg) | 10940 | |
| Rated loading weight(Kg) | Off-road3500kg,highway5000kg | |
| Overall size(mm) | length | 7495 |
| width | 2470 | |
| height | 2740 | |
| wheelbase(mm) | 3475+1250 | |
| Wheel span(front/rear)(mm) | 1876/1870 | |
| Minimum turning radium(m) | 18.8 | |
| Approach/departure angle( 0 ) | 35/34 | |
| engine | manufacturer | DONGFENG CUMMINS CO.LTD |
| model | EQ6BT5.9 | |
| power(Kw)/(r/min) | 118/2800 160HP | |
| Max torque(N.m)/(r/min) | 546/1700 | |
| clutch | Φ350mmsingle sheet ,dry, hydraulic | |
| gearbox | 5 speed manual | |
| Front axle | 3.7 T | |
| Rear axle | 4T double axles | |
| steering | Power steering | |
| tire | 12.5R20 radial off road tire | |
| Frame profile size(mm) | 232×75×6.5 | |
| Cab | DONGFENG FLAT DOUBLE row cab | |
| Tank volume (L) | Main tank 145L+backup tank 50L | |
| Max speed (Km/h) | 90 | |
| Grade ability | Loading 3500kg,no trailer | 60% |
| loading3500kg,pull4800kg | 40% | |
| Brake distance(loading3500kg,no trailer, speed 30km/h) | 8m | |
| Fuel consumption(L/100km)(loading3500kg,) | 26.5 | |
| Max running distance(km) | 700 | |
| Cross water depth(m) | 1 | |
| others | PTO and capstan are optional | |
| Special function: | ||
| Tank capacity | 8000 liters | |
| Material of the tank | High quality Q235 | |
| with Fire Montior, Fire Pump. Fire pump Model: CB20.10/20.40 Low-Pressure flow/pressure: 40L/S/1.0MPA Medium pressure flow/pressure: 20L/S/2.0MPA Atmospheric pump: CB10/40 Flow/Pressure: 40L/S/1.0MPA Applicable tonnage: 4 tons, 6 tons of fire trucks Applicable model: 4x2/6x4/4x4/6x6 fire truck | ||

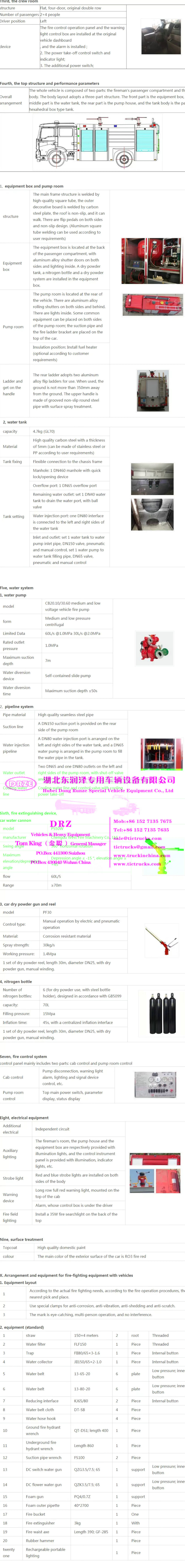

The Picture of 6 Wheel All Drive Truck Left/Right Hand Drive 6×6 Fire Truck Water Tank:
All Wheel Drive 6WD Water Tank Fire Truck 8Tons
1.All Wheel Drive 6*6 6WD Water Tank Fire Truck,
2.with Cummins Engine 160HP -210HP,
3.12.5R20 radial off road tire
4.water tank capacity: 8000Liters
5. With Fire Monitor, FIre Pump. Multifunction with fire truck and water truck
6. 6WD All Wheel Drive good price and fast delilvery.
Volume of Water Tank: 2Ton -3.5Tons
Categories: 6x6 Special Vehicles, Fire Water Tank TruckTags: 3.5Tons Fire Truck With Water Tank, 4WD, 4WD Fire Pumper Truck, 4WD Fire Truck, 4WD Fire Truck With Water Tank, 6WD Fire Truck, 6WD Fire Truck Water Tank, 6WD Fire Water Truck, 6WD Water Fire Truck, 6x6 Fire Truck, 6X6 Fire Truck Water Tank, 6x6 Water Truck, All Wheel Drive Fire Truck, All Wheel Drive Fire Truck Water Tank, All Wheel Drive Fire Truck With Water Tank, All Wheel Drive Water Truck, All Wheel drving, Chinese Fire Fighting Trucks, Chinese Hubei Fire Truck, Dongfeng Fire Truck, Fire Spraying Water Truck
Product Description
All Wheel Drive 6WD Water Tank Fire Truck 8Tons
1.All Wheel Drive 6*6 6WD Water Tank Fire Truck,
2.with Cummins Engine 160HP -210HP,
3.12.5R20 radial off road tire
4.water tank capacity: 8000Liters
5. With Fire Monitor, FIre Pump. Multifunction with fire truck and water truck
6. 6WD All Wheel Drive good price and fast delilvery.
6WD Fire Fighting Truck equip Fire Pump, Fire Monitor, Optional Front Spraying Nozzle. with Mulitifunction of Water truck and Fire Truck.
Spraying Range by Fire Monitor: more than 50m
Fire Water Truck equips with Special Fire pump, fire monitor, fire Power Take Off. The fire monitor can be installed on the top of tank or at the rear of truck. With fire Connection, can be fill water through Fire Hydrant, with self-discharge valve.
The fire water tank truck with big capacity water tank body, can transport the water and fire personal away the fire to put off the fire, it also can put our the fire directly suction the water source, or supply the water to other fire truck and fire fighting equipment. The fire water tank truck also can supply and transport water to dry areas, it is suit for to put out the common fire. It is suit for police fire brigade and the fire brigade of enterprises. Meantime, the water fire fighting truck is suit for landscaping, fire sprinkler, fire, mine dust, put out the fire for living area, fire power plant.
the specification of All Wheel Drive 6WD Water Tank Fire Truck 8Tons:
| Chassis model | Dong Feng 6*6 chassis | |
| Traction type | 6×6 | |
| The total mass(kg) | 10940 | |
| Rated loading weight(Kg) | Off-road3500kg,highway5000kg | |
| Overall size(mm) | length | 7495 |
| width | 2470 | |
| height | 2740 | |
| wheelbase(mm) | 3475+1250 | |
| Wheel span(front/rear)(mm) | 1876/1870 | |
| Minimum turning radium(m) | 18.8 | |
| Approach/departure angle( 0 ) | 35/34 | |
| engine | manufacturer | DONGFENG CUMMINS CO.LTD |
| model | EQ6BT5.9 | |
| power(Kw)/(r/min) | 118/2800 160HP | |
| Max torque(N.m)/(r/min) | 546/1700 | |
| clutch | Φ350mmsingle sheet ,dry, hydraulic | |
| gearbox | 5 speed manual | |
| Front axle | 3.7 T | |
| Rear axle | 4T double axles | |
| steering | Power steering | |
| tire | 12.5R20 radial off road tire | |
| Frame profile size(mm) | 232×75×6.5 | |
| Cab | DONGFENG FLAT DOUBLE row cab | |
| Tank volume (L) | Main tank 145L+backup tank 50L | |
| Max speed (Km/h) | 90 | |
| Grade ability | Loading 3500kg,no trailer | 60% |
| loading3500kg,pull4800kg | 40% | |
| Brake distance(loading3500kg,no trailer, speed 30km/h) | 8m | |
| Fuel consumption(L/100km)(loading3500kg,) | 26.5 | |
| Max running distance(km) | 700 | |
| Cross water depth(m) | 1 | |
| others | PTO and capstan are optional | |
| Special function: | ||
| Tank capacity | 8000 liters | |
| Material of the tank | High quality Q235 | |
| with Fire Montior, Fire Pump. Fire pump Model: CB10/30 Medium Pressure pump: CB20.10/15.30 Low-Pressure flow/pressure: 30L/S/1.0MPA Medium pressure flow/pressure: 15L/S/2.0MPA Flow: 30L/S, Pressure: 1.0Mpa Applicable tonnage: 3.5 tons of fire trucks Applicable car: 4x2/6x4/4x4/6x6 fire truck | ||
The Picture of All Wheel Drive 6WD Water Tank Fire Truck 8Tons
Dongfeng All Wheel Drive 6×6 6WD Water Truck Water Tank Truck Spraying Water Trucks 10Tons :
Main specification of All Wheel Drive 6WD Water Truck 10000Liters:
on bassis of Dongfeng All Wheel Drive 6×6 6WD chassis
190HP Engine for Choice 6700CC displacement
12.5R10 Desert Off Road Tire 4+1pcs
Water Tank capacity:10000Liters / 10Tons
With Water Pump
Carbon Steel Water truck or Stainless Steel Drinking Water for Choice
All Wheel Drive 10Tons Water Trucks. 6forwards
6WD OFF Road Water Truck Produced by Hubei Runli Company
Off Road 6WD Water Truck exported to Mongolia
Good Price and quality, fast delivery.
Specification of Dongfeng All Wheel Drive 6×6 6WD Water Truck Water Tank Truck Spraying Water Trucks 10Tons :
driving typ Dongfeng All Wheel Drive 6WD Water Trucks net weight(kgs) 8955 Dimension of Vehicle 7800*2500*2840mm Wheelbase 3475+1250mm Front/rear tread 1876/1780 Min Distance from the ground 305mm Motor Model B190-33 Type Diesel, 6cylinder inline with water cooling Displacement 6700cc Power( Kw/rpm) 136/1500 Max. Torque( N.m/rpm) 630/1700 Clutch Ø350mm single dry, pneumatic booster, hydraulic contral Front axle 3.7T Rear axle 4T*2 Tyre 12.5R10 4+1 Cabin With one bed Max. braking distance 8m Climbing gradient 40% Vertical obstacle height 700mm The trench width 700mm Max. fording depth 700mm Capacity of fuel tanker Main fuel tanker: 145L Water tank capacity(L) 10000Liters Material of tank body Carbon steel Q235 4mm thicknessFire pump (atmospheric pump) Model: CB10/60Flow: 60L/S, Pressure: 1.0MpaFire gun Model: SP20, Range: 48mApplicable tonnage: 8 tons of fire trucksApplicable car: 6x4/6x6/8x4/8x8 fire truckDongfeng All Wheel Drive 6×6 6WD Water Truck Water Tank Truck Spraying Water Trucks 10Tons
Fire fighting water tank lorry truck 7200L,1600Gallon
3.5Tons Fire Truck With Water Tank , 4WD , 4WD Fire Pumper Truck , 4WD Fire Truck , 4WD Fire Truck With Water Tank , 6x6 Water Tank Fire Truck , All Wheel Drive Fire Truck , All Wheel Drive Fire Truck Water Tank , All Wheel Drive Fire Truck With Water Tank , All Wheel Drive Truck , all wheel drive water tank fire truck , All Wheel drving , Chinese Fire Fighting Trucks , Chinese Hubei Fire Truck , Dongfeng Fire Truck , Fire Spraying Water Truck , Four Wheel Drive Truck , Off Truck Water Fire Truck
Dongfeng truck part list price offer
Part Number Part Name (in English)
Part Number Updated Part Number Part Name (in English) FOB price/pcs
USD
6216 Deep groove ball bearing
6315 Deep groove ball bearing
32218 Bearing
3900250 Air valve closing piece
3906660 Exhaust manifold $99.00
3907308 C3960780 Fly Wheel gear $16.50
3913967 Oil Cooler seater $17.16
3914494 Pulley,crankshaft $202.95
3917700 Exhaust manifold $42.90
3920692 C3920692 Circlip $0.13
3921558 Engine Oil Cooler Core $29.04
3924731 Intercooler assy $148.50
3929036 Crankshaft,engine $237.60
3931623 Tappet,valve $1.82
3934047 Piston pin (A3919053) $2.64
3935945 Rocker arm end support seat $0.33
3938267 C3415501 Cylinder head gasket $13.86
3944158 C3944158 Main bearing $1.98
3944222 Preheater $181.50
3944679 Bolt $1.65
3944833 C4931173 Straight joint body $9.24
3948578 3948578 Oil seal $0.46
3957543 Core,cooler $26.40
3964093 C4935078 Respirator compartment $9.90
3966448 Head,cylinder 4BT $379.50
3966454 Cylinder head (C3934746) $415.80
3967251 Sensor,oil pressure $4.95
3973114 Water pump $23.10
3991123 Engine oil pump $37.95
4931041 Piston Pin $3.63
4931169 C4931169 Pressure alarm sensor $4.95
4931572 Oil Cooler seater $28.05
4932577 Manifold,exhaust $52.14
4939161 Flywheel with gear $115.50
4990783 Generator $128.70
C4994573 Tensioner ,belt $18.15
1001017-T2200 Left bracket, engine front mounting $14.85
1001030-K1700 Cushion assembly, engine front mounting $2.31
1001117-T0500 Left bracket, engine rear mounting $39.60
1001158-T2100 Rear mounting support of engine $9.90
1001211-T0900 Stablizer bar $18.15
1011N-010-A2 Oil pump assy. $34.65
10Q01-01020-B $4.95
10Z66-01030 Front suspension cushion assembly, Engine $6.93
10ZB7C-01024 Upper cover plate $8.58
10ZB7C-01027 Rubber bushing-transmission $2.64
10ZB7C-01029 Lower cover plate $4.95
10ZB7C-01030 Front suspension cushion assembly, Engine $7.92
10ZB8A-01025 Support sway bar $5.28
10ZB8A-01030 Rubber bushing, frame $0.99
10ZD10-01030 Cushion assembly, engine rear mounting $2.64
1101020-T0500GY Fuel tank pipe unit $363.00
1103DH39-001 #N/A $6.93
1108010-C0102 Accelerator pedal assembly,electronic throttle $31.35
1108150-T0500 Accelerator drive control cable assembly $2.64
1109010-T0100 Air cleaner assembly $105.60
1109010-T3800 Air filter assembly $99.00
1109016-T0100 Bracket, air cleaner $15.84
1109017-T0100 Reinforced plate, air cleaner bracket $7.26
1109021-T0101 Rubber hose, Turbocharger air intake $14.85
1109021-T0500 Rubber hose, Turbocharger air intake $9.24
1109024-T0500 Connection pipe $11.55
1109031-K0700 Bracket, air intake pipe $5.94
1109040-T0100 Rear air intake passage $13.86
1109094-T0500 Bracket, thermal insulation board, C $3.96
1109096-T0500 Bracket, thermal insulation board, A $3.96
1109097-T0500 Bracket, thermal insulation board, B $4.95
1109099-T0500 Heat insulation plate $10.56
1109810-C0101 Air intake leading pipe assembly $32.34
1118ZB6-001 Intercooler assembly $161.70
1118ZD2A-001 Intercooler assembly $158.40
1119010-T0400 Intercooler assembly $158.40
1119011-T3000 Air intake steel tube $15.84
1119012-T3000 Air outlet steel tube, intercooler $15.84
1119014-K0100 Connecting rubber hose $4.29
1119122-ZB7C0 Air outlet pipe, intercooler $3.63
1119123-K0700 Rubber hose, A $4.62
1119124-K0700 Rubber hose connecting,B $4.29
1119ZB6-020 Diesel pre-filter assembly $5.28
1125020-T0400 1125020-T0400 Oil and water separator assembly $80.85
11Z24-18014 Air intake pipe, transition pipe $9.24
1201010-T0400 muffier assy $138.60
1201ZB3A-001 muffier assy $231.00
1202010-X0100 Metal hose assembly $13.20
1202ZB1E-001 Metal hose assembly $12.54
12N12-03061 Gasket $0.66
12N12-03062 Sealing gasket $0.33
12N42-03051-B Circlip $0.33
12Z06-03061 Seal Ring-KinG pin $0.33
12Z24-03015 Connecting pipe, the turbocharger outlet $14.85
12ZB1E-03072 Gasket $0.53
1301010-T3000 Radiator assembly $237.60
1301Z24-001 Radiator assembly $234.30
1301ZD2A-001 Radiator assembly $191.40
1303011-T2201 Water inlet rubber hose, radiator $8.58
1303011-T3000 Water inlet rubber hose, radiator $6.93
1303013-T0500 Water outlet rubber hose, radiator $4.95
1303013-T3100 Water outlet rubber hose, radiator $4.95
1303015-KN100 Connection pipe assembly $11.88
1303030-T0500 water inlet steel pipe, Engine $14.85
1308060-T3100 Viscous fan clutch with fan assembly $122.10
1308060-T3100-2 1308060-T3100-2 Viscous fan clutch $122.10
1308Z24-001 Fan assy $11.88
1308ZB7C-001/1308010-N9FC0 #N/A $29.04
1309010-T0500 Wind shield assembly $14.85
1309010-T2201 Wind shield assembly $18.15
1309012-ZD2A0 Wind deflector $21.45
1309021-T3100 Upper strut, deflector $9.90
1311010-K0300 Auxiliary water tank assembly $18.15
1311021-T3000 Degassing steel pipe, water tank $2.64
1311022-T3000 Degassing steel pipe, engine $2.64
1311027-K0100 Degassing steel pipe bracket $2.31
1311031-T2200 Deaerator rubber hose, engine $2.31
1311036-T3000 Deaerator rubber hose, engine $1.65
13N-02020 Radiator cushion assembly $0.66
13ZD10-02045 Radiator left support assembly, frame $7.26
13ZD10-02050 Radiator right support assembly, frame $7.26
13ZD2A-09014 Flexible wind ring $3.63
1601080-T0802 Pull-type clutch bearing assembly $26.40
1601090-T0501 Clutch cover and pressure plate assembly $155.10
1601ZB1T-130 Clutch driven plate assembly $59.40
1604010-C0100 Clutch Master Cylinder $12.54
1608010-T0402 1608010-T0403 Clutch booster assy $52.80
1608010-T0501 1608010-T0502 Clutch booster $40.26
1608N-001 Booster assembly $22.44
16NM-02063 Clutch release fork $9.90
1700010-T31K0 Gearbox assy $0.00
1700N-460 Rolling bearing $0.00
1703080-T0400 Handle ball $11.88
1703405-T0401 1703405-T0401 Shift lever assembly $56.10
1712113-T0501 Rubber hose II, the oil outer cooler $8.25
1712ZB7C-010 Oil cooler assembly, gearbox $84.15
17N-03031 Bush $0.99
17Z07-03100 Ball joint $2.64
2201010-T04K0 Transmission shaft with aliding fork assembly $297.00
2201ZB8A-110 Transmission shaft with spline shaft fork assembly $227.70
2202ZB7A-010 Transmission shaft with spline shaft fork assembly $227.70
2402336-ZB01A Supporting washer half shaft gear
2402345-ZB01A Planetary gear
2402N-058 Oil seal assembly, driving bevel gear $2.64
2402ZB-060 Driving bevel gear oil seal assembly $3.96
2402ZB2-065 Flange assembly, driving bevel gear $16.50
2402ZB5-010 Rear axle final drive and bevel gear differential assembly $16.50
2402ZB839-026/25 #N/A $379.50
2402ZHS01-065 Flange assembly $23.76
2402ZHS01-131 Adjusting spacer sleeve
2402ZHS01-135 Adjusting spacer sleeve
2402ZHS01-136 Adjusting spacer sleeve
2402ZHS01-161 Adjusting shim
2402ZHS01-162 Adjusting shim
2402ZHS01-163 Adjusting shim
2402ZHS01-172 Adjusting shim
2402ZHS01-174 Adjusting shim
2402ZHS01-345 Planetary gear, inner-wheel differential $9.57
2402ZS01-315-B Bevel gear differential case
2402ZS01-345-B Planetary gear
2405ZHS01-010 Wheel side reduction assembly
24XZB-01090 Semi shaft oil seal assy. $1.32
24ZB-01090 Semi shaft oil seal assy. $1.16
24ZHS01-01068 Vent plug assembly $2.64
24ZHS01-11015 Fork shaft $0.00
2502ZAS01-038 O-ring $0.00
2502ZAS01-051 2502ZAS01-051 Middle axle cylindrical driven gear $77.55
2502ZAS01-057 seal oil fitted with PTO Drive Shaft $2.31
2502ZAS01-143 2502ZAS01-143 Middle axle drive cylinder gear $113.85
2502ZAS01-411 Axial differential case
2502ZAS01-415 2502415-ZA01B Axial differential assembly
2502ZAS01-419 Ball bearing,intermediate axle input end $15.51
2502ZAS01-431 Cross shaft,axial differential $15.51
2502ZAS01-435 Front side gear $14.19
2502ZAS01-436 Supporting washer,front gear $0.66
2502ZAS01-438 Supporting washer,rear gear $23.76
2502ZAS01-445 Planetary gear, inter-axial differential $7.26
2502ZAS01-446 Supporting gasket, planetary gear $0.69
2502ZAS01-566 Adjusting shim
2502ZAS01-567 Adjusting shim
2502ZAS01-569 Adjusting shim
2502ZHS01-065 Flange assembly, middle axle input $25.08
2510ZHS01-055 Oil seal and oil seal seat assembly, input end , middle axle
2510ZHS01-056 Oil seal assembly,input end of middle axle $2.97
2510ZHS01-410 Axial differential assembly $445.50
2510ZHS01-431 Cross shaft,axial differential assembly $21.45
2510ZHS01-445 Planetary gear, inter-axial differential $8.91
2510ZHS01-446 Base ring, differential gear $0.59
25ZAS01-02163 25ZAS01-02163 Transfixion shaft $85.80
25ZAS01-02167 Gasket,rear oil seal seat
25ZAS01-02169 O ring,flange $23.10
25ZAS01-02170 Oil seal,output end $1.65
25ZAS01-02175 Flange assembly $16.50
25ZHS01-02065 Oil seal and oil seal seat assembly-thru shaft assembly $2.97
25ZHS01-02067 Oil seal assembly-transfixion shaft $14.85
25ZHS01-11021 Sensor assembly $0.00
25ZHS01-11026 Shift fork, differential lock wheels $0.00
2701515-T0101 Bracing piece assembly, trailer valve $29.70
2801110-T0700 1st beam assembly $95.70
2921010-T0800 Shock absorber assembly $23.10
2921FC-010-A Shock absorber assembly $18.15
29N-01287 Bushing, front shackle $1.16
29ZB1-06025 Lever assembly $24.75
29ZB1-06031 Lever support $8.25
30N-01021 Knuckle king pin $5.94
30Z01-01019 Upper bushing, steering knuckle $1.32
30Z01-01020 Lower bushing, steering knuckle $1.32
30Z01-01035 Thrust bearing assembly $3.63
30ZB1-01016 Right steering knuckle assembly $122.10
30ZB1-01044 Upper arm, left knuckle $43.56
30ZB3-01035 Thrust bearing assembly $5.28
3104015-T2500 Rear hub $89.10
31F58-03055-A Wheel nut assembly $0.92
31XZB-04080 Rear hub oil seal assy. $2.31
31Z01-03080 Front hub oil seal assy. $1.98
31ZB1-03051 Front wheel bolt $3.30
31ZB1-04080 Rear hub oil seal assy. $3.96
31ZB6-03015 Front hub $80.85
31ZD10-03015 Front hub $80.85
31ZHS01-04051 Wheel bolt $2.64
31ZHS01-04080 Oil seal,rear hub $4.95
32315/P5 Tapered roller bearing
3303ZB6-059 Tie rod jonit assembly(LH) $17.16
3303ZB6-060 Tie rod jonit assembly(RH) $17.16
3401010-T0500 Power steering gear assembly $11.88
3401ZB3-001 Integral power steering gear $429.00
3404010-C0101 Steering gear assembly with regulator $80.85
3410N2-030 Oil Filter element assembly $1.98
3412110-T0500 drag link assy $42.24
3502ZS10-101 Rear brake shoe $36.30
3513B40B-010 Air reservoir assembly $25.74
3514010-C0100 Brake valve assembly $25.08
3517010-C0100 Manual brake valve assembly $14.85
3517010-C0101 Manual brake valve assembly $14.85
3522Z07-001 Trailer brake valve $44.55
3527ZB1-001 Differential valve assembly $21.45
3541Z66-001 Exhaust brake valve assembly $24.75
3543010-K0200 Air dryer assembly $69.30
3543010-T31K0 Air dryer, with muffler assembly $80.85
3543ZD2A-001 Air handling unit function assembly $77.55
3550ZB1E-021 Bushing,ABS sensor $14.85
3551020-ZB100 Adjusting arm $43.56
35T01-06202 The 1nd air hose assembly, connecting the air compressor and dryer $29.70
35Z06A-13013 Air reservoir support $1.32
3638010-C0100 Integrated alarm control assembly $17.16
3682610-C0100 Air pressure meter sensor $15.84
3690010-KC100 Water level sensor assembly $4.95
3704110-C0100 Ignition lock ,door lock cylinder,fuel tank cap with key subassembly $18.15
3724020-C0368 Main harness assembly, left body
3724030-C0368 Main harness assembly of right body
3724410-C0100 SMJ box - left
3724411-C0100 SMJ box cover, left
3724420-C0100 SMJ box - right
3724421-C0100 SMJ box cover, right
3724560-T0401 Frame ABS harness assembly
3724580-T31K0 Chassis wiring harness assy
3726240-C0100 Left turning ground lamp assembly $3.63
3726250-C0100 Right turning ground lamp assembly $3.63
3735010-C0100 Flasher assembly $2.31
3735015-C0100 Flasher unit assembly $6.60
3735020-C0100 Wiper intermittent relay assembly $7.59
3735090-C0100 Relay assy $1.65
3735095-C0100 Relay assy $1.65
3747010-C0100 3747010-C0100GY Washer assembly $9.90
3750120-C0100 Lifting switch assembly $1.65
3750410-C0100 Stop lamp switch assembly $1.98
3750650-Z07Y0 Engine starting and flameout switch box $6.60
3750730-C0101 Power window switch assembly, driver side $18.15
3750740-C0100 Power window switch assembly, passenger side $1.65
3754020-C0300 Air horn electromagnetic valve assembly $8.25
3763010-C0100 Reflector assembly $0.66
3772010-C0100 Left front combined lamp assembly $36.30
3772020-C0100 combined lamp $36.30
3774010-C0100 Combination Switch $19.80
37A-50070 Switch, glass riser, electromotion $8.58
37D52-36010 Electromagnetic power master switch $11.55
37N-35085-B1 Starter relay assembly $3.30
37ZB1-36010 Main Power Supply Switch $6.93
37ZB1-73010 Left rear tail lamp $11.55
37ZB1-73020 Right tail lamp $9.24
37ZB1T-54020 Solenoid valve $23.10
37ZB7-60010-A Side marker lamp assembly $1.32
3801030-C0179 Combination instrument assembly -Euro 3 $346.50
3827010-T0800 Fuel level sensor assembly $13.86
38ZD2A-18010 Reverse buzzer $4.62
4210ND-010 4210ND-010A Pneumatic booster $178.20
5000012-C03A0-02 5000012-C03C0-04B Cab assembly (EURO III)
5000012-C0326-03 Cab assembly (EURO II)
5001013-C0300GY Left tilt bracket & compound sleeve technological assembly $40.26
5001014-C0300GY Right tilt bracket & compound sleeve technological assembly $40.26
5001015-C0300 Compound bushing $1.32
5001022-C0300 Tilting shaft $2.31
5001025-03GY Rubber sleeve assembly $7.26
5001040-C0302 Upper stop block, front mounting $1.65
5001042-C0302 Left front mounting spring $5.61
5001043-C0302 Right front mounting spring $5.61
5001059-C0302 Front mounting left upper bracket assembly $36.30
5001060-C0302 Upper bracket assembly - before the susp $36.30
5001085-C0302 Vibration damper $9.24
5001145-C0100 Rubber sleeve assembly, Rear mounting lower bracket $1.32
5001150-C0302 Spring shock absorber assembly, rear mounting $13.86
5003010-C0300 Main oil cylinder assembly $62.70
5003011-C0300 Auxiliary hydro-cylinder assembly $62.70
5005011-C0301 Oil pump system $69.30
5005015-C0100 Oil pump assembly $105.60
5005020-C0300 Oil pump assembly $77.55
5103020-C0102 Control panel $69.30
5104010-C0100 Steering wheel assembly $32.34
5110010-C0200 Lower heat isolator assembly, left floor $8.25
5110020-C0202 Insulating pad assembly - bulge $36.30
5110030-C0200 Lower heat isolator assembly, right floor $8.25
5205023-C0100 Right side wiper arm assembly $4.62
5301510-C0101 Welding assembly.front face shield $135.30
5301600-C0300 Left front outer plate assembly,with spoiler $18.15
5301601-C0300 Right front outer plate assembly,with spoiler $18.15
5301610-C0100 right locker $1.49
5301625-C0100 Support lever assembly $4.95
5301659-C0100 5301659-C0100#8A Left the small lateral plate assembly $14.85
5301660-C0100 5301660-C0100#8A Right lateral plate assembly $14.85
53N48-01710-B Front Wall Face Shield,Cabin $24.75
5400011-C0300 Welding assembly , left side wall $297.00
5400012-C0300 Right side wall welding assembly $297.00
6100910-C0118 6100910-C0118#8A Left door assy (EURO III) $313.50
6100920-C0130 6100920-C0130#8A Right door spare part assembly (EURO III) $313.50
6100910-C0110 Left door assy (EURO II) $313.50
6100920-C0110 Right door spare part assembly (EURO II) $313.50
6104010-C0101 Left door glass regulator $18.15
6104020-C0101 Right door window regulator, electric $18.15
6105910-C0105 Ignition lock & door lock sub-assembly $37.95
6105915-C0104 Ignition lock and door lock cylinder and fuel tank cap with key subassembly $44.55
6212/C3 Deep groove ball bearing
6313N Rear ball bearing , the first shaft
8101020-C0100 Warm wind core assembly $15.84
8101020-C0100 Warm wind core assembly $15.84
8103020-C0101 8103020-C0101 Evaporator assembly with expansion valve $59.40
8103150-C0100 Motor assembly $26.40
8105010-C0100 Condenser core assembly $66.00
8108010-C0104 A/C Pipe assembly connecting compressor outlet $18.15
8108010-C0110 A/C Pipe assembly connecting compressor outlet $25.74
8108030-C0100 A/C Pipe assembly connecting condenser assembly $18.15
8108040-C0104 Air conditioner pipeline assembly-connecting evaporator inlet $21.45
8108050-C0104 Air conditioner pipeline assembly-connecting evaporator outlet $21.45
8108080-C0104 A/C Pipe assembly connecting compressor intake $19.14
8112010-C0101 Heater controller assembly with A/C switch $18.15
8112040-C0100 Regulating resistance ,wind speed $9.90
8112140-C0101 Evaporator temperature sensor $4.95
8201010-C0103 Exterior rearview mirror assembly $9.90
8201139-C0100 N-type locking nut $0.99
8203010-C0100 Ash tray assembly $2.97
8204510-C0300 Sky shade assembly $43.56
8211010-C0100 Armrest, front pillar $1.65
8403060-C0303 rear mudguard assembly $54.45
8403070-C0302 Right elbow support assembly $19.80
8405310-C0100 Right lower foot pedal $9.24
8405316-C0100 Decoration cover,right lower pedal $2.97
8405326-C0100 Right lower pedal cover,symmetrical with left part $5.28
8405340-c0100 Support beam assembly, door step,one stair $5.94
8405348-C0100 Support,door step,one stair $3.30
8405409-C0100 Bracket welding assembly $11.55
8405410-C0100 Bracket welding assembly $11.55
8406010-C0100 8406010-C0100#8A Center bumper assy $56.10
8406019-C0101 Bumper assy,LH $23.76
8406020-C0100 8406020-C0100#8A Right side bumper assembly $23.10
8406020-C0101 Right bumper assembly $23.10
8406035-C0100 Upper grid, bumper $2.97
8406036-C0100 Lower grid, bumper $2.31
8406045-C0100 Foot pedal, bumper $0.33
8406059-C0101 Left trim cover, bumper $2.31
8406060-C0100 8406060-C0100#8A Right decoration cover- bumper bar $2.31
8406085-C0100 Center foot pedal- bumper bar $0.99
8406105-C0100 8406105-C0100 Bumper bracket assembly $84.15
8510010-T0800 Left side skirt assembly $135.30
8510020-T0800 Right side skirt assembly $135.30
8510045-T0800 Front fixing support assembly of left side skirt $62.70
8511110-T3100 Left front mudguard assembly of rear wheel $18.15
8511120-T3100 Right front mudguard assembly of rear wheel $18.15
A628-020/030 Filter element $29.70
AA2960 Air Filter element $34.65
AMP1393315-9 Preheat relay $21.45
AZ9003323212 Intermediate shaft front and rear bearings
C3283570 Cylinder clover sealing pad $11.55
C3285707 Oil dipstick pipe $5.94
C3288475 Poly-grooved belt $5.94
C3415317 Combination hose $6.93
C3415603 Fan bracket $24.75
C3415603 Fan bracket $24.75
C3901356 Turbocharger gasket $0.40
C3918776 Crankshaft gear $19.80
C3921919 Oil ring,piston $4.95
C3926631 Piston $14.85
C3927642 Seal,valve stem $0.53
C3928294 Piston compression ring N $4.29
C3929011 Sealing gasket,oil cooler cover $2.64
C3934046 Piston pin $4.62
C3937478 Exhaust manifold $29.70
C3937479 C3937479 Seal, exhaust manifold $0.99
C3938086 Gear chamber $64.35
C3940152 Intake cup $0.99
C3941786 Oil seal seat $2.64
C3942764 C5398764 Fuel pump gear $49.50
C3943813 Gear chamber cover $21.45
C3944153 Crankshaft shell $1.98
C3944258 Oil pan $77.55
C3944264 Oil suction pipe $22.44
C3944452 Valve spring retainer $0.73
C3944593 C3944593 Bolt $0.50
C3950375 Gear chamber $89.10
C3950549 Piston pin $4.62
C3958112 Gear chamber cover(former no.3958112 ) $19.80
c3959031 Oil cooler core $37.95
C3959798 Seal, air vavle chamber cover $2.31
C3959799 Damping block $1.49
C3964073 C5320276 Compression ring $2.97
C3964141 High pressure pipe $12.54
C3964142 High pressure pipe $12.54
C3964143 High pressure pipe $12.54
C3964715 Push rod $1.98
C3964715 Push rod $1.82
C3965966 Tappet body $9.24
C3965966 Tappet body $9.24
C3966365 Oil cooler core $59.40
C3966708 Seal, air vavle chamber cover $2.15
C3967103 Poly-grooved belt $10.56
C3967429 C3967429 Power steering pump assembly $95.70
C3968074 Valve seat $1.32
C3968474 Inlet air connector $1.32
C3968563 C3968563 seal oil fitted with PTO Drive Shaft $4.95
C3970810 Bolt $1.65
C3970866 Air valve chamber cover $39.60
c3974539 Crankshaft $462.00
C3974548 Air compressor $102.30
C3976620 camshaft $94.05
C3977202 C3977202 Combination hose $6.60
C3977620 To oil shut off magnetic valve $34.65
C3979176 Position sensor $4.95
C3979316 Tension wheel assy $18.15
C4051033 Turbocharger $214.50
C4903290 C5298010 Fuel injector connector $9.90
C4903290 C5298010 Fuel injector connector $9.90
C4930793 C4930793 Power steering pump assembly $90.75
C4930794 Generator $125.40
C4931793 Shock Absorber $2.97
C4935078 Ventilation casing $13.86
C4935192 C4935192 Oil dipstick $2.97
C4935793 Water pump assy $17.16
C4936076 Valve spring $2.31
C4936535 C4936535 air compressor $141.90
C4936582 Seat, Oil filter $50.16
C4940640 C4940640 Fuel injector $201.30
C4941464 Oil pump $46.20
C4942138 Cylinder head $924.00
C4943247 Fuel feed pipe $13.20
C4944725 C5266303 Tappet locating pin $1.25
C4944735 Oil deliver pump $297.00
C4944735 Oil deliver pump $297.00
C4946255 C4946255 Generator $214.50
C4946256 C4946256 Starter $201.30
c4946620 Cylinder gasket $25.74
C4946744 Engine front mounting bracket $22.44
C4947472 Flywheel housing $158.40
C4948412 Air intake preheator $59.40
C4954905 Position sensor $3.30
C4988676 air compressor $283.80
C4989436 Crankshaft $495.00
C5254292 C5254292 Air compressor $297.00
C5254972 Rolling bearing $1.65
D4045054 Turbocharger $224.40
D4076493 Pressure sensor $14.85
D4088866 D4088866 Gear pump $0.00
D4921517 Pressure sensor $12.54
DC12J150T-038 Input shaft bore oil seal $3.96
DC12J150T-039 Insert type pair box synchronous spring $0.50
DC12J150T-042 O-ring
DC12J150T-105 Transmission 2nd shaft
DC12J150T-145 The second shaft front lock nut
DC12J150T-145 The second shaft front lock nut
DC12J150T-156S Rear bring clover oil seal of main shaft $5.61
DC12J150T-191 2th shaft rear bearing cover $0.00
DC12J150T-410 Input shaft bearings $37.95
DC12J150T-420 Intermediate shaft front bearing $12.54
DC12J150T-425 Middle shaft rear bearing $30.36
DC12J150T-435 Reverse needle roller bearing
DC12J150T-440 The first gear needle roller bearings
DC12J150T-445 Input shaft second gear needle roller bearings
DC12J150T-450 The fourth gread gear bearing $12.87
DC12J150T-455 3th Reverse needle roller bearings Specifications chart $0.00
DC12J150T-465 2nd shaft rear bearing $32.34
DC12J150T-495 Roller bearings, auxiliary low-grade needle $0.00
DC12J150T-617A Sliding gear sets, range box $74.58
DC12J150T-624 Stop block, range box synchronizer $3.63
DC12J150T-636 Second shaft rear lock nut
DC12J150T-639 Sealing ring, auxiliary high grade
DC12J150T-930 First shaft bearing adjusting pads
DC12J150T-931 First shaft bearing adjusting pads
DC12J150T-931 First shaft bearing adjusting pads
DC12J150T-932 First shaft bearing adjusting pads
DC12J150T-933 First shaft bearing adjusting pads
DC12J150T-934 First shaft bearing adjusting pads
DC12J150T-934 First shaft bearing adjusting pads
DC12J150T-935 First shaft bearing adjusting pads
DC12J150T-935 First shaft bearing adjusting pads
DC12J150T-936 First shaft bearing adjusting pads
DC12J150T-936 First shaft bearing adjusting pads
DC12J150T-936 First shaft bearing adjusting pads
DC12J150T-937 First shaft bearing adjusting pads
DC12J150T-937 First shaft bearing adjusting pads
DC12J150T-938 First shaft bearing adjusting pads
DC12J150T-939 First shaft bearing adjusting pads
DC12J150T-939 First shaft bearing adjusting pads
DC12J150T-940 First shaft bearing adjusting pads
DC12J150T-941 First shaft bearing adjusting pads
DC12J150T-942 First shaft bearing adjusting pads
DC12J150T-943 First shaft bearing adjusting pads
DC12J150T-944 First shaft bearing adjusting pads
DC12J150T-944 First shaft bearing adjusting pads
DC12J150T-945 First shaft bearing adjusting pads
DC12J150T-947 First shaft bearing adjusting pads
DC12J150T-949 First shaft bearing adjusting pads
DC12J150T-950 First shaft bearing adjusting pads
DC12J150T-951 First shaft bearing adjusting pads
DC12J150T-958 Synchronizer spring $0.33
DC12J150TA-056 Countershaft drivng gear $47.85
DC12J150TM-033 Insert type pair box synchronous ring $30.36
DC12J180TA-485 Front bearing, auxiliary output shaft
DC9J135T-382 Double H valve $7.92
FS19922 Filter element $15.84
LF9009 Oil filter $12.54
XLB-3401010-T0100 XLB3401-110 Repair kit $13.86
XLB-3401010-T0500 XLB3401-110 Repair kit $13.86
