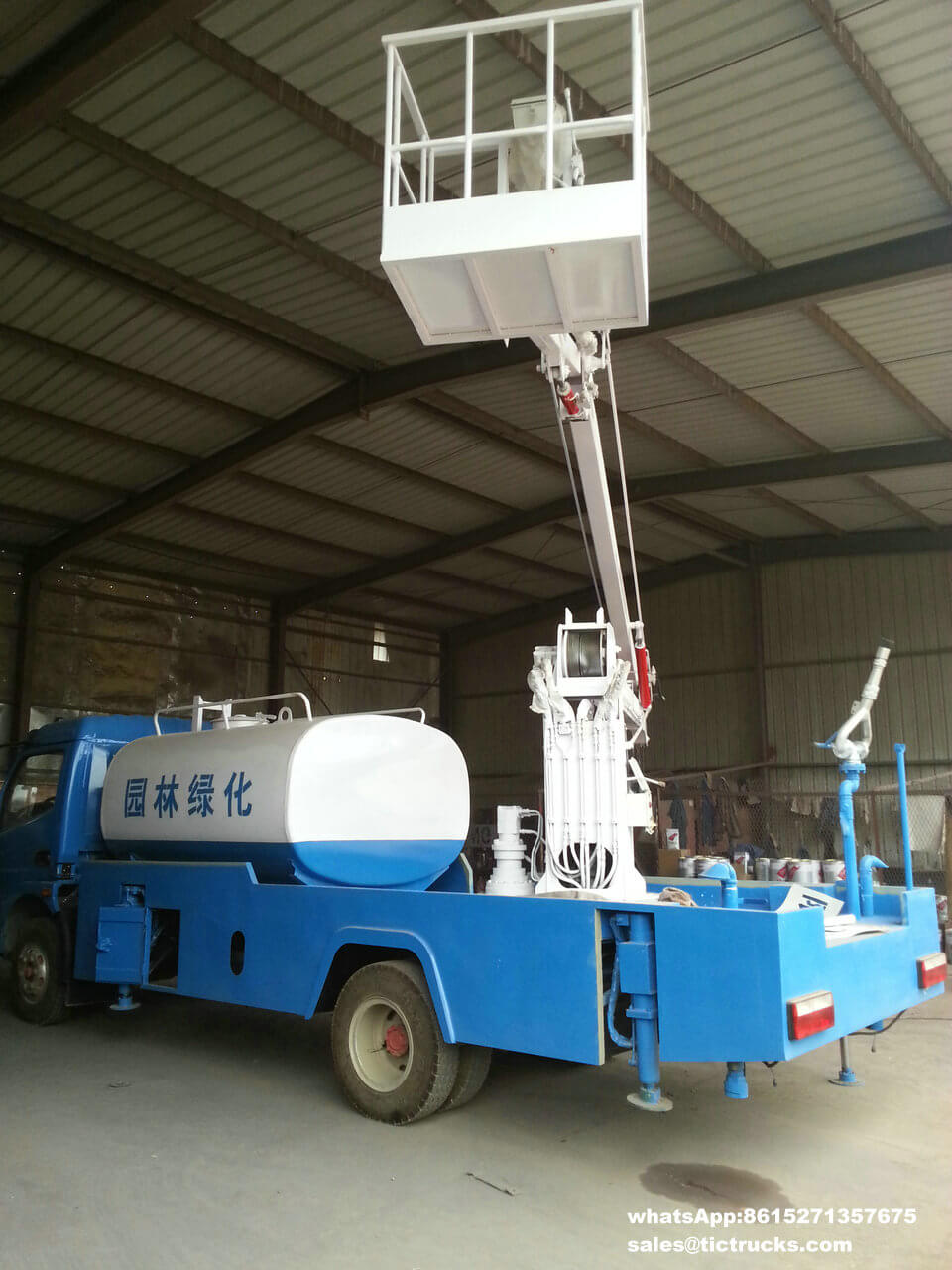

Aerial platform truck 16m with water tank and water pump
Views: 1066 Author: Dong Runze Special Vehicle Publish Time: 2017-06-20 Origin: Dong Runze Special Vehicle
Aerial platform truck 16m with water tank and water pump
Truck Mounted Aerial Work Platform and water tank
Euro3 LHD/FOB$27000-$30000;Euro3 RHD/FOB$30000-$33000;Euro5 LHD/FOB$29000-$34000;
Water Tank Volume: 3000L
Tank thickness: 4mm or 5mm
,dimension 7650×2040×3170mm,equipped with Dongfeng chassis Dongfeng 115hp diesel engine.
This aerial bucket truck has been widely used for aerial field such as electricity,street lamp, municipal administration.They arae designed to lift limited weights, usually less than a ton, although some have a higher safe working load,distinguishing them from most types of cranes. If you want to purchase the suitbale one,please kindly contact with us.Thanks.
Name | 16m Dongfeng Truck Mounted Aerial Work Platform and water tank Euro 3 Euro5 | ||
Item | Specifications | Item | Specifications |
Truck | |||
Model | DRZ5060JGK16E5 | Gross Weight (kg) | 5695 |
Overall dimensions (mm) | 7650×2040×3170 | Curb Weight (kg) | 5370 |
Wheelbase (mm) | 3308 | Approach / Departure Angle(°) | 20/12 |
Front Track (mm) | 1,503 | Rear Track (mm) | 1,494 |
Front/Rear Overhang (mm) | 1040/2142 | Axle Load (kg) | 2280/3415 |
Number of axles | 2 | Number of Tyres | 6 |
Traction system | 4×2 | Max speed (km/h) | 99 |
ABS | √ | Tyre Specification | 7.00-16 |
Paint | red | Allowable Cab Passengers | 2+3 |
Leaf Spring | 6/6+5 | ||
Chassis | |||
Model | EQ1070DJ3BDF | Brand | Dongfeng |
Emission Level | Euro 5 | ||
Engine (Motor) | |||
Brands | Model | Displacement | Rated Power |
Dongfeng | D28D11-5DA | 2771CC | 85kw (115hp) |
Superstructure | |||
Max Operation Height: 16m , 360° hydraulic Rotation, 3section folding arm, Single hydraulic lifting cylinder, bidirection balance valve, Electronical Control System lift arm, 1000kg telescoping hook, 4pcs of hydrocylinder adjustable manual landing leg with bothway hydraulic lock. | |||
Remarks | |||
double row cab,side and rear protective material is Q235, connecting by nut and welding,rear bottom part clearance is 450mm,section size is 30×200(mm) | |||
