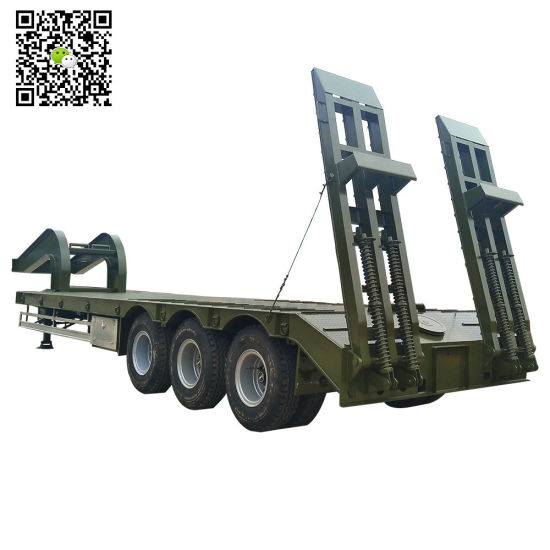

60t Heavy Duty Lowbed Trailer Truck (Gooseneck Low Bed Semi Trailer Lowbed Trailer)
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets Per Month
-
T/T, Western Union
Customied 60T Gooseneck Heavy Duty Lowbed Truck (Low Bed Semi Trailer Lowbed Trailer)
| Specification For Lowbed Semi Trailer | |
| Overall dimension (mm) | 12500x2500x1550 |
| Curb weight (kg) | 10700,12500 |
| Loading capacity | 40 000 kg |
| Axle brand and number | 13 ton , FUWA / BPW ,3 units |
| Kingpin | 2 inch (50mm ) or 3.5 inch ( 90mm ) |
| Landing gear | 28 ton, Jost brand , Double speed |
| Steel spring | -10/10/10 leaf spring suspension |
| Suspension system | Commen mechanical suspension |
| The material of main beam | The height of the beam is 500mm, upper plate is 14 mm,down plate is 16mm, middle plate is 8 mm |
| Tyre and quantity | 12R22.5 , 12 units |
| Platform plate | 3 mm diamond plate |
| Braking system | Dual line braking system |
| Braking chamber | 6 double air chamber |
| Electrical system | 24V, 7 pin socket, one set-6 coin standrad cable |
| Light | Tail lamp with turn signal , braking lamp&reflector |
| Tool box | 1 set |
| Spare tire carrier | 2 sets |
| Painting | Optional |
Customied 30T-90T Lowboy Trailer ( Drop Deck Widener Extendable Lowbed Trailer)
3 Axles Lowbed Trailer
Application of extendable flatbed trailer wind blade transport trailer
The extendable trailer is a kind of special purpose trailer. It has special designed main beam which is in telescopic structure. The standard main beam is about 12m, with the extended function, the main beam could reaches 17m or more. It is normally used to transport the wind blade, some long items etc. It also could work as a normal flatbed trailer or cargo trailer for container transport or cargo transport.
Description of extendable flatbed trailer wind blade transport trailer
Application of the heavy duty widener trailer low bed widener
Low bed widener trailer is a type of special design low bed trailer. It is used to transport the heavy duty, over width machines and equipment. As an transformation and update of traditional low bed trailer, this widener could suit more types of heavy duty machines. It is a popular and highly recommended product among the transporters.
Description of the heavy duty widener trailer low bed widener
This low bed trailer width is 2.5m in un extended situation. When the trailer extends into both sides, the width reaches 3.5M. It allows to load the machine width within 3.5m and tare weight within 30T. This widener is hydraulic controlled. The hydraulic cylinder will push the drop deck into both sides. The mechanical ramp is foldable type and it is also hydraulic controlled.
Selling point of the drop deck trailer
1.Suitable for over width machine transport
2.Hydraulic operation, remote control.
Specification
| Dimension | |
| Overall dimension | 13000x2500x1700mm |
| Widener dimension | 13000x3500x1700 |
| Tare weight | 10200kgs |
| Payload | 40Tons |
| Specification | |
| Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. 500mm Height beam, Top Flange 16mm, width 140mm; Middle Flange 8mm; Bottom Flange 18mm, width 140mm; Side beam telescopic type |
| Axle | FUWA 13T axle |
| Suspension | Air bag suspension |
| Floor | 5mm checked plate |
| Ramp | Mechanical ramp |
| Kingpin | 2 inches |
| Landing gear | JOST landing gear |
| Wheel rim | 8.25R22.5 steel wheel rim |
| Tyre | 11R22.5 tubeless tyre |
| Spare tire | One spare tire |
| Brake system | WABCO RE 6 relay valve, spring brake chamber |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint Color in Red, Blue |
| Accessories | One standard tool box, one spare tyre carrier |
The running gear of the extendable flatbed trailer keeps the same as the container trailer, the only difference is about the main beam. The main beam is in telescopic structure which is extendable. The mentioned extendable trailer could extended to 17m. The main beam is heavy duty type to avoid transforming after heavy loading.
Selling point of extendable flatbed trailer wind blade transport trailer
1.Supreme long trailer for wind blade or other special item transport.
2.Multi function trailer, it also could work as a normal container trailer
Specification
| Dimension | |
| Overall dimension | 12400x2500x1700mm |
| Extended dimension | 17000x2500x1700 |
| Tare weight | 9000kgs |
| Payload | 35Tons |
| Specification | |
| Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Extended main beam |
| Axle | China brand HJ |
| Plate | Checked steel plate 3mm |
| Suspension | German type heavy duty mechanical suspension |
| Leaf spring | 13pcs leaf spring |
| Kingpin | JOST 2 inches |
| Landing gear | JOST landing gear |
| Wheel rim | 9.0R22.5 steel wheel rim |
| Tyre | 12R22.5 tubeless tyre |
| Spare tire | One spare tire, one spare tire |
| Twist lock | 12pcs twist lock for 40ft, 20ft container |
| Brake system | WABCO RE 6 relay valve, spring brake chamber |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre carrier |
Wind Blade Transport Extendable Trailer
Selling point of drop deck widener trailer
Suit for heavy duty over width machine transport.
Specification
Dimension | |
Overall dimension | 13300x2500x1650mm |
Widener dimension | 13300x3400x1700 |
Tare weight | 10100kgs |
Payload | 40Tons |
Specification | |
Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Side beam telescopic type |
Axle | FUWA, BPW, HJ or other China axle for option |
Suspension | Air bag suspension |
Floor | 5mm checked plate |
Ramp | Hydraulic controlled ramp |
Kingpin | 2 inches |
Landing gear | JOST landing gear |
Wheel rim | 8.25R22.5 steel wheel rim |
Tyre | 295/80R22.5 tubeless tyre |
Spare tire | One spare tire |
Brake system | WABCO RE 6 relay valve, spring brake chamber |
Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
Accessories | One standard tool box, one spare tyre carrier |

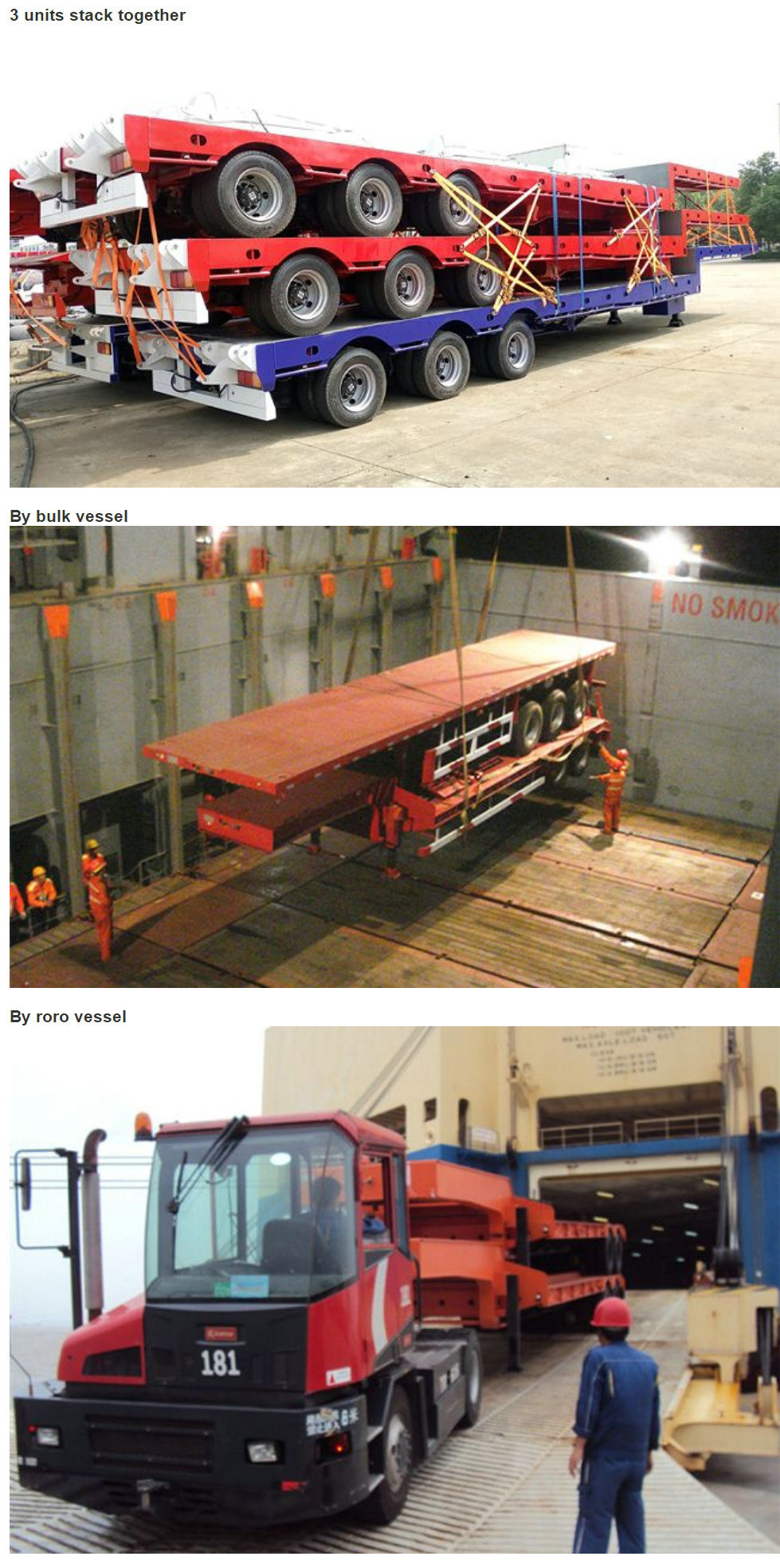

The delivery of drop deck widener trailer
For the drop deck trailer, length within 11.8, width with 2.5, it could be loaded by container, 2 units into 1x40HQ container.
For the drop deck trailer, length longer than 11.8, or width wider than 2.5, it only could be delivered by bulk or RORO vessel, 3 units or 4 units trailer stacked together as one package.
45/60/80/100Ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck )
3 GERMANY BPW 14T Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks (12.8*3*3m) CIF MOMOMBASA JUBA SOUTH SUDAN
T9400TDP 3 Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks
13M Low Bed Trailer BPW Axles 14T (GERMANY HZM4010-1) 2180mm, with 4pcs container locks,TIRES 12R22.5 equip 13 pcs
LOW BED OVERALL WIDE 3M
goosneck open 30*30cm for winch rope.
Ask Us for Better Price..
SUCCESS CASES : Export to Africa JUBA SOUTH SUDAN
FROM SHANGHAI PORT,CHINA TO MOMBASA ports , BY SEA
Price TERM: CIF MOMOMBASA
Ship Vessel details : GRAND PAVO (Vehicles Carrier) Voyage V.083 Time of Loading 2019-09-25
Heavy Equipment Transport Trailer

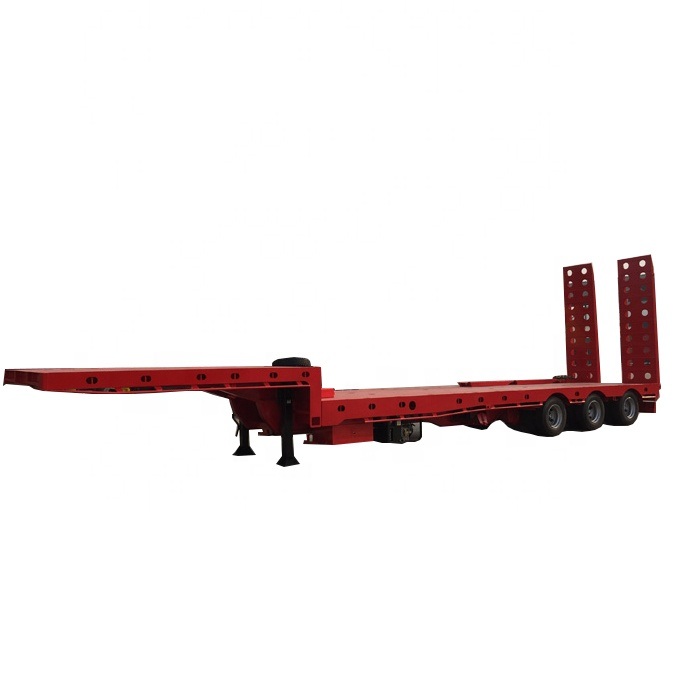

3 Axle Drop Deck Low Bed Trailer
1.Payload 60Tons ---90T
2.Construction machinery transport
3.Heavy duty equipment transport
4.3 axle heavy duty low bed trailer
5.BPW 14 TON axle, mechanical suspension
Drop Deck Widener Trailer
Application of 3 Axle Heavy Duty Low Bed Trailer
Due to the limitation of the structure and driving speed, construction machineries have to be transported by other facilities to the workplace. The construction development increases the volume and weight of equipments. Thus, this heavy duty low bed trailer can meet the market demand.
Specifications:
Dimension | |
Loading Weight | 60T,75T,80T,90T,100T |
Overall Dimension(mm) | 12800×3000×3100,2015 |
Total Mass(Kg) | 55000-110,000 |
Deck Length | 8000mm-8300mm |
Deck Height | 850-1350mm |
Technical Data | |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B; Welded by automatic submerged-arc processes |
Fifth-wheel Load | 16000 |
Fifth-wheel Height | 1280 |
Payload(kg) | -/60000 (Tri-Axle) |
Curb Weight(kg) | 10000,11000,12000,13000, |
Approach/Departure Angle(°) | -/16 |
Front/Rear Suspension(mm) | -/1200 |
Floor | 3-6mm checkered steel plate |
Ramp | Mechanical spring ramp |
Axle | FUWA 13 Ton x3, BPW 14T *3 |
Landing Gear | JOST brand Two-speed, manual operating |
King Pin | JOST brand 2"-3.5" bolt-in, 50#, 90# |
Suspension | Mechanical suspension |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |
Spare Tire | One set of spare tire including a carrier |
Wheel Rim | 8.5-20, 8.25-22.5, 9.0-22.5 |
Tire | 11.00-20, 8.25R15, 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 |
Painting | Complete chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint |
Accessories | Tool box |
Wind Blade Transport Extendable Trailer
Total Standard Fuel Tank Trailer
Heavy Duty Low Loader Trailer
Heavy Equipment Transport Trailer
4 Axle 2 Line Low Bed Trailer
3 Axle Heavy Duty Low Bed Trailer
Advantages of 3 Axle Heavy Duty Low Bed Trailer
• Heavy duty I beam
The heavy duty I beam is consist of the top flange, middle plate and bottom flange. The strength it bears is scientifically calculated by engineer.
• Well-made Superstructure
The superstructure of this low bed trailer is well designed by our experienced engineer.
• Customized Design
Since different construction equipments have different weight and size, we could make the unique low bed trailer for your equipment, especially some abnormal size one.

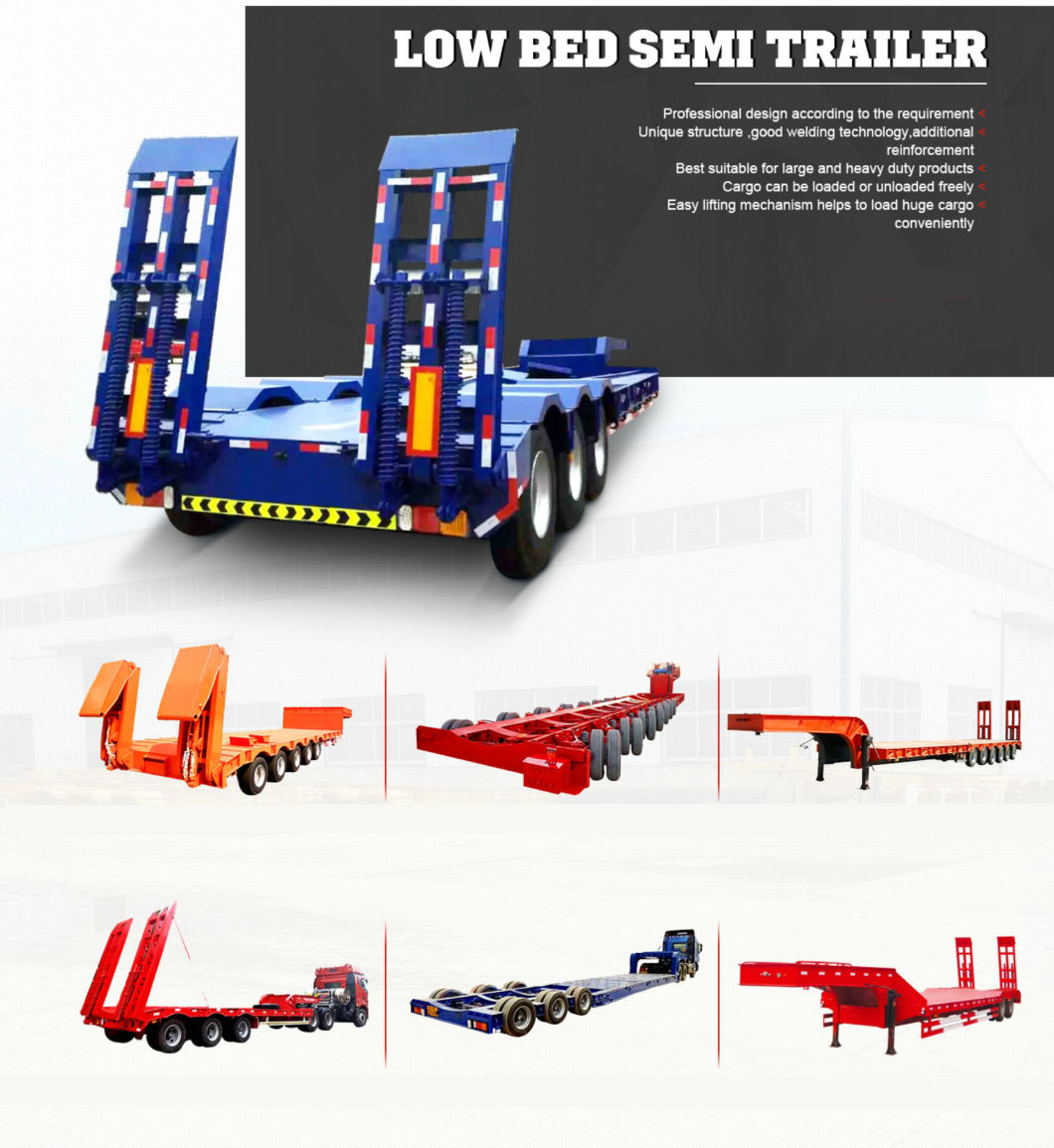

low bed semi trailer also named as low boy, low loader, drop deck etc, used for long distance or short distance equipment transport or long item, heavy item transport. Enhanced I beam makes this trailer very strong and durable, suitable for heavy duty transport. Low bed height is quite low which means low gravity, and makes the whole trailer quite stable.
The low bed semi trailer could be customized design, like 2 alxe, 3 alxe or 4 axle, or tarden axle, to suitable for different payload. The working platform width and height is also could be designed as what you want. We use good quality carbon steel, and famous reliable key parts, like BPW axle, Fuwa axle, JOST landing gear, to ensure this is really high quality item.
60 Ton Lowboy trailer Specification
SPECIFICATION | |
Payload | 60,000kg |
Tare Weight | 12,800kg |
Overall Length | 13,100mm |
Overall Width | 2,750mm |
Overall Height | 3,330mm |
Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
Floor | Steel Sheet 4mm thickness |
Axle | L1,FUWA,-16T axle for rear 3 axle |
Suspension | A couple of heavy duty under-slung mechanical suspension for rear 3 axle |
Leaf Spring | Six sets of reliable local brand, 8pcs( 10 pcs) leaf spring, 16x90mm |
King Pin | One unit of 3.5" welded kingpin (50#, 90#) |
Landing Gear | Two-speed, manual operation, heavy duty FUWA 19" linked landing gear |
Wheel Rim | 13 units 8.5-20, 8.25-22.5, 9.0-22.5, including 1 unit spare rim |
Tire | 13 units of 275/70R22.5 11.00-20, 8.25R15, 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 tire, including 1 unit spare tire; |
Hydraulic System of Rear Ladder | 1set of hydraulic ladder |
Pneumatic Braking System | Two units of WABCO RE 4 relay valve; four units of T30/30 chamber; |
Electrical System | One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; |
Painting | Sand blasting before painting; One coat of primer, anti-corrosion; |
Accessory | One box with a set of standard trailer tool |

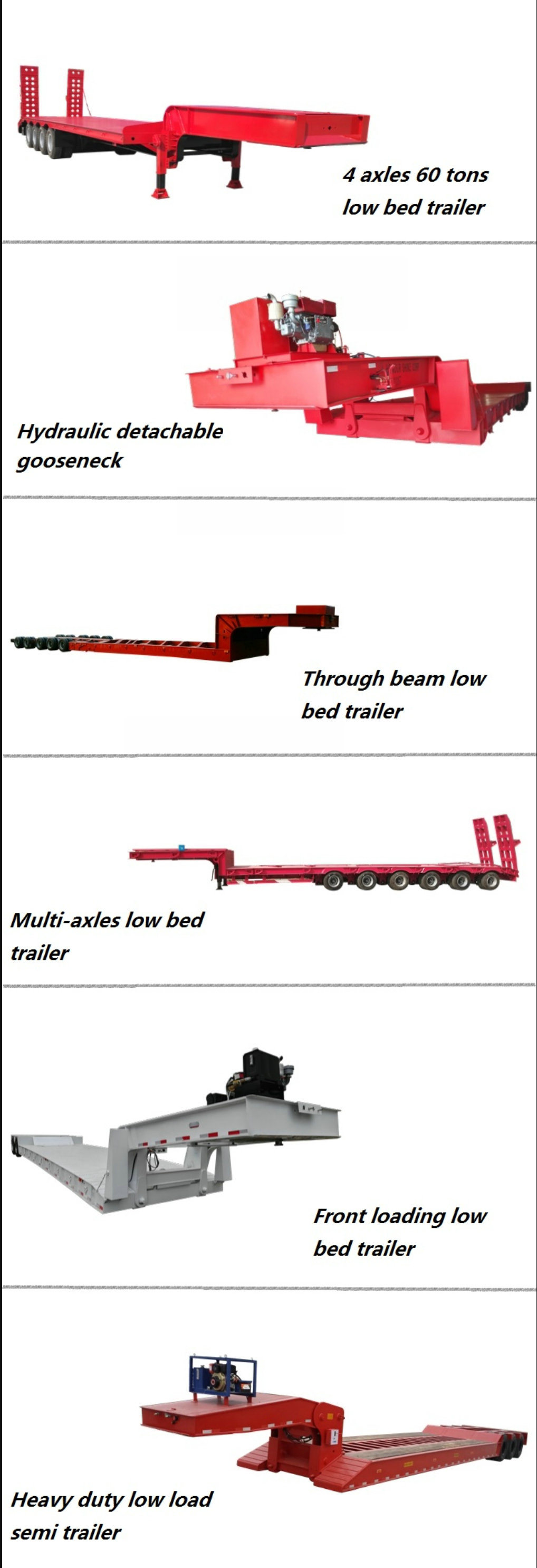

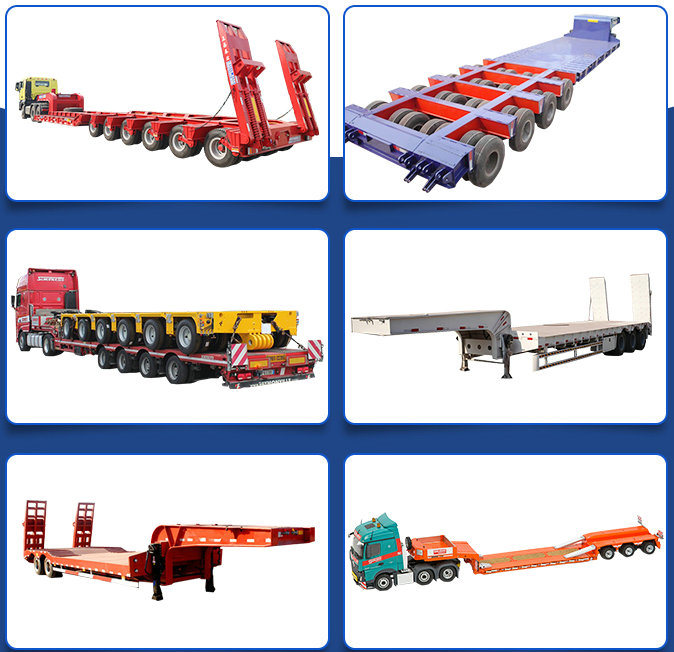

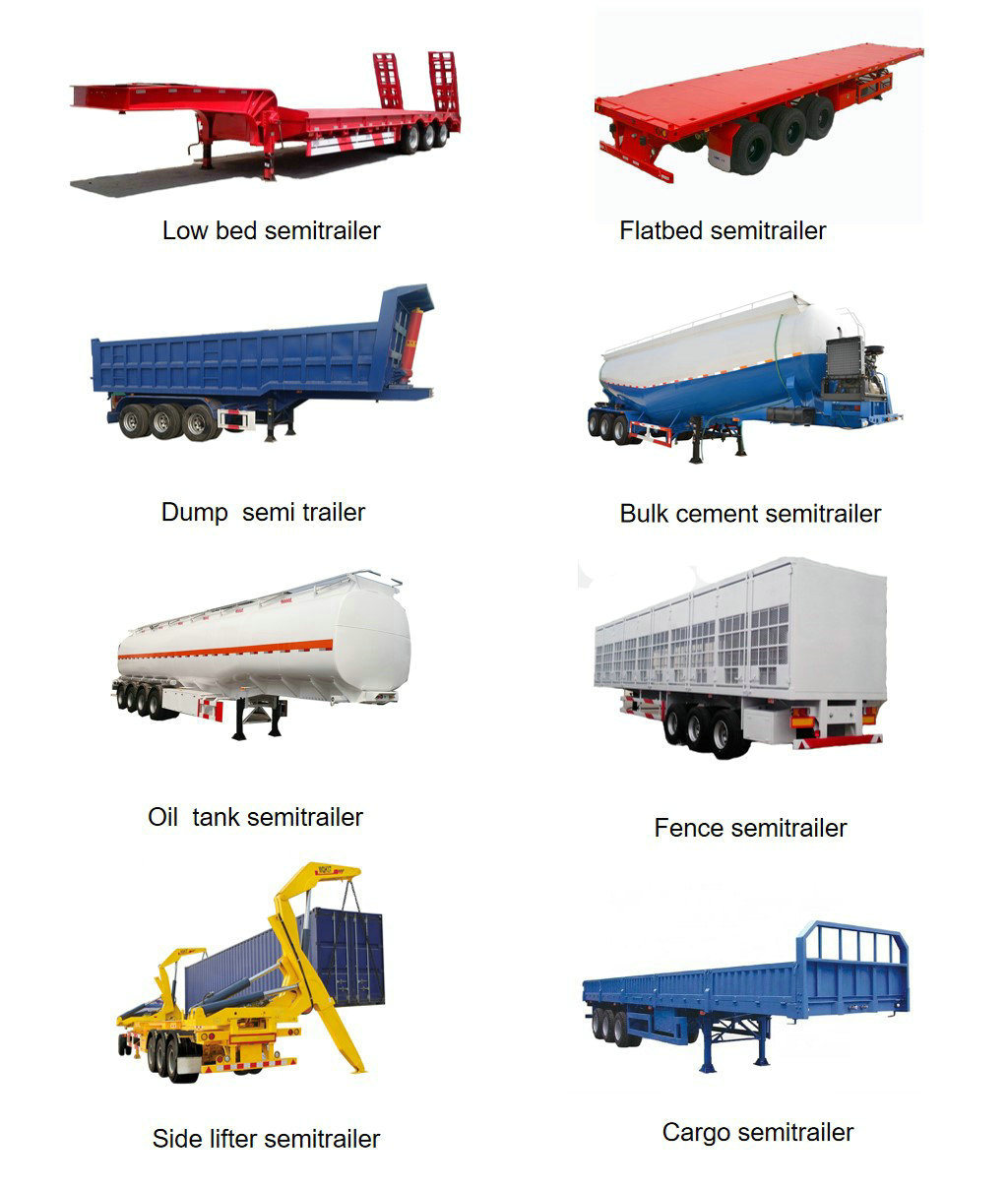

Customizing Other Trailer Trucks
4 axles Heavy Duty Lowboy (Low Bed)Trailer (Flatbed 11M -16M )100Ton
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 90Ton heavy duty low bed trailer
Customied 60T Gooseneck Heavy Duty Lowbed Truck (Low Bed Semi Trailer Lowbed Trailer)
| Specification For Lowbed Semi Trailer | |
| Overall dimension (mm) | 12500x2500x1550 |
| Curb weight (kg) | 10700,12500 |
| Loading capacity | 40 000 kg |
| Axle brand and number | 13 ton , FUWA / BPW ,3 units |
| Kingpin | 2 inch (50mm ) or 3.5 inch ( 90mm ) |
| Landing gear | 28 ton, Jost brand , Double speed |
| Steel spring | -10/10/10 leaf spring suspension |
| Suspension system | Commen mechanical suspension |
| The material of main beam | The height of the beam is 500mm, upper plate is 14 mm,down plate is 16mm, middle plate is 8 mm |
| Tyre and quantity | 12R22.5 , 12 units |
| Platform plate | 3 mm diamond plate |
| Braking system | Dual line braking system |
| Braking chamber | 6 double air chamber |
| Electrical system | 24V, 7 pin socket, one set-6 coin standrad cable |
| Light | Tail lamp with turn signal , braking lamp&reflector |
| Tool box | 1 set |
| Spare tire carrier | 2 sets |
| Painting | Optional |
Customied 30T-90T Lowboy Trailer ( Drop Deck Widener Extendable Lowbed Trailer)
3 Axles Lowbed Trailer
Application of extendable flatbed trailer wind blade transport trailer
The extendable trailer is a kind of special purpose trailer. It has special designed main beam which is in telescopic structure. The standard main beam is about 12m, with the extended function, the main beam could reaches 17m or more. It is normally used to transport the wind blade, some long items etc. It also could work as a normal flatbed trailer or cargo trailer for container transport or cargo transport.
Description of extendable flatbed trailer wind blade transport trailer
Application of the heavy duty widener trailer low bed widener
Low bed widener trailer is a type of special design low bed trailer. It is used to transport the heavy duty, over width machines and equipment. As an transformation and update of traditional low bed trailer, this widener could suit more types of heavy duty machines. It is a popular and highly recommended product among the transporters.

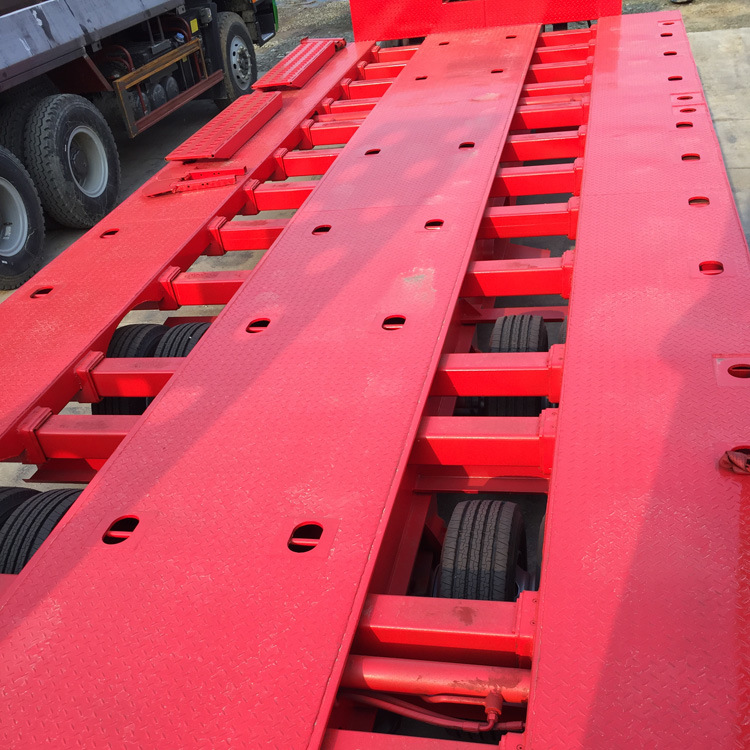

Description of the heavy duty widener trailer low bed widener
This low bed trailer width is 2.5m in un extended situation. When the trailer extends into both sides, the width reaches 3.5M. It allows to load the machine width within 3.5m and tare weight within 30T. This widener is hydraulic controlled. The hydraulic cylinder will push the drop deck into both sides. The mechanical ramp is foldable type and it is also hydraulic controlled.
Selling point of the drop deck trailer
1.Suitable for over width machine transport
2.Hydraulic operation, remote control.
Specification
| Dimension | |
| Overall dimension | 13000x2500x1700mm |
| Widener dimension | 13000x3500x1700 |
| Tare weight | 10200kgs |
| Payload | 40Tons |
| Specification | |
| Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. 500mm Height beam, Top Flange 16mm, width 140mm; Middle Flange 8mm; Bottom Flange 18mm, width 140mm; Side beam telescopic type |
| Axle | FUWA 13T axle |
| Suspension | Air bag suspension |
| Floor | 5mm checked plate |
| Ramp | Mechanical ramp |
| Kingpin | 2 inches |
| Landing gear | JOST landing gear |
| Wheel rim | 8.25R22.5 steel wheel rim |
| Tyre | 11R22.5 tubeless tyre |
| Spare tire | One spare tire |
| Brake system | WABCO RE 6 relay valve, spring brake chamber |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint Color in Red, Blue |
| Accessories | One standard tool box, one spare tyre carrier |
The running gear of the extendable flatbed trailer keeps the same as the container trailer, the only difference is about the main beam. The main beam is in telescopic structure which is extendable. The mentioned extendable trailer could extended to 17m. The main beam is heavy duty type to avoid transforming after heavy loading.
Selling point of extendable flatbed trailer wind blade transport trailer
1.Supreme long trailer for wind blade or other special item transport.
2.Multi function trailer, it also could work as a normal container trailer
Specification
| Dimension | |
| Overall dimension | 12400x2500x1700mm |
| Extended dimension | 17000x2500x1700 |
| Tare weight | 9000kgs |
| Payload | 35Tons |
| Specification | |
| Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Extended main beam |
| Axle | China brand HJ |
| Plate | Checked steel plate 3mm |
| Suspension | German type heavy duty mechanical suspension |
| Leaf spring | 13pcs leaf spring |
| Kingpin | JOST 2 inches |
| Landing gear | JOST landing gear |
| Wheel rim | 9.0R22.5 steel wheel rim |
| Tyre | 12R22.5 tubeless tyre |
| Spare tire | One spare tire, one spare tire |
| Twist lock | 12pcs twist lock for 40ft, 20ft container |
| Brake system | WABCO RE 6 relay valve, spring brake chamber |
| Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
| Accessories | One standard tool box, one spare tyre carrier |
Wind Blade Transport Extendable Trailer
Selling point of drop deck widener trailer
Suit for heavy duty over width machine transport.
Specification
Dimension | |
Overall dimension | 13300x2500x1650mm |
Widener dimension | 13300x3400x1700 |
Tare weight | 10100kgs |
Payload | 40Tons |
Specification | |
Chassis | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Side beam telescopic type |
Axle | FUWA, BPW, HJ or other China axle for option |
Suspension | Air bag suspension |
Floor | 5mm checked plate |
Ramp | Hydraulic controlled ramp |
Kingpin | 2 inches |
Landing gear | JOST landing gear |
Wheel rim | 8.25R22.5 steel wheel rim |
Tyre | 295/80R22.5 tubeless tyre |
Spare tire | One spare tire |
Brake system | WABCO RE 6 relay valve, spring brake chamber |
Painting | Complete sand blasting to clean rust, one coat of prime painting, 2 coats of final paint |
Accessories | One standard tool box, one spare tyre carrier |
The delivery of drop deck widener trailer
For the drop deck trailer, length within 11.8, width with 2.5, it could be loaded by container, 2 units into 1x40HQ container.
For the drop deck trailer, length longer than 11.8, or width wider than 2.5, it only could be delivered by bulk or RORO vessel, 3 units or 4 units trailer stacked together as one package.
45/60/80/100Ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck )
3 GERMANY BPW 14T Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks (12.8*3*3m) CIF MOMOMBASA JUBA SOUTH SUDAN
T9400TDP 3 Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks
13M Low Bed Trailer BPW Axles 14T (GERMANY HZM4010-1) 2180mm, with 4pcs container locks,TIRES 12R22.5 equip 13 pcs
LOW BED OVERALL WIDE 3M
goosneck open 30*30cm for winch rope.
Ask Us for Better Price..
SUCCESS CASES : Export to Africa JUBA SOUTH SUDAN
FROM SHANGHAI PORT,CHINA TO MOMBASA ports , BY SEA
Price TERM: CIF MOMOMBASA
Ship Vessel details : GRAND PAVO (Vehicles Carrier) Voyage V.083 Time of Loading 2019-09-25
Heavy Equipment Transport Trailer
3 Axle Drop Deck Low Bed Trailer
1.Payload 60Tons ---90T
2.Construction machinery transport
3.Heavy duty equipment transport
4.3 axle heavy duty low bed trailer
5.BPW 14 TON axle, mechanical suspension
Drop Deck Widener Trailer
Application of 3 Axle Heavy Duty Low Bed Trailer
Due to the limitation of the structure and driving speed, construction machineries have to be transported by other facilities to the workplace. The construction development increases the volume and weight of equipments. Thus, this heavy duty low bed trailer can meet the market demand.
Specifications:
Dimension | |
Loading Weight | 60T,75T,80T,90T,100T |
Overall Dimension(mm) | 12800×3000×3100,2015 |
Total Mass(Kg) | 55000-110,000 |
Deck Length | 8000mm-8300mm |
Deck Height | 850-1350mm |
Technical Data | |
Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B; Welded by automatic submerged-arc processes |
Fifth-wheel Load | 16000 |
Fifth-wheel Height | 1280 |
Payload(kg) | -/60000 (Tri-Axle) |
Curb Weight(kg) | 10000,11000,12000,13000, |
Approach/Departure Angle(°) | -/16 |
Front/Rear Suspension(mm) | -/1200 |
Floor | 3-6mm checkered steel plate |
Ramp | Mechanical spring ramp |
Axle | FUWA 13 Ton x3, BPW 14T *3 |
Landing Gear | JOST brand Two-speed, manual operating |
King Pin | JOST brand 2"-3.5" bolt-in, 50#, 90# |
Suspension | Mechanical suspension |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks |
Spare Tire | One set of spare tire including a carrier |
Wheel Rim | 8.5-20, 8.25-22.5, 9.0-22.5 |
Tire | 11.00-20, 8.25R15, 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 |
Painting | Complete chassis sand blasting to clean rust; 1 coat of anticorrosive prime; 2 coats of final paint |
Accessories | Tool box |
Wind Blade Transport Extendable Trailer
Total Standard Fuel Tank Trailer
Heavy Duty Low Loader Trailer
Heavy Equipment Transport Trailer
4 Axle 2 Line Low Bed Trailer
3 Axle Heavy Duty Low Bed Trailer
Advantages of 3 Axle Heavy Duty Low Bed Trailer
• Heavy duty I beam
The heavy duty I beam is consist of the top flange, middle plate and bottom flange. The strength it bears is scientifically calculated by engineer.
• Well-made Superstructure
The superstructure of this low bed trailer is well designed by our experienced engineer.
• Customized Design
Since different construction equipments have different weight and size, we could make the unique low bed trailer for your equipment, especially some abnormal size one.
low bed semi trailer also named as low boy, low loader, drop deck etc, used for long distance or short distance equipment transport or long item, heavy item transport. Enhanced I beam makes this trailer very strong and durable, suitable for heavy duty transport. Low bed height is quite low which means low gravity, and makes the whole trailer quite stable.
The low bed semi trailer could be customized design, like 2 alxe, 3 alxe or 4 axle, or tarden axle, to suitable for different payload. The working platform width and height is also could be designed as what you want. We use good quality carbon steel, and famous reliable key parts, like BPW axle, Fuwa axle, JOST landing gear, to ensure this is really high quality item.
60 Ton Lowboy trailer Specification
SPECIFICATION | |
Payload | 60,000kg |
Tare Weight | 12,800kg |
Overall Length | 13,100mm |
Overall Width | 2,750mm |
Overall Height | 3,330mm |
Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
Floor | Steel Sheet 4mm thickness |
Axle | L1,FUWA,-16T axle for rear 3 axle |
Suspension | A couple of heavy duty under-slung mechanical suspension for rear 3 axle |
Leaf Spring | Six sets of reliable local brand, 8pcs( 10 pcs) leaf spring, 16x90mm |
King Pin | One unit of 3.5" welded kingpin (50#, 90#) |
Landing Gear | Two-speed, manual operation, heavy duty FUWA 19" linked landing gear |
Wheel Rim | 13 units 8.5-20, 8.25-22.5, 9.0-22.5, including 1 unit spare rim |
Tire | 13 units of 275/70R22.5 11.00-20, 8.25R15, 11.00R20, 12.00R20, 11R22.5, 12R22.5, 315/80R22.5 tire, including 1 unit spare tire; |
Hydraulic System of Rear Ladder | 1set of hydraulic ladder |
Pneumatic Braking System | Two units of WABCO RE 4 relay valve; four units of T30/30 chamber; |
Electrical System | One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; |
Painting | Sand blasting before painting; One coat of primer, anti-corrosion; |
Accessory | One box with a set of standard trailer tool |
Customizing Other Trailer Trucks
4 axles Heavy Duty Lowboy (Low Bed)Trailer (Flatbed 11M -16M )100Ton
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 90Ton heavy duty low bed trailer
