5T Tipper Mounted Crane FOTON for sale Euro 3-6
| Quantity: | |
|---|---|

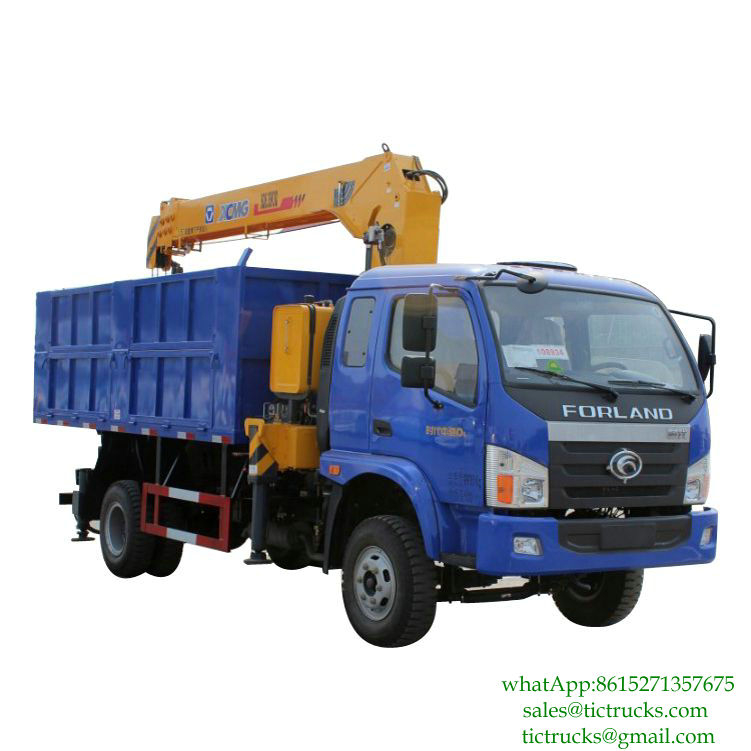

5T Tipper Mounted Crane FOTON for sale
5T Tipper Mounted Crane
Brand: FOTON
Specification: 5T
Horse Power: 108HP
Drive Type: 4x2 Custermizing
the best Chinese Tipper Mounted Crane
to worldwide. We specialise in the on-road load handling solutions, and help customers enhance their efficiency and productivity.
Crane brand: XCMG or HIAB.
Crane type: Telescopic boom crane or knuckled boom crane.
Crane capacity: 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25Tons.
No. of crane Arms: 2, 3, 4, 5, 6.
Chassis model: 4*2, 4*4, 6*4, 6*6, 8*4,8*8 / tractor / trailer
Cabin model: LHD or RHD
| Parts | Technical Parameter | |
| Overall | Chassis Model | BJ1063VCJFA |
| Curb Weight | 8500kg | |
| Rated Loading Weight | 5000kg | |
| Overall Size (L*W*H) | 7350x2420x3350mm | |
| Engine | Type of Fuel | Diesel |
| Brand/Model | QuanChai/4DX22-110 | |
| Horse Power | 108HP | |
| Chassis | Brand | FOTON |
| Wheelbase | 3800mm | |
| Cabin | Left-hand driving, Air conditioner, Flat headed | |
| Transmission | WLY5-35 | |
| Brake System | Air brake | |
| Tyre | Specification | 8.25-16 |
| Number of Tyre | 6+1 spare tyre | |
| Crane | Type | Telescopic boom crane |
| Max Loading weight | 5000KG | |
| Max lift moment | 12.5T.M | |
| Recommend Power Needed At Recommend Oil Flow | 16KW | |
| Max Oil Flow of Hydraulic System | 32L/MIN | |
| Rated Pressure Of Hydraulic System | 18MPA | |
| Crane weight | 2074KG | |
| Lifting height | 10.5m | |
| Working radius | 8.7m | |
| No. of Arms | 3 | |
| Note | Some components are optional according to your requirements. | |
