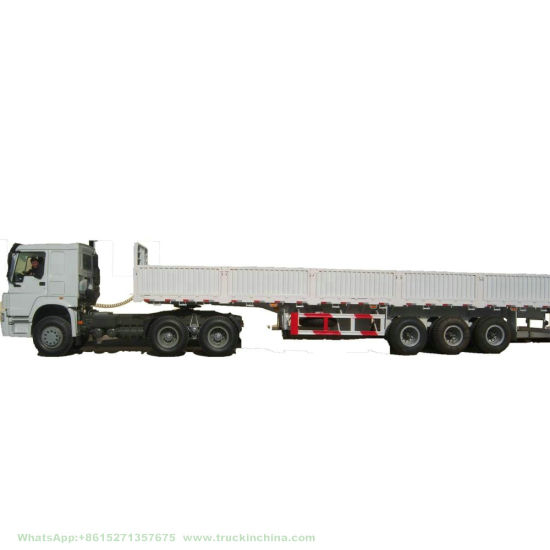

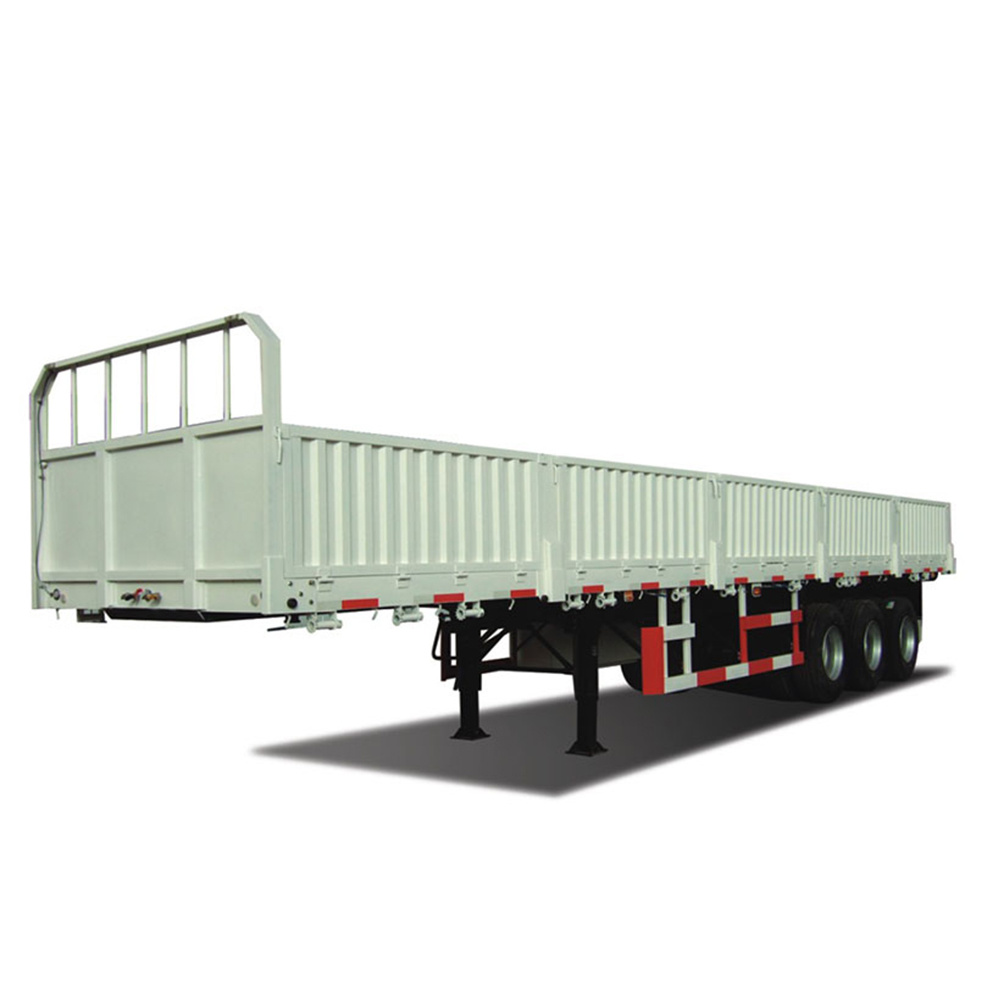

50t-80ton Tri-Axles Side Wall Cargo Semi Trailer
| Quantity: | |
|---|---|
-
Shanghai, China
-
200sets Per Month
-
T/T, Western Union
3 Axles Heavy Duty 50T-80Ton Tri-Axles Side Wall Cargo Semi Trailer
| Trailer Model | 3 Axle flatbed Semi Trailer | |||
| Tare weight | 8000kg | |||
| Loading capacity | 50T-80Ton | |||
| Size | 13500x2500x2700mm | |||
Chassis (I beam) | Top flange plate | Material and thickness | Q345B 14mm | |
| Bottom flange plate | Material and thickness | Q345B 16mm | ||
| Middle flange plate | Material | Q345B | ||
| Thickness | 8mm | |||
| Height | 500mm | |||
| Side beam height | Type | U-steel | ||
| Height | 16# U steel | |||
| Side wall | Thickness | 1.2mm | ||
| Height | 600mm | |||
| Plate type | Corrugated plate(upright type) | |||
| Floor | Material | Carbon steel Q235 | ||
| Thickness | 3mm | |||
| Floor type | Checkered plate | |||
| Running mechanism | Container twist lock | NO | ||
| Axle | Brand | Fuwa | ||
| Type | 13t | |||
| Number | 3pcs | |||
| Rim | Type | 9.0-22.5 | ||
| Number | 12pcs | |||
| Tire | Brand | Triangle brand | ||
| Type | 12R22.5 | |||
| Number | 12pcs | |||
| Suspension | Mechaniacal suspension | |||
| Spring Leaf | Leaf width | 90mm | ||
| Leaf thickness | 13mm | |||
| Layer/set | 10 Layer | |||
| Kin pin | Type | Bolts type | ||
| Diameter | 2 inch | |||
| Brake system | Air tank | 45L air tanks | ||
| Brake chamber | 4 double spring brake chamber | |||
| ABS | Without | |||
| Landing gear | Brand | JOST C200 | ||
| Type | 24t two speed | |||
| Accessories | Spare tire carrier | 2sets | ||
| Light | LED light | |||
| Voltage | 24v | |||
| Receptacle | 7 ways(7wire harness)and quick change type | |||
| Tool box | One piece,1000x500x500mm | |||
| Paiting | Polyurethane paint&anti-rust primer&sand blasting | |||
| Tools for trailer | Head wrech ;spare wheel crank ; | |||
| Packing | Polish with wax before shipping | |||

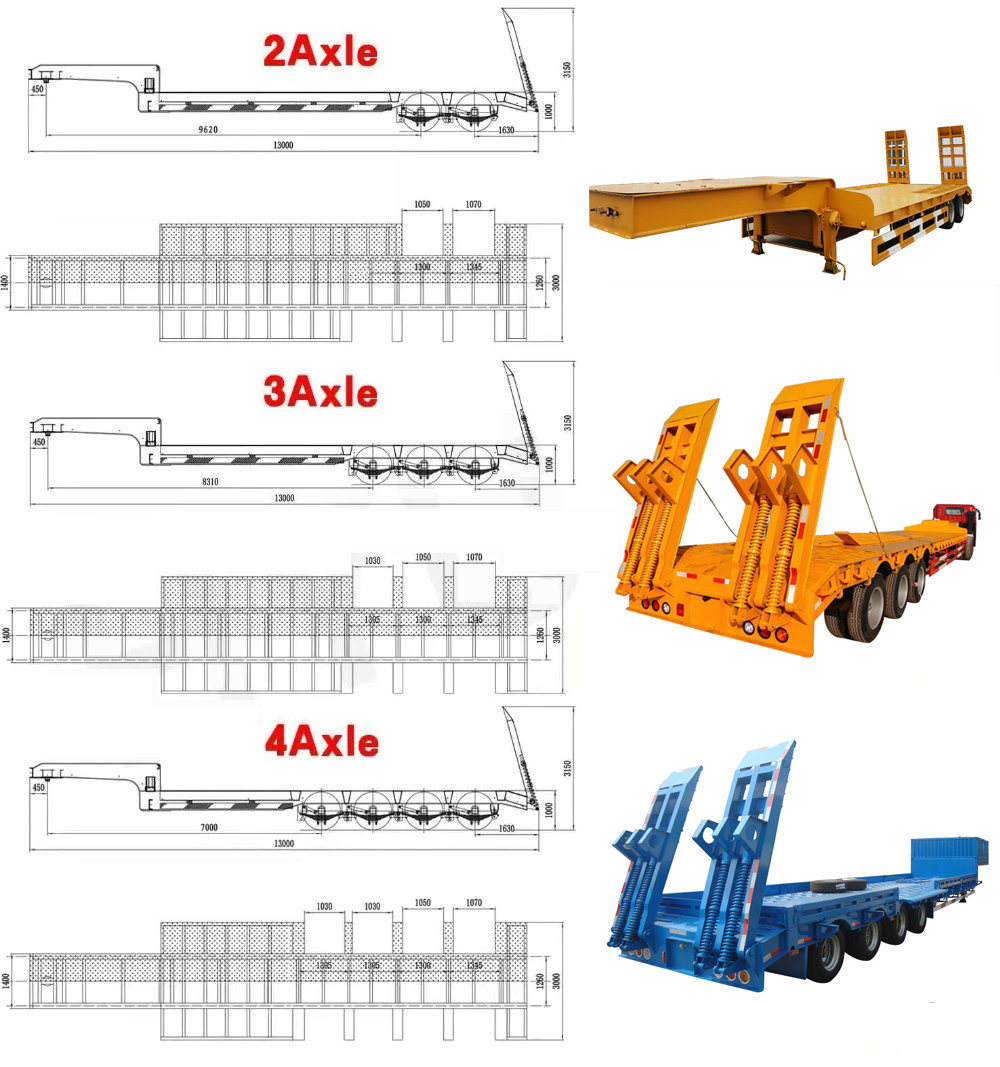

40-100Ton heavy duty lowbed semi-trailers/low bed trailer
FUWA axle (Chinese brand) or BPW axle (German brand), JOST landing gear (American brand), JOST kingpin, Orient star valve (Chinese brand), WABCO ABS system (optional component). All of the parts can choose Chinese brand or famous brands from Germany, Japan, US or UK, just according to customer's requirement. Special size for your design
Usage:To transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)
3 Axle Low Loader Trailer, 60Ton Low Bed Semi-trailer, 60Ton Low Loader Trailer ,3 Axle Low Bed Trailer, Low Loader Trailer, 80 Ton Low Loader Trailer, Bulldozer Low Loader Trailer, Tri Axle Low Bed Trailer
Customization, Cost and Control Built How You Want it, at a Price You Can Afford.
DOLLY Tanker, Fuel Tanker's Pup Trailer,Pup Trailer Tankers, FULL trailer, pup trailer, Tank Dolly, Tank Dolly trailer Drawbar Fulltowing Trailer Trailer Dolly for Sale
4/6/9/10/12 Wheels Mini Dump Drawbar Full Towing Dolly Trailer
