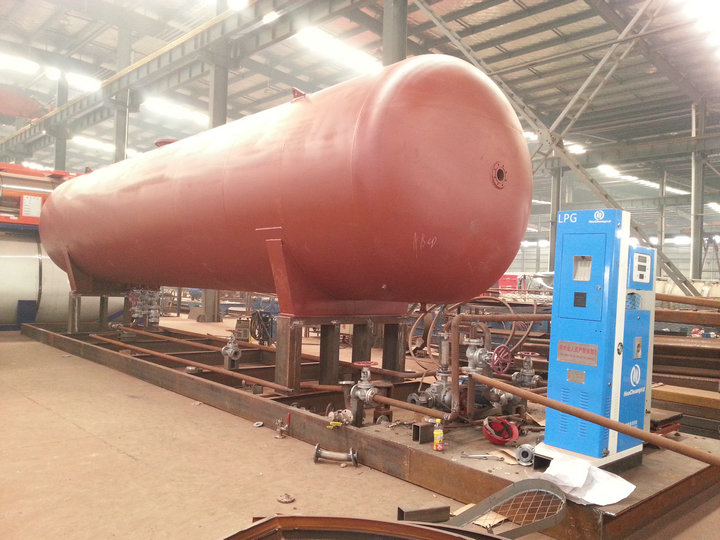

LPG skid-mounted filling station/lpg cylinder filling station/mobile filling station
Economy, small, simple, flexible and fast
1. Skid-mounted LPG stations is constructed according to internation gas station standards. It's of very dependable quality and safety.
2. Integrate single device (such as tanks, pumps, valves, piping, etc.) to the metal skid body and formed a complete small LPG stations.
3. The volume of the tank can be customized according to customer's request: 10cbm/20cbm/30cbm/50cbm/60/cbm
4. In one LPG station, you can place several LPG dispensers of different nozzles.
*Feeding gas to gas vehicles: high quality dispenser is equipped and its measurement is accurate and stable.
*Unloading: The LPG tank car can unload the medium to the storage tank on the skid-mounted plant smoothly
*Drainage: The sundries like water-logging in the storage tank will e drained through the drain outlet.
*Emptying:The residual pressure in storage tank can be released through the emptying port during overgauling.
*Alternative Pumps: Under fault condition, gas filling pump and unloading pump can be mutually alternative.
*Reverse unloading:The liquid on the storage tank can be unloaded to the gas tank car and delivered.
*Emergency cut-off :Air-operated emergency cut-off valve is installed a the liquid outlet on the storage tank, by which the emergency cut-off under abnormal conditions can be achieved.
*Leakage Alarm: Leakage probes are installed in the key positons of the skid-mounted gas station, so as to dect the equipment's security status.
*Liquid Level Alarm: Upper and lower liquid level limit switch are installed. Therefore, it has liquid alarm and control function.
Main Technical features of the LPG Storage Tank station:
|Structural form||Integral type, separated type|
|Install Method||Above-ground, under-ground|
|System Approach||Double pump system, single pump system|
|Storage Tank Volume(M⊃3;)||5, 6, 10,15,20, 30 , 40 , 50 , 60|
|Design pressure of storage tank||1.77Mpa|
|Design pressure of pipe||2.5Mpa|
|Opening pressure of safety valve||1.75Mpa|
|Dimension of skid-mounted body||Up to customer's requirement|
