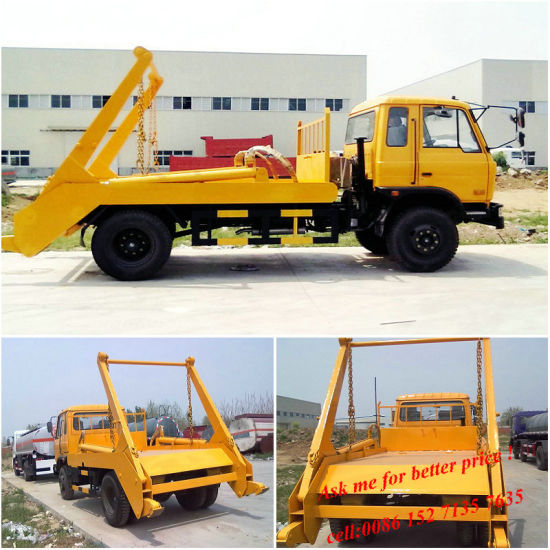

5~10ton Swing Arm Garbage Truck Skip Loader
-
10000
-
Nil
-
T/T, Western Union
-
TIC5110ZBL3
-
Diesel
-
4×2
-
Dongfeng
-
Medium
-
Swing Arm Type
-
New
-
145/153
-
9.00-20,
-
Euro 2, Euro 3, Euro 4
-
160,170,180,190
-
Telescopic
-
3950
-
85km/H
-
11490
-
7370×2470×3350
-
10t
-
TIC
-
military standard.
-
China
-
8705909090
-
Roll Off
-
ISO9000, CCC
-
＞15000L
-
Euro 3
-
Manual
-
10t,
Boom Skip Loader
Other models in this category
Stronga are specialist manufacturers of premium level Hooklift solutions with a reputation for supplying tough, high performance hook equipment for the professional operator including the Hook loader range of Hook trailers from 10 to 25 tonnes Beiben Garbage Truck
Thanks to many years of experience in the manufacture and use of Hook lift trailers Stronga have produced a very strong stable and durable hook system in use across Europe and beyond, working in a vast range of applications and industries.
beiben tractor trucks, beiben dump trucks and bogie suspension semitrailers that worked very well in Congo, Alegeria, Nigeria, Tanzania, Kenya and south africa.
Product | TIC5110ZBL3 Swing Arm Garbage Truck | |
| Chassis type | EQ1110GLJ | |
| Cubage(CBM) | 6-7 | |
| Parameters | Overall dimension length/width/height (mm) | 7370×2470×3350 |
| Total Mass(kg) | 11490 | |
| Payload(kg) | 4500 | |
| Kerb Mass(kg) | 6795 | |
| Approach angle/ Departure angle(mm) | 30/15 | |
| Front suspension/rear suspension(mm) | 1250/2020 | |
| Fuel Type | diesel | |
| Fuel Consumption/100 km | ||
| Max Speed | 85 | |
| Engine | Type | YC6J180-30/YC4E160-30 |
| Displacement/Power(kw) | 6500/132 4260/118 | |
| Manufacturer | Guangxi Yuchai Machine Co.,Ltd | |
| Type | ||
| Chassis | Drive type | 4×2 |
| Wheelbase(mm) | 3950 | |
| Tread(front/rear) | 1900/1800 | |
| Front axle | 5T | |
| Rear axle | 10T | |
| Steering gear | Dual-armed steering wheel,power steering | |
| Transmission | 6 gear mechanical drive transmission | |
| Clutch | Diaphragm clutch,hydraulic remote control,pneumatic servo | |
| Braking system | Split air braking system,spring braking,exhaust braking | |
| Cab | Non-longhead, one and a half row cab,whole metal-enclosed | |
| Number of spring axle(front/rear) | 8/11+8 | |
| Tire Type | 9.00-20 | |
| Air-condition | Choose to fix | |
