4X4 All Wheel Drive Water Tank Fire Truck
4x4 Water Tanker Fire Truck Mounted with Fire Pumper LHD.RHD
4WD Fire Fighting Truck With Water Bowser
4X4 all Wheel Drive Water Tank Fire Truck Dongfeng 4WD Off Road Water Truck
1. Dongfeng 4WD all wheel Drive
2. YC4E140-42 140HP Engine
3. 8.25-16 Tyre
4. Double cabin
5. Water Tank Capacity: 5000Lts/5Tons
6. With Fire Pump and Water Pump
7. fire monitor range: 55m
8. carbon steel or stainless steel water tank
9. With Function of Water Truck and Fire Truck
Categories: 4x4 Special Vehicles, Water Bowser Trucks, Water Spray Trucks, Fire Fighting Truck, Fire Water Tank Truck
4X4 all Wheel Drive Water Tank Fire Truck Dongfeng 4WD Off Road Water Truck :
| Cabin | Cabin is white, tank is white | |
| Emission standards | Euro 3-5-6 | |
| Dimension | Mm | 7000×2300×2750 |
| Rated cubage | L | 5000 |
| Exhaust quantity/power | ml/kw | 3856/88 120HP |
| Maximum speed | km/h | 95 |
| The total mass | kg | 9400 |
| Rated contained mass | kg | 4950 |
| Curb weight | Kg | 4255 |
| Wheel base | mm | 3800 |
| Engine | YC4E140-42 140HP | |
| Tire | 8.25-16 | |
| Shaft number | 2 | |
| STEERING | Power steering | |
| Capacity of tank body | 5000Litres | |
| Material of tank body | Carbon steel 4mm thickness | |
| Material: high quality carbon steel plate, anti-rust treatment. | ||
| Structure: welding, there is clapboard inner. | ||
| Equipment: 1 manholes, | ||
| Fire fighitng pump and pipeline system: | ||
| Model of Fire fighting pump: CB10/30 | ||
| Pressure: 1.0Mpa Flux: 30L/s Suction depth: ≥7m Suction time: ≤35s | ||
| Installing type: central or rear | ||
| Fire fighting nozzle: | ||
| Model: PS24 Range: water≥50m Pressure: 1.0Mpa. | ||

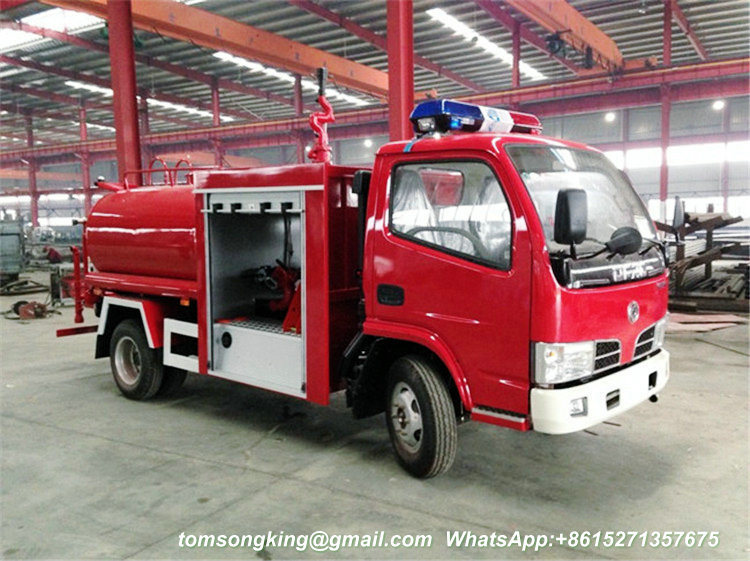

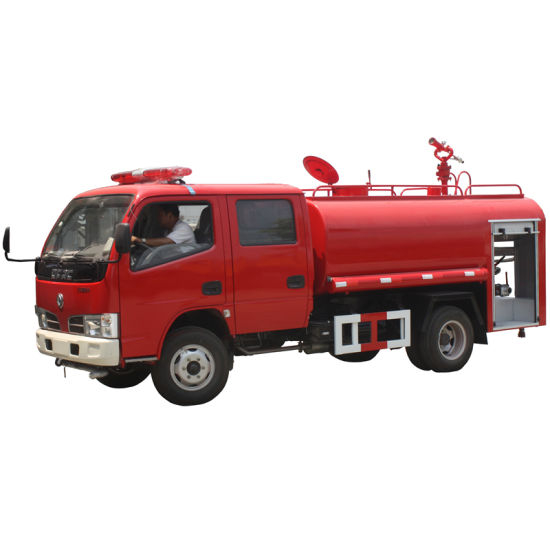

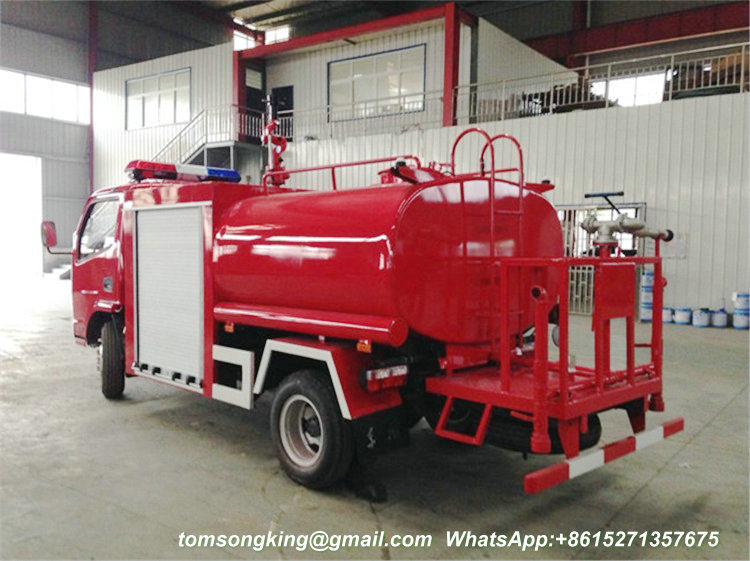

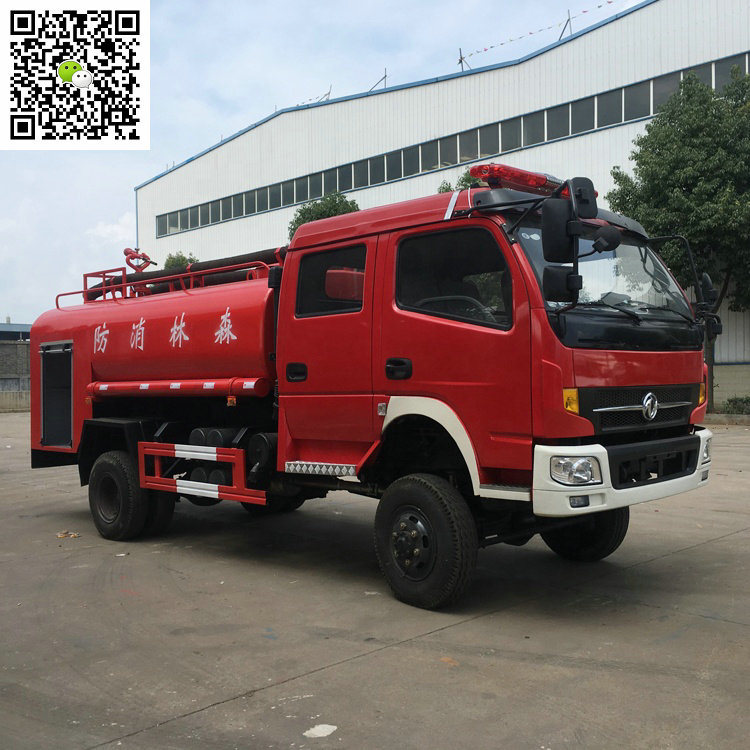

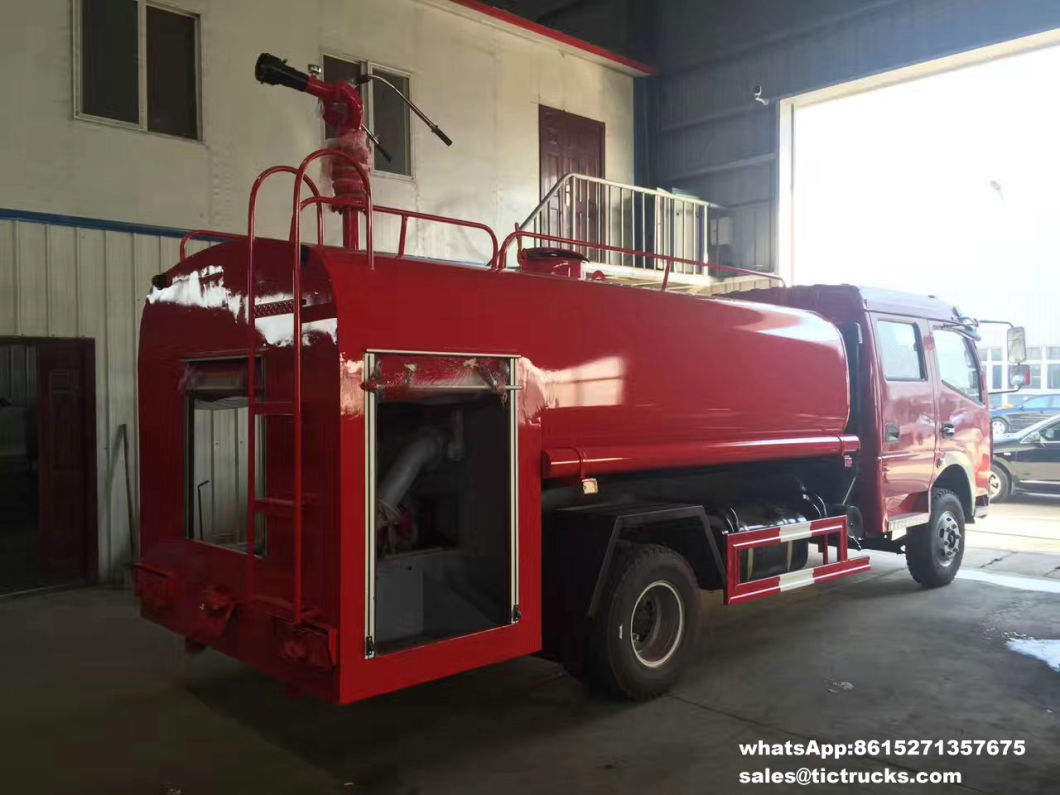

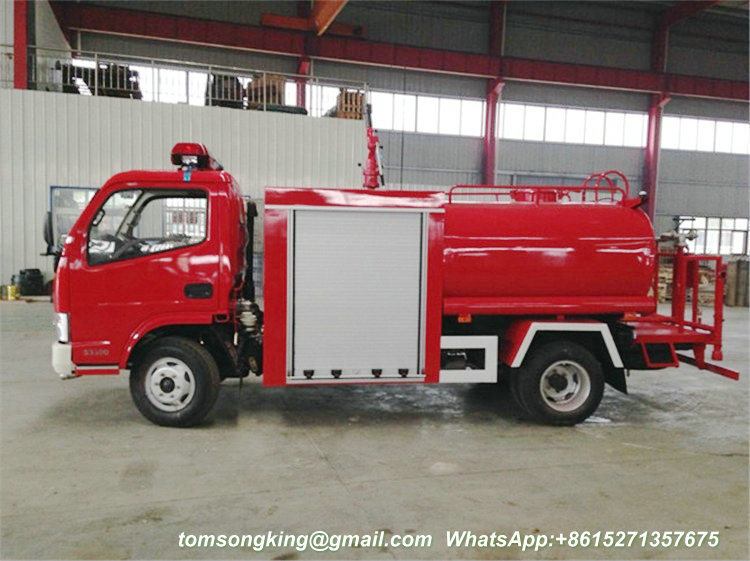

The Picture of 4X4 all Wheel Drive Water Tank Fire Truck Dongfeng 4WD Off Road Water Truck :

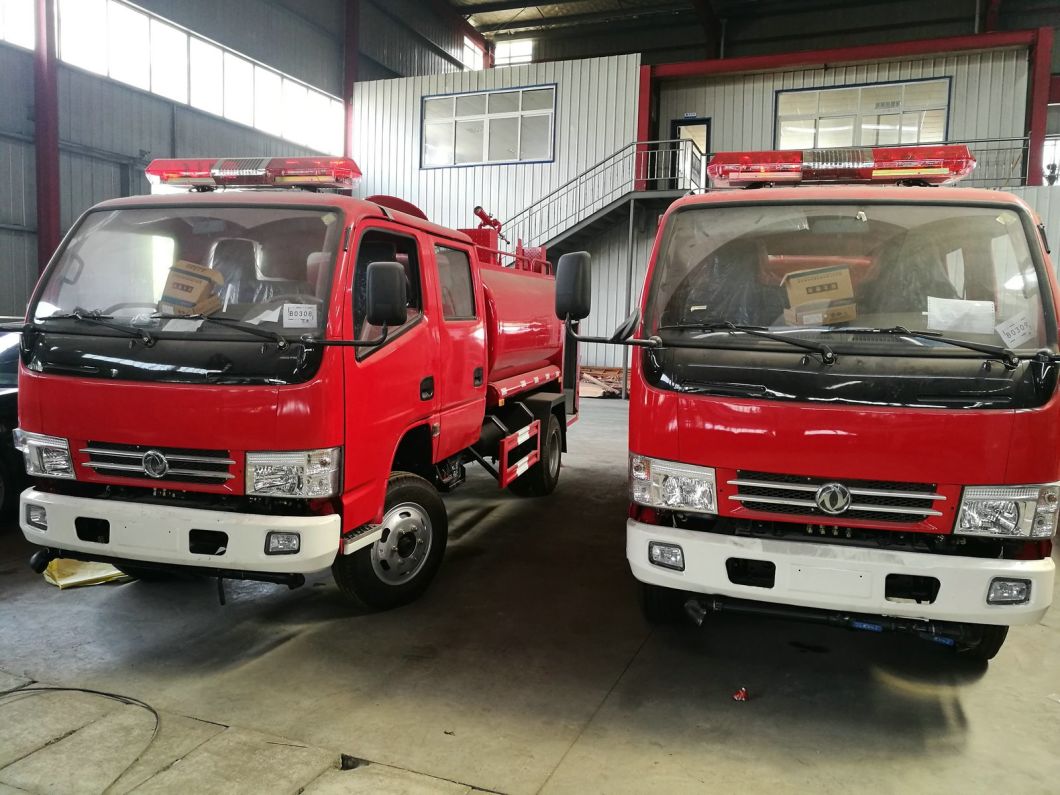

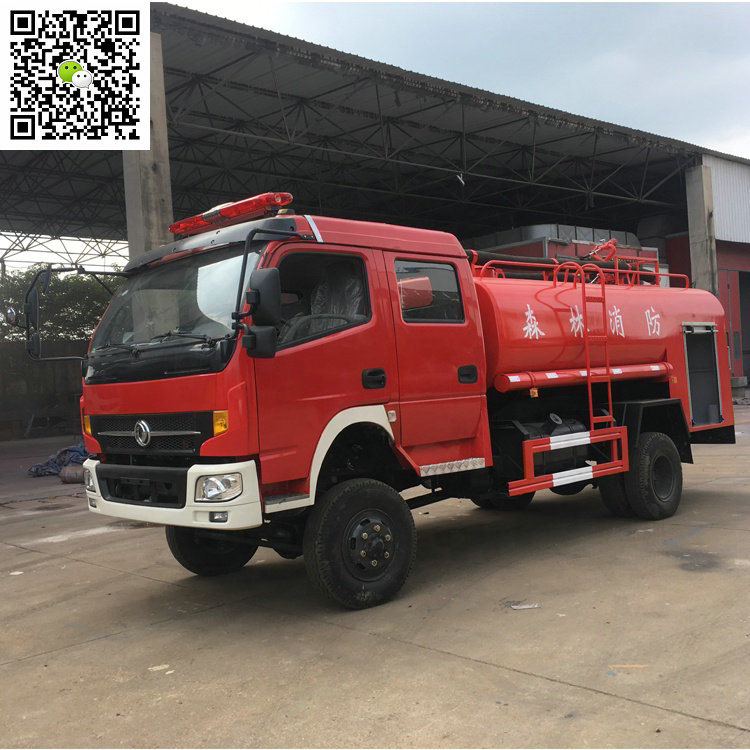

4*4 4WD Dongfeng Water Fire Truck, Double Line Cabin.
keywords:Dongfeng Fire Fighting Tanker Truck , Dongfeng Multifunctional Fire Truck , Dongfeng Fire Engine Truck , Dongfeng Fire Tanker Truck , Water Fire Fighting Tanker Truck , Fire Fighting Tank Truck , Water Fire Fighting Tank Truck , Dongfeng Fuel Tanker Truck
HOWO Foam Fire Truck 4 X 4 Off Road All Wheel Drive with 6500Liters Water Foam Tank
Similar Keywords: foam truck tanker, fire fighting tank truck, fire and rescue truck, fire appliance, fire engine, fire apparatus, fire truck tank, fire service truck, fire fighting vehicle
Structural classification
The structure of the rescue vehicle consists of the chassis of the vehicle, the bodywork of the bodywork (built-in rescue equipment), the power take-off and transmission, the generator (shaft or independent generator), winch (hydraulic or electric) Generally arm-type, behind the body), lifting lighting systems, electrical systems. According to the different uses of emergency rescue fire trucks, the specific configuration of the car is not the same, such as truck crane, winch, generator, landing lights, not necessarily all the rescue vehicles have. Emergency rescue fire trucks are divided into ordinary rescue vehicles, chemical rescue fire engines, special rescue vehicles (such as earthquake rescue vehicles, etc.).Rescue fire truck Category:
Emergency rescue fire engines can be divided into: light and heavy vehicles two types.
Light car configuration: Qingling chassis as a carrier, special features are: traction, power generation, lighting and rescue rescue tools.
Heavy-duty vehicle configuration: with Isuzu Dongfeng Chassis as a carrier, special functions are: lifting, traction, power generation, lighting and rescue rescue tools.
Function type
Car equipped with a variety of fire-fighting equipment, firefighters special protective equipment, fire dismantling tools and fire detectors, is responsible for rescue mission special fire truck.
Chassis model: EQ1168GU5
Chassis manufacturer: dongfeng motor company
Rescue crane: XCMG 5 tons, maximum hoisting of 7.4m, prewinch calibration tension of 8000kgf(3629kg)
Generator: imported Honda generator, voltage 380V, power 10kv/A, manual start/electric start
Lighting system: main lamp stand 4+1000W automatic lifting searchlight head DC12V, lifting height 7.6m, air pump AC220V, electric control box AC380V, electric remote control
Force extractor: sandwich type full power extractor
Engine: isb190-50 (190 HP)
Tire model: 9.00-20 16PR
Overall dimensions: 7360 x 2480 x 3330mm
The wheelbase: 4700 mm
| Vehicle model | Chassis brand | Chassis model | Load | Overall dimensions | Wheel base | Engine model | hp/standard | Tire | FOB Price | |
| L | mm | mm | RMB | USD | ||||||
| DRZ5050GXFSGE | DONGFENG | EQ1050NJ20D3 | 2500 | 6260X1900X2750 | 3300 | CY4102-C3F | 95/Euro 3 | 6.15-16 | 135800 | 19980 |
| DRZ5060GSSXFE | DONGFENG | EQ1060TJ20D3 | 5000 | 5980X1980X2380 | 3300 | CY4102-C3F | 95/Euro 3 | 7.00-16 | 101200 | 14890 |
| DRZ5090GSSXFE | DONGFENG | EQ1090T9ADJ3AC | 6000 | 6995X2285X2980 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 122300 | 17990 |
| DRZ5090GXFSGE | DONGFENG | EQ1090T9ADJ3AC | 4000 | 7025X2095X2840 | 3800 | CY4102-E3C | 120/Euro 3 | 7.50R16 | 170400 | 25060 |
| DRZ5100GSSXFE | DONGFENG | EQ1100FKJ | 7000 | 7350X2440X2990 | 3950 | YC4E140-33 | 140/Euro 3 | 9.00-20 | 123300 | 18140 |
| DRZ5108GSSXFE | DONGFENG | EQ1108KJ | 9000 | 7450X2480X3185 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 147400 | 21680 |
| DRZ5108GXFSGE | DONGFENG | EQ1108KJ | 5000 | 7490X2500X2280 | 3950 | B170 33 | 170/Euro 3 | 9.00-20 | 192500 | 28310 |
| DRZ5126GXFSGE | DONGFENG | EQ1126KJ1 | 6000 | 8315X2500X3300 | 4700 | B190 33 | 190/Euro 3 | 9.00-20 | 249700 | 36730 |
| DRZ5141GSSXFE | DONGFENG | EQ1141KJ | 11000 | 8105X2490X3250 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 159400 | 23450 |
| DRZ5141GXFSGE | DONGFENG | EQ1141KJ | 6000 | 8115X2500X3300 | 4500 | B190 33 | 190/Euro 3 | 10.00-20 | 247700 | 36430 |
| DRZ5253GSSXFE | DONGFENG | EQ5253GFJ2 | 15000 | 9950X2480X3750 | 4350+1300 | B210 33 | 210/Euro 3 | 10.00-20 | 212600 | 31270 |
| DRZ5090GXFSGPME | DONGFENG | EQ1090T9ADJ3AC | 2400 | 7025X2095X2840 | 3800 | B140 33 | 140/Euro 3 | 7.50R16 | 197500 | 29050 |
| DRZ5070GXFSGQ | ISUZU | QL1070A1KWY | 3000 | 6820X2000X2820 | 3815 | 4KH1-TCG40 | 120/Euro 4 | 7.00-16 | 218100 | 32080 |
| DRZ5160GXFSGQ | ISUZU | QL1160AMFRY | 6000 | 8360X2485X3420 | 4500 | 6HK1-TCNG40 | 240/Euro 4 | 10.00-20 | 457300 | 67250 |
| DRZ5250GXFSGQ | ISUZU | QL1250DRFZY | 15000 | 9775X2490X3560 | 5100+1300 | 6HK1-TCSG40 | 280/Euro 4 | 11.00-20 | 621800 | 91450 |
| DRZ50703GXFSGQ | ISUZU | QL10703HWRY | 2500 | 6260X1980X2780 | 3360 | 4JB1CN | 98/Euro 4 | 7.00-15 | 182000 | 26770 |
| DRZ51609GXFSGQ | ISUZU | QL11609MFRY | 6000 | 8070X2500X3370 | 4500 | 4HK1-TCG40 | 190/Euro 4 | 10.00-20 | 378000 | 55590 |
| DRZ5167GXFSGZ | SINOTRUK | ZZ1167M4617C | 8000 | 8820X2500X3450 | 4600 | WD615.92 | 266/Euro 3 | 11.00-20 | 401600 | 59060 |
| DRZ5257GSSXFZ | SINOTRUK | ZZ1257M4641W | 20000 | 9895X2496X2958 | 4325+1350 | WD615.92 | 266/Euro 2 | 12.00-20 | 295300 | 43430 |
| DRZ5257GXFSGZ | SINOTRUK | ZZ1257N4347C | 15000 | 9680X2500X3650 | 4325+1350 | WD615.69 | 336/Euro 3 | 12.00-20 | 476800 | 70120 |
| DRZ5257GXFSGZ1 | SINOTRUK | ZZ1257S4647C | 16000 | 10265X2500X3580 | 4600+1350 | WD615.96 | 375/Euro 3 | 12.00-20 | 473300 | 69610 |
Special Specification:
1. Front located 4 ton wrecker shovel, equipped with highpower lifter,
can easily adjust the height of the wrecker shovel, convenient for
switching between driving and operation state of wrecker.
2. double row cab,exclude driver, also can take 2+3 person.
3. the top of the cab is equipped with professional fire warning lights.
4. available to install a full power disconnected power takeoff between
the gearbox and engine.
5. water tank volume is 4 cubic meters.
6. high-power water pumps which can spout 40-50 meters of water column.
7. available to install 2 fire fans and 2 fire fighting high-pressure water cannons.

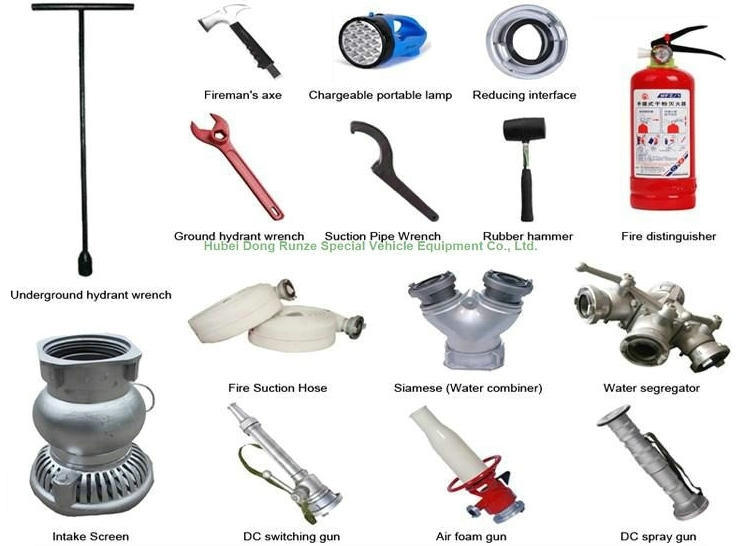

8. can be equipped with fire extinguishers, fire hammer,
fire shovel, fire hose, fire fighting racket and other professional
fire fighting equipments
