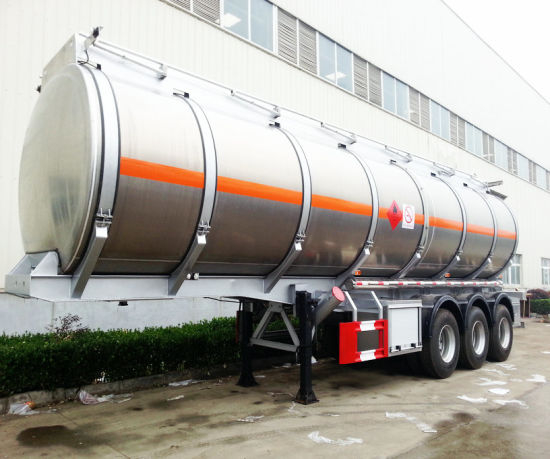

47m3 Light- Duty Aluminium Alloy Tanker Semi-Trailer
| Quantity: | |
|---|---|
- 100000
- T/T, Western Union
- OTC / Frt / Roro Ship
Tank Trailer Manufacturers
tanker semi trailer factory sale Call:86-15271357675
| ARAMETER | Dimension(mm) | L*w*h: 12972x2500x3750(mm) |
| King pin setting(mm) | 1715mm | |
| Kin pin plate height (mm) | 1366mm | |
| Axle space(mm) | 7060mm+1310mm+1310mm | |
| Tare weight | 7500kgs | |
| Loading capacity | 47000L (Valid 45500L) | |
| OEM | Landing gear | Two speed manual operation type with sand shoe |
| Kingpin | Jost 2" bolted type | |
| Brake system | Wabco brake valve; | |
| Abs | 4s/2M | |
| Brake chamber | Type 30/30 spring brake system on all axles | |
| Suspension | Air bag Suspension | |
| Axle | Fuwa axle,13 ton capacity/set,3sets | |
| Tire | 425/65R22.5-20pr , 6 pcs Double Coin Brand; or 12 pcs 13R22.5 | |
| Rim | 13.0-22.5 6pcs, Aluminium Alloy | |
| Tool box | 1 | |
| Spare tire carrier | 2 | |
| TANK SPECS | Compartment | Three,15000l/15000l/15000l |
| Tank material | Aluminium Alloy, thickness 6mm,5mm | |
| Bulkhead and Baffle | Thickness is 7mm | |
| Tank Shell | Thickness is 6mm & 5mm | |
| Shape of tank | Ellipse (double "d") | |
| Test pressure designed | 36kpa | |
| Manhole | Aluminium Alloy Manhole Cover, C801-560, | |
| bottom valves | 3, Aluminium Alloy | |
| OTHERS | Oil Gas recovery System | Equiipped |
| Anti-overflow System | Equipped |
