40ft ISO Tank container for LNG Cryogenic Liquid 45,500L

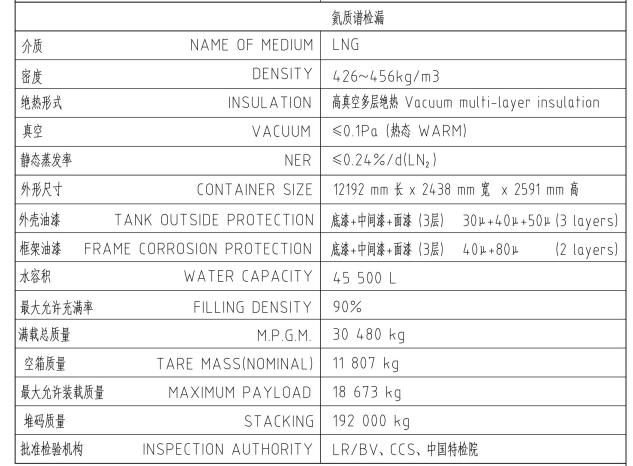

Container type | 40ft |
Unladen mass | 13800kg ；13154 +/- 5％ |
Tank size (mm) | Ф2412X11742mm |
Medium: | LNG |
Working Pressure | 0.79MPa （GB China ）0.83MPa ASME standard |
Design Temperature | -196℃～50℃ |
Load Volume (m3) | 45.5m3 |
Insulation | High vacuum multilayer insulation |
ITEM | DAT | |

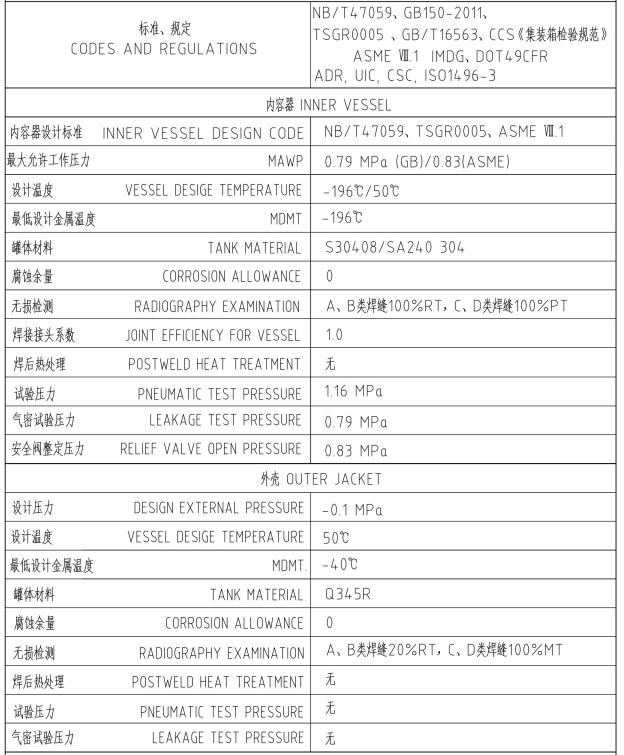

Design pressure | Inner- Vessel (MPa) | 0.83 |
Outer- Vessel (MPa) | -0.1 | |
Design Temperature | Inner- Vessel (°C) | -196 |
Outer- Vessel (°C) | 50 | |
Host material | Inner- Vessel | 06Cr19Ni10 |
Outer- Vessel | Q345R | |
Filling medium density (kg/m3) | 426~456 | |
Rated full rate | 0.90 | |
Pneumatic test pressure： | 1.16Mpa 11.6bar | |
Relife valve open pressure: | 0.83Mpa 8.3 bar | |
1.Shipment Delivery date:
By sea in 30 working days ( 35days )after receipt of down-payment
Port of shipment: Any port of China
2.Payment: By T/T
1st payment: 30% of the contract value as downpayment with the amount of USD right after contract signing.
2nd payment:70% of the contract value with the amount of USD in 7 days after the commodities are ready for shippment .
Seller should send the photos/video of all commodities to the Buyer/the end-user
original shipping documents (Invoice, Packing list, CO, CQ, Insurance Policy and others if any).
3.Warranty: The Seller guarantees the warranty period for 12 months from the shipping date.
40ft ISO Tank container for LNG Cryogenic Liquid 45,500L
Container type | 40ft |
Unladen mass | 13800kg ；13154 +/- 5％ |
Tank size (mm) | Ф2412X11742mm |
Medium: | LNG |
Working Pressure | 0.79MPa （GB China ）0.83MPa ASME standard |
Design Temperature | -196℃～50℃ |
Load Volume (m3) | 45.5m3 |
Insulation | High vacuum multilayer insulation |
ITEM | DAT | |
Design pressure | Inner- Vessel (MPa) | 0.83 |
Outer- Vessel (MPa) | -0.1 | |
Design Temperature | Inner- Vessel (°C) | -196 |
Outer- Vessel (°C) | 50 | |
Host material | Inner- Vessel | 06Cr19Ni10 |
Outer- Vessel | Q345R | |
Filling medium density (kg/m3) | 426~456 | |
Rated full rate | 0.90 | |
Pneumatic test pressure： | 1.16Mpa 11.6bar | |
Relife valve open pressure: | 0.83Mpa 8.3 bar | |
1.Shipment Delivery date:
By sea in 30 working days ( 35days )after receipt of down-payment
Port of shipment: Any port of China
2.Payment: By T/T
1st payment: 30% of the contract value as downpayment with the amount of USD right after contract signing.
2nd payment:70% of the contract value with the amount of USD in 7 days after the commodities are ready for shippment .
Seller should send the photos/video of all commodities to the Buyer/the end-user
original shipping documents (Invoice, Packing list, CO, CQ, Insurance Policy and others if any).
3.Warranty: The Seller guarantees the warranty period for 12 months from the shipping date.
