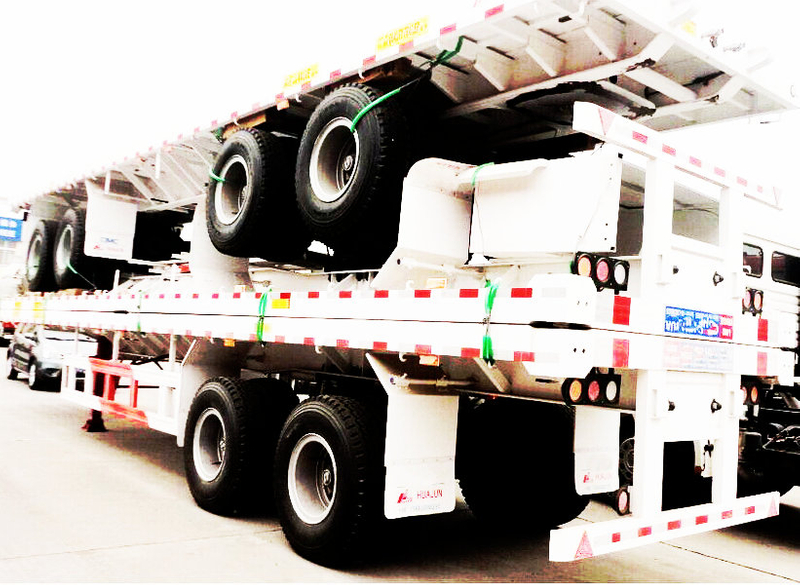

40FT Bogie Type Flatbed Semi-trailer

40FT Bogie Type Flatbed Semi-trailer
Availability:
Quantity:

Bogie suspension type Flatbed Trailer mainly used in various fields, such as ships, ports, airlines, highways, transfer stations, bridges, tunnels, and many other multimodal transport matched logistics systems.
Why choose 40FT Bogie type Flatbed semi-trailer?
1, Fit the bad Road condition well, especially for the road with some pits.
2, Overload much, more than about 40%
3, Can fit the SKD Type to save freight, and easy to assemble in destination.
4, Easy maintenance and convenience for bogie type trailer

Market: Congo, Angola, Saudi Arabia, South Africa, Ethiopia, Algeria, Myanmar etc.



Main specification


       DIMENSIONS
       Tare weight        7000kg
       Payload        44000kg
       Total weight        51000kg
       Overall length        12446mm
       Overall width        2480mm
       SPECIFICATION
       Main frame        Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged arc processes.
       Height: 500mm; top flange: 14mm; width: 140mm; middle flange: 6mm;
       bottom flange: 16mm; width: 140mm
       Floor        3mm steel floor
       Axle        L1 or BPW axle
       Suspension        2-axle L1 or BPW 32Ton Bogie suspension structure

       Tyre        12R22.5, 8pcs
       Wheel rim        9.00-22.5 rim, 8pcs
       Kingpin        JOST 90 Kingpin,
       Twist lock        12pcs
       Landing gear        JOST C-200, Two-speed, manual operation, capacity: 28000kg-80000kg/pair
       Spare wheel carrier        2 sets of spare wheel carrier
       Pneumatic
       braking system
       Double line air brakes
       Electrical System        24V system with standard 7 pole plug
       Rear electrical lighting, brake lights, indicators,fog lights and reversing light
       Painting        Sand blasting before painting.
       Anti-corrosive primer,.
       Top paint color meet client's wish
       Accessory        One tool box, side protection
       Option        AXLE: BPW,SAF
       TYRE: HANKOOK, DOUBLE COIN
       SUSPENSION: AIR SUSPENSION
       BRAKE SYSTEM: WABCO, KNORR

Technical Drawing:

  40FT Bogie type Flatbed semi-trailer
 Technical Drawing Container semitrailerFlatbed Semi-Trailers
 70 T 2 axle single point suspnsion container semitrailer

  Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 LOAD CAPACITY:     30T, 40T, 50T,60T

 LENGTH:                 12m, 13m,14m,17.5m

 AXLE:                   L1 AXLE 13T (16T, 20T)    OPTION: BPW  , ABS

 TIRE:                    11.00R20 12.00R22.5 315/80R22.5                         OPTION: 385/65R22.5 (Single tire)
