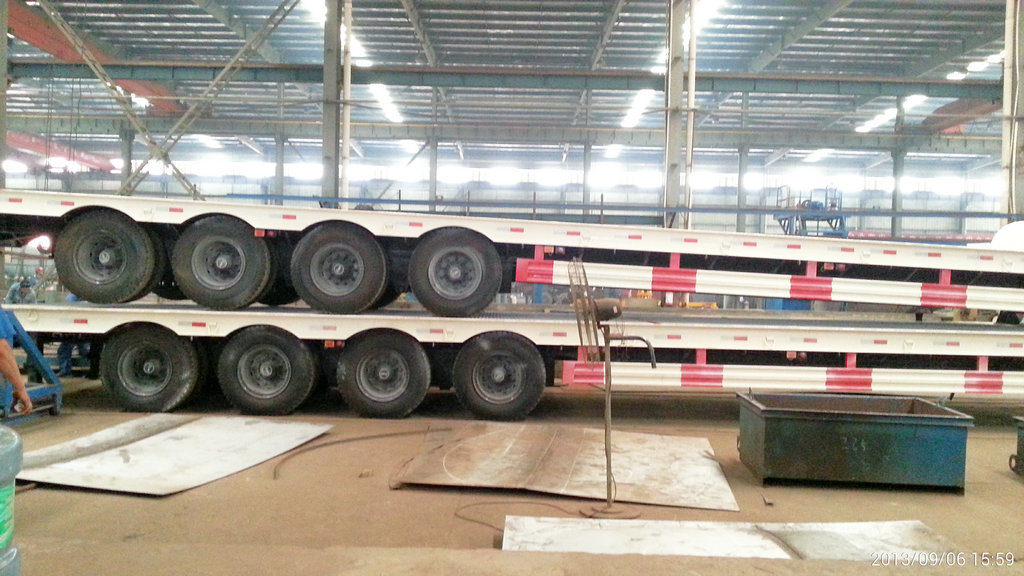

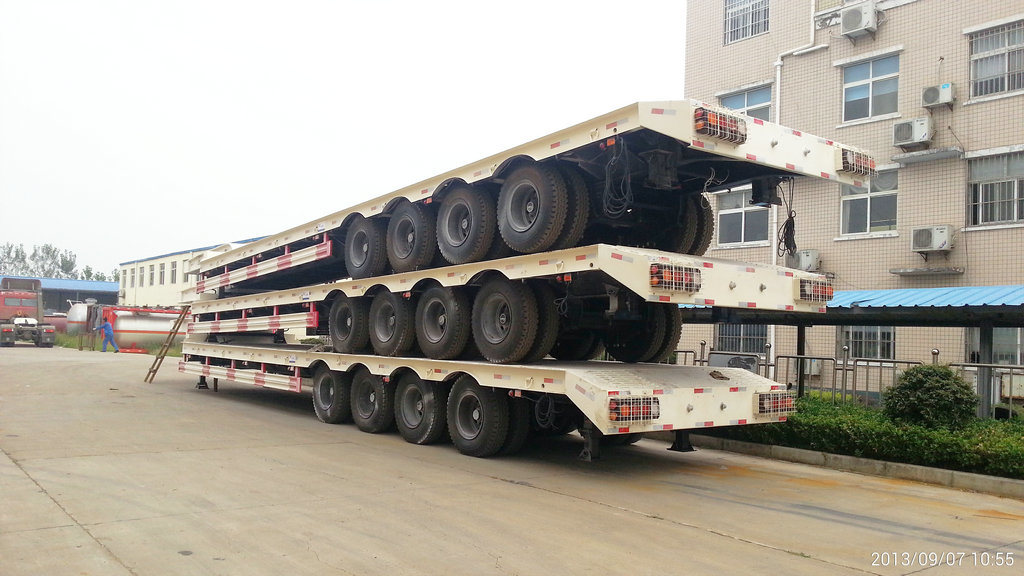

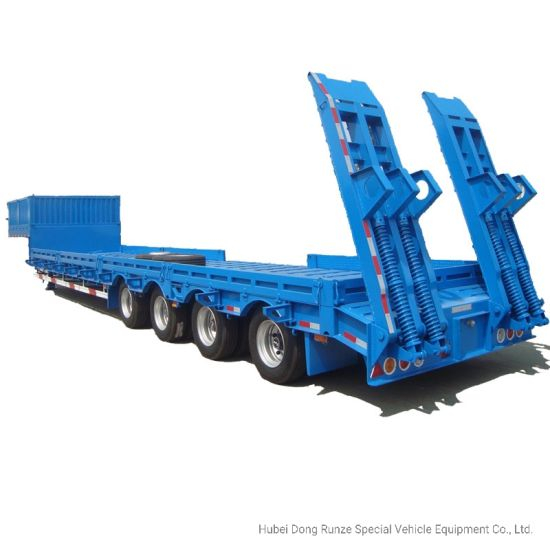

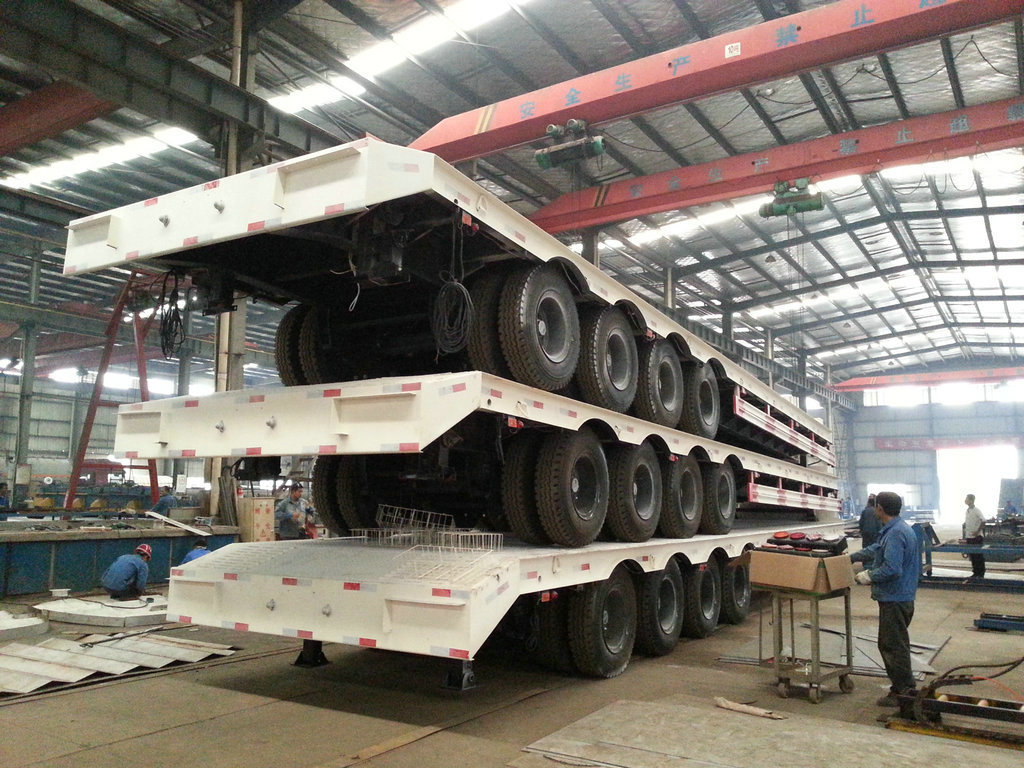

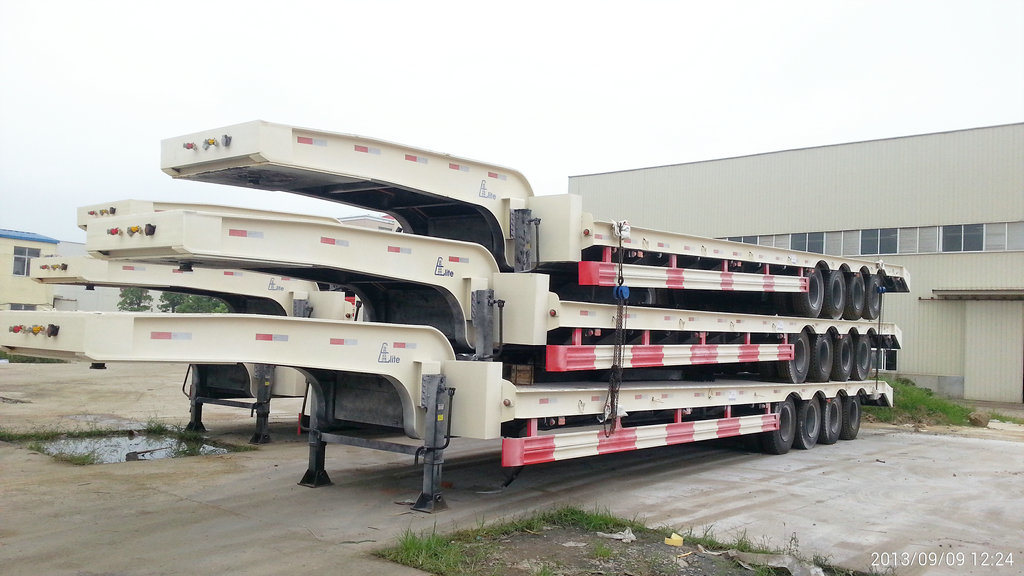

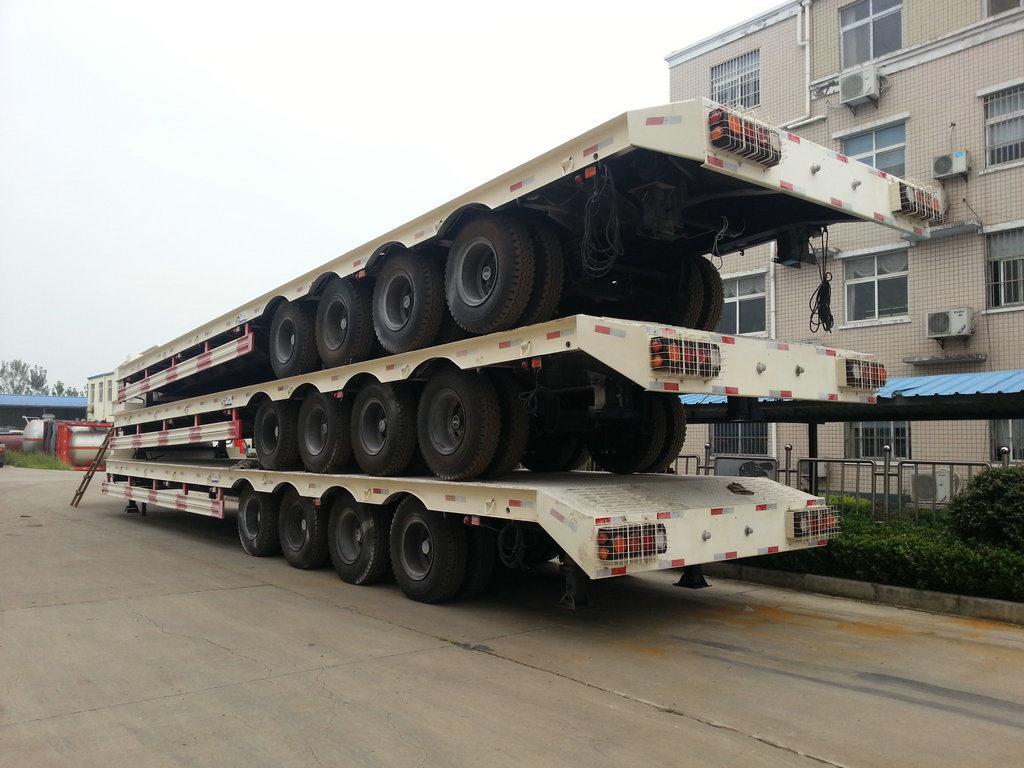

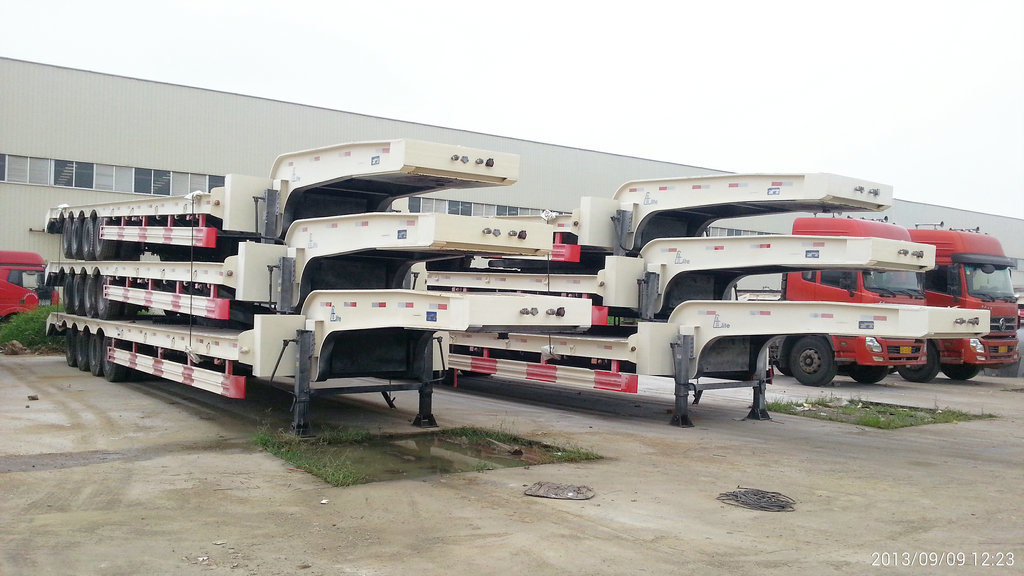

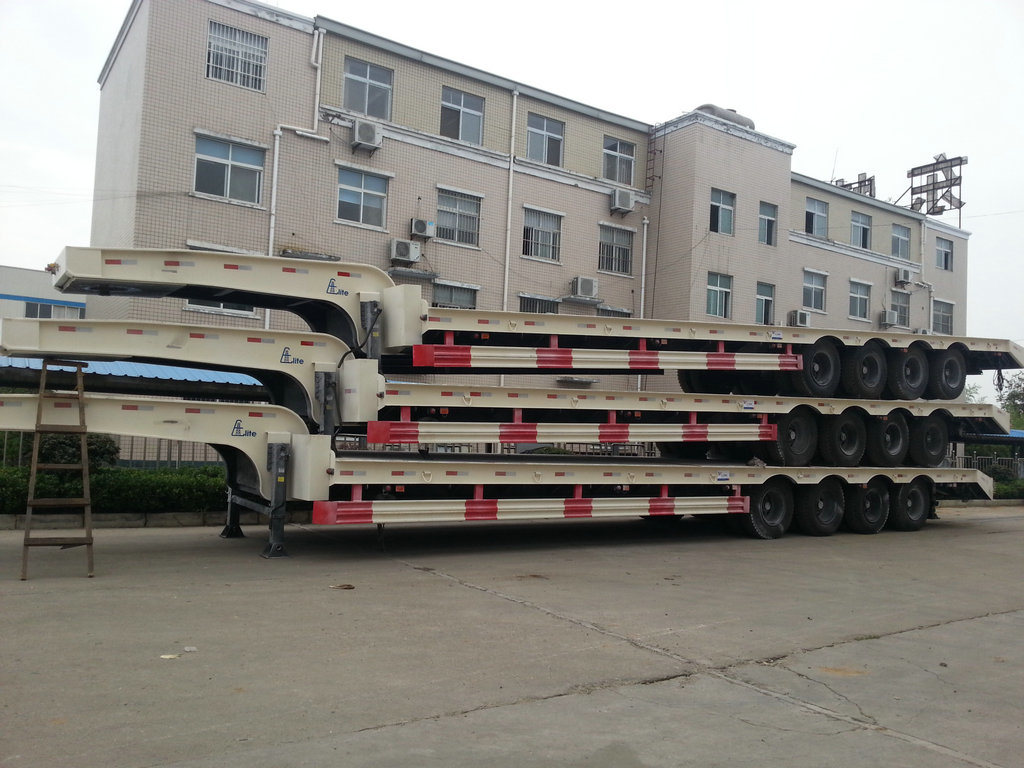

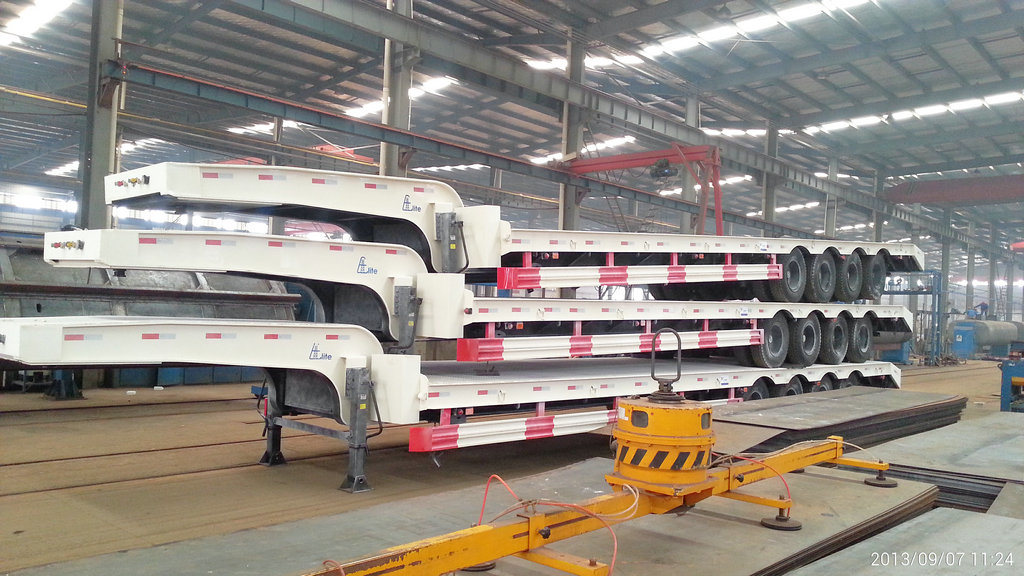

4 Axles Heavy Duty Lowboy (Low Bed) Trailer (Flatbed 11M -16M) 100ton
| Quantity: | |
|---|---|
- Shanghai, China
- 200sets Per Month
- T/T, Western Union
4 axles Heavy Duty Lowboy (Low Bed)Trailer (Flatbed 11M -16M )100Ton
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional
4 axle 90Ton heavy duty low bed trailer specifications
4 axle 80-100Ton heavy duty low bed semi-trailer | |
Low bed trailer Model | DRZ9904TDP |
Overall weight(kg) | 100,000kgs |
Curb weight(kg) | 11,800kgs |
Rated loading weight(kg) | About 90,000kgs |
Overall dimensions(mm) | 13000×3000×3150 |
No of axle | 4 axle FUWA brand.BPW or other axle brand are optional |
Axle load capacity (kg) | 16Ton/axle.12Ton,13Ton,14Ton,20Ton axle are optional |
Tire specification | 11.00R20,total 16 tires or based on client's required |
Suspension type | Leaf spring suspension.Air suspension is optional |
Landing gear | JOST 24 Ton double action landing gear |
Kingpin specification | JOST, 2 or 3.5 inch(50mm or 90mm) |
Electric circuit | International standard 24V |
Main frame description | Heavy duty and extra durability designed;Opting for high tensile steel Q345B,welded by automatic Submerged-Arc. "I" beam sturdy structure(thickness of 500-550mm) The thickness of top and end plate:20mm Vertical plate width:12mm Thickness of web plate:10mm,anti-slide 3mm steel surface |
Floor | 4mm thickness checkered plate |
Spare tire carrier | 1 units spare tire carrier |
Side Fender | Installed at both sides of trailer made of steel |
Rear Bumper | Steel, Manufacturer's Standard design |
Mud guard/Mud Flap | Steel mud guard and mud flap to manufacturer's standard |
Chassis Finishes | Sand blasted before painting.Color per client's required |
40-100Ton heavy duty lowbed semi-trailers/low bed trailer
FUWA axle (Chinese brand) or BPW axle (German brand), JOST landing gear (American brand), JOST kingpin, Orient star valve (Chinese brand), WABCO ABS system (optional component). All of the parts can choose Chinese brand or famous brands from Germany, Japan, US or UK, just according to customer's requirement. Special size for your design
Usage:To transport rail vehicles, mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders, paver, crane, etc)
Trailer Model | 4 Axle Low bed Trailer |
Dimension(Lx W x H)(mm) | 13000*2500*1750 |
Wheelbase(mm) | 8580+1310+1310+1310 |
Curb Weight(KG) | 9,000 |
Loading capacity(KG) | 100,000 |
Axle Brand | FUWA or BPW 13/16/20Ton Axle |
Axle Number | 4 |
Rim type | 9.0 22.5 x 16 pcs |
Tyre type | 12.00R20 x 16 pcs |
Suspension system | Mechanical leaf spring suspension / pneumatic suspension |
Steel Spring | 10/10/10/10 |
Frame | The height of the beam(Carling ) is 500mm,upper plate is 18mm,down plate is 20mm,middle plate is 14mm.according to the buyer's requirement |
Platform plate | 3-8mm Diamond Plate |
Traction Pin | 90# (3.5'') or 50#(2.0'') |
Landing Leg | 28T load landing leg |
