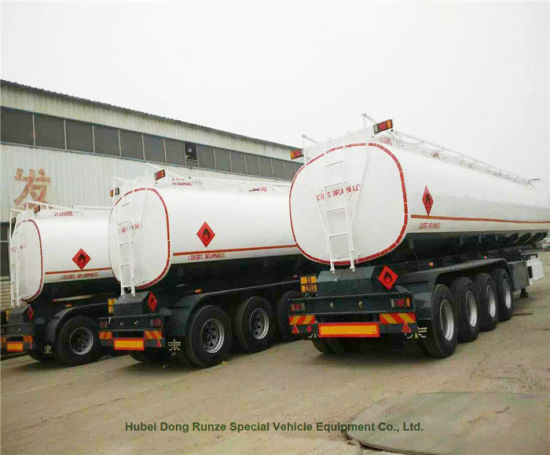

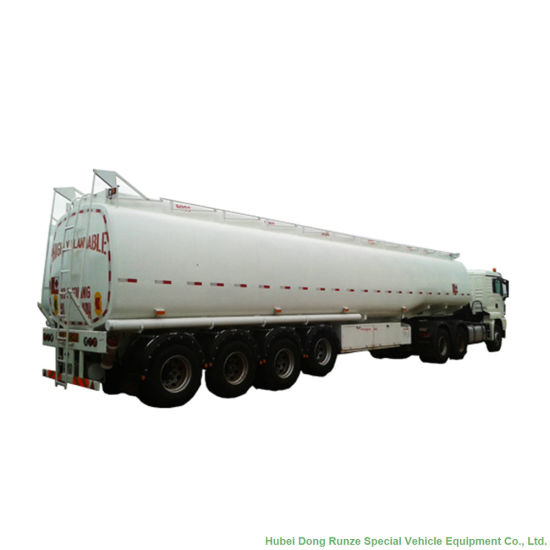

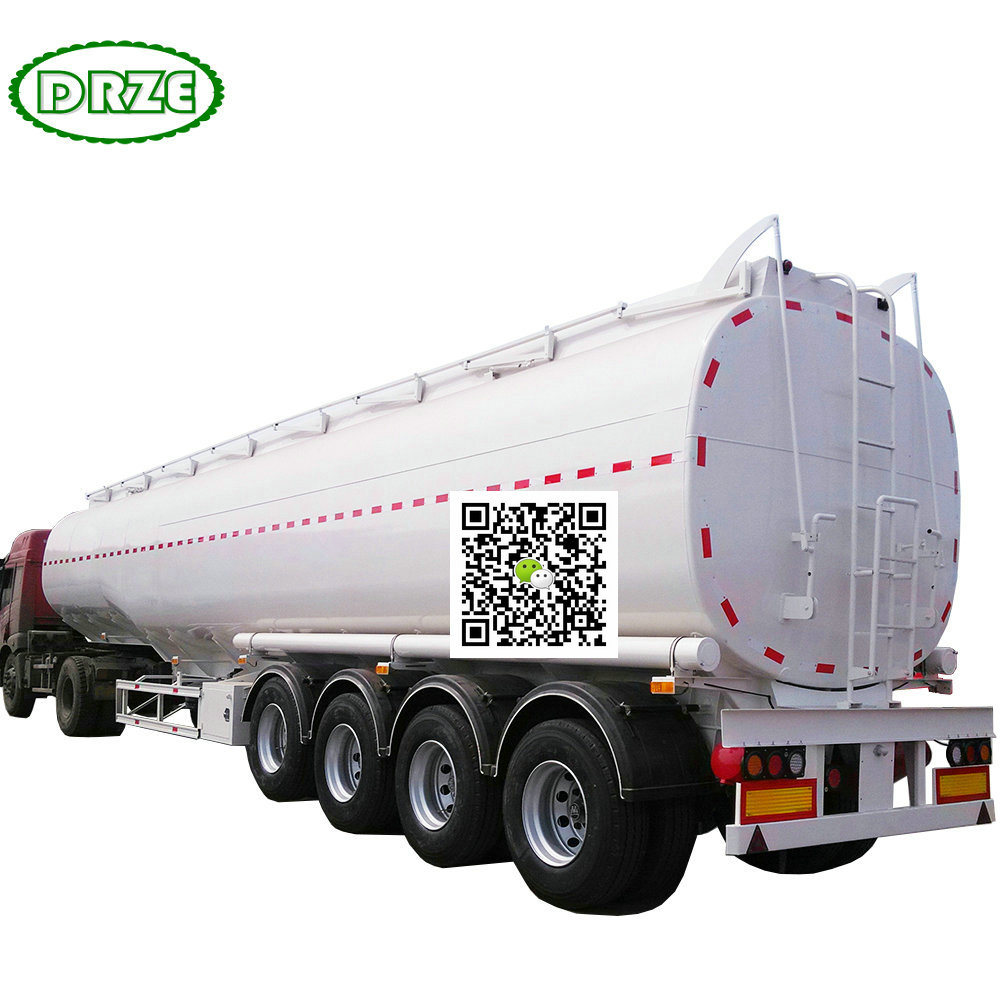

4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)

4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
Availability:
Quantity:
  • Shanghai, China

  • 100000

  • T/T, Western Union

Steel Fuel Tanker Semi-trailer 4 axles,  55000L,60000L,68000L,72000L  ( Crude Oil, Diesel ,Gasoline )Tank Trailer Manufacturers
 Steel 4 Axle Tanker Semi-trailer
tanker semi trailer factory sale
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L  55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)

4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)


4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer) 4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
Liquid Fuel / Water Tank Truck Semi Trailer

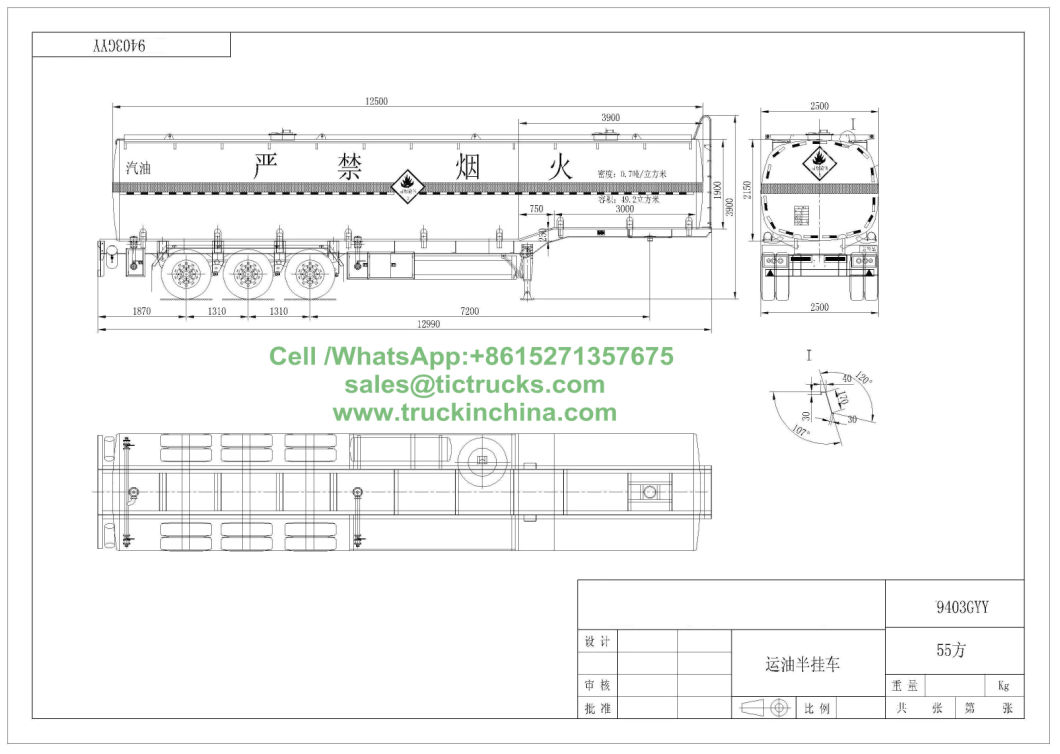

Model DRZ9375YGC
Dimension(Optional) Axle No. Rated Load (kg) Tire No. Tire Size
10000-30000liters/10-30cbm 2 30000 8 825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact with Supplier)
30000-60000liters/30-60cbm 3 40000 12
Above 60000liters/60cbm 4 75000 16
Manufacture DRZE
Wheel Base (mm) 1310
leaf-spring Pcs 10
Axle 13/16/18 T
Suspension Heavy Duty Mechanic Suspension with Leaf Springs
Main Beam Material Q345B manganese plates, automatic submerged arc welded
Brake System Dual line braking system with automatic braking system/chambers
Brake Air Chamber Double Model
Kingpin 2' or 3.5' Interchangeable
Landing gear 28T loading capacity with 80T static lifting capacity.
Tanker body 5mm , sealing end: 6mm
Brake System Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber Four double and two single chamber
Electrical System 24V, 7core socket, lights according to European standards.


Mainbeam Size

Upper plate 14mm
Mid Web 8 mm
Height 500-520mm
Tool Box 1 box of standard tools
Spare tire carrier 2 sets
Color and Logo Depends on the buyer's requirement.
Pin Height According to the height of the tractor saddle.
Painting Three coats painting; Any color will be available
Manhole 2pcs

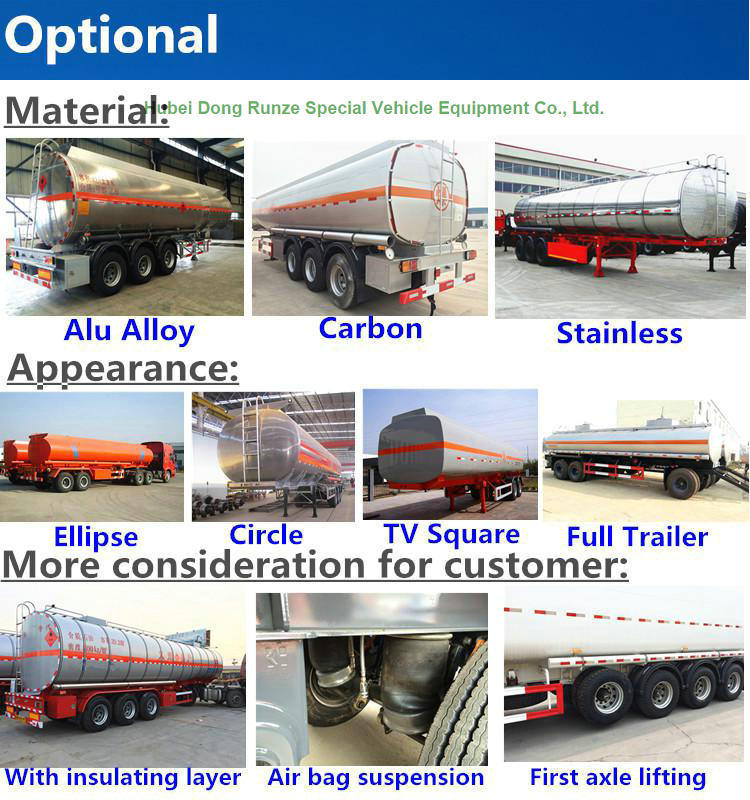

Body Material Carbon Steel/ Stainless Steel/Aluminium
Ladders Steel with anti slipper walking way
Fire extinguisher 2x 4kgs
handrail Steel, manual
Application For liquid transportation
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)

4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)
4 Axle Fuel Tank Semi Trailer (4 Axle 55000L 55M3-72CBM Fuel Transport Tank Semi Trailer Oil Fuel Tanker Truck Trailer)



Website:  www.truckinchina.com







 Tanker
Material                  Steel
Thickness of shell     5mm
Thickness of dish      6mm
Inside baffles            4mm
Compartments          5 to 7 compartments

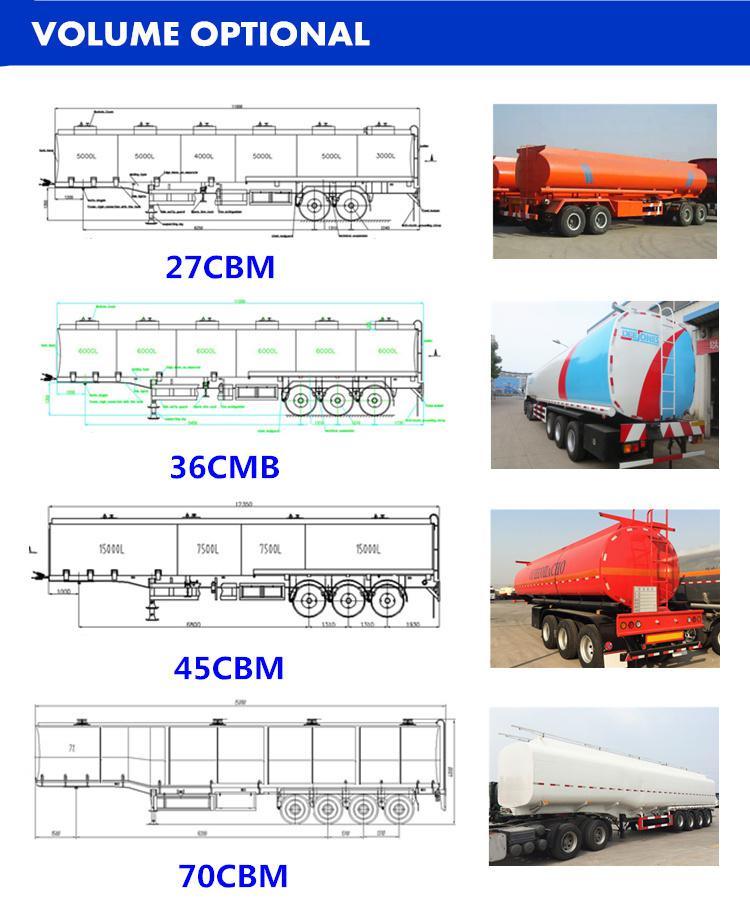

Volume                  55000L to 72000L+ 6% expansion
Tank Top Accessories
Ladders fixed on the front and rear; foldable handrail
Walkway with anti-slip material in the front of reach the manholes
Not covering the complete length of the tank.
Tank Equipments (all API Standard)
Each compartment is equipped with
Aluminum Manhole cover 16" or 20"
Aluminum Emergency Bottom valve 3" with Pneumatic switch in locker<
Aluminum Spill Valve 3" or 4",
Discharging Nylon hose 6m
Discharge and loading
Gravity discharge,
Top loading.            Option: Bottom loading

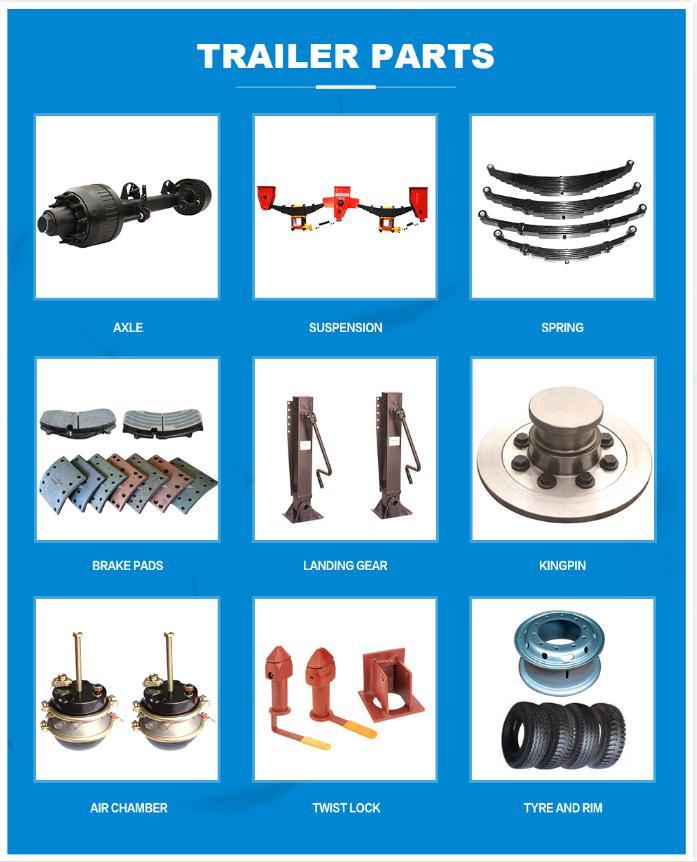

Running Gear
FUWA axle 13T*4                 Option: BPW axle 13T
Heavy duty spring suspension 18*16*9mm
16+1 pcs tires 315/80R22.5 Tire  (9.0*R22.5 steel rims)
3.5" Jost kingpin                     Option: 2"
JOST 2-geared mechanical operated landing legs
Braking System
Double line air brakes Mechanical parking brake, WABCO brake valve
The first axle and the third axle with ABS System.
Electric Installation
Complete 24V system in explosion proof installation
Rear lighting with rear, stop, parking, direction, fog, reverse lights, side lights
Painting

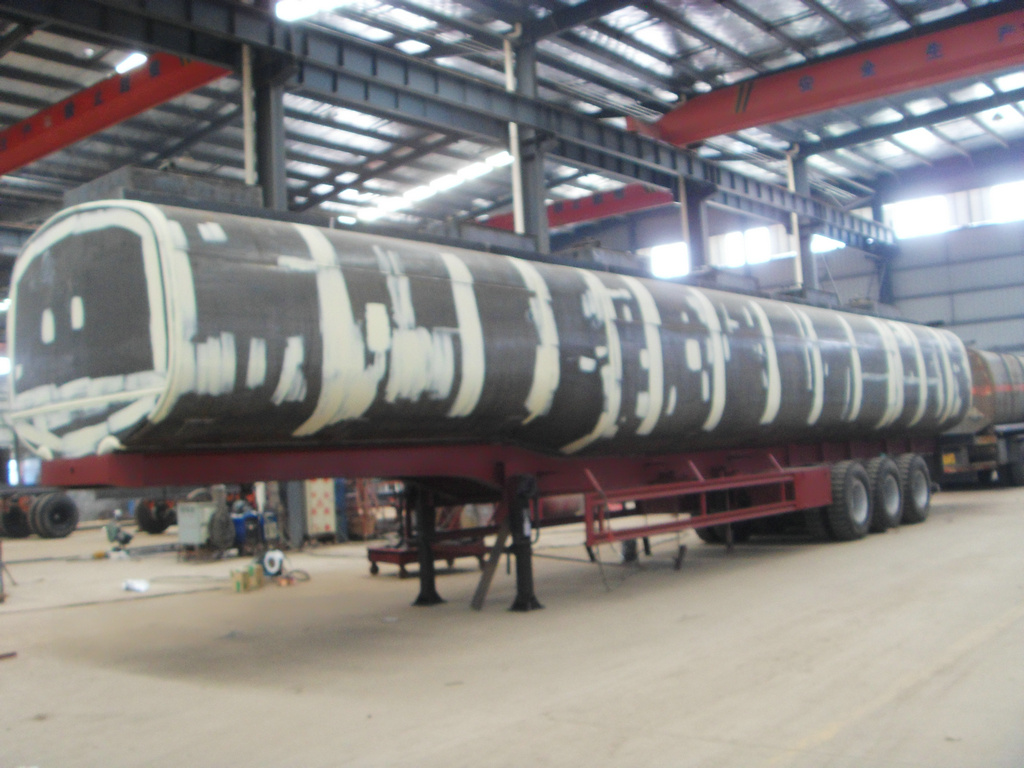

Exterior surface treatment by shot blasting
Painting by high solid primer directly on the surface
Painting inside special paint booth with the cargo cabin color or the color chosen by the customer
Accessories
Plastic Mudguards, Side protection, 2 Fire extinguisher, 1 Spare tire carrier.
1 Tool box with standard tools, Heavy duty tail bumper
Contact to get the detail and price cell: (+86)15271357635
