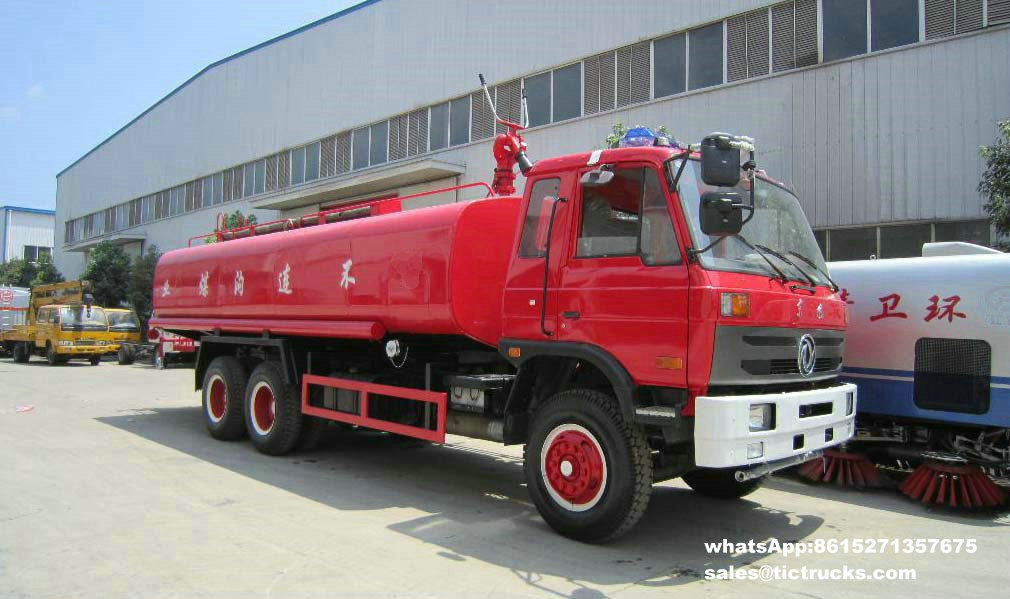

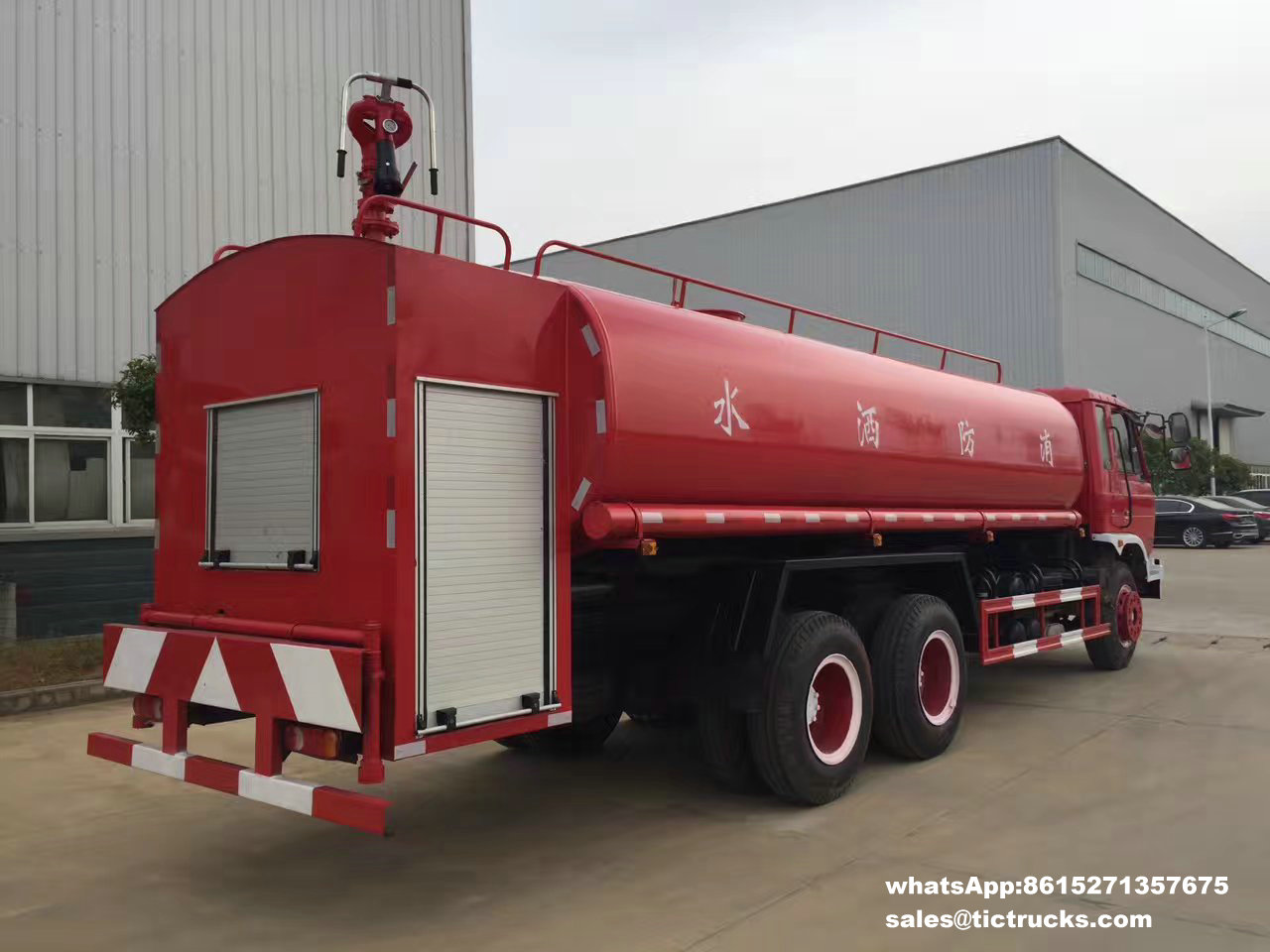

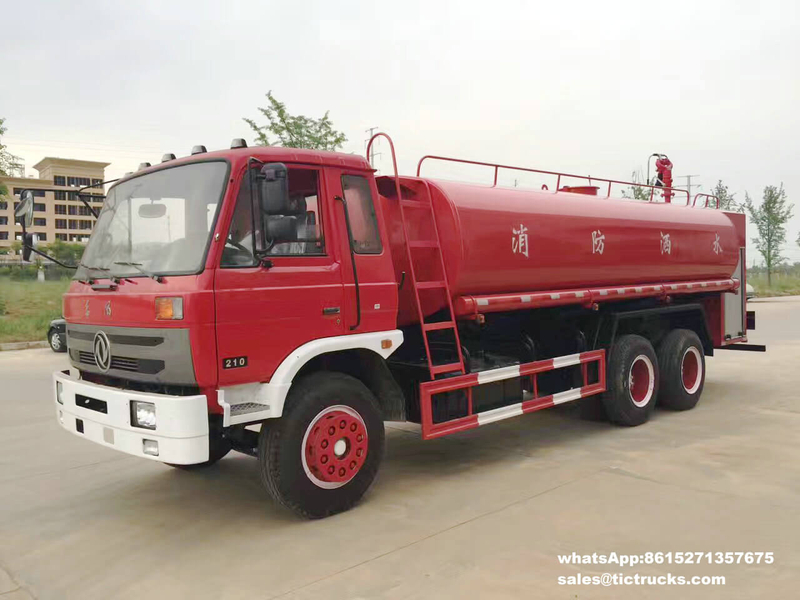

3200 gallons water tanker fire truck LHD,RHD

3200 gallons water tanker fire truck LHD,RHD
carbon steel water tank, manhole, fire pump, front/side/rear spray nozzle,rear working platform,fire gun,fire valve, water valve, filter gauze,water hose, climbing ladder.
Price: $ 17000  -  40000
Discount Price: $ 15000  -  36500
FOB:
Availability:
Quantity:

  • DRZ5250GSSXFE

  • Dong run ze

  • 8705309000

3200 gallons water tanker fire truck LHD,RHD

(1) ( Body)


Name

 water tanker fire truck

Country of Origin

China

Cab

cabin (two doors) with Air - Condition,

Dimension (mini)

( 9800 x 2470 x 3380 ) mm

Mininum Size of Tyre

11.00R20

The number of Tyre

10 + 1 (Spare tyre)

Mininum Speed

90 Km/hr

Water tank capacity

3200 gals

(To reduce the action of Water waves.)

Suspension (Front)

Leaf Spring

Suspension (Rear)

Leaf Spring

Wheelbase ( mm)

4350 + 1300

Required U Shape (6") at the end of relay pipe.


Search light must be fitted left or right.


(2)  ( Engine)


Engine Rated power

240 HP

Engine type

4 Stroke Water Cooling

Direct Injection


Engine Fuel

Diesel Oil

Driving type

6 x 4

Gear Link

Lug type

Ball quality is required to improve in the transfer gear box.


(3) ( Pump & Pipe)


Type of fire pump

Centrifugal pump

Minimum pressure

1.0 mpa

Minimum fire pump capacity

30 L/S

Fire fighting pump Suction depth

> 7 m

Fire fighting pump Suction Time

< 35 s

Time


Delivery outlet (B/S type)

65 mm (2  ½ inch)

Fire fighting nozzle range

> 55 m

Rotation angle of fire fighting
Turret Nozzle

360°

Pipe Line (Inlet)

4"ø one on both side

Pipe Line (Outlet)

21/2 ø two on both side

Vacuum pump valve must be located on the control box.


Pump inlet pipe must be located (1") above the tank base.


Vacuum cut-off quality is required to improve.


Rod system is possible for pump gear.


Main pump should be fitted (4") ball valve.


(4)  ( Accessories)

 Fire  Electric siren

1-Nos

Emergency rotation lamp

1-Nos

Fire axe

1-Nos

Fire hook

1-Nos (Must be applied to climb)

Fireman ladder ( Extension ladder)
( 30'<)

1-Nos ( Metal Ladder)

Jet & Spray Nozzle

1-Nos

Jet nozzle

1-Nos

Fire hoses (B/S System)
 (ø65 mm , 20 m)

4-Nos

Suction pipe  (Lengrh 4m)

2-Nos

Water filter (Metal)

2-Nos

Suction pipe wrench (ø 100 mm)

2-Nos

Fire hydrant wrench

2-Nos

Pipe quality is required to improve.


To contain fire extinguisher. ( 3 Kg)


Seat of hydraulic jack and wheel spanner quality are required to improve.

2,

DONGFENG fire truck spraying water, righ hand drive optional, Euro III optional, engine power optional, water tanker material(carbon steel, stainless steel, aluminum alloy) optional, fire pump brand optional, etc., custom according the user detailed requirement, such as Southeast Asia, Africa, Middle East, South America, standard configuration include pump chamber, equipment boxes, power output and transport systems, etc., widely used in urban public security fire brigades, factories, mines, forests, ports etc, it can quickly approaching the fire started sites, fighting all kinds of fires, is the ideal equipment.



TRUCK CHASSIS

MANUFACTURER              DONGFENG

Oversize                       9950x2490x3200mm

Chassis model                  EQ5253GFJ2

GVW                          24700kg

CW                            9150kg

Max speed                      85 kw/h

Drive type                       6*4

Axle No.                        3

Axle capacity                   6700/18000(two rear axles together)kg

Wheelbase                      4350+1300mm

Tire specification                 10.00-20 16PR

Suspension type                  leaf spring 9/10

ENGINE PARAMETER

Manufacturer                    DONGFENG CUMMINS

Part No.                         B210

Fuel type                        diesel

Displacement                     5900ml

Power                           162kw, 220hp

Emission standard                Euro 3



SUPERSTRUCTURER

WATER TANKER

Tanker body material                Carbon steel

Tanker capacity                     16100L, 4253 gallons

Tanker size                         6980×2300×1500mm





FIRE FIGHTING EQUIPMENTS

PUMP AND PIPE

Type of fire pump                        Centrifugal pump

Minimum fire pressure                    1.0 mpa

Minimum fire pump capacity               30 L/S

Fire fighting pump Suction depth          > 7 m

Fire fighting pump Suction Time           < 35 s

Delivery outlet (B/S type)                  65 mm ( 2 ½ inch )

Fire fighting nozzle range                 > 55 m

Rotation angle of fire fighting Turret Nozzle 360

Pipe Line (Inlet)                                    4” Ø one on both side

Pipe Line (Outlet)                                  2 ½ Ø two on both side



RESCUE ACCESSORIES

ACCESSORIES

Electric siren

Emergency rotation lamp

Fire axe

Fire hook

Fireman ladder                        Extension Ladder, 30’<

Jet & Spray Nozzle

Jet Nozzle

Fire hoses                            B/S System, Ø 65mm 20m

Suction Pipe                           Length 4 m

Water Filter                           Metal and Guide rope

Suction pipe wrench                   Ø100 mm

fire extinguisher



OTHER EQUIPMENTS: fire helmets, fire fighting clothes, fire gloves and fire boots, fire belts and safety hooks, respiratory protective equipment, built-in heavy chemical warfare suits, closed chemical suits, fire chemical suits, anti-nuclear military chemical warfare suits, simple anti-chemical warfare suits, mobile air supplier, double cylinders respirator, multi-purpose canisters, chemical gloves, electric insulation gloves, cut-resistant gloves, high temperature gloves, chemical safety boots.

Dongfeng 5000Lwater tank lorry  Fire Truck 4x2

 carbon steel water tank, manhole, fire pump, front/side/rear spray nozzle,rear working platform,fire gun,fire valve, water valve, filter gauze,water hose, climbing ladder.






 Fire truck hot sale






Here the price is for standard configuration. Selective configuration and any change according to the buyer’s requirements please confirm the price with our company.














Standard configuration

Chassis,sub frame, van body,America DOPPON paint baking varnish,national standard equipment box, 25 units national standard fire-fighting equipment,fire



pump(CB10/20, CB10/30,CB10/40,CB10/60 according to the capacity), fire gun(PS20,PS30,PS40,PS50 according to the capacity),fire power take off, sliding gate, row type


lights, reel, common tools,rear climbing ladder,water tank.


















Selective configuration

foam type,dry powder type,stainless tank,other requirements.


















Vehicle model

Chassis brand

Chassis model

Load

Overall dimensions

Wheel base

Engine model

hp/standard

Tire

FOB Price




L

mm

mm






USD

DRZ5050GXFSGE

DONGFENG

EQ1050NJ20D3

2500

6260X1900X2750

3300

CY4102-C3F

95/Euro 3

6.15-16



19980

DRZ5060GSSXFE

DONGFENG

EQ1060TJ20D3

5000

5980X1980X2380

3300

CY4102-C3F

95/Euro 3

7.00-16



14890

DRZ5090GSSXFE

DONGFENG

EQ1090T9ADJ3AC

6000

6995X2285X2980

3800

CY4102-E3C

120/Euro 3

7.50R16



17990

DRZ5090GXFSGE

DONGFENG

EQ1090T9ADJ3AC

4000

7025X2095X2840

3800

CY4102-E3C

120/Euro 3

7.50R16



25060

DRZ5100GSSXFE

DONGFENG

EQ1100FKJ

7000

7350X2440X2990

3950

YC4E140-33

140/Euro 3

9.00-20



18140

DRZ5108GSSXFE

DONGFENG

EQ1108KJ

9000

7450X2480X3185

3950

B170 33

170/Euro 3

9.00-20



21680

DRZ5108GXFSGE

DONGFENG

EQ1108KJ

5000

7490X2500X2280

3950

B170 33

170/Euro 3

9.00-20



28310

DRZ5126GXFSGE

DONGFENG

EQ1126KJ1

6000

8315X2500X3300

4700

B190 33

190/Euro 3

9.00-20



36730

DRZ5141GSSXFE

DONGFENG

EQ1141KJ

11000

8105X2490X3250

4500

B190 33

190/Euro 3

10.00-20



23450

DRZ5141GXFSGE

DONGFENG

EQ1141KJ

6000

8115X2500X3300

4500

B190 33

190/Euro 3

10.00-20



36430

DRZ5253GSSXFE

DONGFENG

EQ5253GFJ2

15000

9950X2480X3750

4350+1300

B210 33

210/Euro 3

10.00-20



31270

DRZ5090GXFSGPME

DONGFENG

EQ1090T9ADJ3AC

2400

7025X2095X2840

3800

B140 33

140/Euro 3

7.50R16



29050

DRZ5070GXFSGQ

ISUZU

QL1070A1KWY

3000

6820X2000X2820

3815

4KH1-TCG40

120/Euro 4

7.00-16



32080

DRZ5160GXFSGQ

ISUZU

QL1160AMFRY

6000

8360X2485X3420

4500

6HK1-TCNG40

240/Euro 4

10.00-20



67250

DRZ5250GXFSGQ

ISUZU

QL1250DRFZY

15000

9775X2490X3560

5100+1300

6HK1-TCSG40

280/Euro 4

11.00-20



91450

DRZ50703GXFSGQ

ISUZU

QL10703HWRY

2500

6260X1980X2780

3360

4JB1CN

98/Euro 4

7.00-15



26770

DRZ51609GXFSGQ

ISUZU

QL11609MFRY

6000

8070X2500X3370

4500

4HK1-TCG40

190/Euro 4

10.00-20



55590

DRZ5167GXFSGZ

SINOTRUK

ZZ1167M4617C

8000

8820X2500X3450

4600

WD615.92

266/Euro 3

11.00-20



59060

DRZ5257GSSXFZ

SINOTRUK

ZZ1257M4641W

20000

9895X2496X2958

4325+1350

WD615.92

266/Euro 2

12.00-20



43430

DRZ5257GXFSGZ

SINOTRUK

ZZ1257N4347C

15000

9680X2500X3650

4325+1350

WD615.69

336/Euro 3

12.00-20



70120

DRZ5257GXFSGZ1

SINOTRUK

ZZ1257S4647C

16000

10265X2500X3580

4600+1350

WD615.96

375/Euro 3

12.00-20



69610

keywords:Dongfeng Fire Fighting Tanker Truck , Dongfeng Multifunctional Fire Truck , Dongfeng Fire Engine Truck , Dongfeng Fire Tanker Truck , Water Fire Fighting Tanker Truck , Fire Fighting Tank Truck , Water Fire Fighting Tank Truck , Dongfeng Fuel Tanker Truck
