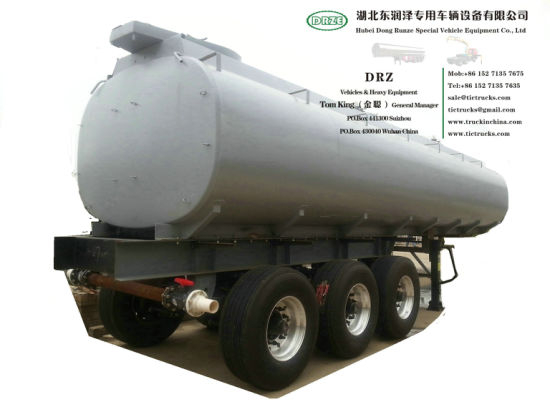

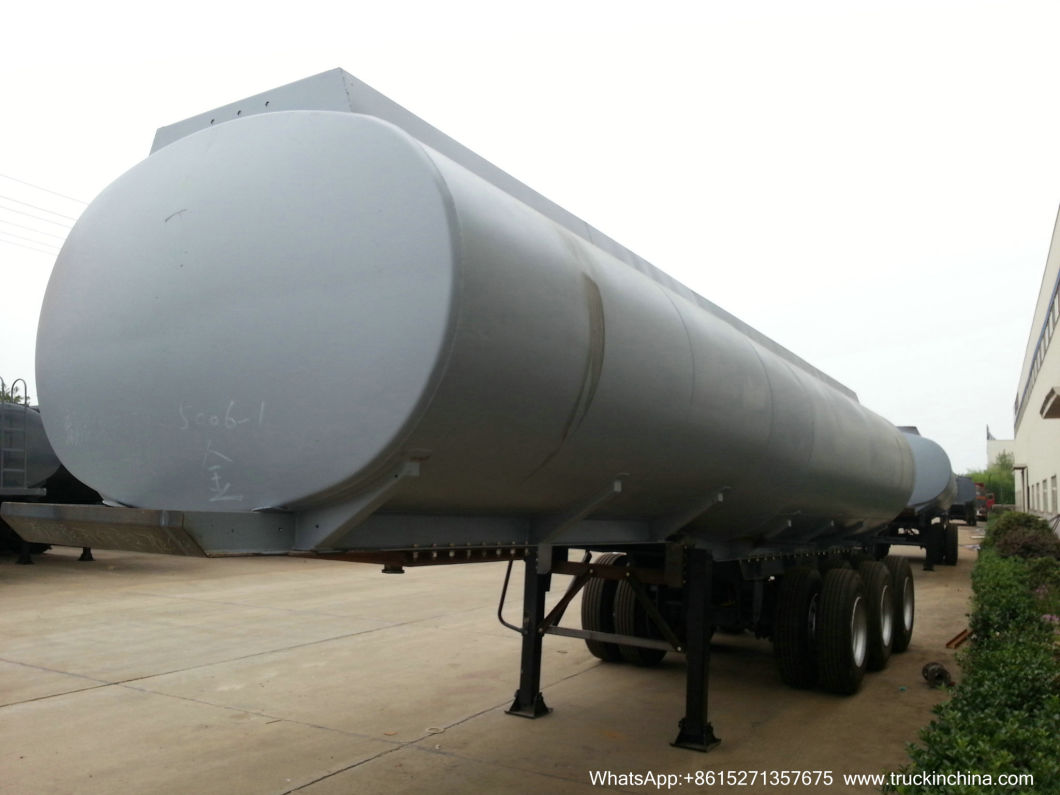

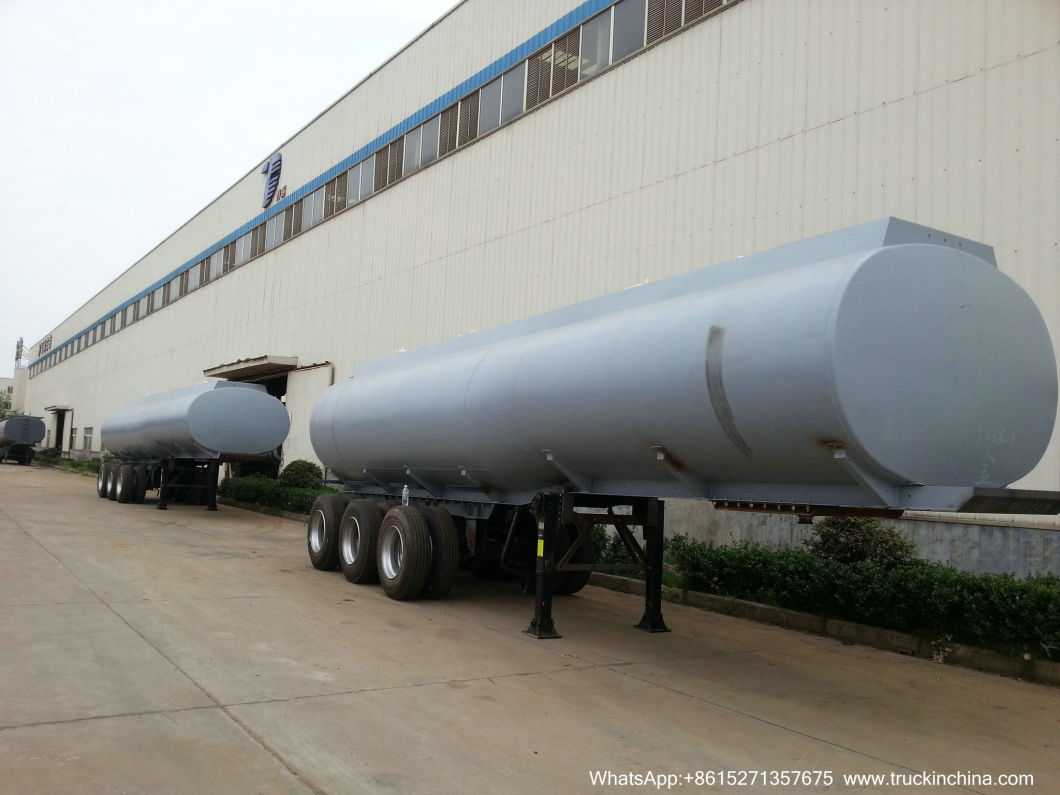

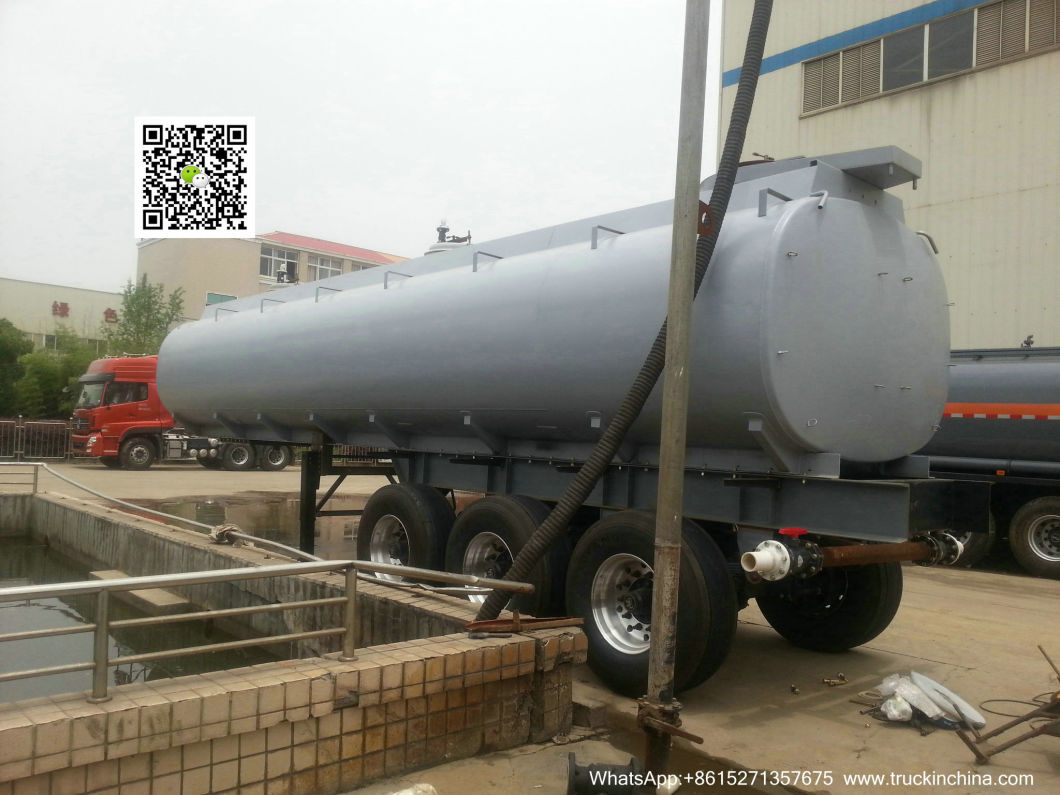

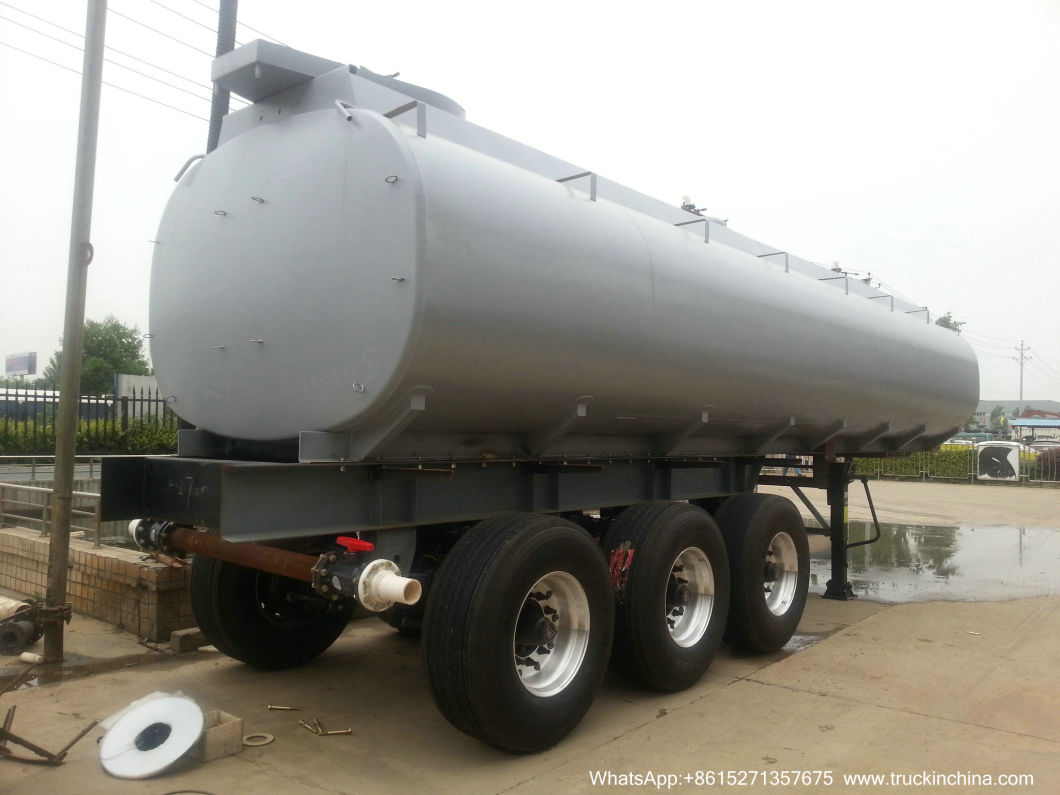

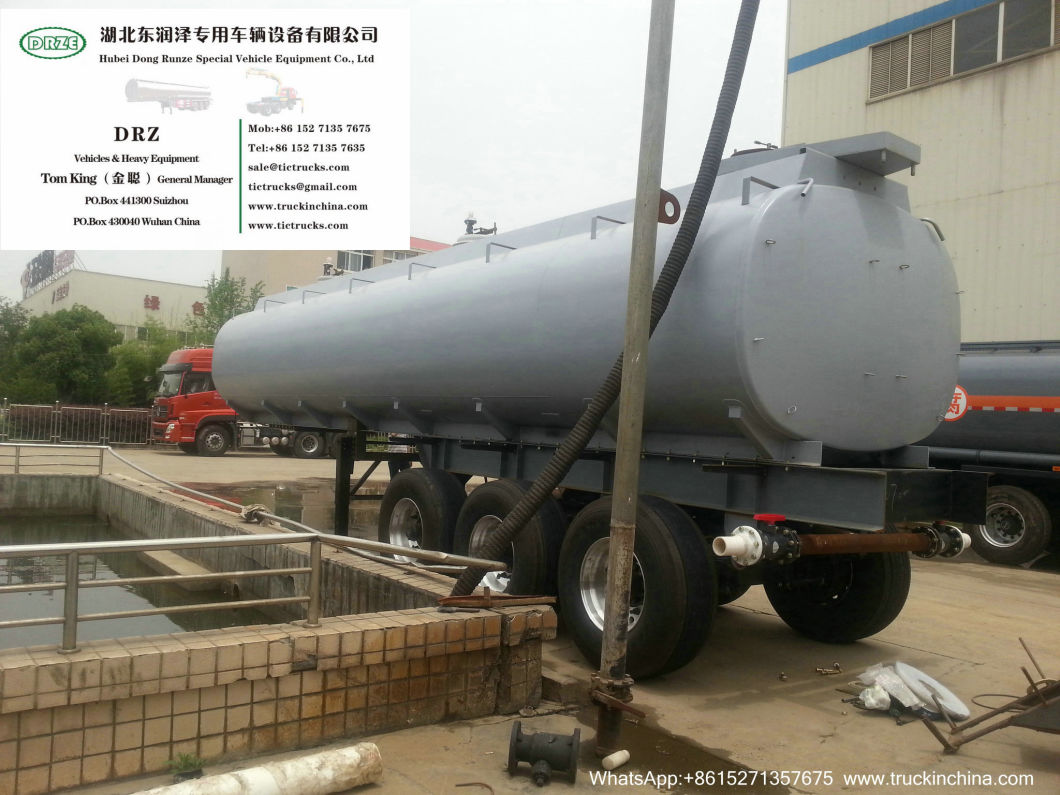

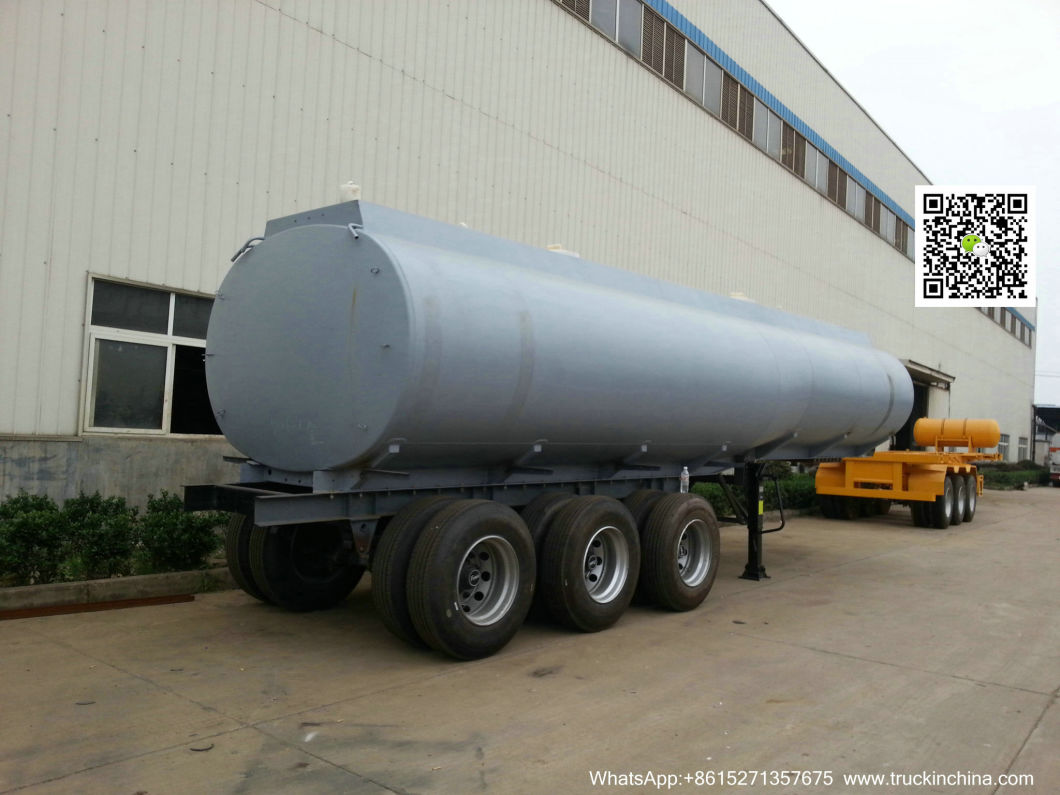

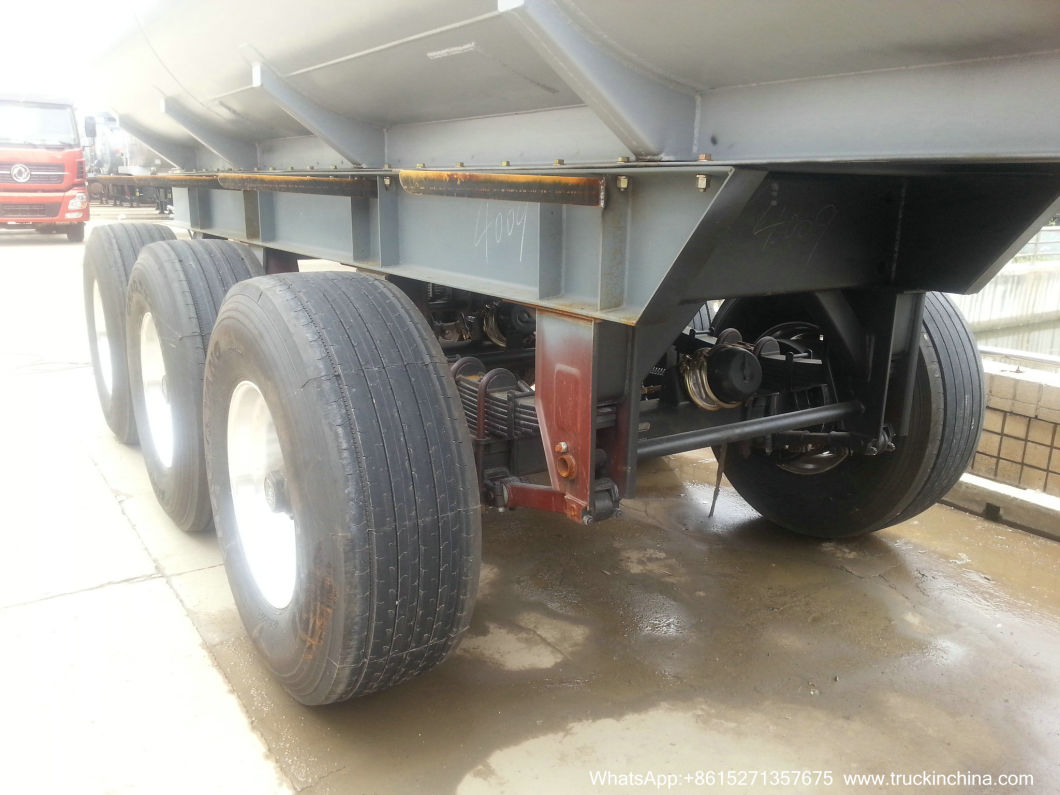

30T 3 Axles HF Acid Tanker Trailer ( Steel Tank Lined PE Hydrofluoric Acid, Hydrochloride Acid,Pickling Waste Water, Pickling Liquid) (28-33M3 Carbon Steel 8mm Shell, Or Lined LLDPE Plastic Rubber for H2SO4 Dilute Sulphuric Acid ,HCL Hydrochloric acid 8000USG -10000USG))
Dilute sulfuric acid Tank Trailer Manufacturers
Hydrochloric acid tank semitrailer 2axles 19900Liters,19900Liters,22400liters,23800liters Tank hydrochloric acid, dilute sulphuric acid ,acetic acid, acrylic acid tank body effective volume: 28 -33 cubic metres, transport : hydrochloride, hydrogen chlorate, sodium hydroxide,acrylic acetic acid, glacial acetic acid, hydrogen peroxide Propionic acid, ammonia,NH3·H2O tanker semi trailer factory sale
Corrosive materials tank transport trailer / rare sulfuric acid tanker trailer
| DIMENSIONS |
| Tare Weight | 8500kg |
| Payload | 31500 kg |
| Total Weight | 40000kg |
| Overall Length | Refer drawing 10000mm |
| Overall Width | Refer drawing mm (maximum 2500mm) |
| Overall Height | Refer drawing 3500mm |
| Wheel track | Refer drawing mm |
| Wheel base | Refer drawing mm |
| STANDARD SPECIFICATION |
| Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm |
| Axle | Three axles. |
| Suspension | 3-axle BPW spring Suspension |
| Landing Gear | Two-speed ,manual operation, heavy duty landing gear |

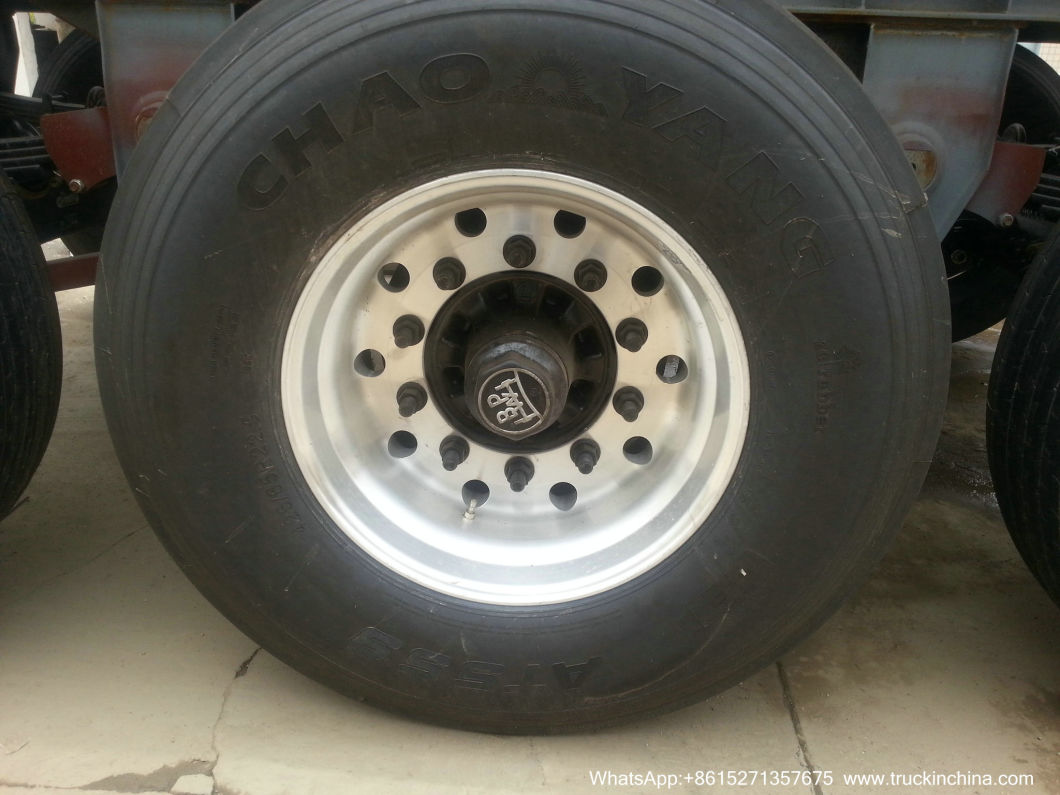

| Wheel Rim | 11.75 / 22.5 |
| Tyre | 385/65R22.5 / 425/65R22.5 tyres (tubeless) |
| Spare Wheel Carrier | one spare wheel carrier including a riser |
| Pneumatic Braking System | 30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ; reliable local brand standard coppery air-connector. With ABS |
| Electrical System | 24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable. |
| Tank | 28,000 -33000litres capacity |
| | Shell baffles 6 mm carbon steel |
| | Walkway and top tank; ladder end or side of tank |
| Tank fittings | Manhole covers top filler and with spillbox,
Bottom coupling DN80 discharge system |
| Painting | Sand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting; (black chassis, blue tank or as client requirement) |
| Accessory | One trailer tool box , One 200L water tank. |
