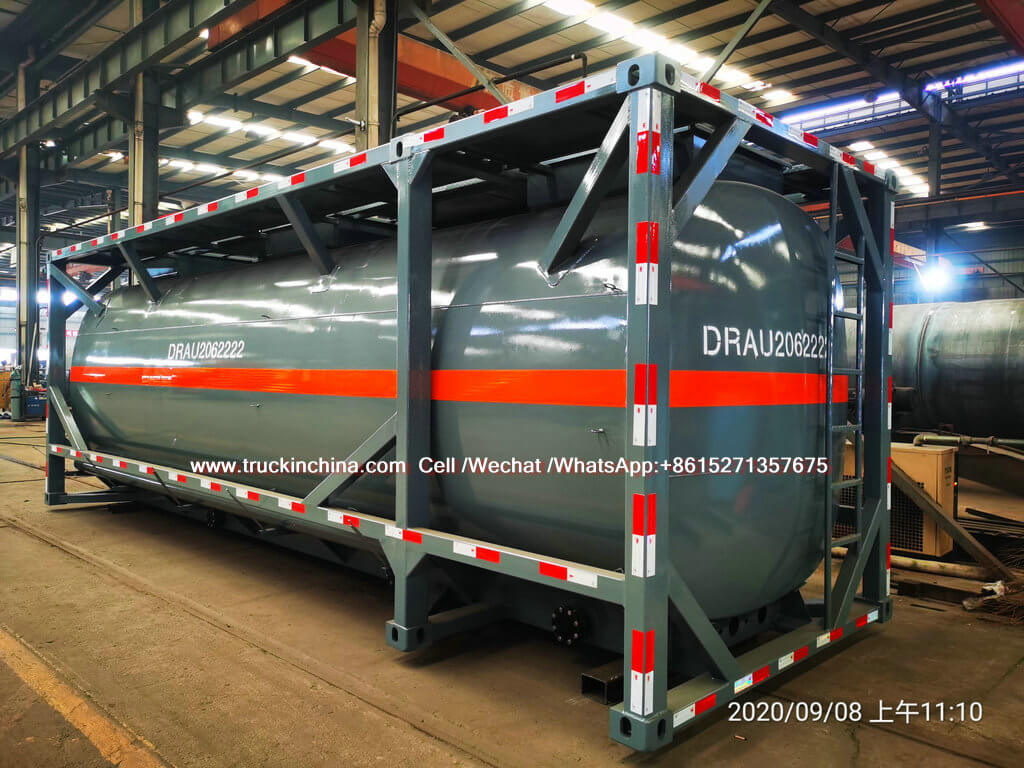

30FT LLDPE Lined Tank Container export to Vietnam
Ocean Vessel Voy. MV. VENUS /V2253

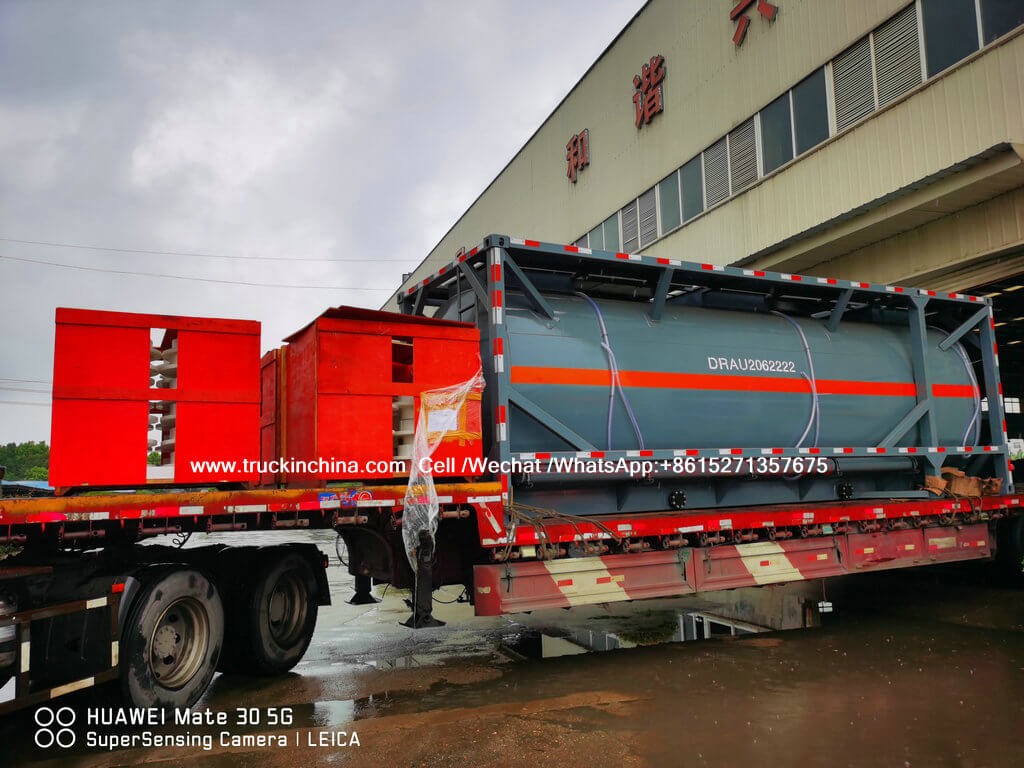

Transport：From Shanghai port, China to HO CHI MINH port, Vietnam by Sea
It is used for transporting Hydrofluoric acid （concentration ＞ 55%
or hydrochloric acid ＜ 38%)
Hydrochloric Acid Un1789 HCL
Hydrofluoric Acid HF acid UN1790
carbon steel and lined with 16mm LLDPE
Tanks capacity 25KL
Description of goods

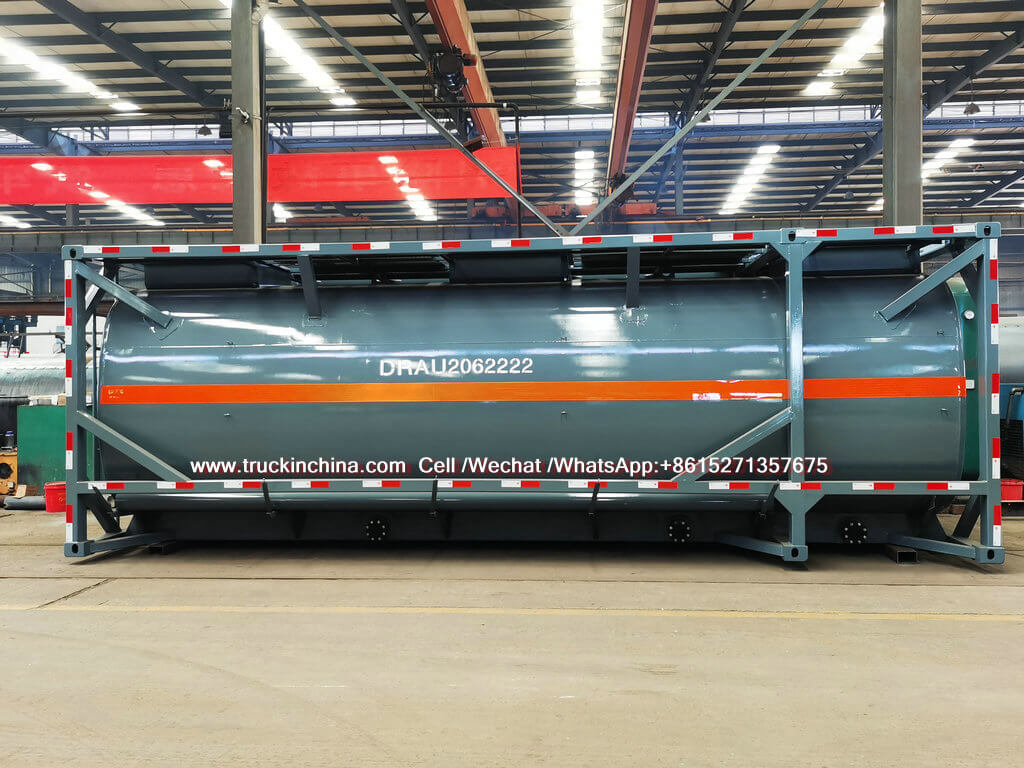

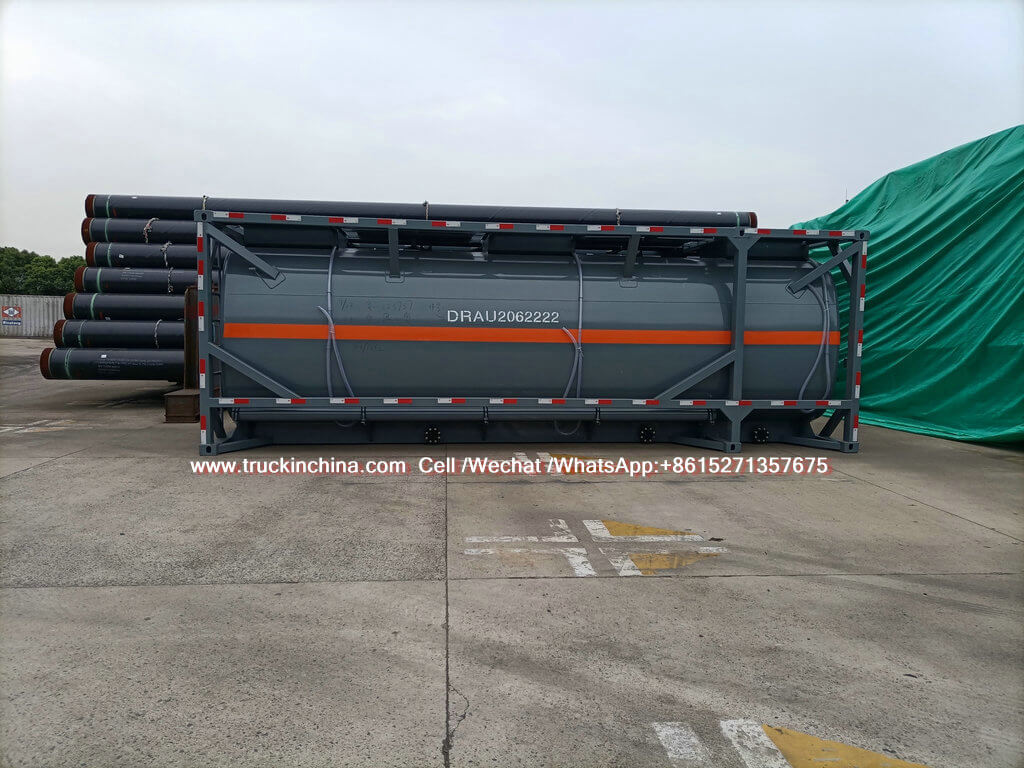

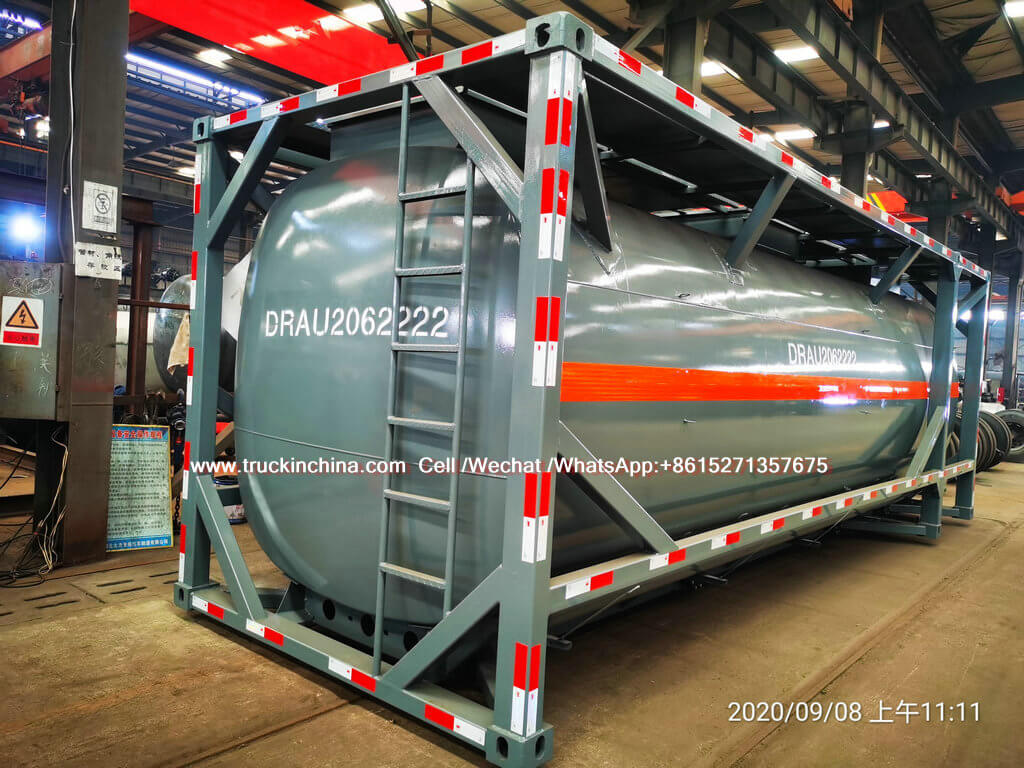

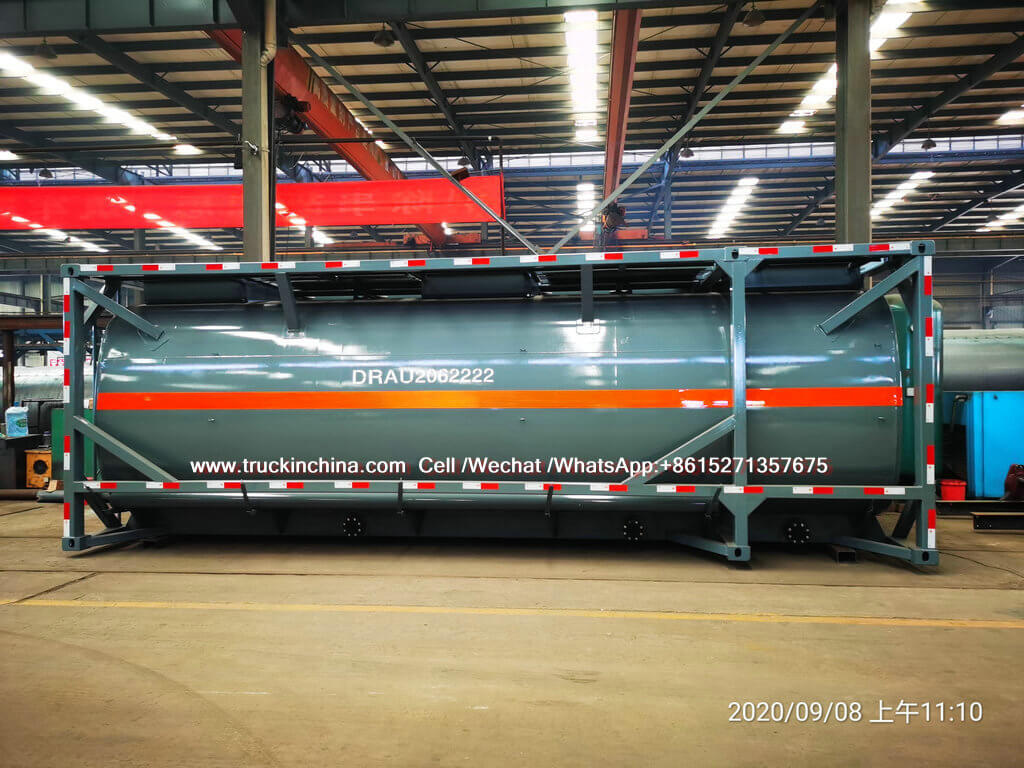

30FT Tank Container
3 chambers, for 30FT trailer.
Steel sheet 5mm, head 6mm
Liner thickness: 16mm PE
Tank in 30ft rectangular frame;
8000+9000+8000 = 25000 liter.

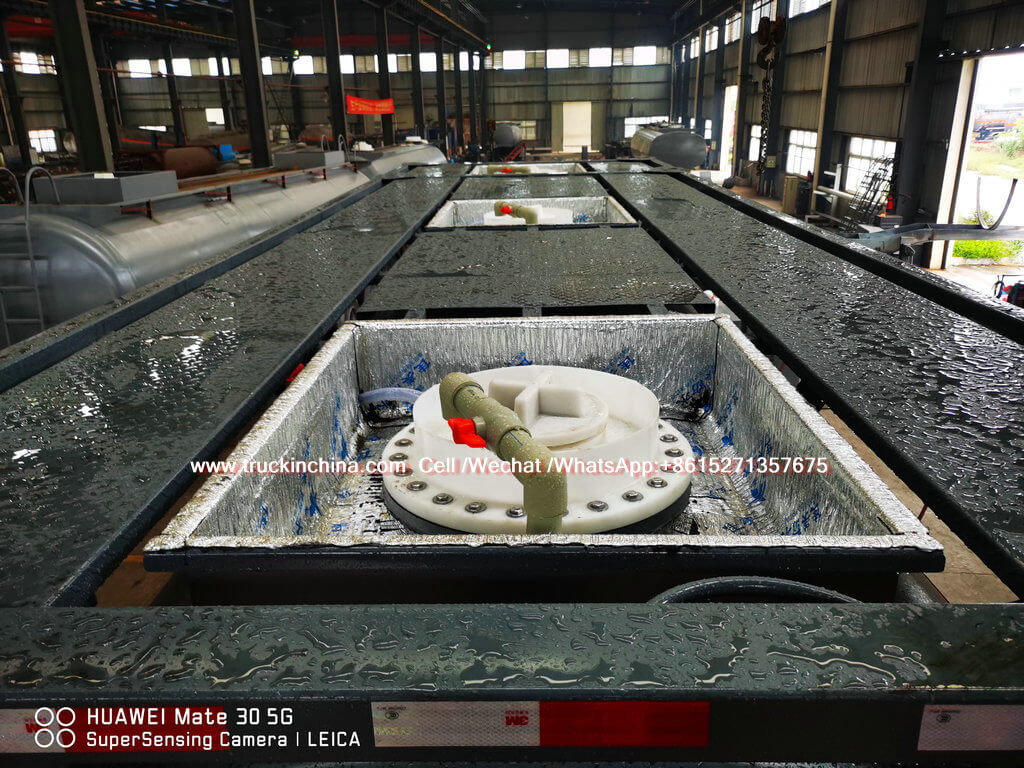

3 Full Plastic Manhole Cover
two side discharge pipe,
but left side flange sealed,

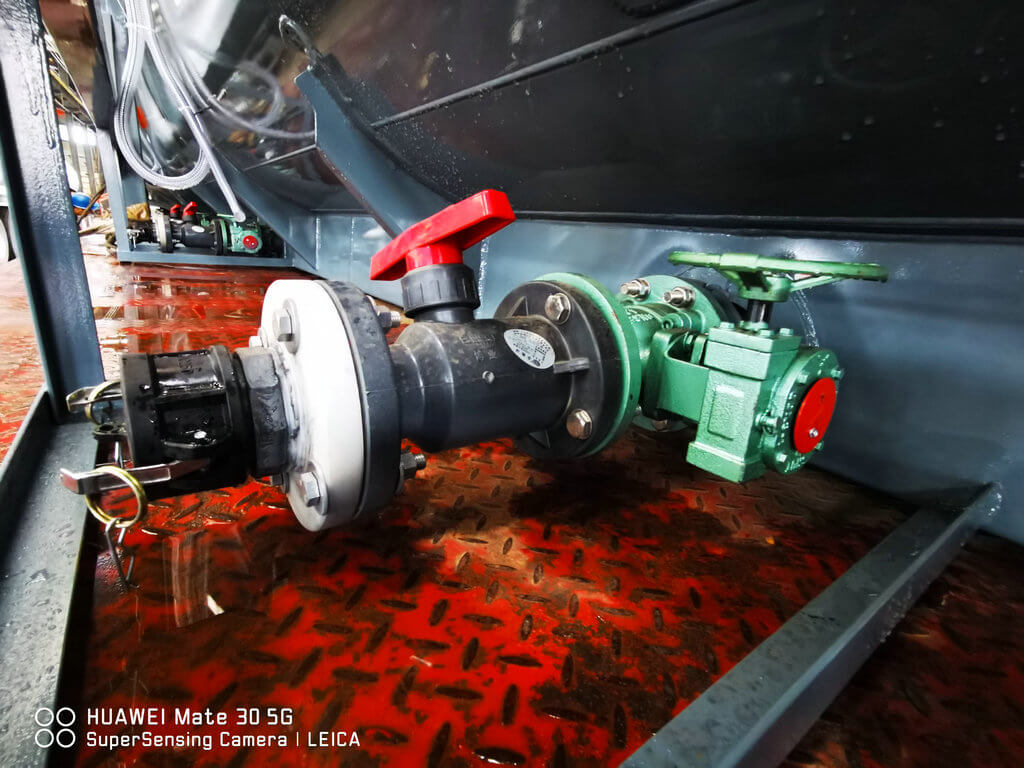

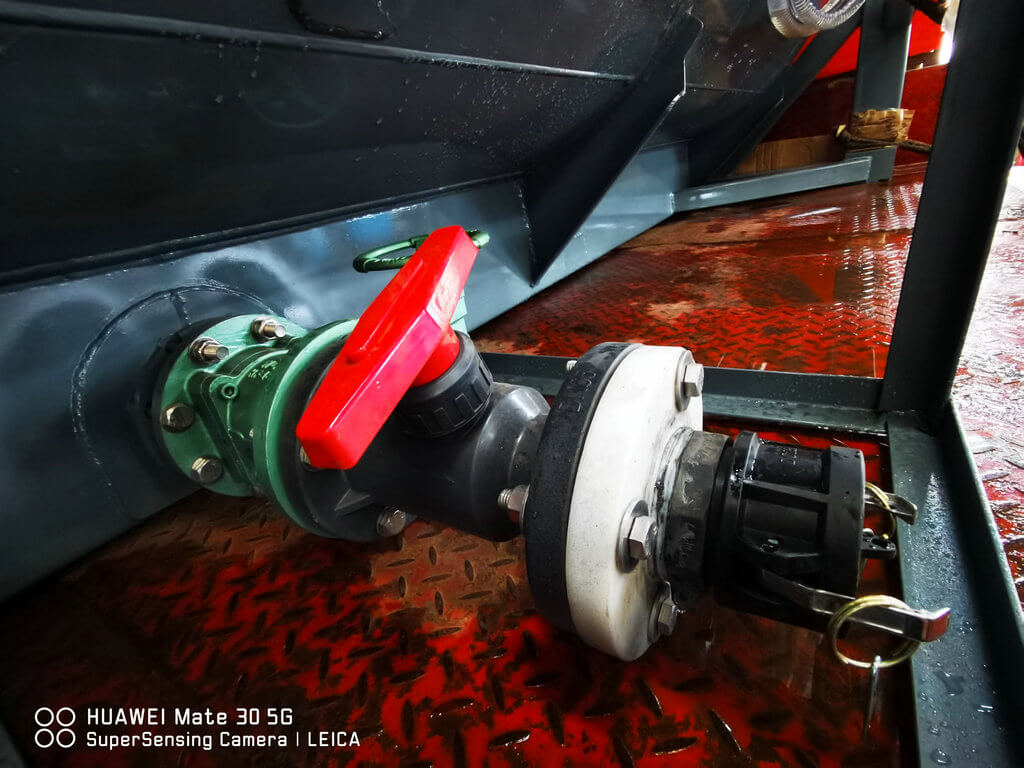

right side have DN80 discharge valves: 01pc CS/F46 butterfly valve and 01pc PE ball valve
The transportation of hydrofluoric acid container tank via highway, country road must conform to the relevant laws and regulation, and operation specifications such as “Management on the Transportation of Hazardous Articles", “Rules on the Transportation of Hazardous Goods", "Regulations on the Transportation and Loading of Hazardous Goods" and "Laws regarding transportation safety via highway, waterway and railway"; illegal operation is strongly prohibited.
Tank containers should be filled accurately and according to the requirements. Excessive filling should not be allowed. The maximum filling rate should be guaranteed not to exceed 90% of the effective volume of tank containers (the effective volume of this batch of tank containers after deduction of lining is 20454L, 90%*20454=l 8408L), and calculated according to the following formula, the two values are small.
