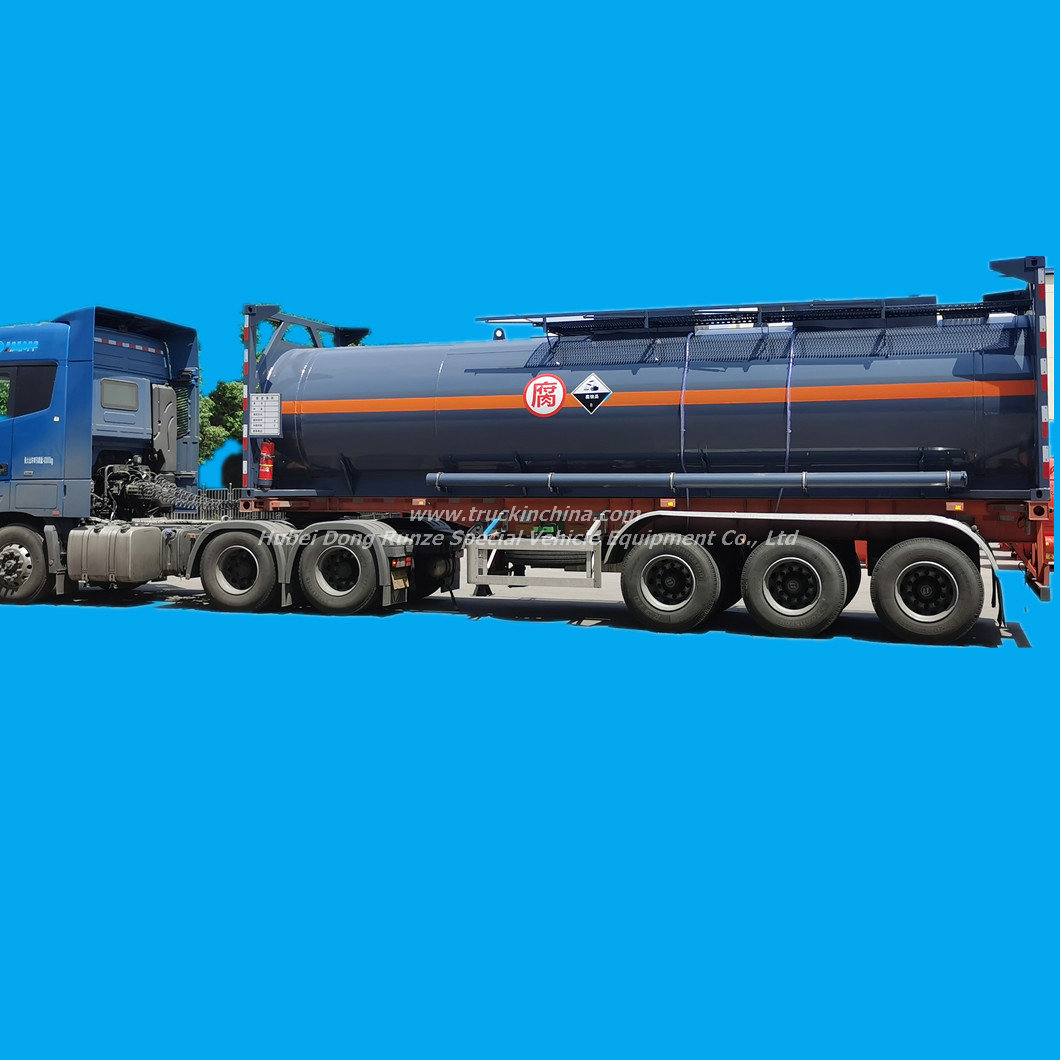

30FT Thionyl Chloride HCL Acid Tank Containers 31KL Q235B+PE
30FT Thionyl Chloride HCL Acid Tank Containers 21KL Q235B+PE
Steel Lined LDPE also for HCl (max 35%)UN1789, Thionyl Chloride UN1836
| Tank container main Technical Parameters | |||||
| 20FT tankcontainer | 30FT tank container | 40FT tank container | |||
| Overall dimension(mm) | 6058×2438×2438/2591 | 9144×2438×2438/2591 | 12192×2438×2438/2591 | ||
| Working temperature(ºC) | -12C-50C | ||||
Hydrochloric acid tank, Sodium hypochlorite Tank body 2 - 3 compartments Elliptic shape for transport Ammonia liquid, glacial acetic acid, dilute sulfuric acid, hydrochloric acid,Caustic soda ,etc L4bh Hydrochloric Acid Tanker Trailer 3000USG-8000Gallon Lined PE HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)etc
Tank containers should be filled accurately and according to the requirements. Excessive filling should not be allowed. The maximum filling rate should be guaranteed not to exceed 90% of the effective volume of tank containers (the effective volume of this batch of tank containers after deduction of lining is 20454L, 90%*20454=l 8408L), and calculated according to the following formula, the two values are small.
Keywords :ISO-lined Tank,lined tank, Lined LLDPE tank, hcl Tank, acid tank, tank container, 20ft tank container , iso tank,isotank, iso tank container, t14 tank, imdg tank,acid tank container,Horizontal Tank in Rectangular Frame,acid tank in Rectangular Frame,Hydrochloric Acid tank,hydrochloric acid fluid tank, lined with Linear Low Density Polyethylene tank,T14 Sulfuric Acid Tank Container,Steel Lined LDPE Tanker,Hypochlorite Ferric tank,tanks containers for Hydrofluoric acid , FECL3 tank,Offshore Acid Tank,offshore tanks suitable for transporting acid,offshore tanks, IMO 1 tank,Ferric Chloride tank,Sodium hydrogen sulphite solution tank,20ft tank ,20ft container tank
View more at Youtu.be and follow us.
ISOTANK List
The Main Technical Parameters of Tanks (ASME Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /+55 | SA-612N | 11 | Sunshade | 6400 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 22 | 2.1 | -40/+50 | 18 | 8800 | ||||||
3 | R143a | 22 | 2.42 | 20 | 9500 | |||||||
4 | R125 | 22 | 2.75 | 21 | 9500 | |||||||
5 | R32 | 20 | 3.44 | 25 | 10900 | |||||||
6 | AHF | T19 | 21 | 1.0 | -40/+55 | SA516M NGr.485 | 12 | No | 6900 | Up load unload | ||
7 | Trichlorosilan | T14 | 21 | 0.5 | -40/+50 | Q345R | 12 | No | 6780 | 34000 | 6058 X 2438 X2591 | |
8 | Liquid Chlorine | T50 | 20 | 1.7 | -40/+50 | 16 | 8300 | |||||
9 | 21.72 | 1.62 | 16 | 8900 | ||||||||
10 | Liquid | T50 | 21.6 | 2.2 | -40/+50 | 06Cr19Ni10 | 22 | Packing Insulation | 11970 | |||
11 | SO2 | T20 | 21 | 1.03 | 40 /+60 | 16MnDR | 12 | No | 6900 | |||
12 | Cryogenic Liquid | T75 | 19.8,20 | 0.75-2.35 | -196/+50 | Inner Tank: 06Cr19Ni10 | Vacuum With Mutli-wrapped | 8600/12880 | Down load unload | |||
The Main Technical Parameters of Tanks (China Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /55 | Q345 (16MnR) | 12 | Sunshade | 6500 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 20 | 2.1 | -40/+50 | 16 | 7850 | ||||||
3 | 24 | 18 | 9100 | |||||||||
4 | R125 | 22 | 2.75 | 22 | 9900 | |||||||
5 | R32 | 22 | 3.44 | 28 | 12000 | |||||||
6 | 23.7 | -40 /55 | 12700 | |||||||||
