3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)

Quantity:
  • Shanghai, China
  • 200sets Per Month
  • T/T, Western Union
  • 3 Axles Lowbed Trailer
  • Trailing Arm Type
  • Flatbed
  • 3 BPW
  • 13
  • Not Self-dumping
  • ABS Anti-lock Braking System
  • Steel
  • New
  • Color Advised by Client
  • BPW 14t Germany Hzm4010-1
  • 3m
  • Open 30*30cm for Winch Rope
  • 4PCS Container Locks
  • 12r22.5 Equip 13 PCS
  • 12800kg, 13200kg
  • 3-6mm Checkered Steel Plate
  • DRZ
  • by Bulk Cargo Carrier, Roro or Frt Container
  • Customization
  • Hubei China
  • 8716399000
  • Semi-Trailer
  • 60t, 80t, 90t, 100t
  • ISO9001, CCC, ISO/TS16949
  • 8000-9000mm
  • 2180mm
  • Medium Duty

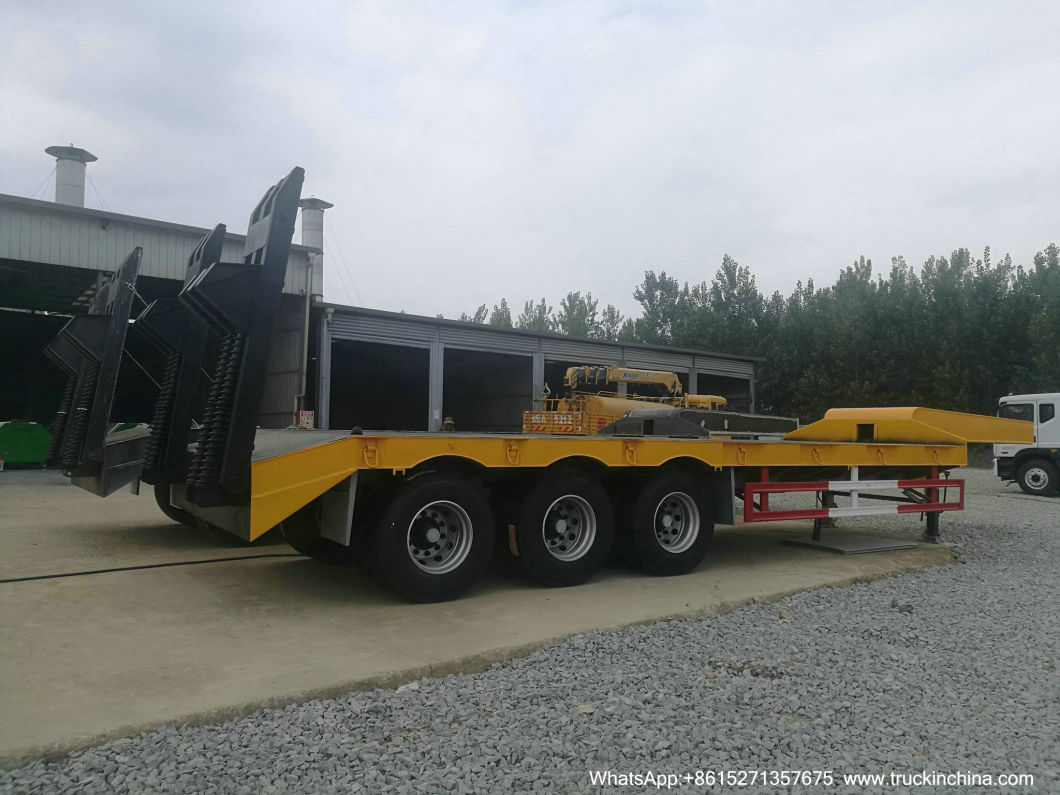

3 Axles Lowbed Trailer 45/60/80/100Ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck )
3 GERMANY BPW 14T Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks (12.8*3*3m) CIF MOMOMBASA JUBA SOUTH SUDAN

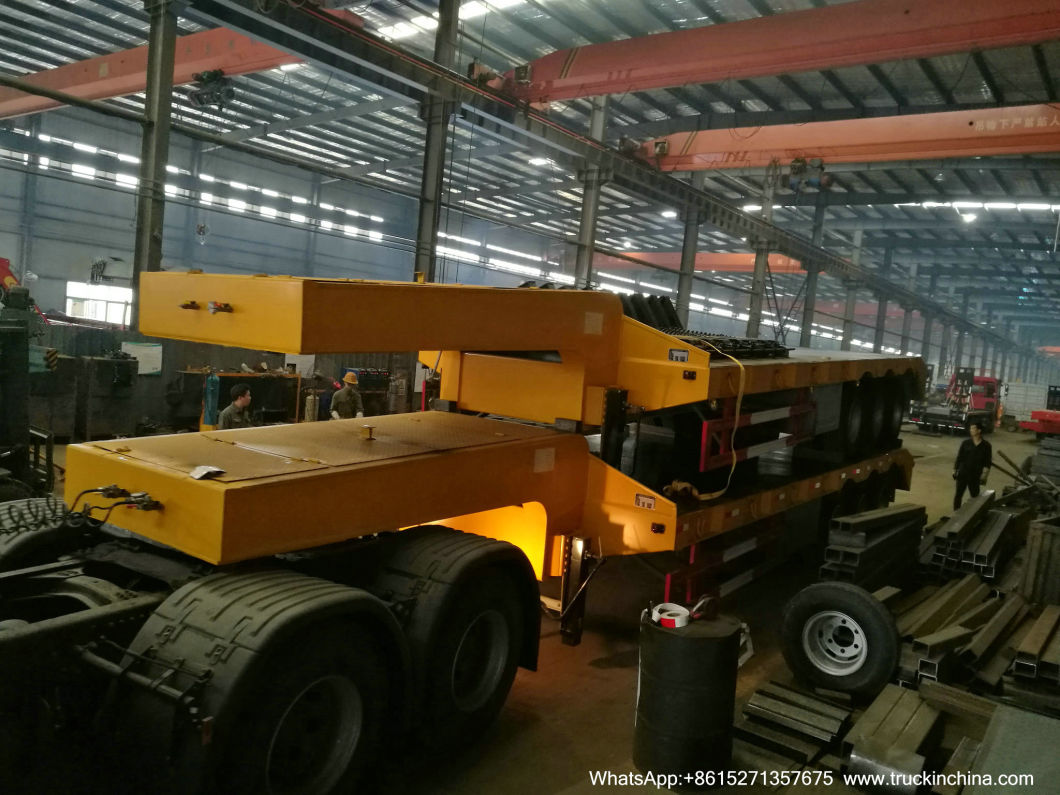

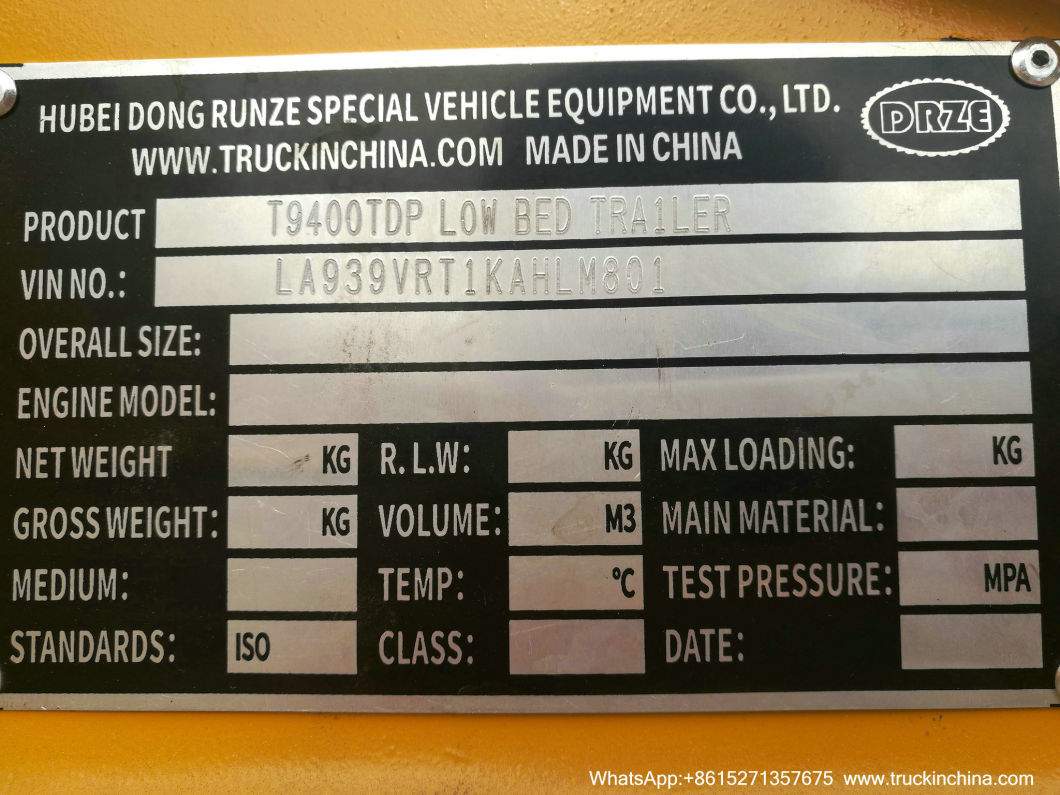

T9400TDP 3 Axles Low Bed Trailer 60 Tons Customizing with 20ft Container Locks

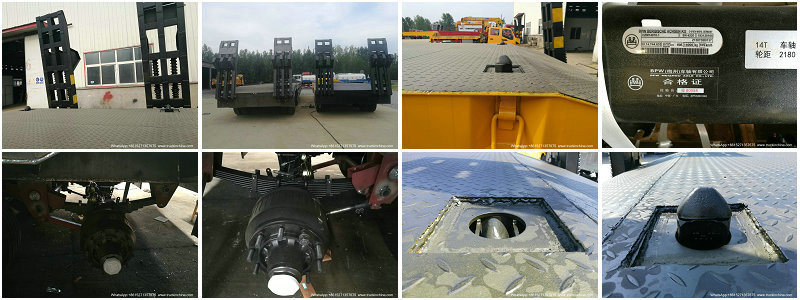

13M Low Bed Trailer BPW Axles 14T (GERMANY HZM4010-1) 2180mm, with 4pcs container locks,TIRES 12R22.5 equip 13 pcs
LOW BED OVERALL WIDE 3M

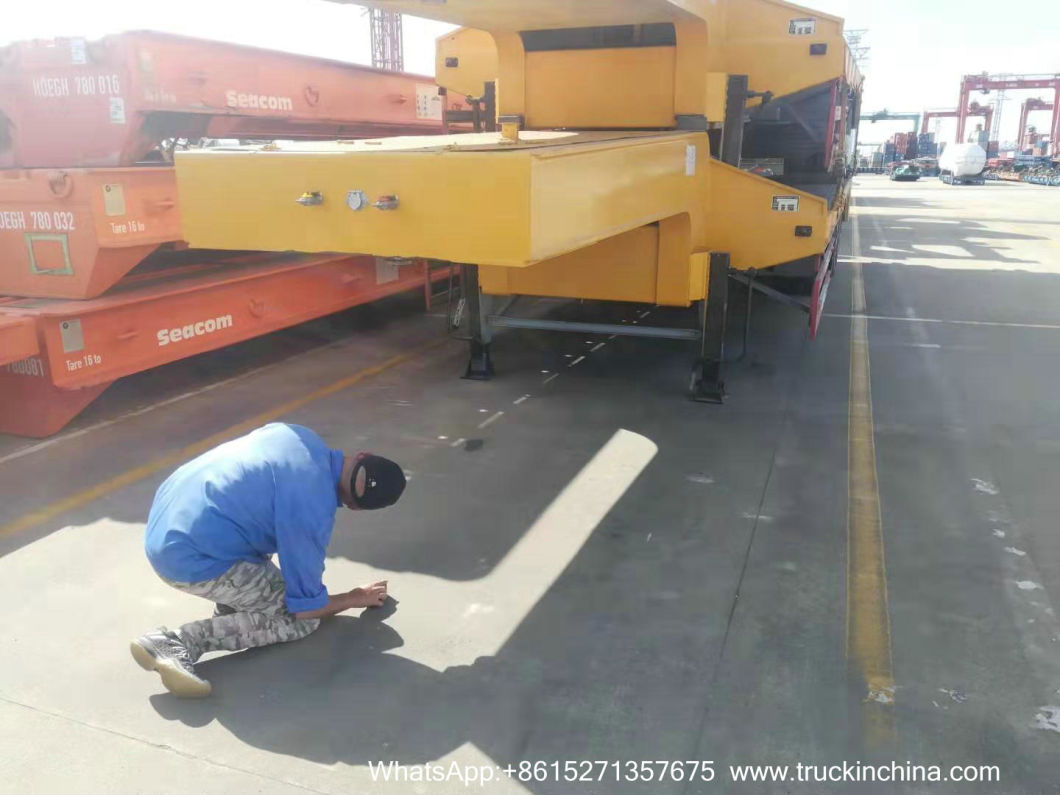

goosneck open 30*30cm for winch rope.
Ask Us for Better Price..

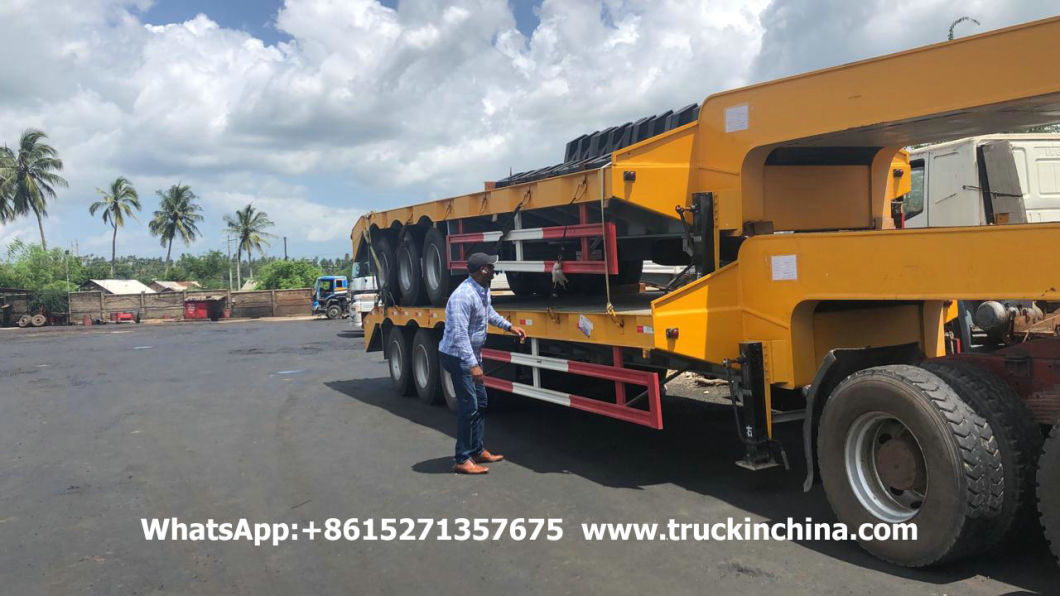

SUCCESS CASES : Export to Africa JUBA SOUTH SUDAN

FROM SHANGHAI PORT,CHINA TO MOMBASA ports , BY SEA

Price TERM: CIF MOMOMBASA

Ship Vessel details : GRAND PAVO (Vehicles Carrier) Voyage V.083 Time of Loading 2019-09-25

Heavy Equipment Transport Trailer

3 Axle Drop Deck Low Bed Trailer

3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)
3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)

3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)
3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)
3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)
3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)

3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)
3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)



3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)


3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)
3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)
3 Axles Lowbed Trailer 45/60/80/100ton Gooseneck Low Platform Semi-Trailer (Low Bed Trailer Dimensions Truck)

1.Payload 60Tons ---90T

2.Construction machinery transport

3.Heavy duty equipment transport

4.3 axle heavy duty low bed trailer

5.BPW 14 TON axle, mechanical suspension

Application of 3 Axle Heavy Duty Low Bed Trailer

Due to the limitation of the structure and driving speed, construction machineries have to be transported by other facilities to the workplace. The construction development increases the volume and weight of equipments. Thus, this heavy duty low bed trailer can meet the market demand.

Specifications:

Dimension

Loading Weight

60T,75T,80T,90T,100T

Overall Dimension(mm)

12800×3000×3100,2015

Total Mass(Kg)

55000-110,000

Deck Length

8000mm-8300mm

Deck Height

850-1350mm

Technical Data

Chassis

Heavy duty and extra durability designed I beam;

Opting for high tensile steel Q345B;

Welded by automatic submerged-arc processes

Fifth-wheel Load

16000

Fifth-wheel Height

1280

Payload(kg)

-/60000 (Tri-Axle)

Curb Weight(kg)

10000,11000,12000,13000,

Approach/Departure Angle(°)

-/16

Front/Rear Suspension(mm)

-/1200

Floor

3-6mm checkered steel plate

Ramp

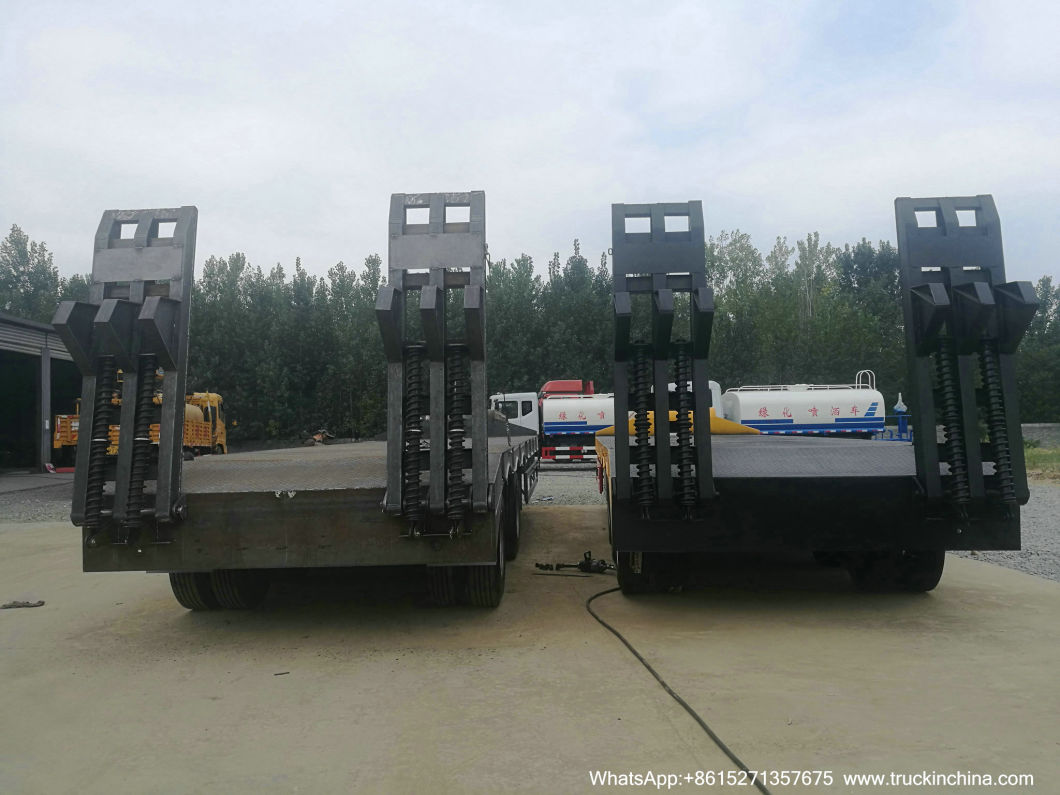

Mechanical spring ramp

Axle

FUWA 13 Ton x3, BPW 14T *3

Landing Gear

JOST brand Two-speed, manual operating

King Pin

JOST brand 2"-3.5" bolt-in, 50#, 90#

Suspension

Mechanical suspension

Braking System

WABCO RE 6 relay valve;

T30/30+T30 Spring brake chamber;

40L air tanks

Spare Tire

One set of spare tire including a carrier

Wheel Rim

8.5-20, 8.25-22.5, 9.0-22.5

Tire

11.00-20, 8.25R15, 11.00R20,

12.00R20, 11R22.5, 12R22.5, 315/80R22.5

Painting

Complete chassis sand blasting to clean rust;

1 coat of anticorrosive prime;

2 coats of final paint

Accessories

Tool box

Wind Blade Transport Extendable Trailer

Total Standard Fuel Tank Trailer

Heavy Duty Low Loader Trailer

Heavy Equipment Transport Trailer

4 Axle 2 Line Low Bed Trailer

3 Axle Heavy Duty Low Bed Trailer

Advantages of 3 Axle Heavy Duty Low Bed Trailer

• Heavy duty I beam

The heavy duty I beam is consist of the top flange, middle plate and bottom flange. The strength it bears is scientifically calculated by engineer.

• Well-made Superstructure

The superstructure of this low bed trailer is well designed by our experienced engineer.

• Customized Design

Since different construction equipments have different weight and size, we could make the unique low bed trailer for your equipment, especially some abnormal size one.

low bed semi trailer also named as low boy, low loader, drop deck etc, used for long distance or short distance equipment transport or long item, heavy item transport. Enhanced I beam makes this trailer very strong and durable, suitable for heavy duty transport. Low bed height is quite low which means low gravity, and makes the whole trailer quite stable.
The low bed semi trailer could be customized design, like 2 alxe, 3 alxe or 4 axle, or tarden axle, to suitable for different payload. The working platform width and height is also could be designed as what you want. We use good quality carbon steel, and famous reliable key parts, like BPW axle, Fuwa axle, JOST landing gear, to ensure this is really high quality item.

60 Ton Lowboy trailer Specification

SPECIFICATION

Payload

60,000kg

Tare Weight

12,800kg

Overall Length

13,100mm

Overall Width

2,750mm

Overall Height

3,330mm

Main Frame

Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
500mm Height beam, Top Flange 25mm, width 180mm;
Middle Flange 14mm; Bottom Flange 25mm, width 180mm;
Side beam: 30# channel steel

Floor

Steel Sheet 4mm thickness

Axle

L1,FUWA,-16T axle for rear 3 axle

Suspension

A couple of heavy duty under-slung mechanical suspension for rear 3 axle

Leaf Spring

Six sets of reliable local brand, 8pcs( 10 pcs) leaf spring, 16x90mm

King Pin

One unit of 3.5" welded kingpin (50#, 90#)

Landing Gear

Two-speed, manual operation, heavy duty FUWA 19" linked landing gear

Wheel Rim

13 units 8.5-20, 8.25-22.5, 9.0-22.5, including 1 unit spare rim

Tire

13 units of 275/70R22.5

11.00-20, 8.25R15, 11.00R20,

12.00R20, 11R22.5, 12R22.5, 315/80R22.5

tire, including 1 unit spare tire;

Hydraulic System of Rear Ladder

1set of hydraulic ladder

Pneumatic Braking System

Two units of WABCO RE 4 relay valve; four units of T30/30 chamber;
four units of reliable local brand 45L air tank;
Two units of reliable local brand standard coppery air-connector.

Electrical System

One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket;
Two sets of reliable, local brand standard rear light,
(Turn light, rear reflector, side light, side reflector etc.)
One set of DAFA(brand) 6-core standard Cable.

Painting

Sand blasting before painting; One coat of primer, anti-corrosion;
Two coats of finish painting; Color advised by client.

Accessory

One box with a set of standard trailer tool

Customizing Other Trailer Trucks



4 axles Heavy Duty Lowboy (Low Bed)Trailer (Flatbed 11M -16M )100Ton

4 axle 100Ton low bed semi-trailer
Loading capa: 100Ton
No.of axle: 4 axle FUWA brand
Suspension: Leaf spring.pneumatic suspension is optional
Ramp: Manual operation.Hydraulic pump is optional

4 axle 100Ton low bed semi-trailer

Loading capa: 100Ton

No.of axle: 4 axle FUWA brand

Suspension: Leaf spring.pneumatic suspension is optional

Ramp: Manual operation.Hydraulic pump is optional

4 axle 90Ton heavy duty low bed trailer specifications
