3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm

3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
https://youtu.be/86yj3qjfX2Y
Availability:
Quantity:
  • 871631900

  • Shanghai, China

  • 3000

  • T/T

3 Axles Hydrofluoric Acid Tank Trailer For HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4 etc
https://youtu.be/86yj3qjfX2Y

Hydrochloride Acid Tank Trailer 30T Solusion Hydrogen Chlorate, Sodium Hydroxide,Acrylic ,Acetic Acid,Glacial Acetic Acid, Hydrogen Peroxide ,Propionic acid,

3 Axles Acid Tank Trailer For HCl (max 35%) , NaOH (max 50%) , NaClO(max 10%) , PAC (max 17%) , H2so4 ,H3PO4 (10%-85%),NH3. H2O,H2O2 (30%) etc 28CBM-45CBM
Acid Tanker Trailer For Road Transport (Hydrogen Fluoride) Hydrofluoric Acid HF 48%

Ask for better price

Cell +8615271357675

The pictures are for your reference only.

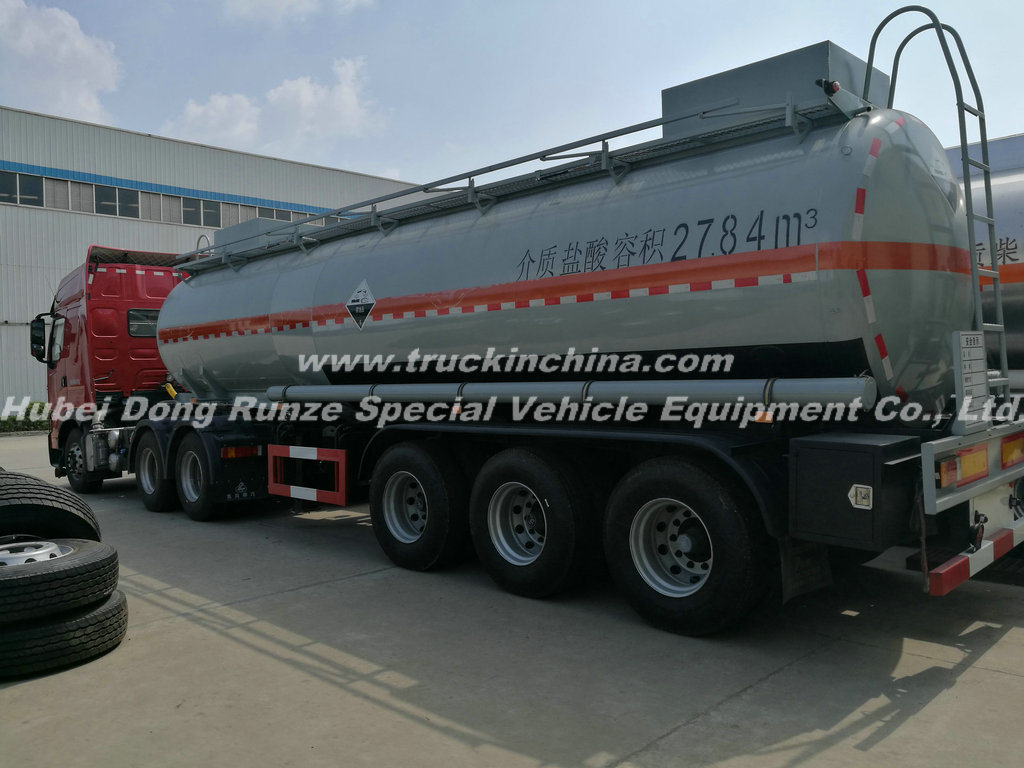

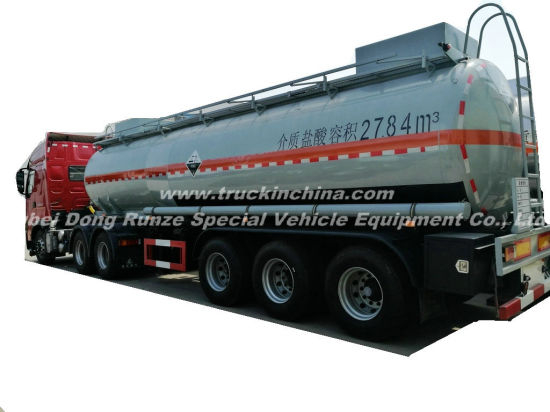

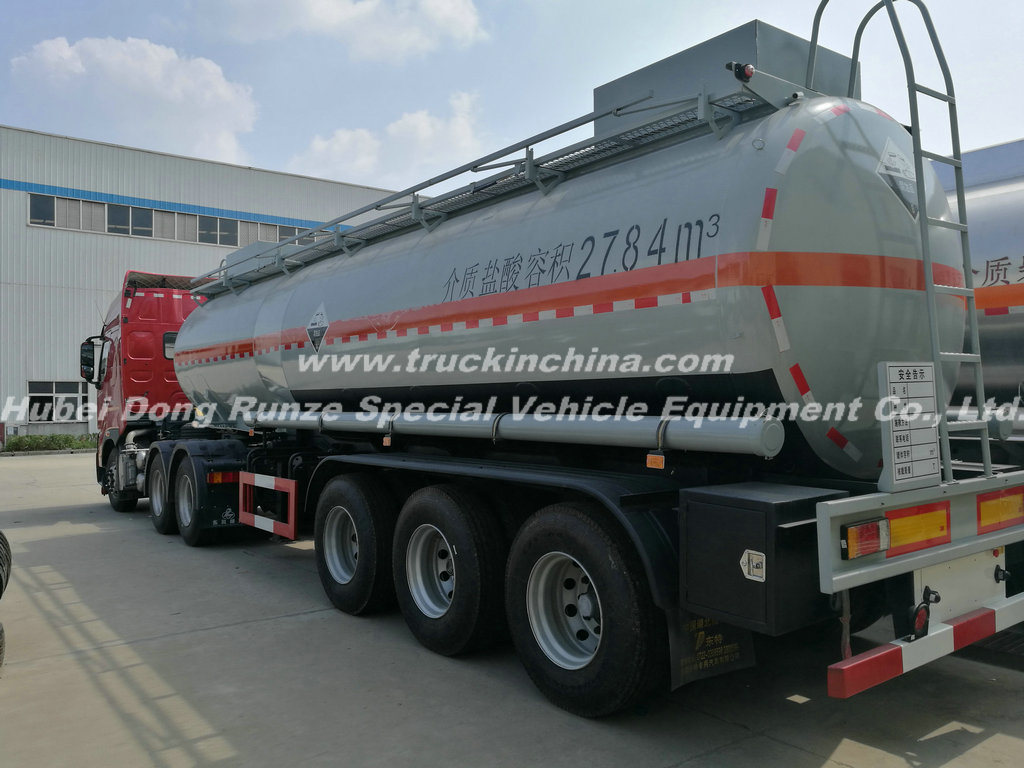

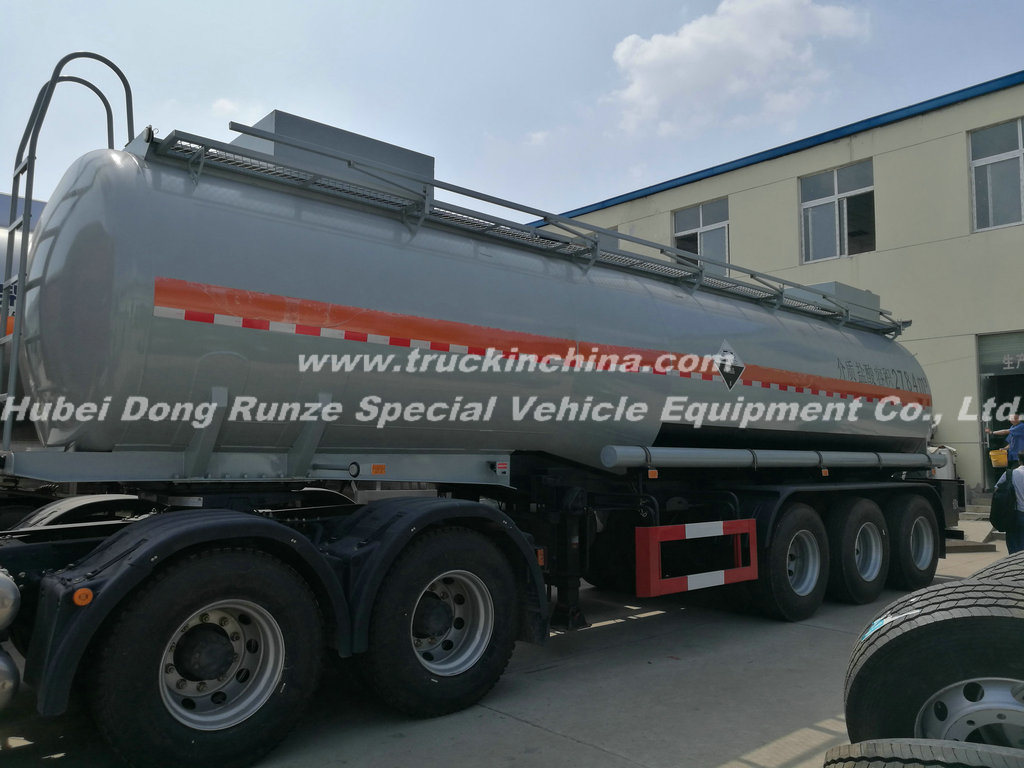

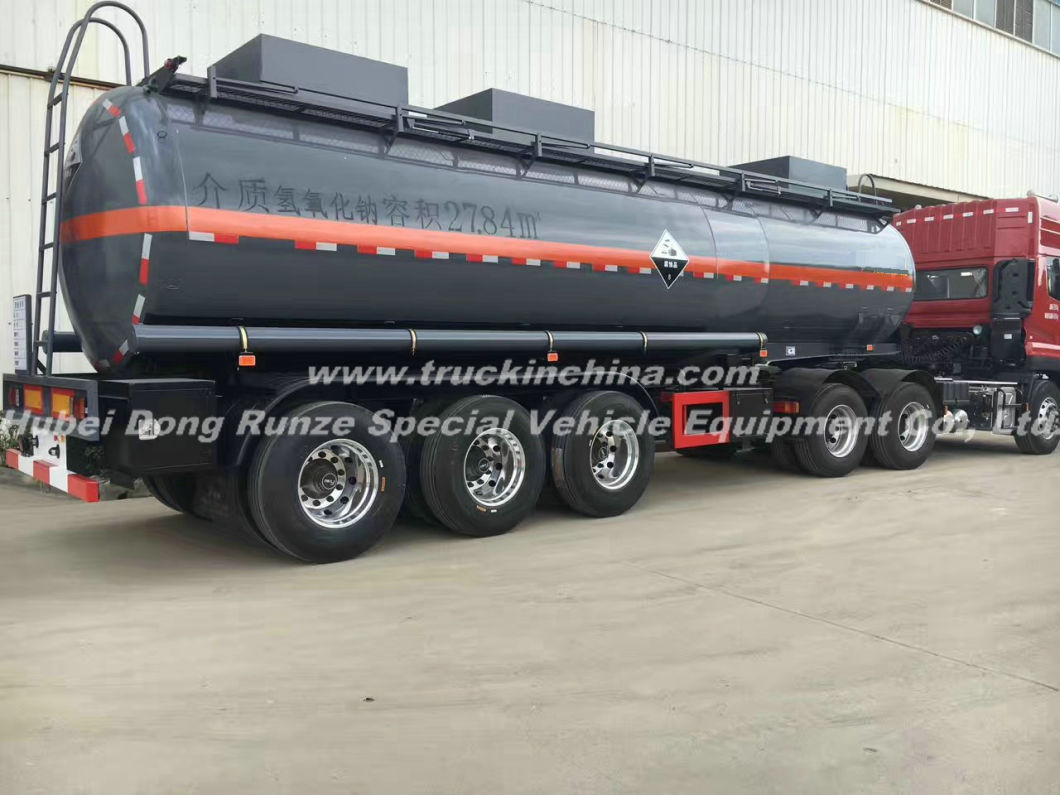

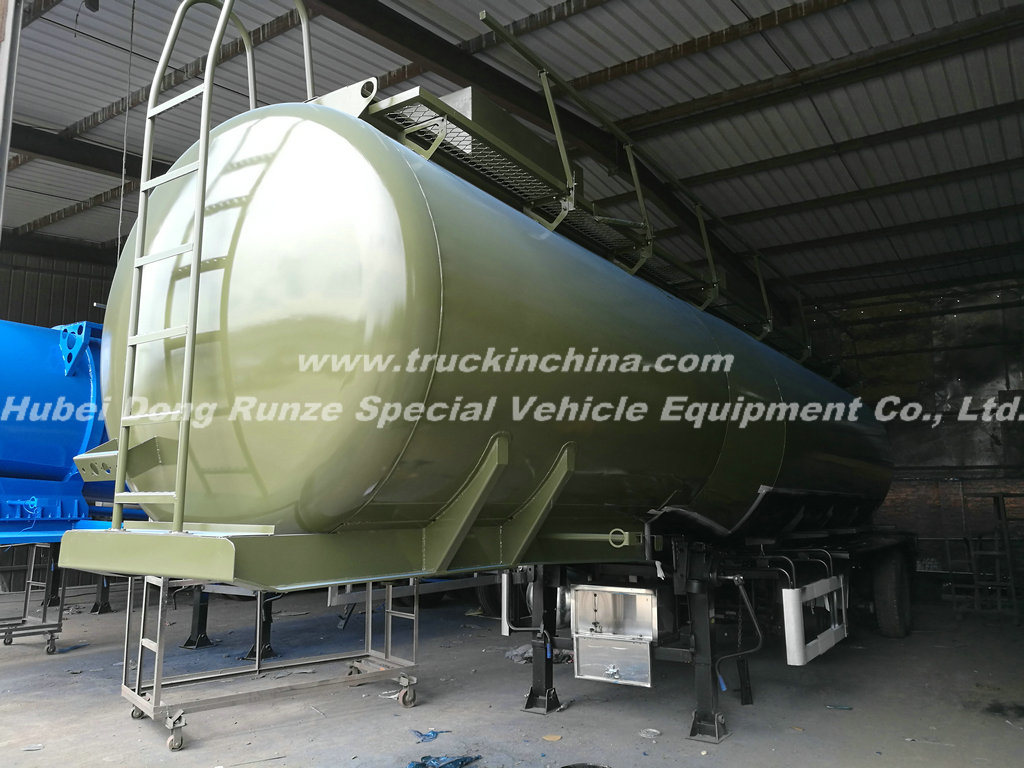

Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)etc…3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm


3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm

DIMENSIONS
Tare Weight 10000kg
Payload 32000 kg-42000kg
Total Weight 42000kg
Overall Length Refer drawing 11500mm-12000mm
Overall Width Refer drawing mm (maximum 2500mm)
Overall Height Refer drawing 3850mm
Wheel track 1850/1850/1850
Wheel base 5100+1310+1310(mm) Refer drawing
STANDARD SPECIFICATION
Main Frame Heavy duty and extra durability designed; high tensile steel Q345B
Axle Three Units of FUWA or L1 axles.
Suspension 3-axle spring Suspension
Landing Gear Two-speed ,manual operation, heavy duty landing gear
Wheel Rim Twelve units of 9.0wide x 10 stud (tubeless rim)
Tyre Twelve units of 12.00R-22.5 tyres (tubeless)
Spare Wheel Carrier One set of spare wheel carrier including a riser
Pneumatic Braking System 30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ; reliable local brand standard coppery air-connector. With ABS on axle
Electrical System 24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable.
Tank 43000liters

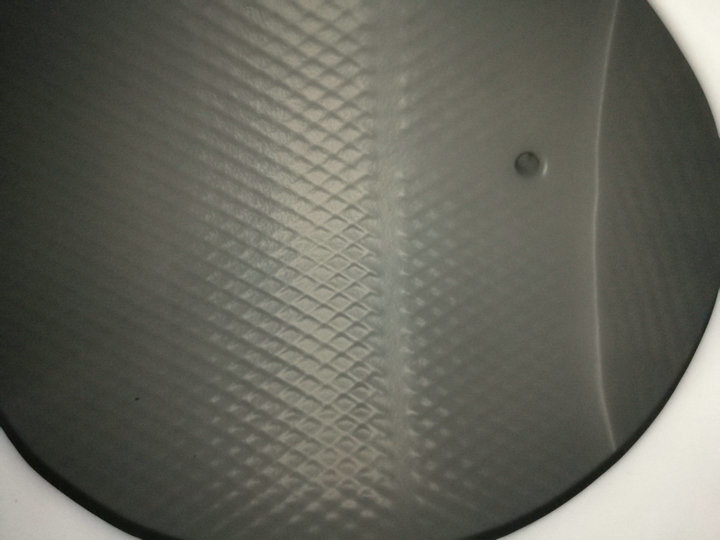

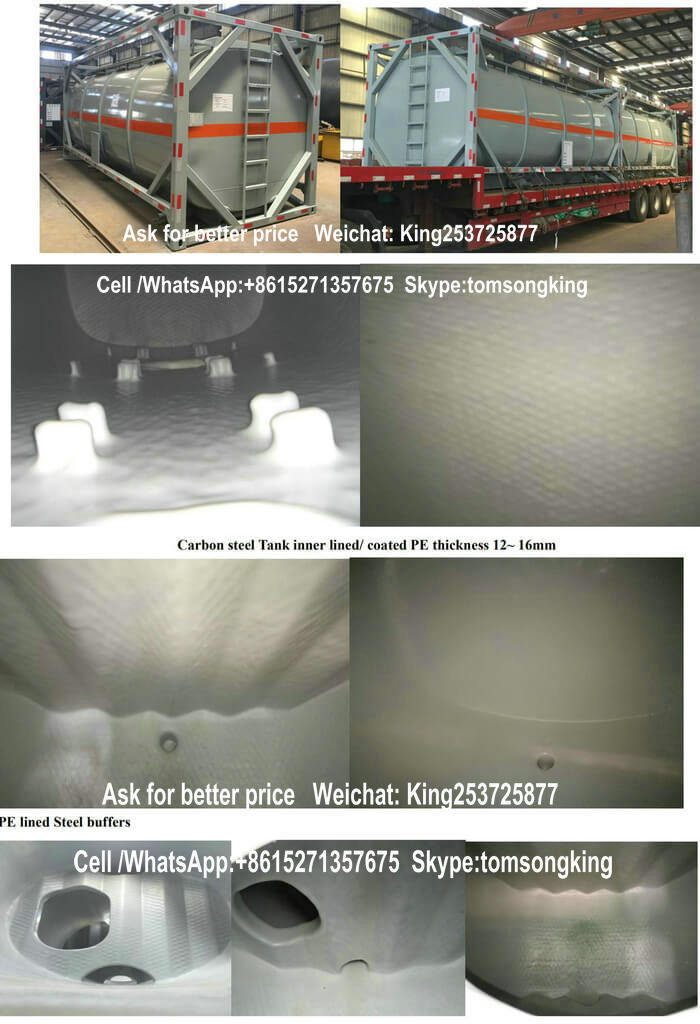

Carbon steel Shell 6mm inner lined 16mm PE

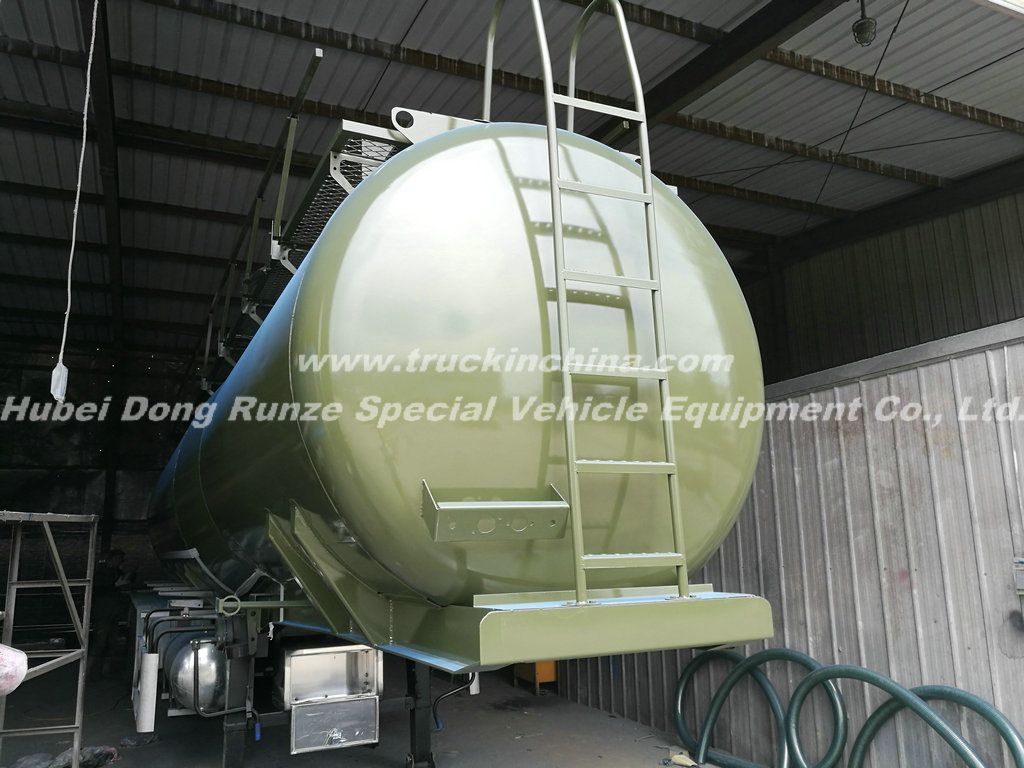

Walkway and top tank; steel ladder end of tank
Tank fittings PE Manhole covers and spillbox, Bottom DN80 discharge system
Painting Sand blasting before painting; two coats of primer, anti corrosion, two coats of finish painting; anticorrosive paint ( as client requirement)
Accessory One trailer tool box
Specification of Acid Tanker
SL NO Description Speceifications


1 Model # DRZ9327GHY
2 Type DUAL AXLE ACID TANKER SEMI TRAILER
3 Construction

4 Shell Material & thickness 5mm carbon steel
5 Dish Material & theckness 6mm Carbon steel

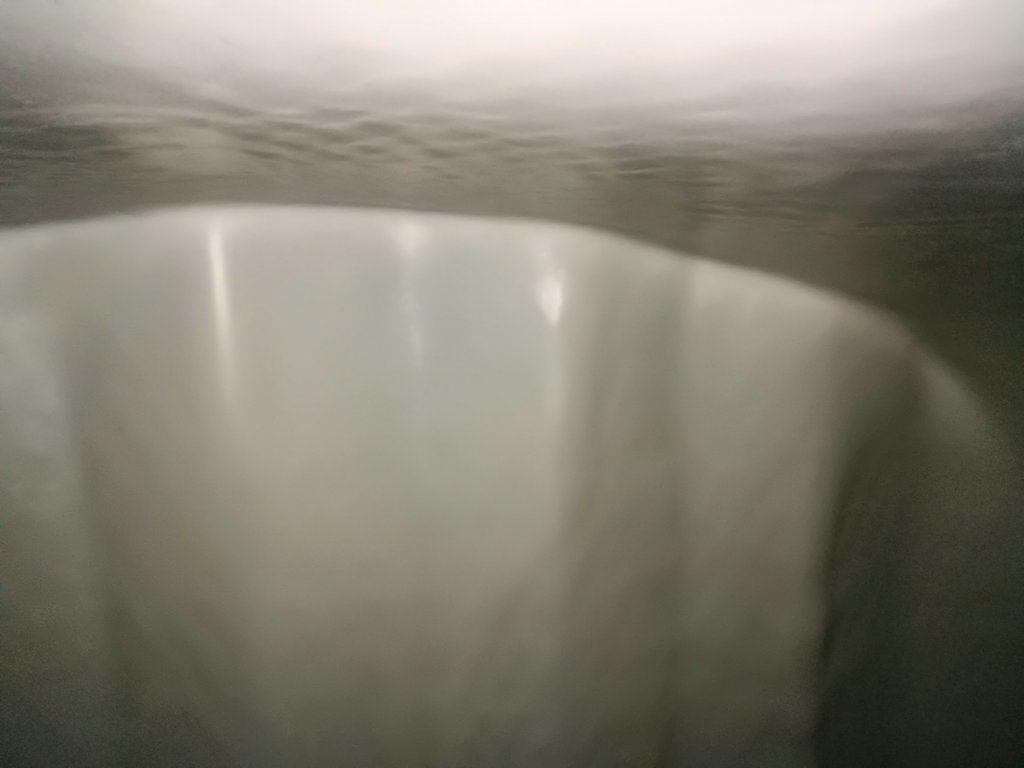

6 PE Lining PE 16mm
7 Parttion thickness (Wave breaker) 6mm carbon steel & 16 MM PE
8 Chassis Material & thickness Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm ;Bottom Flange 16mm,width 140mm
9 No of partitions inside the tank 3
10 Size & no. of Top manholes 3
11 Discharge line size Bottom DN100 discharge *3
12 Catwalk dimensions 400mm wide reach the manholes, not covering the complete length of the tank
13 Electrical specefications 24V 7-pin socket; reliable local brand standard red rear lights, orange turning lights, red rear reflectors, 3 orange side lights and 3 orange side reflectors each side 6, standard Cable.
14 Painting specifications epoxy primer ,final painting (RAL standard 9010, pure white) , Logo will be according customer's requirement.
15 Running Gear -
16 Landing Gear JOST Two-speed ,manual operation, heavy duty landing gear
17 Axles 2 Axles
18 Axle Brackets L1, Dual Axle, 16 Ton DIC Hub, Loading capacity 32000 Kg
19 King Pin JOST kingpin (90#)
20 Suspension Mechanical L1 Bogie type
21 Equiliser Pin L1
22 Landing Legs JOST Two-speed ,manual operation, heavy duty landing gear
23 Tyres 12.00R-22.5 tyres (tubeless)
24 Rims 9 .0
25 Brakes Pneumatic Braking System
26 Brake Chamber 30/30 spring brake chamber (S Cam); eliable local brand 40L air tank ; reliable local brand standard coppery air-connector
27 Relay Valve PE Relay Valve
28 Tare weight 9000kg
29 Payload 33000kg
30 Total weight 42000kg
31 Overall length 11000mm
32 Overall width 2500mm
33 Overall height 3850mm
34 Wheel track 1850/1850
35 Wheel base 5710+1550mm
36 Fact Loading capacity 27 m3 ,divided into three compartments
3 x 9 m3
37 Rated Laoding capacity 27000L
38 Main frame Heavy duty and extra durability designed
39 Spare wheel Carrier One piece.
40 Loading Capacity 27,000 litres capacity
41 Tank fittings Manhole covers top filler and spillbox, Bottom DN100 discharge
42 Wheel span 1850/1850
43 Axle spacing 5710+1310mm
44 Capacity in effect 27000L;
45 Main Beams 16mm,width 140mm
46 Approach/departure angle 17(0)
47 Other accessories One trailer tool box , One 200L water tank.
48 Air Connctions 1" valve for unloading materials with Compressed air

Hydrochloric acid tank semitrailer 3axles 29000Liters,32000liters,33800liters

Hydrochloric acid tank semitrailer
Tank volume: 22.4 -33 cbm: ,NH3·H2O

Transport : Sulfuric Acid 60% Hydrochloride,Hydrochloric Acid, Dilute Sulphuric Acid ,Acetic Acid, Acrylic Acid Hydrochloride, Hydrogen Chlorate, Sodium Hydroxide,Acrylic
Acetic Acid, Glacial Acetic Acid, Hydrogen Peroxide
Propionic Acid, Ammonia



Fuwa 13tone axles,

Hydrochloric acid tank transport semi-trailer


3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm





DRZ9351GFW Main technical parameters Tank volume: 22.4 cbm/22400liters



verall dimensions:

8600×2490×3800(mm)

Rated load:

27000(Kg)

Total mass:

35000(Kg)

Semi-trailer saddle:

17000

Kerb mass:

8000(Kg)

Anti-lock braking system:

Yes

Approach/departure angle:

-/18 (°)

Front/rear suspension:

-/1450(mm)

Axle load:

-/18000 (b-axis)

Wheelbase:

4700+1310(mm)

Axis:

2

Rear track:

1850/1850

Number of tires:

8

Number of spring leaf:

-/8/8,-/10/10,-/-/-



Tire size:

12R22.5 12PR,11.00R20 12PR

Other

Tank volume: 22.4 cbm,

medium: hydrochloric acid, dilute sulphuric acid (density is 1260 kilograms/cubic meter),

acetic acid, acrylic acid (medium density of 1140 kilograms/cubic meter)

dangerous goods class number 8,

tank size (including the dished head): tank length 8000mm, diameter:2000mm

optional air suspension models. ABS brake systems

3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm

Customization, Cost Control Built How You Want it, at a Price You Can

Afford. for sale call:+86-152 -7135-7675

3 Axles Acid Tank Trailer for HCl (max 35%) , Naoh (max 50%) , Naclo (max 10%) , PAC (max 17%) , H2so4, H3po4 (10%-85%) , Nh3. H2O, H2O2 (30%) etc 28cbm-45cbm
