20M3 LPG storage tank loaing into container for export . FOB price $10500

Views:1766     Author:Dong Runze Special Vehicle      Publish Time: 2017-06-01      Origin:Dong Runze Special Vehicle

20M3 LPG storage tank loaing into container for export . FOB price $10500

20M3 LPG storage tank loaing into container for export . FOB price $10500

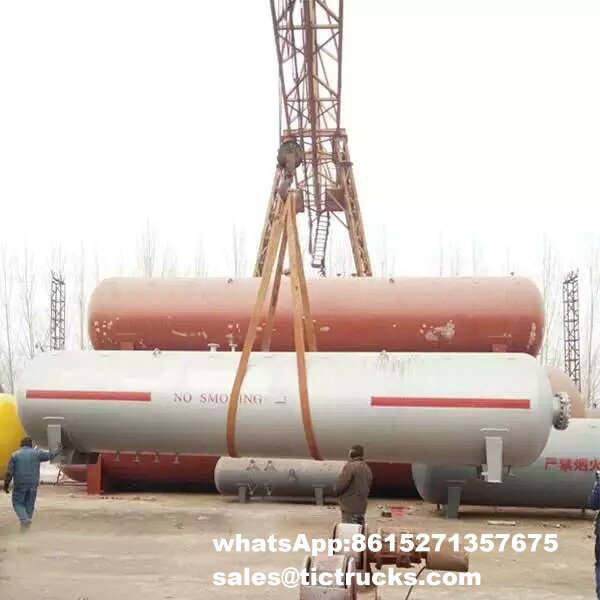

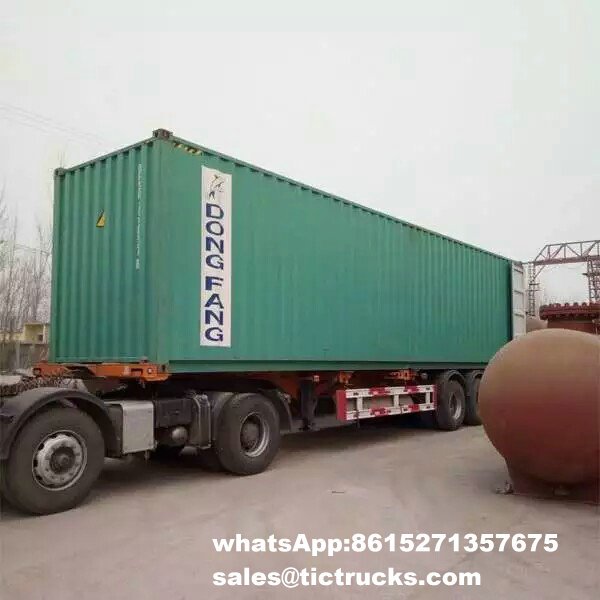

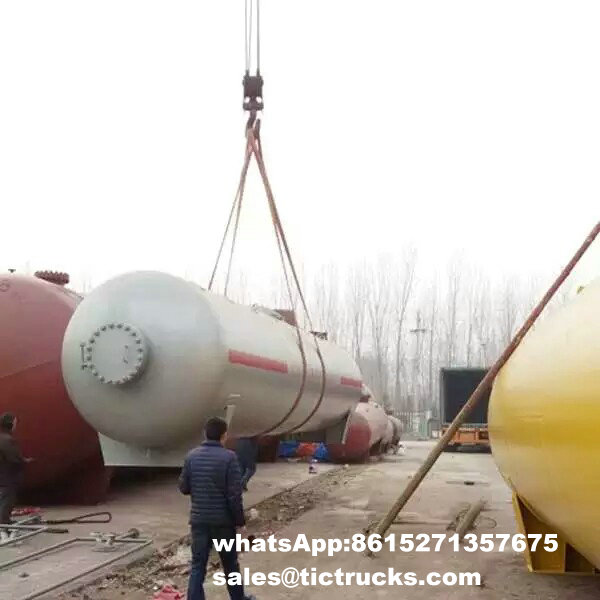

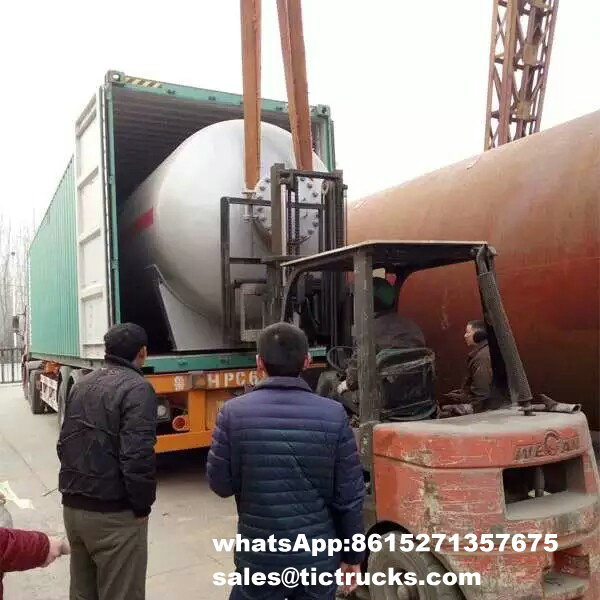

20000Liters LPG Storage Tank-02_1.jpeg20000Liters LPG Storage Tank-03_1.jpeg20000Liters LPG Storage Tank-05_1.jpeg20000Liters LPG Storage Tank-07_1.jpeg20000Liters LPG Storage Tank-01_1.jpeg

LPG storage tanks

tank diameter

1800mm

2000mm

2100mm

2200mm

tank type

III

III

III

III

working Medium

LPG (propane)

LPG(propane)

LPG(propane)

LPG(propane)

Design Specific Gravity

0.42 Kg/M3

0.42 Kg/M3

0.42 Kg/M3

0.42 Kg/M3

media characteristics

Flammable and explosive

flammable and
explosive

flammable and
explosive

flammable and
explosive

capacity

20M3

20M3

20M3

20M3

External Dimensions (length*width*height)

8174*1820*2410mm

6724*2024*2614mm

6154*2124*2714mm

5608*2224*28514mm

tank weight (nominal)

4820kg

5150kg

5050kg

5080kg

max payload weight

7980kg

7980kg

7980kg

7980kg

tank material

Q345R

Q345R

Q345R

Q345R

Barrel design thickness

10mm

12mm

12mm

12mm

 Head design thickness

12mm

12mm

12mm

14mm

welded joint coefficient

1.0

1.0

1.0

1.0

design temperature

50ºC

50ºC

50ºC

50ºC

working temperature

-20~50 ºC

-20~50 ºC

-20~50 ºC

-20~50 ºC

Corrosion allowance

1.0 mm

1.0 mm

1.0 mm

1.0 mm

design pressure

1.77 MPa

1.77 MPa

1.77 MPa

1.77 MPa

Hydraulic test pressure

2.22 MPa

2.22 MPa

2.22 MPa

2.22 MPa

leak test pressure

1.77 MPa

1.77 MPa

1.77 MPa

1.77 MPa

Heat treatment type

Wholly get rid of tress

Wholly get rid of tress

Wholly get rid of tress

Wholly get rid of tress

Paint

paint  white color, or paint the color you request.

paint  white color, or paint the color you request.

paint  white color, or paint the color you request.

paint  white color, or paint the color you request.

The first install Accessories

Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter

Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter

Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter

Safe valve, Disconnecting valve, Level gauge, Pressure meter, Temperature meter
