20FT ISO HCL Acid Tank Container 21cbm For Vietnam Chemical Factory Acid Trailer Transportation

20FT ISO Hydrochloric Acid Tank Container 21cbm ( 21000 Liters Steel Lined LLDPE) For Vietnam Chemical Factory Acid Trailer Transportation
Price: $ 13800
Discount Price: $ 13200
Availability:
Quantity:

  • 20ft

  • Dong run ze

  • 8609001200

20FT ISO HCL Acid Tank Container 21cbm  For Vietnam Chemical Factory Acid Trailer Transportation

HCL tank container

ISO Tank Container 20 FT For Hazardous Liquids

Road transport Tank Container


Length : +6.058- 6.06 m
Width : +2.438- 2.44 m
Height : 2.438/2.591- 2.60 m

  Steel Lined LDPE aslo for HCL(max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%),H2SO4(60%,98%) ,HF ( 48%),H3PO4 (10%-85%),NH3. H2O,H2O2 (30%)


T1 ISO tank container for Wine / Juices and Light liquids
T3 ISO tank container for Petrol, Diesel, Jet Fuel, Crude Oil (ATF), Bitumen
T4 ISO tank container for Edible / Non Edible Oils
T11 ISO tank container for Non hazardous chemicals
T14 ISO tank container For Hazardous Chemicals and Acids like HCL / Caustic / sulfuric acid/ Ferric Chloride) with Rubber lining / FRP lining Inner / PE lining
T20 ISO tank container for Bromine
T50 ISO tank container for LPG / Ammonia Gas / Propane
SWAP Tank container for cargo above 28,000 Litres to 35,000 Litres

ISO Hydrochloric Acid Tank Container Photos view

10 Units New ISO 20 FT TANK CONTAINER  LLDPE LINED  Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%)  Export to HAIPHONG VIETNAM Second times

Transport:FROM SHANGHAI PORT,CHINA TO Haiphong Port , VIETNAM BY SEA

Price Term: CIF  Haiphong Port , VIETNAM

Term of Payment: By TT   10*20TK

Marks

Description of goods

Quantity

N.W

g.w

MEASUREMENT


DRAU2019308

DRAU2019313

20 FT ISO TANK

20 FT TANK CONTAINER

PE LINED TANK

2 UNITS



5000

KG



10000

KG

6.058*2.438*2.591m



76.54CBM


DRAU2019329

DRAU2019334

DRAU2019340

DRAU2019355

DRAU2019360

DRAU2019376

DRAU2019381

DRAU2019397

20 FT ISO TANK

20 FT TANK CONTAINER

PE LINED TANK

8UNITS



5100

KG



40800

KG

6.058*2.438*2.591m

 306.14CBM


VESSEL VOYAGE:

PORT OF LOADING:

SITC YANTAI 1914S

 SHANGHAI

PORT OF DISCHANGE:

FINAL DESTINATION:

HAIPHONG

HAIPHONG

HS CODE:860900

NO.


VesselName


Voyage


POL


Schedule ETD


ETD/ATD


POD


Schedule ETA


ETA/ATA


ETB/ATB

1 SITC YANTAI 1914S SHANGHAI 2019-05-27 2019-05-29 04:00 HAIPHONG 2019-06-01 2019-06-02 11:00 2019-06-02 13:00

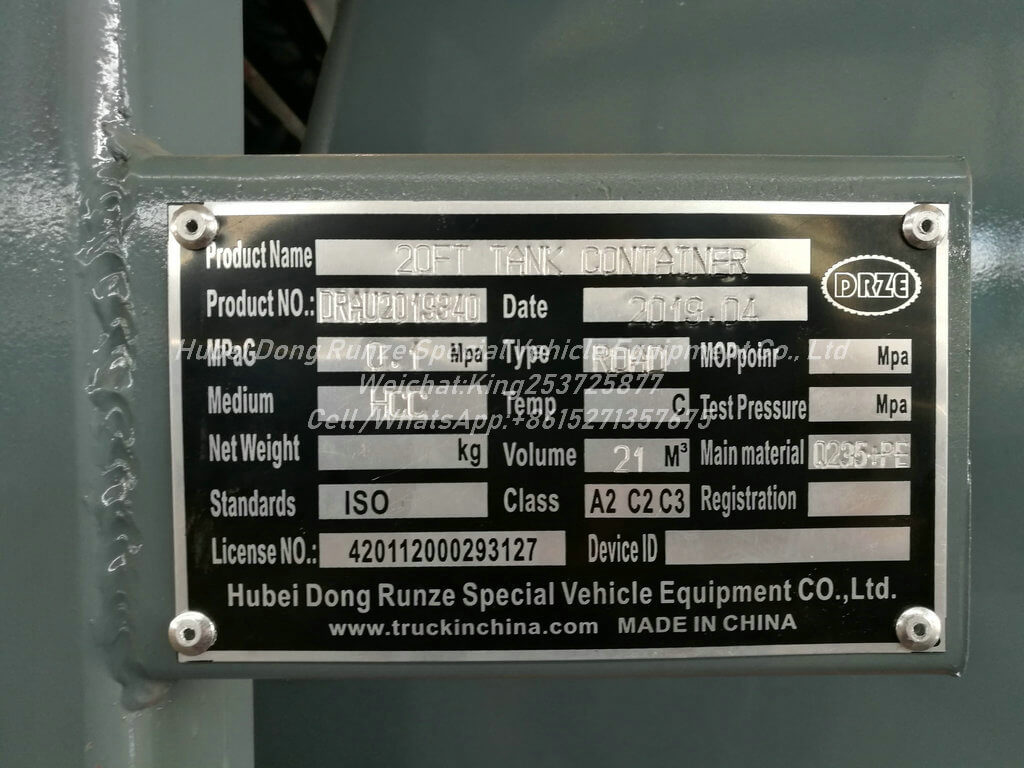

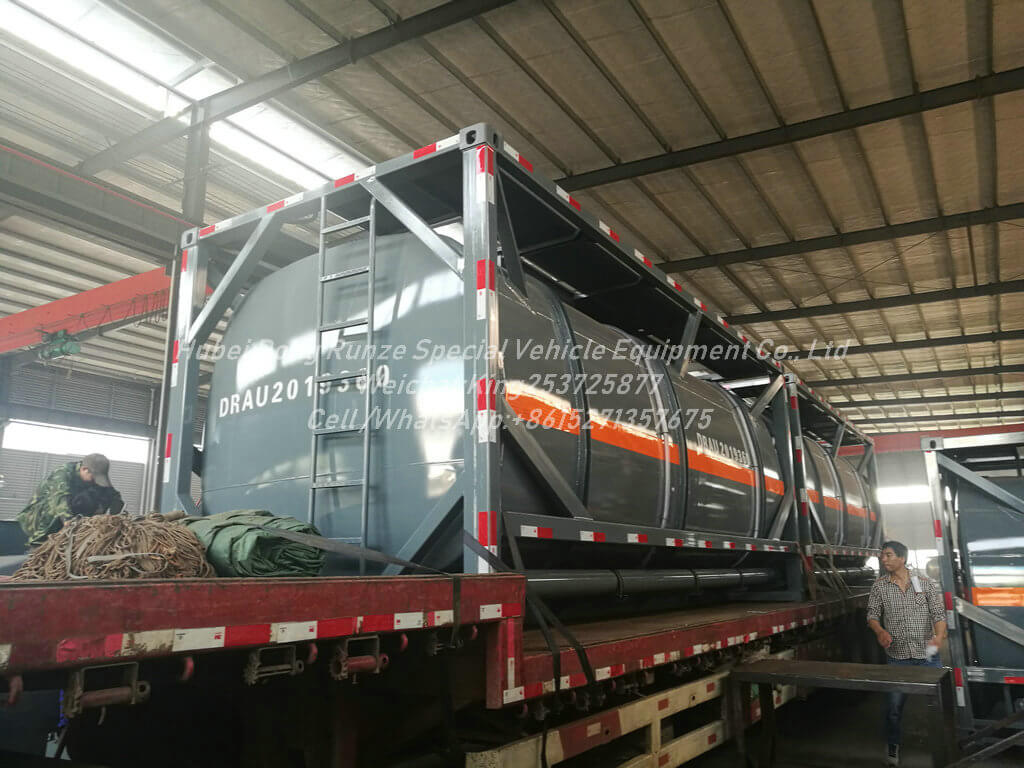

20FT tank Container -16cbm Hydrofluoric acid TankISOTANK Sodium Hypochlorite-14m3- Tank Container Lined PEISOTANK Hydrochloric acid-17cbm- Tank Container Lined PEHCL-Acid-ISO Tank-11KL- Container Lined LDPEHydrochloric-Acid-ISOTank-21KL- Container Lined LDPE_0009ISO 20ft NaCLO acid-20000L- Tank Container Lined PE

ISOTANK Lined Plastic top view

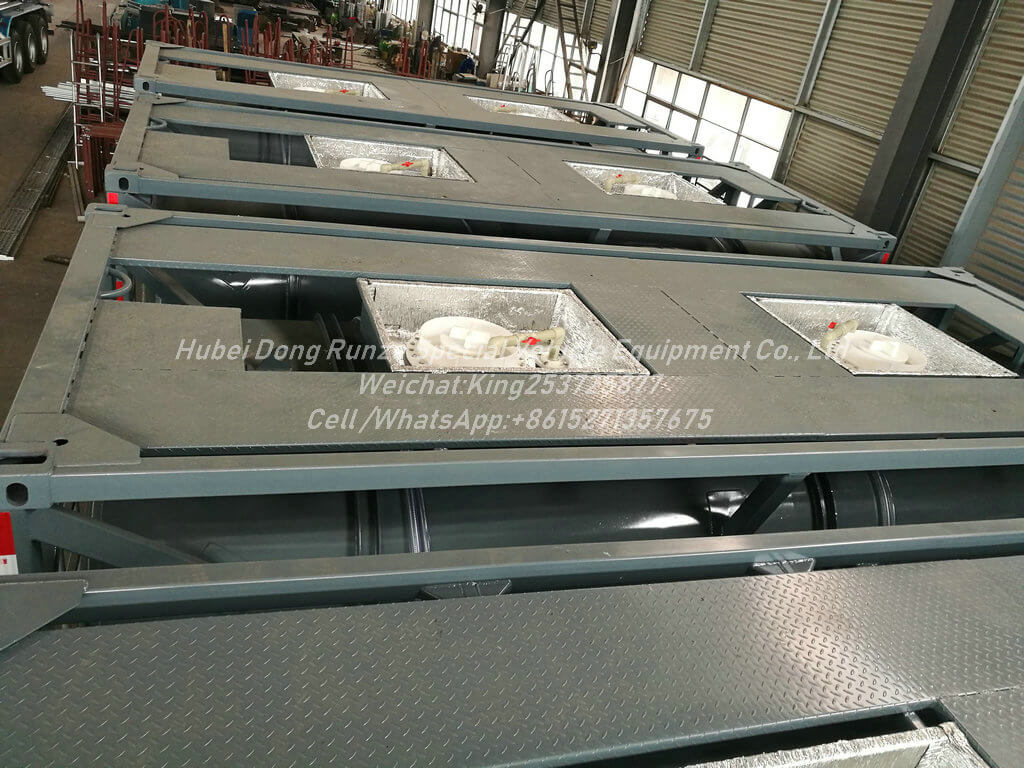

ISOTANK Hydrochloric acid-12m3- Tank Container Lined PE

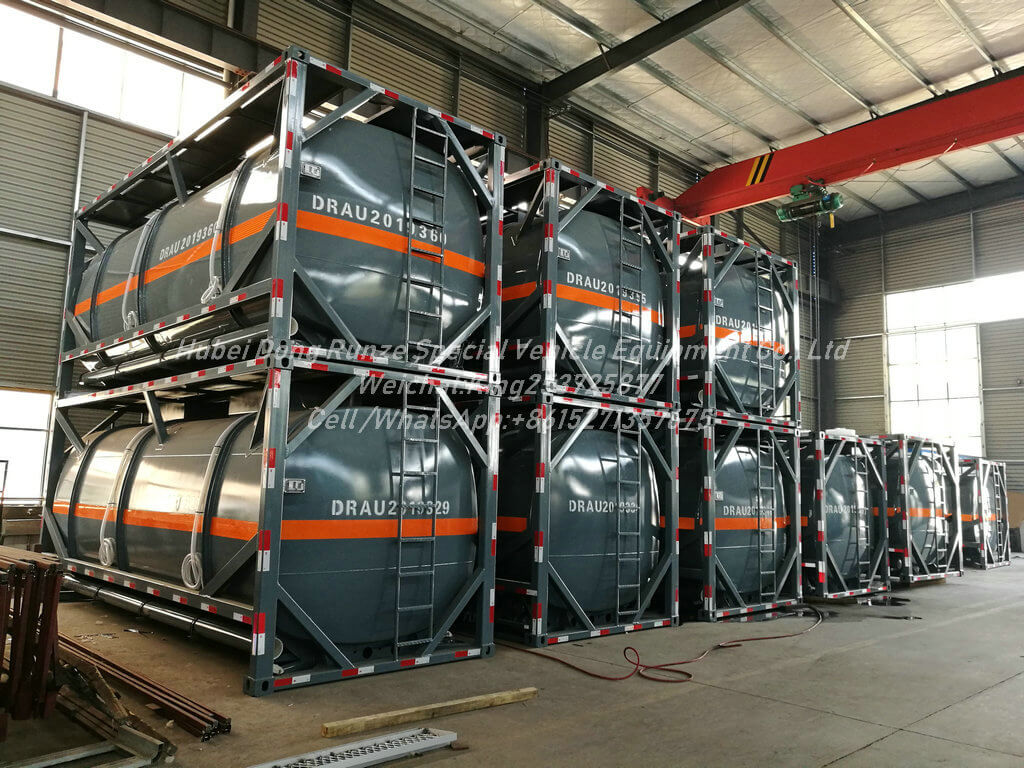

ISOTANK Sodium Hypochlorite-12m3- Tank Container Lined PE

20 FT Tank Container

PE Lined Tank

Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), etc…

Tank Capacity: 21,000 Liters

Steel sheet 6mm, head 6mm

Liner thickness: 16mm PE

01pc butterfly valve CS/F46  and 01pc ball valve CS/F46

Sodium hypochlorite -ISO Tank-22KL-Steel Lined LDPEHCL-Acid-ISO Tank-10KL- Container Lined LDPE_0001

Steel Lined PE Tank Read for fiting Pipes dishcharge valves

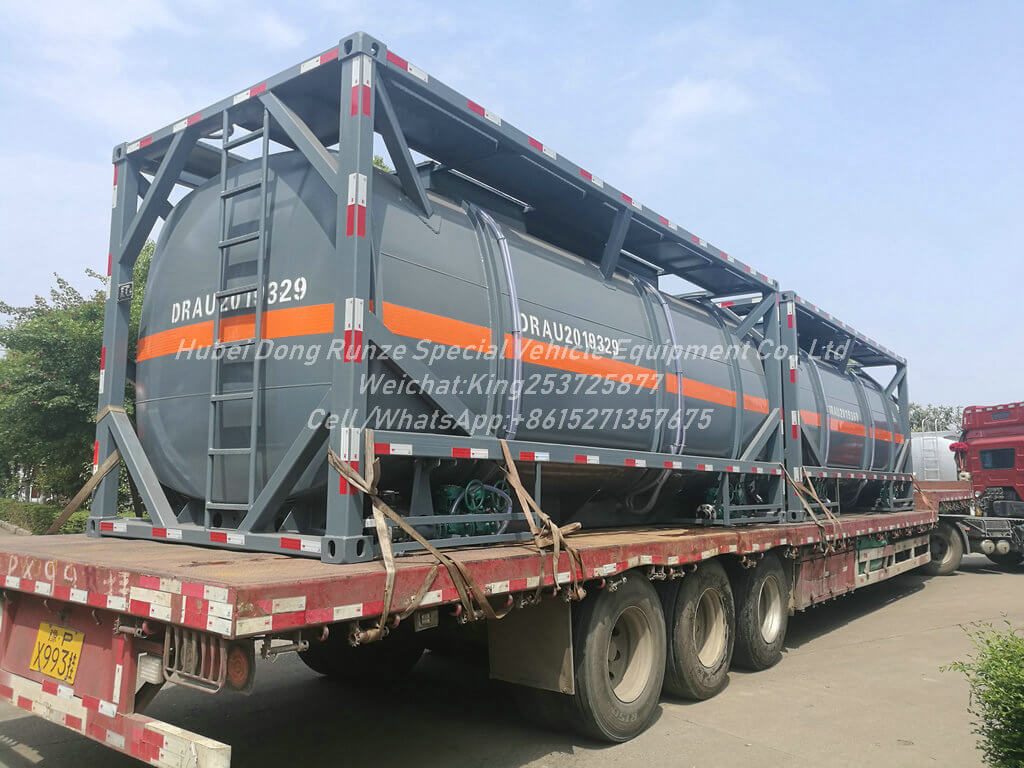

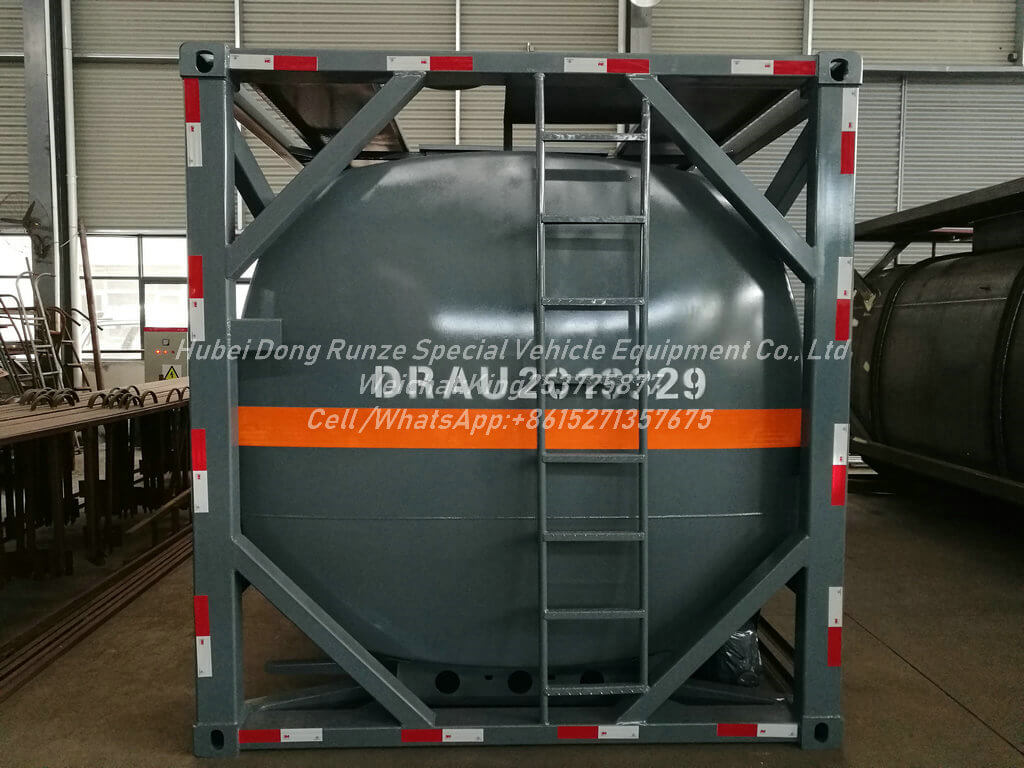

ISO 20ft Hydrochloric acid-13000L- Tank Container Lined PEISOTANK Sodium Hypochlorite-21m3- Tank Container Lined PE

Heating rotary Lining LLDPE  7042

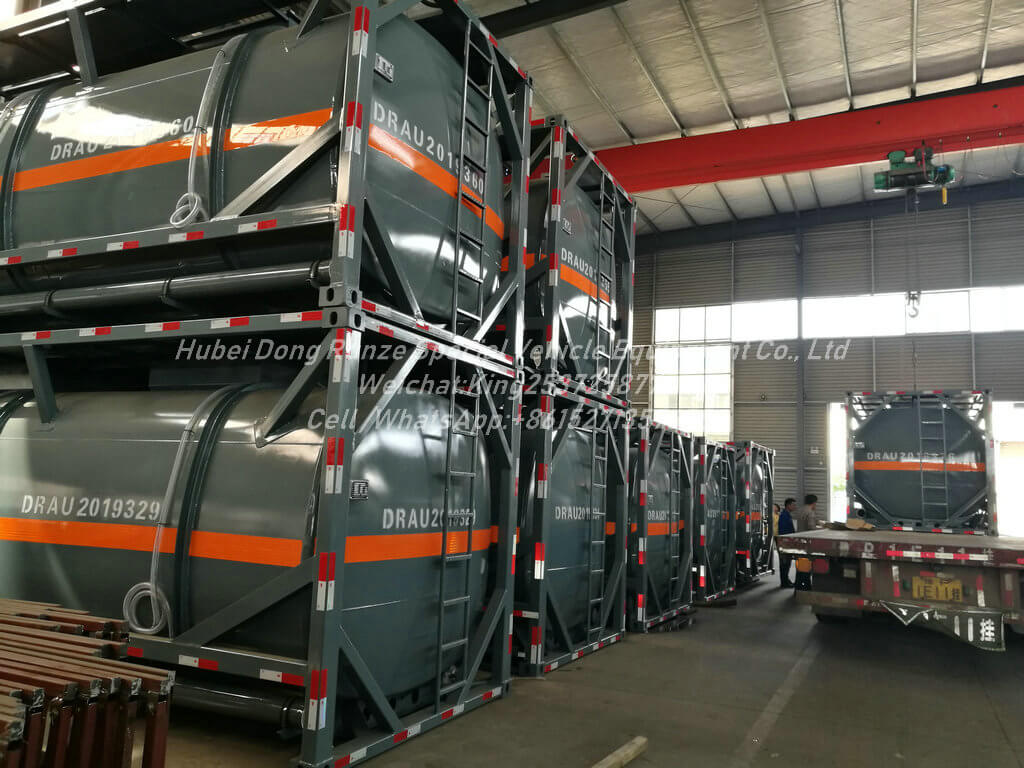

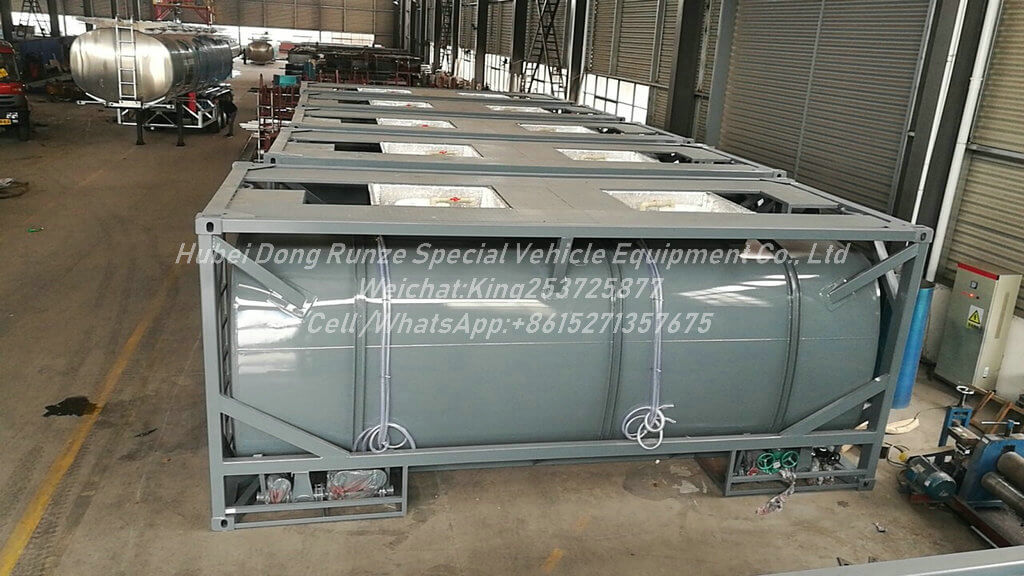

Hydrochloric-Acid-ISO Tank-12KL- Container Lined LDPE

10units Tank ready for delivery

 ISOTANK HCL acid-19cbm- Tank Container Lined PE20FT HF Acid tank Container -23m3 - Tank Lined LDPE


40ft Hydrochloric acid, Sodium hypochlorite Tank Containers 30000L-40000L

 Custermizing  Hydrochloric acid, Sodium hypochlorite Tank Containers 20ft/30ft /40ft Custermizing acid, alkaline and salt HCL, NaOH ,NaCIO Sodium Hypochlorite NaCIO /hydrofluoric acid HF/CAUSTIC SODA Custermizing  Portable iso Tank Container tank container

         Tank container main Technical Parameters
           20FT tank container 30FT tank container   40FT tank container
 Overall dimension(mm)          6058×2438×2438/2591          9144×2438×2438/2591          12192×2438×2438/2591
         Working temperature(℃)          -12C-50C


   tank container is a special container manufacturing to transport food, medicines and chemicals. A liquid tank is fixed inside a large metal frame. It is composed of tank body and tank frame, loading pore is on the top of the tank and discharge can be realized from the discharge hole or be sucked from the loading hole on the top of the tank. The frame adopt rectangle structure steel with light weight and high strength, that apply to ocean, high way subway transportation  22000L Acid  HCL, NaOH ,NaCIO ISO tank   To Veinam

WhatsApp:8615271357675Skype:tomsongking

 PTFE/PE Lined tanks  for  hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.

 Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
  Tank Containers can be used to carry the following products:
 Portable Tank Container
 Products
   Ammonium Nitrate
   Bio-diesel
   Molasses
   Caster Oil
   Hexane
   Ethanol
   Ethylene
   Methanol

 IMO 1
 IMO 2
 IMO5
 Capacities ranging from 10,000 litres to 25,000 litres
 Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
 Bitumen tank containers 21,000 litres
 Off-shore tanks with capacities of 1,000 litres to 10,000 litres


 IMO 1

 Shell made from 316 Stainless Steel
 Capacity of 12,000 - 26,500 litres nominal
 MAWP of 4 bar
 For transport of:
 Hazardous liquids
 Available in 7.65, 10, 20, or 30 foot sizes
 Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
 Heating by steam or electric heating (optional)

 Cooling by Glycol (optional)

 Please contact us if you require further information and/or a quotation.   (Contact Details above)

  IMO 2

 Shell made from 316 Stainless Steel
 Capacity of 12,000 - 26,500 litres nominal
 MAWP of 1.75 bar
 For transport of:
 Low Hazardous liquids
 Available in 7.65, 10, 20, or 30 foot sizes
 Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
 Heating by steam or electric heating
 Cooling by Glycol
 Please contact us if you require further information and/or a quotation.   (Contact Details above)

 IMO 0

 Shell made from 316 Stainless Steel
 Capacity of 12000 - 26500 litres nominal
 MAWP of 4 bar
 For transport of
 Wine
 Fruit Juices
 Vegetable Oils
 Mineral Oils
 Non-hazardous Oils
 Available in 20 foot / 6 metres
 Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
 Heating by steam or electric heating (optional)

 Cooling by Glycol (optional)

 Please contact us if you require further information and/or a quotation.   (Contact Details above)

  IMO 5

 Shell made from 316 Stainless Steel
 Capacity of 15,000 - 25,500 litres nominal
 MAWP of 1.75 bar
 For transport of gases, including:
 Propane
 Butane
 Refrigerants
 Available in 20, 30 or 40 foot sizes
 Cooling by sun-shieldPlease contact us if you require further information and/or a quotation.   (Contact Details above)IMO 7
 Shell made from 316 Stainless Steel or Carbon Steel
 Capacity of 20,000 - 24,000 litres nominal
 MAWP of 8 bar
 For transport of cryogenic gases, including:
 LNG
 Available in 10, 20, 30 or 40 foot sizes
 Cooling by glycolPlease contact us if you require further information and/or a quotation.   (Contact Details above)
  Bitumen Tank Containers

 Shell made from Carbon Steel
 Capacity of 20,000-25,000 litres nominal
 MAWP of 1.75 bar
 Low Hazardous liquids
 Available in 20 or 30 foot sizes
 Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
 Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation.   (Contact Details above)
 Cement Containers

 Capacity of 17.5 - 25 cubic metres
 Pressure dischargeOffshore
 Shell made from 316 Stainless Steel
 Capacity of 2,000 - 10,000 litres
 MAWP of 5 bar
 For transport of gases, including:
 Hazardous chemicals
 Acid
 Petroleum
 Available in 8 x 8 x 10 sizes
 Heated by steam or electric (optional)



   Portable iso Tank Container T4  20000L-24000L T4 Sewage tank cotainer   WhatsApp:8615271357675  Skype:tomsongkingPortable iso Tank Container T4  20000L-24000L T4 Sewage tank cotainer   WhatsApp:8615271357675  Skype:tomsongkingPortable iso Tank Container T4  20000L-24000L T4 Sewage tank cotainer   WhatsApp:8615271357675  Skype:tomsongkingPortable iso Tank Container T4  20000L-24000L T4 Sewage tank cotainer   WhatsApp:8615271357675  Skype:tomsongkingPortable iso Tank Container T4  20000L-24000L T4 Sewage tank cotainer   WhatsApp:8615271357675  Skype:tomsongkingPortable Tank


Solution - Success Case

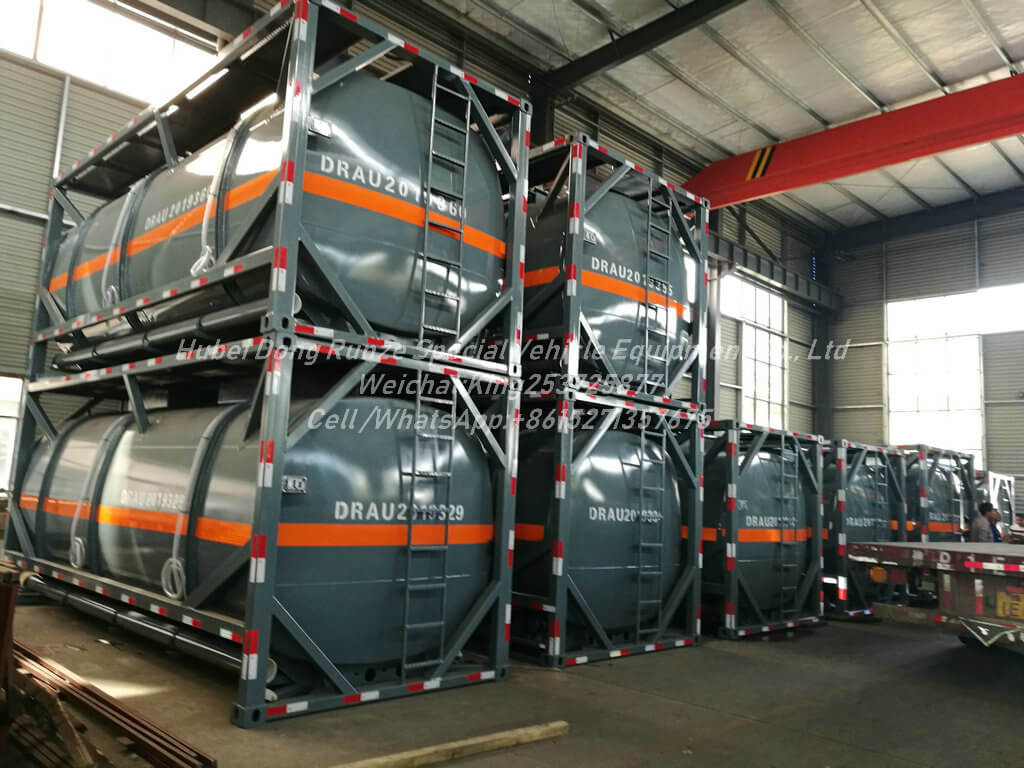

10 Units New ISO 20 FT TANK CONTAINER LLDPE LINED For contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%) Export to HAIPHONG VIETNAM Second times
10 Units New ISO 20 FT TANK CONTAINER LLDPE LINED For contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%) Export to HAIPHONG VIETNAM Second times

10  Units  New  ISO  20  FT  TANK  CONTAINER    LLDPE  LINED  TANK    For  contain:  HCl  (max  35%),  NaOH  (max  50%),  NaCLO  (max  10%),  PAC  (max  17%)  Export  To  HAIPHONG  VIETNAM  Second  times
MARKS  AND  NUMBERS
DRAU2019308
DRAU2019313
DRAU2019329
DRAU2019334
DRAU2019340
DRAU2019355
DRAU2019360
DRAU2019376
DRAU2019381
DRAU2019397

//5irorwxhkijljij.leadongcdn.com/cloud/nnBqnKilSRrlnnppipj/Steel-lined-PE-ISO-tank.jpg

2units 20ft ISO tank containers Steel Lined LDPE for Hydrochloric Acid export vietnam

2units  20ft  ISO  tank  containers    Steel  Lined  LDPE    for  Hydrochloric  Acid  export  vietnam


Hydrochloric acid Tank -018-container-iso.jpg
20ft Hydrochloric acid Tank container export afirica CIF price

20ft Hydrochloric acid Tank container export afirica CIF price $20000








HCL Tank -26cbm-acid tank body.jpg
2 sets Carbon steel Tank body inner lined 16mm PE, 16500L for chemical truck lorry export to Vietnam

2 sets Carbon steel Tank body inner lined 16mm PE, 16500L for chemical truck lorry export to Vietnam








Acid tank Truck upper tanks-20-tank body steel lined PE.jpg
Acid tank body plastic lining loading into container will ship to Buenos Aires

HCL Hydrochloric acid Acid tank body  plastic lining  loading into container will ship to Buenos Aires








30ft Tank Containers for transport NaOH 32-45%; NaOCL 10-15% and HCL 32-35% To Veinam

two sets 30ft Tank Containers for transport NaOH 32-45%; NaOCL 10-15% and HCL 32-35% To Veinam 2016.11.15 ISO Tank for TRAILERVolume: 22m3 put into 9760mm container fame.Steel thickness: 6mm.                        PE lining thickness: 15mm.








20ft Chemical liquid Tank Container steel lined PE plastic lining 22000L Acid HCL, NaOH ,NaCIO tank To Veinam

20ft Chemical liquid Tank Container steel lined PE plastic lining 22000L Acid HCL, NaOH ,NaCIO tank To Veinam








Sodium hypochlorite Tank -37000L- Hydrochloric acid tanker.jpg
2 axles Hydrochloric acid, Sodium hypochlorite Tank trailer 4 compartments expoert price

2 axles Hydrochloric acid, Sodium hypochlorite Tank trailer 4 compartments expoert price sale unit price $21900-$250000USD
