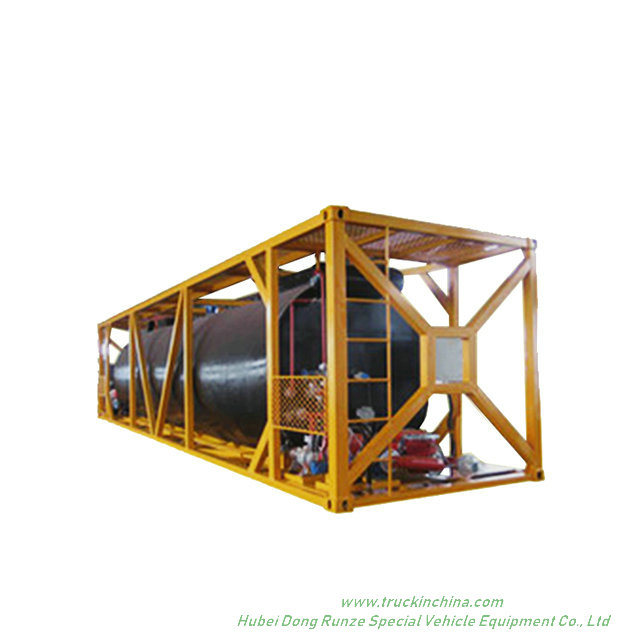

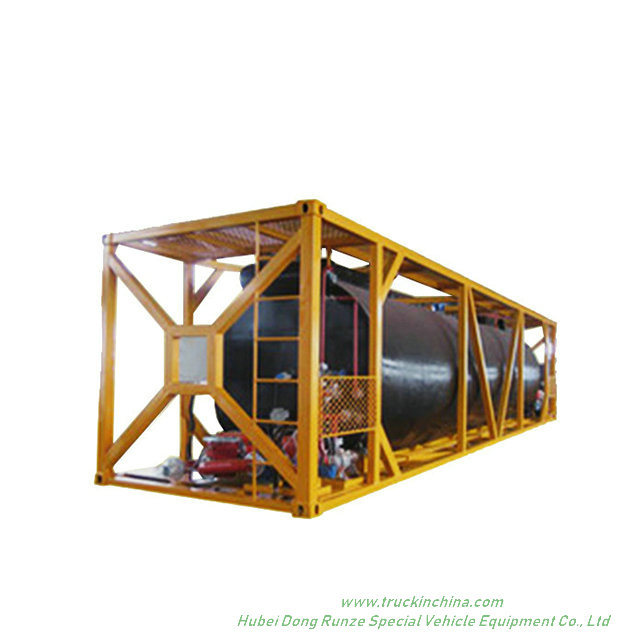

20FT Bitumen Tank Container Customizing Transport Hot Asphalt 20000-24000 Litre (Bitutainer)
| Quantity: | |
|---|---|
-
Shanghai, China
-
3000
-
T/T
20ft Bitumen Tank Container Customizing Transport Hot Asphalt 20000-24000 litre Bitutainer
Custermizing Portable iso Tank Container tank container
| Tank container main Technical Parameters | |||||
| 20FT tankcontainer | 30FT tank container | 40FT tank container | |||
| Overall dimension(mm) | 6058×2438×2438/2591 | 9144×2438×2438/2591 | 12192×2438×2438/2591 | ||
| Working temperature(ºC) | -12C-50C | ||||
| Type: | 20' ISO full frame collar tank, portable, insulated Bitumen tank | |
| Frame Dimensions: | 20' x 8' x 8'6" | |
| Capacity: | 20000 Litres +/- 2% | |
| M.G.W.: | 30,480 kg | |
| Tare (est.): | 6700 kgs | |
| Max Payload: | 23,780 kgs | |
| Working Pressure: | 1.76 Bar | |
| Test Pressure: | 2.65 Bar | |
| Allowable Vacuum | 0.21 Bar | |
| Design Temp: | -20°C to +170°C | |
| Vessel Material: | 16MnDR | |
| Shell Thickness: | 6 mm | |
| Ends Thickness: | 6 mm after forming | |
| Corrosion Allowance | 1 mm (Max.) | |
| Frame Material: | GB/T 1591-94-Q345D | |
| Frame to Shell: | Q345D | |
| Corner castings: | ISO 1161 - 8 off | |
| Vessel Design Code: | ||
| Radiography: | Shell: Dished ends: | |
| Inspection Agency: | ||
| Cargo carried: | Bitumen | |
| Design Approvals: | | |
| 20ft Bitumen Tank Container Specifications : | ||
| Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
| Nominal Capacity | 20000-24000 litre (±0.75%) | |
| Maximum Gross Mass | 32200 kgs | |
| Tare Mass | 4200 kg (± 3%) | |
| Design Temperature (Frame & Tank) | -19 to +80 °C | |
| Pressure | Working | 0.22 bar |
| Test | 0.33 bar | |
| Material | Tank (Shell & Ends) | Q345B |
| Frame | SPA-H or equivalent | |
| Thickness | Shell: 4.5mm Head: 5.0mm | |
| Data Plates | One set of stainless steel data plates | |
| Diameter of Cargo Inlet | 500mm | |
| Diameter of Cargo Outlet | 4''male adptor | |
| Diameter of Air Inlet | 100mm cam lock type | |
| Supply of Air Source | Pressure:0.2 Mpa to 0.3 Mpa Air-Flow Capacity:>10m3/min | |
| Design Code | ASME VIII DIV. 1 | |
| Approval | Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT | |
ISOTANK List
The Main Technical Parameters of Tanks (ASME Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /+55 | SA-612N | 11 | Sunshade | 6400 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 22 | 2.1 | -40/+50 | 18 | 8800 | ||||||
3 | R143a | 22 | 2.42 | 20 | 9500 | |||||||
4 | R125 | 22 | 2.75 | 21 | 9500 | |||||||
5 | R32 | 20 | 3.44 | 25 | 10900 | |||||||
6 | AHF | T19 | 21 | 1.0 | -40/+55 | SA516M NGr.485 | 12 | No | 6900 | Up load unload | ||
7 | Trichlorosilan | T14 | 21 | 0.5 | -40/+50 | Q345R | 12 | No | 6780 | 34000 | 6058 X 2438 X2591 | |
8 | Liquid Chlorine | T50 | 20 | 1.7 | -40/+50 | 16 | 8300 | |||||
9 | 21.72 | 1.62 | 16 | 8900 | ||||||||
10 | Liquid | T50 | 21.6 | 2.2 | -40/+50 | 06Cr19Ni10 | 22 | Packing Insulation | 11970 | |||
11 | SO2 | T20 | 21 | 1.03 | 40 /+60 | 16MnDR | 12 | No | 6900 | |||
12 | Cryogenic Liquid | T75 | 19.8,20 | 0.75-2.35 | -196/+50 | Inner Tank: 06Cr19Ni10 | Vacuum With Mutli-wrapped | 8600/12880 | Down load unload | |||
The Main Technical Parameters of Tanks (China Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /55 | Q345 (16MnR) | 12 | Sunshade | 6500 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 20 | 2.1 | -40/+50 | 16 | 7850 | ||||||
3 | 24 | 18 | 9100 | |||||||||
4 | R125 | 22 | 2.75 | 22 | 9900 | |||||||
5 | R32 | 22 | 3.44 | 28 | 12000 | |||||||
6 | 23.7 | -40 /55 | 12700 | |||||||||
20ft T50 LPG ISO Tank Container LPG Propane Isobutane Gas Tank Container 24K
Mob :008615271357675
1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.
3. Tank capacity: 7.7m3~60m3.
4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.
5. certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA
Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers
Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers
Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers
Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers
Food Products Iso Containers, Stainless Steel Iso Tank Containers
Solvents Iso Containers, Stainless Steel Iso Tank Containers
Oils Iso Containers, Stainless Steel Iso Tank Containers
Resins Iso Containers, Stainless Steel Iso Tank Containers
Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers
Mo 1 Iso Containers, Stainless Steel Iso Tank Containers
Imo Iso Containers, Stainless Steel Iso Tank Containers
Imo 5 Iso Containers, Stainless Steel Iso Tank Containers
Imo 7 Iso Containers, Stainless Steel Iso Tank Containers
Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers
Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers
Iso Containers, Stainless Steel Iso Tank Containers Hazardous.
Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.
Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers
Vertical Iso Containers, Stainless Steel Iso Tank Containers
The Aim Of Iso Is To Create a Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.
There Are Plenty Of Advantages For Using An Iso Tank. They Are a Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.
T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank - Ammonium Nitrate
ISO Tank - Bio-diesel
ISO Tank - Molasses
ISO Tank - Caster Oil
ISO Tank - Hexane
ISO Tank - Ethanol
ISO Tank - Ethylene
ISO Tank - Methanol
ISO Tank - IMO 1
ISO Tank - IMO 2
ISO Tank - IMO5
ISO Tank - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank - Bitumen tank containers 21,000 litres
ISO Tank - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of:
ISO Tank - Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 2
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of:
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating
ISO Tank - Cooling by Glycol
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 0
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12000 - 26500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of
ISO Tank - Wine
ISO Tank - Fruit Juices
ISO Tank - Vegetable Oils
ISO Tank - Mineral Oils
ISO Tank - Non-hazardous Oils
ISO Tank - Available in 20 foot / 6 metres
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 5
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 15,000 - 25,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of gases, including:
ISO Tank - Propane
ISO Tank - Butane
ISO Tank - Refrigerants
ISO Tank - Available in 20, 30 or 40 foot sizes
ISO Tank - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation. (Contact Details above)IMO 7
ISO Tank - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank - Capacity of 20,000 - 24,000 litres nominal
ISO Tank - MAWP of 8 bar
ISO Tank - For transport of cryogenic gases, including:
ISO Tank - LNG
ISO Tank - Available in 10, 20, 30 or 40 foot sizes
ISO Tank - Cooling by glycolPlease contact us if you require further information and/or a quotation. (Contact Details above)
Bitumen Tank Containers
ISO Tank - Shell made from Carbon Steel
ISO Tank - Capacity of 20,000-25,000 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 20 or 30 foot sizes
ISO Tank - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation. (Contact Details above)
Cement Containers
ISO Tank - Capacity of 17.5 - 25 cubic metres
ISO Tank - Pressure dischargeOffshore
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 2,000 - 10,000 litres
ISO Tank - MAWP of 5 bar
ISO Tank - For transport of gases, including:
ISO Tank - Hazardous chemicals
ISO Tank - Acid
ISO Tank - Petroleum
ISO Tank - Available in 8 x 8 x 10 sizes
ISO Tank - Heated by steam or electric (optional)
The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a variety of tank containers with either a rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.
Beside the options shown, a wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.
ISO Tank, ISO Tank Containers
Manufacturers & Exporters
ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water , Hydrogen Peroxide , Sulphuric Acid , Nitric Acid , Mining chemicals , Food Products ,Solvents, Oils , Resins , Alcoholic Beverages , MO 1 ,IMO 2 IMO 2 ,IMO 5 IMO 5 ,IMO 7 IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems , protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.
The bulk liquids that can be transported in an ISO tank include :
Swap body tank ISO tank , ISO Tank Containers- a swap body has a bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long
Food-grade tank - ISO tank , ISO Tank Containers- a standard tank container which can only be loaded with foodgrade products
ISO tank , ISO Tank Containers Reefer tank - a tank with the ability to cool the product to be transported
ISO tank , ISO Tank ContainersGas tank - a tank that is suitable for the transport of gases
Silo tank ISO tank , ISO Tank Containers- a tank for the transport of grains and powders
T1 ISO tank container for wine and light liquids (ISO tank , ISO Tank Containers)
T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank , ISO Tank Containers)
T11 ISO tank container for non-hazardous chemicals - ISO tank , ISO Tank Containers
T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride - ISO tank , ISO Tank Containers
T50 ISO tank container for LPG and ammonia gas - ISO tank , ISO Tank Containers
SWAP tank container (for cargo above 26,000 to 32,000 metric tons or 25,600 to 31,500 long tons or 28,700 to 35,300 short tons ISO tank , ISO Tank Containers
Rubber-lined ISO tank container for acid-based chemicals best for ISO tank , ISO Tank Containers
PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Hazardous chemicals
Acid
Petroleum
ISO Tank
ISO 40' LNG Tank Container | Bitumen tank container | ISO 20' Tank Container |
IMO 1 | IMO 2 | IMO 5 |
Highly Hazardous UN Portable ISO Tank Containers 14,600 - 24,000 Liters
Highly Hazardous UN Portable ISO Tank Containers
IMO 1, T11 / T14 / T20 / T22 UN portable tank container (14,600 - 24,000 liters
A
UN 1701 to UN 1800[edit]
UN Number Class Proper Shipping Name
UN 1701 6.1 Xylyl bromide, liquid
UN 1702 6.1 1,1,2,2-Tetrachloroethane
UN 1704 6.1 Tetraethyl dithiopyrophosphate
UN 1705 ? (UN No. no longer in use) Tetraethyl pyrophosphate and compressed gas mixture (UN No. no longer in use)[1]
UN 1707 6.1 Thallium compounds, n.o.s.
UN 1708 6.1 Toluidines, liquid
UN 1709 6.1 2,4-Toluylenediamine, solid (2,4-Toluenediamine)
UN 1710 6.1 Trichloroethylene
UN 1711 6.1 Xylidines, liquid
UN 1712 6.1 Zinc arsenate or Zinc arsenite or Zinc arsenate and zinc arsenite mixtures
UN 1713 6.1 Zinc cyanide
UN 1714 4.3 Zinc phosphide
UN 1715 8 Acetic anhydride
UN 1716 8 Acetyl bromide
UN 1717 3 Acetyl chloride
UN 1718 8 Butyl acid phosphate
UN 1719 8 Caustic alkali liquid, n.o.s.
UN 1720 to 1721 (UN No.s no longer in use)
UN 1722 6.1 Allyl chloroformate
UN 1723 3 Allyl iodide
UN 1724 8 Allyltrichlorosilane, stabilized
UN 1725 8 Aluminum bromide, anhydrous
UN 1726 8 Aluminum chloride, anhydrous
UN 1727 8 Ammonium hydrogendifluoride, solid
UN 1728 8 Amyltrichlorosilane
UN 1729 8 Anisoyl chloride
UN 1730 8 Antimony pentachloride, liquid
UN 1731 8 Antimony pentachloride, solution
UN 1732 8 Antimony pentafluoride
UN 1733 8 Antimony trichloride
UN 1736 8 Benzoyl chloride
UN 1737 6.1 Benzyl bromide
UN 1738 6.1 Benzyl chloride or Benzyl chloride unstabilized
UN 1739 8 Benzyl chloroformate
UN 1740 8 Hydrogen difluorides, n.o.s. solid
UN 1741 2.3 Boron trichloride
UN 1742 8 Boron trifluoride acetic acid complex
UN 1743 8 Boron trifluoride propionic acid complex
UN 1744 8 Bromine or Bromine solutions
UN 1745 5.1 Bromine pentafluoride
UN 1746 5.1 Bromine trifluoride
UN 1747 8 Butyltrichlorosilane
UN 1748 5.1 Calcium hypochlorite, dry or Calcium hypochlorite mixtures dry with more than 39 percent available chlorine (8.8 percent available oxygen)
UN 1749 2.3 Chlorine trifluoride
UN 1750 6.1 Chloroacetic acid, solution
UN 1751 6.1 Chloroacetic acid, solid
UN 1752 6.1 Chloroacetyl chloride
UN 1753 8 Chlorophenyltrichlorosilane
UN 1754 8 Chlorosulfonic acid (with or without sulfur trioxide)
UN 1755 8 Chromic acid solution
UN 1756 8 Chromic fluoride, solid
UN 1757 8 Chromic fluoride, solution
UN 1758 8 Chromium oxychloride
UN 1759 8 Corrosive solids, n.o.s.
UN 1760 8 Corrosive liquids, n.o.s.
UN 1761 8 Cupriethylenediamine solution
UN 1762 8 Cyclohexenyltrichlorosilane
UN 1763 8 Cyclohexyltrichlorosilane
UN 1764 8 Dichloroacetic acid
UN 1765 8 Dichloroacetyl chloride
UN 1766 8 Dichlorophenyltrichlorosilane
UN 1767 8 Diethyldichlorosilane
UN 1768 8 Difluorophosphoric acid, anhydrous
UN 1769 8 Diphenyldichlorosilane
UN 1770 8 Diphenylmethyl bromide
UN 1771 8 Dodecyltrichlorosilane
UN 1773 8 Ferric chloride, anhydrous
UN 1774 8 Fire extinguisher charges, corrosive liquid
UN 1775 8 Fluoroboric acid
UN 1776 8 Fluorophosphoric acid anhydrous
UN 1777 8 Fluorosulfonic acid
UN 1778 8 Fluorosilicic acid
UN 1779 8 Formic acid
UN 1780 8 Fumaryl chloride
UN 1781 8 Hexadecyltrichlorosilane
UN 1782 8 Hexafluorophosphoric acid
UN 1783 8 Hexamethylenediamine solution
UN 1784 8 Hexyltrichlorosilane
UN 1786 8 Hydrofluoric acid and Sulfuric acid mixtures
UN 1787 8 Hydriodic acid
UN 1788 8 Hydrobromic acid, with more than 49 percent hydrobromic acid or Hydrobromic acid, with not more than 49 percent hydrobromic acid
UN 1789 8 Hydrochloric acid
UN 1790 8 Hydrofluoric acid, with more than 60 percent strength or Hydrofluoric acid, with not more than 60 percent strength
UN 1791 8 Hypochlorite solutions
UN 1792 8 Iodine monochloride, solid
UN 1793 8 Isopropyl acid phosphate
UN 1794 8 Lead sulfate with more than 3 percent free acid
UN 1796 8 Nitrating acid mixtures, with more than 50 percent nitric acid or Nitrating acid mixtures, with not more than 50 percent nitric acid
UN 1799 8 Nonyltrichlorosilane
UN 1800 8 Octadecyltrichlorosilane

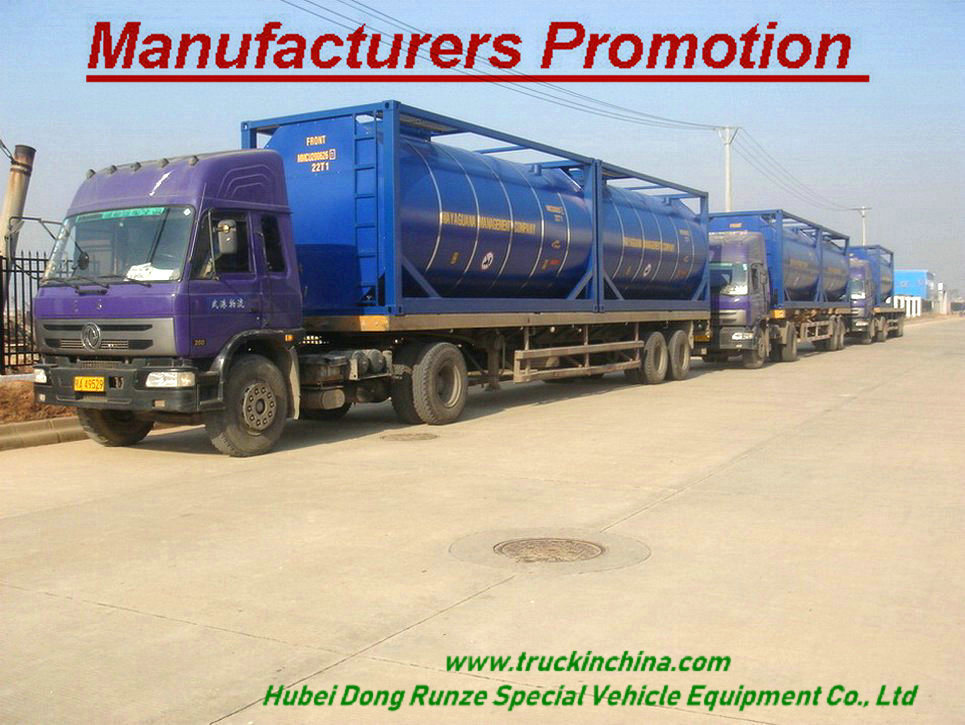

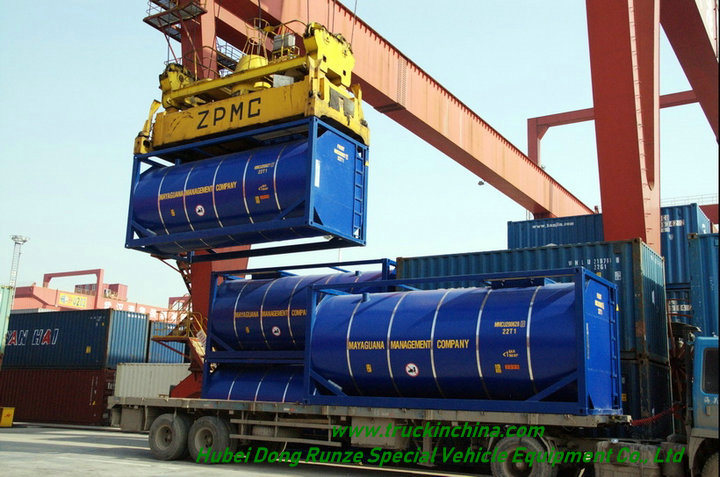

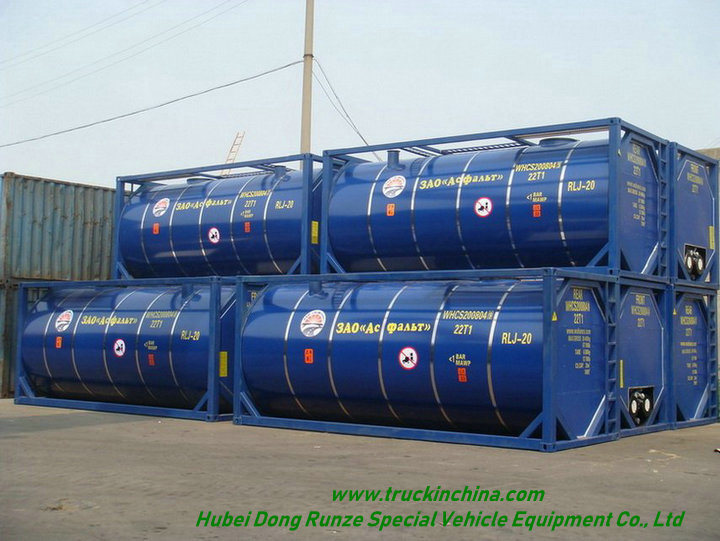

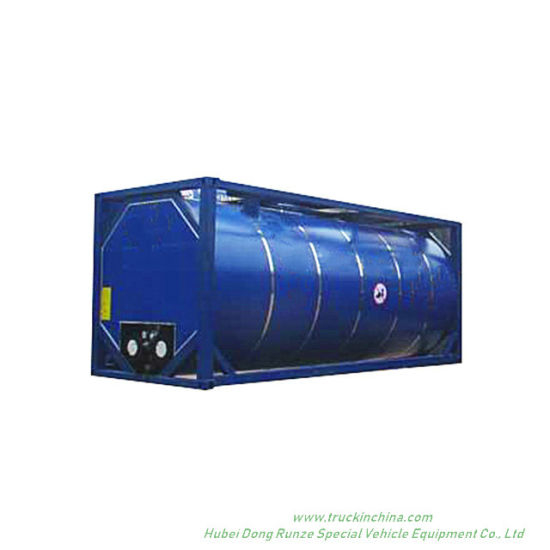

20ft Bitumen Tank Container Customizing Transport Hot Asphalt 20000-24000 litre Bitutainer
Custermizing Portable iso Tank Container tank container
| Tank container main Technical Parameters | |||||
| 20FT tankcontainer | 30FT tank container | 40FT tank container | |||
| Overall dimension(mm) | 6058×2438×2438/2591 | 9144×2438×2438/2591 | 12192×2438×2438/2591 | ||
| Working temperature(ºC) | -12C-50C | ||||
| Type: | 20' ISO full frame collar tank, portable, insulated Bitumen tank | |
| Frame Dimensions: | 20' x 8' x 8'6" | |
| Capacity: | 20000 Litres +/- 2% | |
| M.G.W.: | 30,480 kg | |
| Tare (est.): | 6700 kgs | |
| Max Payload: | 23,780 kgs | |
| Working Pressure: | 1.76 Bar | |
| Test Pressure: | 2.65 Bar | |
| Allowable Vacuum | 0.21 Bar | |
| Design Temp: | -20°C to +170°C | |
| Vessel Material: | 16MnDR | |
| Shell Thickness: | 6 mm | |
| Ends Thickness: | 6 mm after forming | |
| Corrosion Allowance | 1 mm (Max.) | |
| Frame Material: | GB/T 1591-94-Q345D | |
| Frame to Shell: | Q345D | |
| Corner castings: | ISO 1161 - 8 off | |
| Vessel Design Code: | ||
| Radiography: | Shell: Dished ends: | |
| Inspection Agency: | ||
| Cargo carried: | Bitumen | |
| Design Approvals: | | |
| 20ft Bitumen Tank Container Specifications : | ||
| Frame Dimensions (L x W x H) | 6058 x 2438 x 2591 mm | |
| Nominal Capacity | 20000-24000 litre (±0.75%) | |
| Maximum Gross Mass | 32200 kgs | |
| Tare Mass | 4200 kg (± 3%) | |
| Design Temperature (Frame & Tank) | -19 to +80 °C | |
| Pressure | Working | 0.22 bar |
| Test | 0.33 bar | |
| Material | Tank (Shell & Ends) | Q345B |
| Frame | SPA-H or equivalent | |
| Thickness | Shell: 4.5mm Head: 5.0mm | |
| Data Plates | One set of stainless steel data plates | |
| Diameter of Cargo Inlet | 500mm | |
| Diameter of Cargo Outlet | 4''male adptor | |
| Diameter of Air Inlet | 100mm cam lock type | |
| Supply of Air Source | Pressure:0.2 Mpa to 0.3 Mpa Air-Flow Capacity:>10m3/min | |
| Design Code | ASME VIII DIV. 1 | |
| Approval | Lloyds or BV Construction Certificate, IMDG, CFR49, ADR/RID, AAR 600, CSC, TC, TIR, ISO UIC, US/UK DOT | |
ISOTANK List
The Main Technical Parameters of Tanks (ASME Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /+55 | SA-612N | 11 | Sunshade | 6400 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 22 | 2.1 | -40/+50 | 18 | 8800 | ||||||
3 | R143a | 22 | 2.42 | 20 | 9500 | |||||||
4 | R125 | 22 | 2.75 | 21 | 9500 | |||||||
5 | R32 | 20 | 3.44 | 25 | 10900 | |||||||
6 | AHF | T19 | 21 | 1.0 | -40/+55 | SA516M NGr.485 | 12 | No | 6900 | Up load unload | ||
7 | Trichlorosilan | T14 | 21 | 0.5 | -40/+50 | Q345R | 12 | No | 6780 | 34000 | 6058 X 2438 X2591 | |
8 | Liquid Chlorine | T50 | 20 | 1.7 | -40/+50 | 16 | 8300 | |||||
9 | 21.72 | 1.62 | 16 | 8900 | ||||||||
10 | Liquid | T50 | 21.6 | 2.2 | -40/+50 | 06Cr19Ni10 | 22 | Packing Insulation | 11970 | |||
11 | SO2 | T20 | 21 | 1.03 | 40 /+60 | 16MnDR | 12 | No | 6900 | |||
12 | Cryogenic Liquid | T75 | 19.8,20 | 0.75-2.35 | -196/+50 | Inner Tank: 06Cr19Ni10 | Vacuum With Mutli-wrapped | 8600/12880 | Down load unload | |||
The Main Technical Parameters of Tanks (China Standard) | ||||||||||||
| Loading Medium | Model | Capacity | Design | Design | Tank Material | Nominal Tank | Insulation | Tare weight | Max. Gross Weight | Dimension | Loading Method |
1 | R134a | T50 | 24 | 1.38 | -40 /55 | Q345 (16MnR) | 12 | Sunshade | 6500 | 34000 | 6058 X 2438 X2591 | Down load unload |
2 | R22 | 20 | 2.1 | -40/+50 | 16 | 7850 | ||||||
3 | 24 | 18 | 9100 | |||||||||
4 | R125 | 22 | 2.75 | 22 | 9900 | |||||||
5 | R32 | 22 | 3.44 | 28 | 12000 | |||||||
6 | 23.7 | -40 /55 | 12700 | |||||||||
20ft T50 LPG ISO Tank Container LPG Propane Isobutane Gas Tank Container 24K
Mob :008615271357675
1. DRZ Cryogenic Storage Tank include the following ISO cryogenic tank:10ft, 12ft, 20ft, 40ft
2. Used for: liquid oxygen tank container, liquid nitrogen tank container, liquid argon tank container, liquid Nitrous Oxide tank container, liquid carbon dioxide tank container, LNG tank container, LPG tank container, AHF tank container, Liquid Chlorine tank container, liquid ammonia tank container.
3. Tank capacity: 7.7m3~60m3.
4. Tank pressure: 8bar, 16bar ,24Bar or based on user requirement.
5. certificate: RID/ADR, CFR49, IMDG, T75 UN PORTABLE, TIR , UIC, CSC, TC, US DOT, UK-DFT, FRA
Hydrogen Peroxide Iso Containers, Stainless Steel Iso Tank Containers
Sulphuric Acid Iso Containers, Stainless Steel Iso Tank Containers
Nitric Acid Iso Containers, Stainless Steel Iso Tank Containers
Mining Chemicals Iso Containers, Stainless Steel Iso Tank Containers
Food Products Iso Containers, Stainless Steel Iso Tank Containers
Solvents Iso Containers, Stainless Steel Iso Tank Containers
Oils Iso Containers, Stainless Steel Iso Tank Containers
Resins Iso Containers, Stainless Steel Iso Tank Containers
Alcoholic Beverages Iso Containers, Stainless Steel Iso Tank Containers
Mo 1 Iso Containers, Stainless Steel Iso Tank Containers
Imo Iso Containers, Stainless Steel Iso Tank Containers
Imo 5 Iso Containers, Stainless Steel Iso Tank Containers
Imo 7 Iso Containers, Stainless Steel Iso Tank Containers
Food Tank Containers And Iso Containers, Stainless Steel Iso Tank Containers
Tank Containers Containers And Iso Containers, Stainless Steel Iso Tank Containers
Iso Containers, Stainless Steel Iso Tank Containers Hazardous.
Iso Containers, Stainless Steel Iso Tank Containers Non-Hazardous Liquid Materials.
Horizontal Iso Tanks And Containers, Stainless Steel Iso Tank Containers
Vertical Iso Containers, Stainless Steel Iso Tank Containers
The Aim Of Iso Is To Create a Standardised Process Of Manufacture So That Things Can Be Interchangeable No Matter Where You Are. Having Products With An Iso Label Enables People To Know Exactly How The Product Will Work And Know Everything About It.
There Are Plenty Of Advantages For Using An Iso Tank. They Are a Highly Reliable, Cost Effective And Safe Way Of Transporting Bulk Liquids From Place To Place.
T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank - Ammonium Nitrate
ISO Tank - Bio-diesel
ISO Tank - Molasses
ISO Tank - Caster Oil
ISO Tank - Hexane
ISO Tank - Ethanol
ISO Tank - Ethylene
ISO Tank - Methanol
ISO Tank - IMO 1
ISO Tank - IMO 2
ISO Tank - IMO5
ISO Tank - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank - Bitumen tank containers 21,000 litres
ISO Tank - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of:
ISO Tank - Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 2
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of:
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating
ISO Tank - Cooling by Glycol
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 0
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12000 - 26500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of
ISO Tank - Wine
ISO Tank - Fruit Juices
ISO Tank - Vegetable Oils
ISO Tank - Mineral Oils
ISO Tank - Non-hazardous Oils
ISO Tank - Available in 20 foot / 6 metres
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 5
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 15,000 - 25,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of gases, including:
ISO Tank - Propane
ISO Tank - Butane
ISO Tank - Refrigerants
ISO Tank - Available in 20, 30 or 40 foot sizes
ISO Tank - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation. (Contact Details above)IMO 7
ISO Tank - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank - Capacity of 20,000 - 24,000 litres nominal
ISO Tank - MAWP of 8 bar
ISO Tank - For transport of cryogenic gases, including:
ISO Tank - LNG
ISO Tank - Available in 10, 20, 30 or 40 foot sizes
ISO Tank - Cooling by glycolPlease contact us if you require further information and/or a quotation. (Contact Details above)
Bitumen Tank Containers
ISO Tank - Shell made from Carbon Steel
ISO Tank - Capacity of 20,000-25,000 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 20 or 30 foot sizes
ISO Tank - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation. (Contact Details above)
Cement Containers
ISO Tank - Capacity of 17.5 - 25 cubic metres
ISO Tank - Pressure dischargeOffshore
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 2,000 - 10,000 litres
ISO Tank - MAWP of 5 bar
ISO Tank - For transport of gases, including:
ISO Tank - Hazardous chemicals
ISO Tank - Acid
ISO Tank - Petroleum
ISO Tank - Available in 8 x 8 x 10 sizes
ISO Tank - Heated by steam or electric (optional)
The highly hazardous tank container is an IMO 1, T11, T14, T20 or T22 stainless steel container with a capacity range between 14.600 and 24.000 liters. The tank containers we offer are suitable to transport highly hazardous and often corrosive cargoes. The tanks comply to all international regulations including ASME-U Stamp (T20 and T22). We have a variety of tank containers with either a rubber, resign or plastic lining. Other types and modifications include tank containers with baffle plates, bolted manlids, valve actuators, coated valves, coated spill boxes, gauges and different top discharge connections. Other safety related fittings or connections improving the operational flexibility can also be attached.
Beside the options shown, a wide range of other modifications and fittings is available. Please share your enquiry and we will specify the most suitable tank container for your business. During this process we will take into account the product(s) to be loaded, the area of operation and any loading or discharge preferences. Our goal is to provide you with the most optimal tank taking both income and costs into consideration.
ISO Tank, ISO Tank Containers
Manufacturers & Exporters
ISO Containers, stainless steel ISO tank containers, IMO tank containers for All types of Water , Hydrogen Peroxide , Sulphuric Acid , Nitric Acid , Mining chemicals , Food Products ,Solvents, Oils , Resins , Alcoholic Beverages , MO 1 ,IMO 2 IMO 2 ,IMO 5 IMO 5 ,IMO 7 IMO 7,Food Tank Containers and UN portable tanks that can be used to ship a hazardous and non-hazardous liquid materials. Our ISO tanks is versatile tanks and ISO standards tanks, many different kind of can be equipped with insulation ISO tanks, steam heating ISO tank, electric heating ISO tank or refrigeration for products that require temperature control, top and/or bottom discharge valve and pipeline systems , protective linings if required and other modifications we will provide as per customer requirement. Products stored or transported by these containers vary from non-hazardous and hazardous chemicals ISO tanks. These specially ISO tanks units are specially designed for transportation of bulk liquid product to, from and between fixed and/or mobile consumption points and where house delivery.
The bulk liquids that can be transported in an ISO tank include :
Swap body tank ISO tank , ISO Tank Containers- a swap body has a bigger tank which is larger than the frame, usually 23 or 25 feet (7.01 or 7.62 meters) long
Food-grade tank - ISO tank , ISO Tank Containers- a standard tank container which can only be loaded with foodgrade products
ISO tank , ISO Tank Containers Reefer tank - a tank with the ability to cool the product to be transported
ISO tank , ISO Tank ContainersGas tank - a tank that is suitable for the transport of gases
Silo tank ISO tank , ISO Tank Containers- a tank for the transport of grains and powders
T1 ISO tank container for wine and light liquids (ISO tank , ISO Tank Containers)
T4 ISO tank container for non-hazardous edible and non-edible oils (ISO tank , ISO Tank Containers)
T11 ISO tank container for non-hazardous chemicals - ISO tank , ISO Tank Containers
T14 ISO tank container for hazardous chemicals and acids like HCl and zinc chloride - ISO tank , ISO Tank Containers
T50 ISO tank container for LPG and ammonia gas - ISO tank , ISO Tank Containers
SWAP tank container (for cargo above 26,000 to 32,000 metric tons or 25,600 to 31,500 long tons or 28,700 to 35,300 short tons ISO tank , ISO Tank Containers
Rubber-lined ISO tank container for acid-based chemicals best for ISO tank , ISO Tank Containers
PE Lined steel tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Hazardous chemicals
Acid
Petroleum
ISO Tank
ISO 40' LNG Tank Container | Bitumen tank container | ISO 20' Tank Container |
IMO 1 | IMO 2 | IMO 5 |
Highly Hazardous UN Portable ISO Tank Containers 14,600 - 24,000 Liters
Highly Hazardous UN Portable ISO Tank Containers
IMO 1, T11 / T14 / T20 / T22 UN portable tank container (14,600 - 24,000 liters
A
UN 1701 to UN 1800[edit]
UN Number Class Proper Shipping Name
UN 1701 6.1 Xylyl bromide, liquid
UN 1702 6.1 1,1,2,2-Tetrachloroethane
UN 1704 6.1 Tetraethyl dithiopyrophosphate
UN 1705 ? (UN No. no longer in use) Tetraethyl pyrophosphate and compressed gas mixture (UN No. no longer in use)[1]
UN 1707 6.1 Thallium compounds, n.o.s.
UN 1708 6.1 Toluidines, liquid
UN 1709 6.1 2,4-Toluylenediamine, solid (2,4-Toluenediamine)
UN 1710 6.1 Trichloroethylene
UN 1711 6.1 Xylidines, liquid
UN 1712 6.1 Zinc arsenate or Zinc arsenite or Zinc arsenate and zinc arsenite mixtures
UN 1713 6.1 Zinc cyanide
UN 1714 4.3 Zinc phosphide
UN 1715 8 Acetic anhydride
UN 1716 8 Acetyl bromide
UN 1717 3 Acetyl chloride
UN 1718 8 Butyl acid phosphate
UN 1719 8 Caustic alkali liquid, n.o.s.
UN 1720 to 1721 (UN No.s no longer in use)
UN 1722 6.1 Allyl chloroformate
UN 1723 3 Allyl iodide
UN 1724 8 Allyltrichlorosilane, stabilized
UN 1725 8 Aluminum bromide, anhydrous
UN 1726 8 Aluminum chloride, anhydrous
UN 1727 8 Ammonium hydrogendifluoride, solid
UN 1728 8 Amyltrichlorosilane
UN 1729 8 Anisoyl chloride
UN 1730 8 Antimony pentachloride, liquid
UN 1731 8 Antimony pentachloride, solution
UN 1732 8 Antimony pentafluoride
UN 1733 8 Antimony trichloride
UN 1736 8 Benzoyl chloride
UN 1737 6.1 Benzyl bromide
UN 1738 6.1 Benzyl chloride or Benzyl chloride unstabilized
UN 1739 8 Benzyl chloroformate
UN 1740 8 Hydrogen difluorides, n.o.s. solid
UN 1741 2.3 Boron trichloride
UN 1742 8 Boron trifluoride acetic acid complex
UN 1743 8 Boron trifluoride propionic acid complex
UN 1744 8 Bromine or Bromine solutions
UN 1745 5.1 Bromine pentafluoride
UN 1746 5.1 Bromine trifluoride
UN 1747 8 Butyltrichlorosilane
UN 1748 5.1 Calcium hypochlorite, dry or Calcium hypochlorite mixtures dry with more than 39 percent available chlorine (8.8 percent available oxygen)
UN 1749 2.3 Chlorine trifluoride
UN 1750 6.1 Chloroacetic acid, solution
UN 1751 6.1 Chloroacetic acid, solid
UN 1752 6.1 Chloroacetyl chloride
UN 1753 8 Chlorophenyltrichlorosilane
UN 1754 8 Chlorosulfonic acid (with or without sulfur trioxide)
UN 1755 8 Chromic acid solution
UN 1756 8 Chromic fluoride, solid
UN 1757 8 Chromic fluoride, solution
UN 1758 8 Chromium oxychloride
UN 1759 8 Corrosive solids, n.o.s.
UN 1760 8 Corrosive liquids, n.o.s.
UN 1761 8 Cupriethylenediamine solution
UN 1762 8 Cyclohexenyltrichlorosilane
UN 1763 8 Cyclohexyltrichlorosilane
UN 1764 8 Dichloroacetic acid
UN 1765 8 Dichloroacetyl chloride
UN 1766 8 Dichlorophenyltrichlorosilane
UN 1767 8 Diethyldichlorosilane
UN 1768 8 Difluorophosphoric acid, anhydrous
UN 1769 8 Diphenyldichlorosilane
UN 1770 8 Diphenylmethyl bromide
UN 1771 8 Dodecyltrichlorosilane
UN 1773 8 Ferric chloride, anhydrous
UN 1774 8 Fire extinguisher charges, corrosive liquid
UN 1775 8 Fluoroboric acid
UN 1776 8 Fluorophosphoric acid anhydrous
UN 1777 8 Fluorosulfonic acid
UN 1778 8 Fluorosilicic acid
UN 1779 8 Formic acid
UN 1780 8 Fumaryl chloride
UN 1781 8 Hexadecyltrichlorosilane
UN 1782 8 Hexafluorophosphoric acid
UN 1783 8 Hexamethylenediamine solution
UN 1784 8 Hexyltrichlorosilane
UN 1786 8 Hydrofluoric acid and Sulfuric acid mixtures
UN 1787 8 Hydriodic acid
UN 1788 8 Hydrobromic acid, with more than 49 percent hydrobromic acid or Hydrobromic acid, with not more than 49 percent hydrobromic acid
UN 1789 8 Hydrochloric acid
UN 1790 8 Hydrofluoric acid, with more than 60 percent strength or Hydrofluoric acid, with not more than 60 percent strength
UN 1791 8 Hypochlorite solutions
UN 1792 8 Iodine monochloride, solid
UN 1793 8 Isopropyl acid phosphate
UN 1794 8 Lead sulfate with more than 3 percent free acid
UN 1796 8 Nitrating acid mixtures, with more than 50 percent nitric acid or Nitrating acid mixtures, with not more than 50 percent nitric acid
UN 1799 8 Nonyltrichlorosilane
UN 1800 8 Octadecyltrichlorosilane
