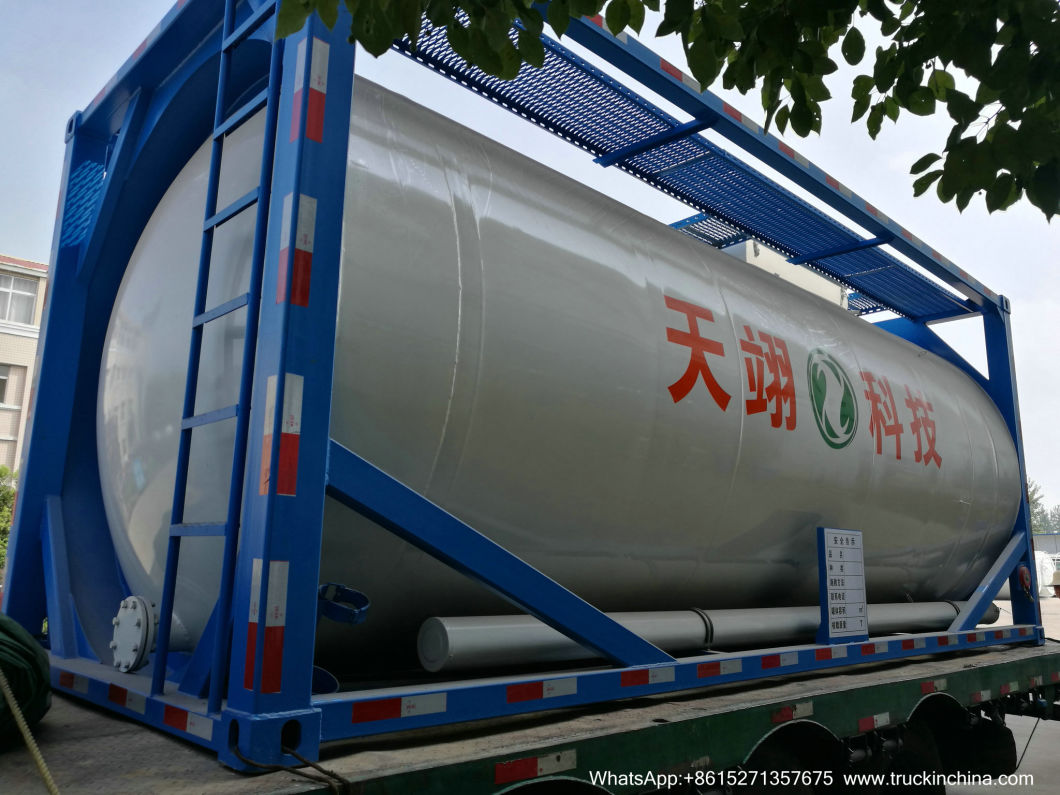

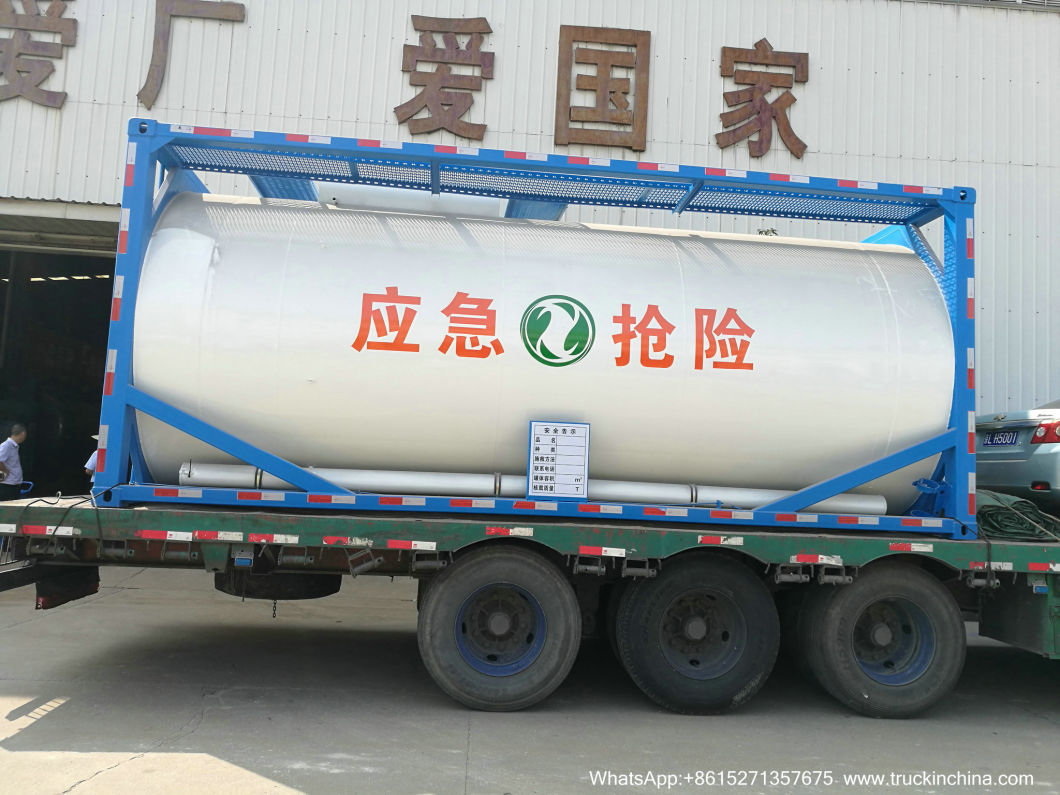

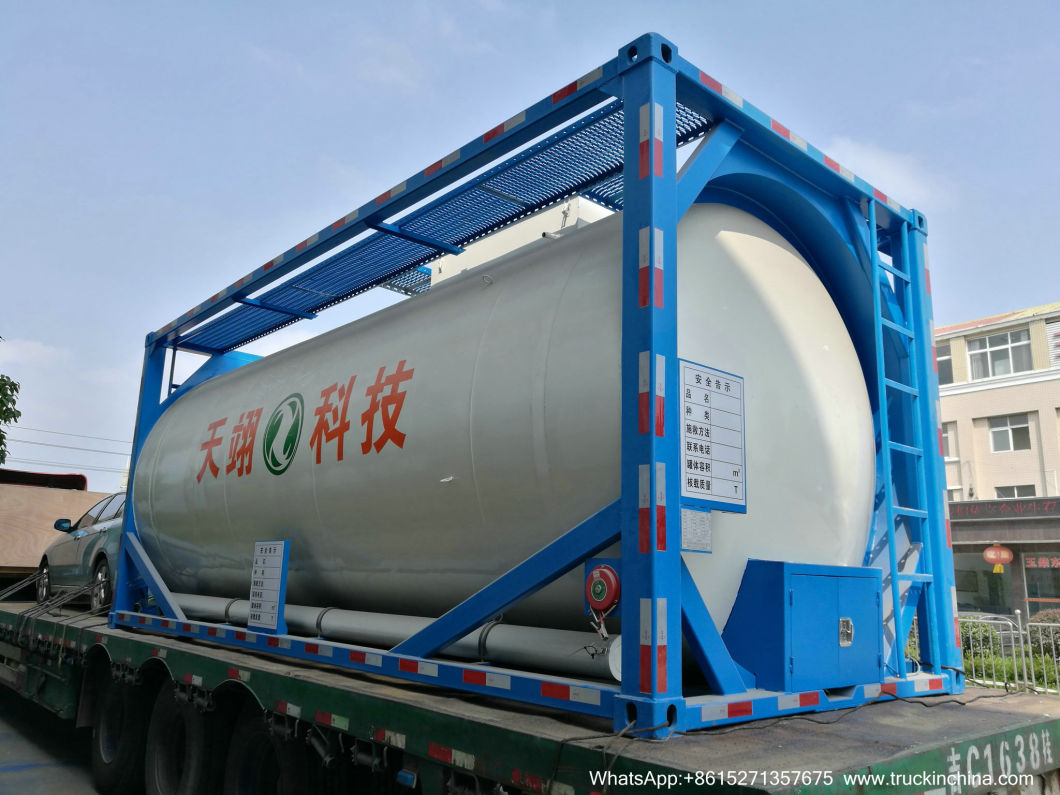

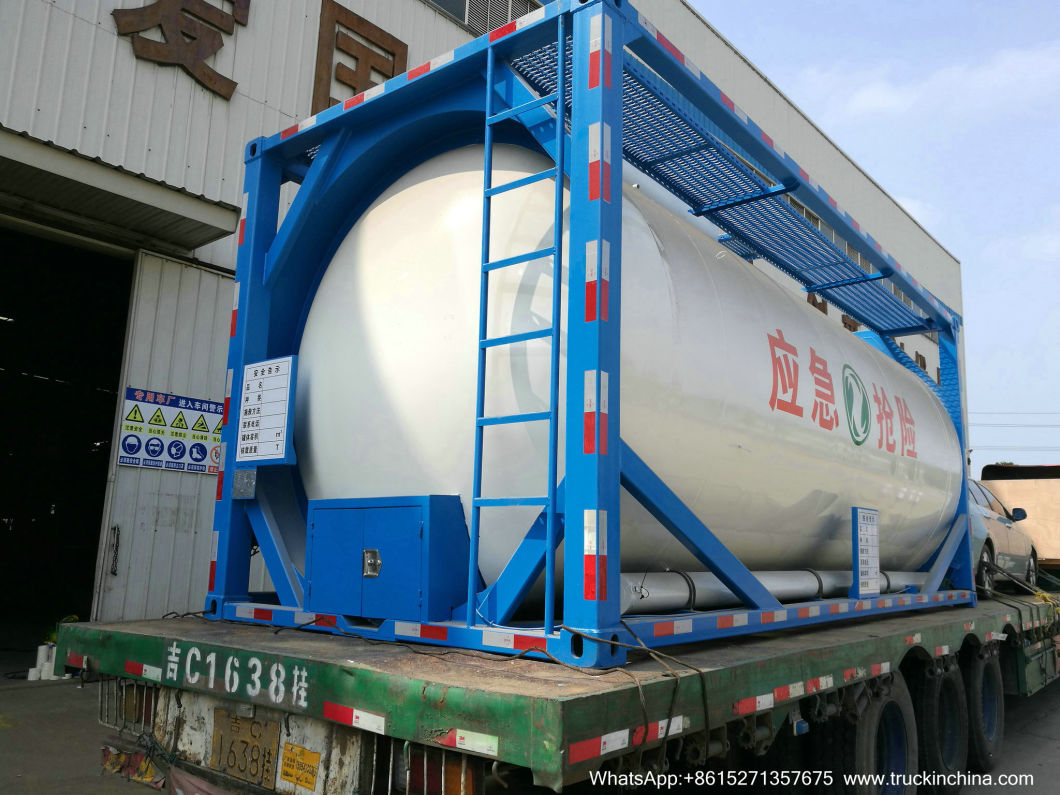

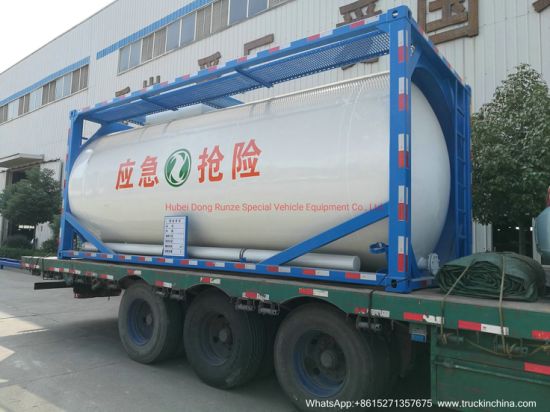

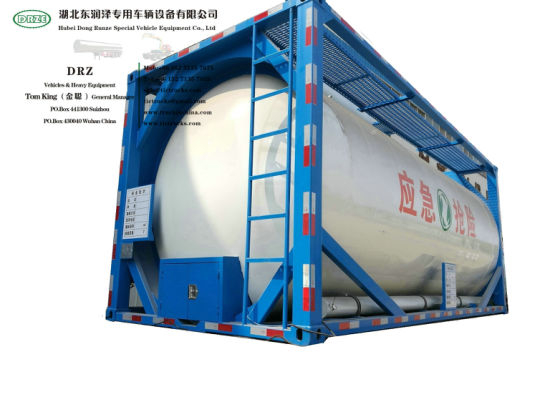

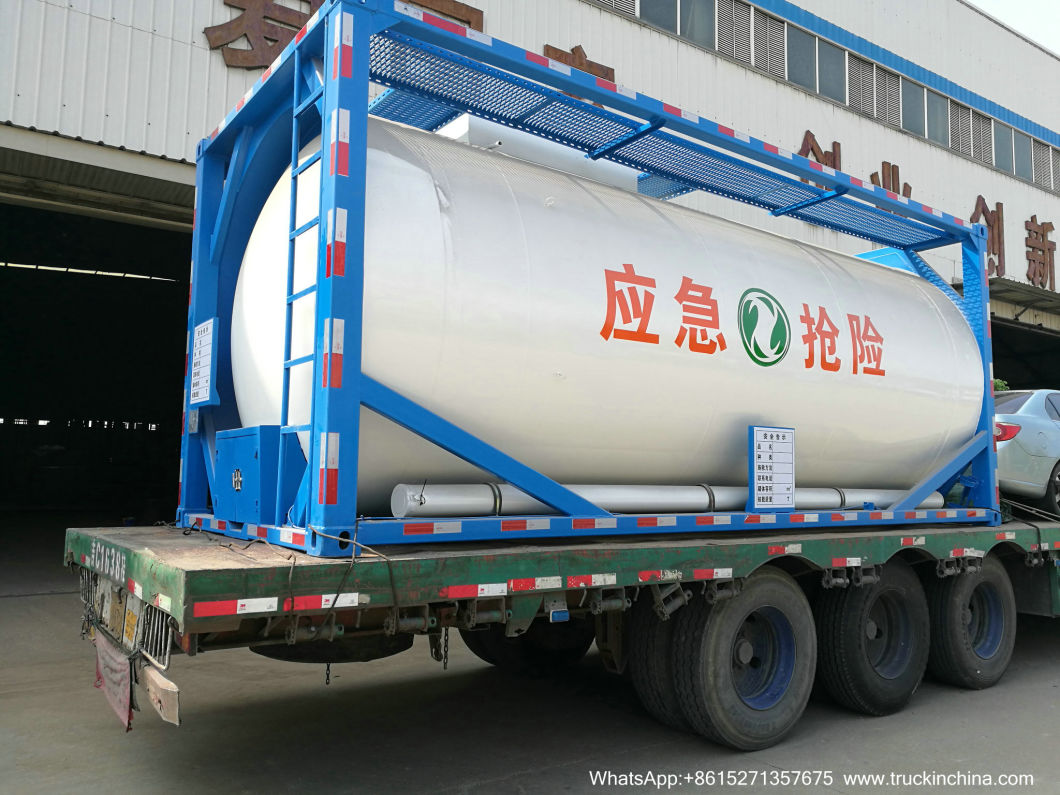

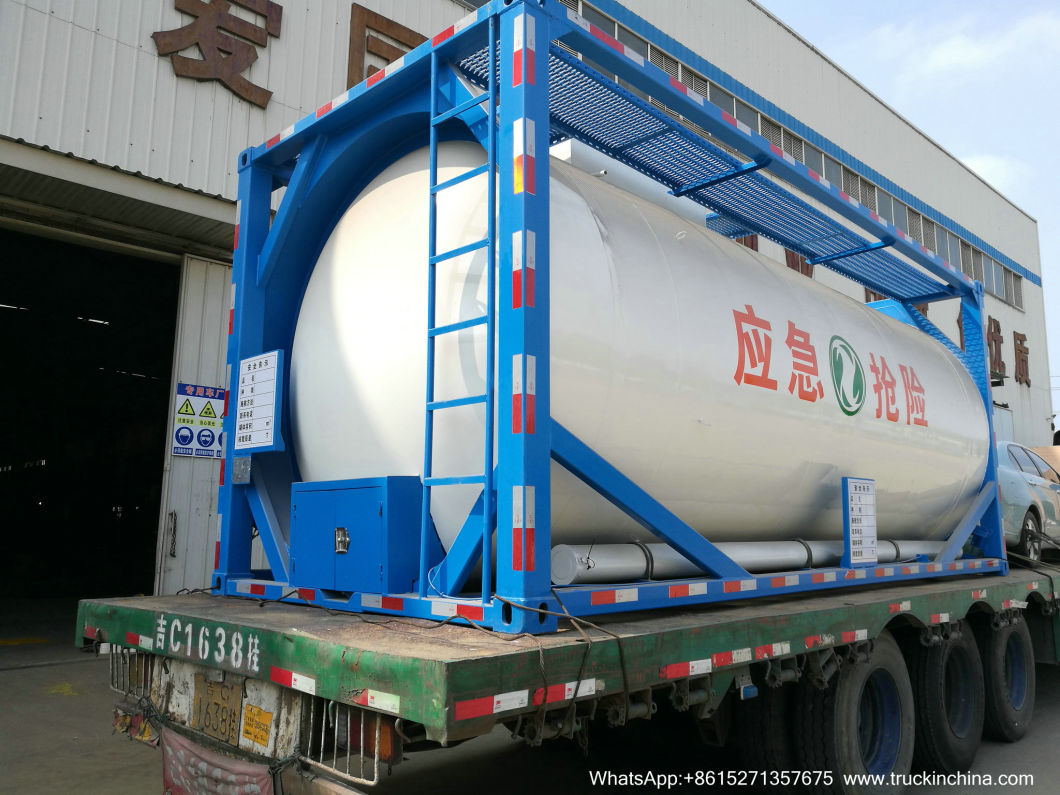

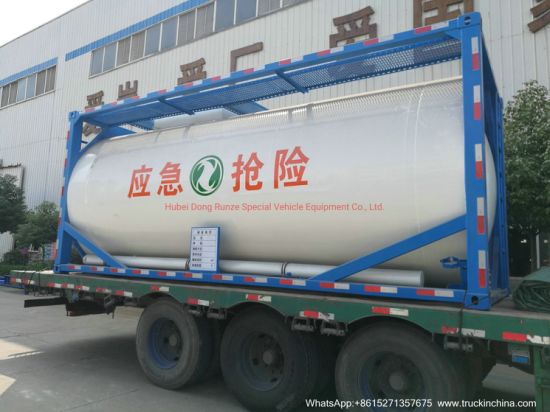

20FT 25m3 Stainless Steel Tank Container for Waste Oil and Water, Liquid Sludge, Drilling Waste Liquid (SS30408 ISOTANK)
20FT 25m3 Stainless Steel Tank Container for Waste Oil and Water, Liquid Sludge, Drilling Waste Liquid (SS30408 ISOTANK)
| Quantity: | |
|---|---|
- Shanghai, China
- 1000
- T/T, Western Union
20FT 25M3 Stainless Steel Tank Container for Waste Oil And Water, Liquid Sludge, Drilling Waste Liquid(SS30408 ISOTANK)
Stainless ISO Tank
| TYPE | 20FT ISO tank |
| Vessel design code | IMDG etc. |
| Shell material | Stainless steel SS30408 , 316L, SANS 50028-7 WNr 1.4402/1.4404 |
| Frame material | GB/T 1591-94-Q345D |
| Frame dimensions | 6058x2438x2438,2591mm |

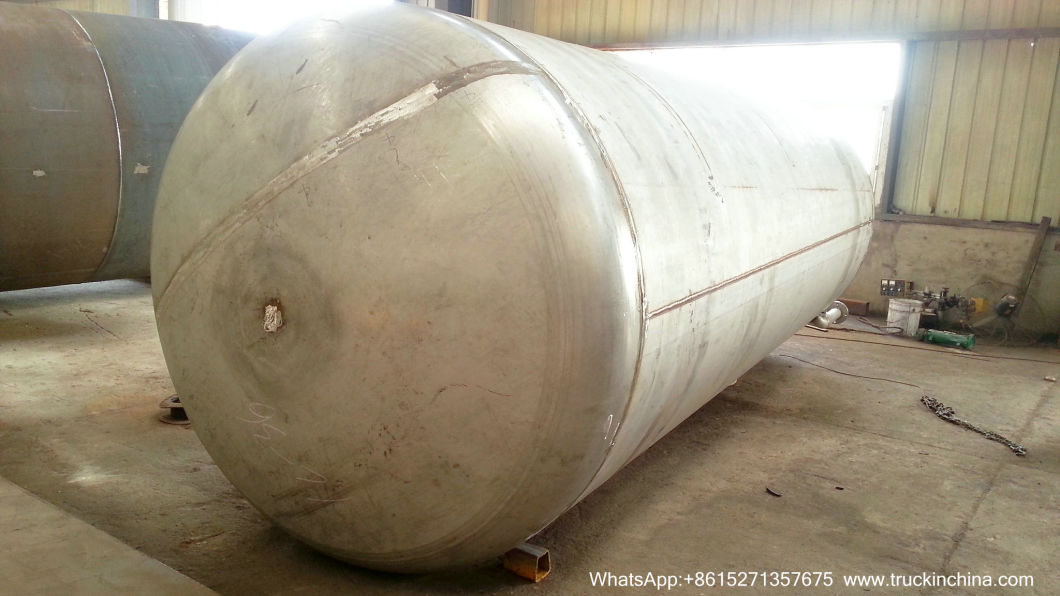

| Tank barrel shell thickness | 5mm |
| Head thickness | 6mm |
| Nominal capacity | 24,000L;25000L ( 5000USG -6600USG) |
| Tare weight | 4770kg(approx) |
| Working pressure | 4.0bar |
| Test pressure | 6.0bar |
| Design temperature | -40 to 130 |
| Approvals | Lloyds or BV Construction Certificate, IMDG, CSC, Need MOQ 20 ADD $2000 per tank |
| Manlid | 500mm, 8-point fastening manlid |
| Airline valve | 1.5 BSP air inlet with 1 1/2BSP connection, fitted with captive blank cap and chain. |
| Pressure relief valve | 2 1/2 BSP pressure relief valve without flameproof of gauze Set pressure: 4.4 bar |

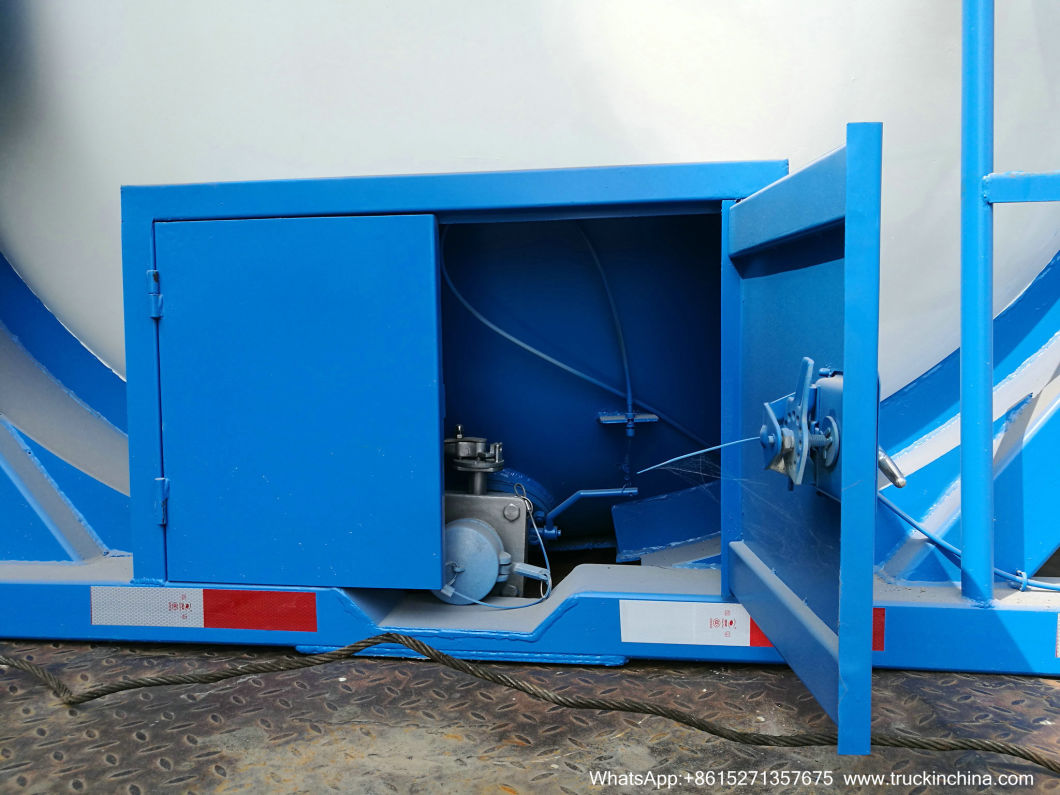

| Bottom discharge | stainless steel foot-valve with butterfly valve and blank flange |
| Top outlet | Provision only |
| Walkway | F type walkway, |
| Insulation | Optional :50mm Rockwood with G.R.P ADD $2000 |
| Steam heating | Optional 6 longitudinal runs of heating coils, giving a total effective heating area of 7.00 M2 will be fitted. ADD $2000 |
| Handdrails | ADD $500 |
| Thermometer | 1 off dual scale ADD $200 |
ISO 40' LNG Tank Container | Bitumen tank container | ISO 20' Tank Container |
IMO 1 | IMO 2 | IMO 5 |
T9, T10,T11,T14,T50 portable tank Standard ISO tank 10.9K-26K cement tank,
PTFE/PE Lined tanks for hydrofluoric acid liquid ,hydrochloric acid ,sodium hypochlorite HCl,NaOH,NaClO liquid etc.
Insulation Tank for bitumen Liquid Asphalt,crude oil etc.Portable Tank Container
Tank Containers can be used to carry the following products:
Portable Tank Container
Products
ISO Tank - Ammonium Nitrate
ISO Tank - Bio-diesel
ISO Tank - Molasses
ISO Tank - Caster Oil
ISO Tank - Hexane
ISO Tank - Ethanol
ISO Tank - Ethylene
ISO Tank - Methanol
ISO Tank - IMO 1
ISO Tank - IMO 2
ISO Tank - IMO5
ISO Tank - Capacities ranging from 10,000 litres to 25,000 litres
ISO Tank - Swap Bodies with capacities ranging from 26,000 litres to 32,000 litres
ISO Tank - Bitumen tank containers 21,000 litres
ISO Tank - Off-shore tanks with capacities of 1,000 litres to 10,000 litres
IMO 1
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of:
ISO Tank - Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 2
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12,000 - 26,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of:
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 7.65, 10, 20, or 30 foot sizes
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating
ISO Tank - Cooling by Glycol
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 0
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 12000 - 26500 litres nominal
ISO Tank - MAWP of 4 bar
ISO Tank - For transport of
ISO Tank - Wine
ISO Tank - Fruit Juices
ISO Tank - Vegetable Oils
ISO Tank - Mineral Oils
ISO Tank - Non-hazardous Oils
ISO Tank - Available in 20 foot / 6 metres
ISO Tank - Also Swap-bodies 7.65m and 7.82 (30,000-35,000 litres)
ISO Tank - Heating by steam or electric heating (optional)
ISO Tank -
Cooling by Glycol (optional)
Please contact us if you require further information and/or a quotation. (Contact Details above)
IMO 5
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 15,000 - 25,500 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - For transport of gases, including:
ISO Tank - Propane
ISO Tank - Butane
ISO Tank - Refrigerants
ISO Tank - Available in 20, 30 or 40 foot sizes
ISO Tank - Cooling by sun-shieldPlease contact us if you require further information and/or a quotation. (Contact Details above)IMO 7
ISO Tank - Shell made from 316 Stainless Steel or Carbon Steel
ISO Tank - Capacity of 20,000 - 24,000 litres nominal
ISO Tank - MAWP of 8 bar
ISO Tank - For transport of cryogenic gases, including:
ISO Tank - LNG
ISO Tank - Available in 10, 20, 30 or 40 foot sizes
ISO Tank - Cooling by glycolPlease contact us if you require further information and/or a quotation. (Contact Details above)
Bitumen Tank Containers
ISO Tank - Shell made from Carbon Steel
ISO Tank - Capacity of 20,000-25,000 litres nominal
ISO Tank - MAWP of 1.75 bar
ISO Tank - Low Hazardous liquids
ISO Tank - Available in 20 or 30 foot sizes
ISO Tank - Also Swap-bodies 7.15m (30,000 litres) and 7.82 (35,000 litres)
ISO Tank - Heating by direct flame, hot oil or electric heatingPlease contact us if you require further information and/or a quotation. (Contact Details above)
Cement Containers
ISO Tank - Capacity of 17.5 - 25 cubic metres
ISO Tank - Pressure dischargeOffshore
ISO Tank - Shell made from 316 Stainless Steel
ISO Tank - Capacity of 2,000 - 10,000 litres
ISO Tank - MAWP of 5 bar
ISO Tank - For transport of gases, including:
ISO Tank - Hazardous chemicals
ISO Tank - Acid
ISO Tank - Petroleum
ISO Tank - Available in 8 x 8 x 10 sizes
ISO Tank - Heated by steam or electric (optional)
TYPE | 20FT ISO tank |
Vessel design code | IMDG etc. |
Shell material | Stainless steel 316L, SANS 50028-7 WNr 1.4402/1.4404 |
Frame material | GB/T 1591-94-Q345D |
Frame dimensions | 6058x2438x2438,2591mm |
Tank barrel shell thickness | 5mm |
Head thickness | 6mm |
Nominal capacity | 24,000L |
Tare weight | 4770kg(approx) |
Working pressure | 4.0bar |
Test pressure | 6.0bar |
Design temperature | -40 to 130 |
Approvals | Lloyds or BV Construction Certificate, IMDG, CSC, Need MOQ 20 ADD $2000 per tank |
Manlid | 500mm, 8-point fastening manlid |
Airline valve | 1.5 BSP air inlet with 1 1/2BSP connection, fitted with captive blank cap and chain. |
Pressure relief valve | 2 1/2 BSP pressure relief valve without flameproof of gauze Set pressure: 4.4 bar |
Bottom discharge | stainless steel foot-valve with butterfly valve and blank flange |
Top outlet | Provision only |
Walkway | F type walkway, |
Insulation | Optional :50mm Rockwood with G.R.P ADD $2000 |
Steam heating | Optional 6 longitudinal runs of heating coils, giving a total effective heating area of 7.00 M2 will be fitted. ADD $2000 |
Handdrails | ADD $500 |
Thermometer | 1 off dual scale ADD $200 |
