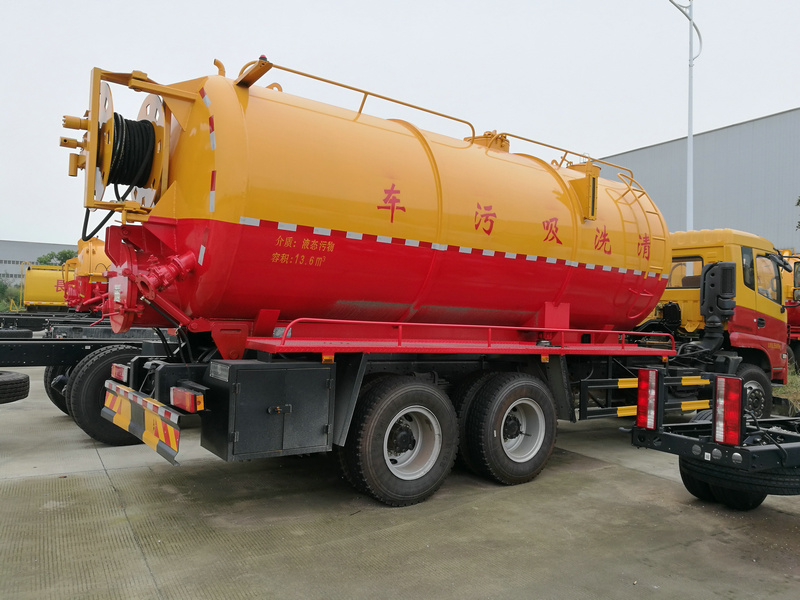

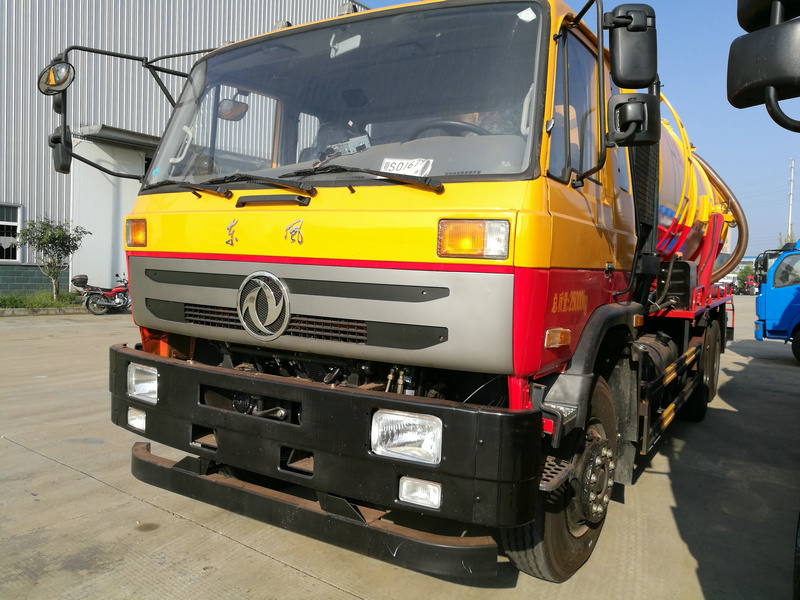

20000L Vacuum Sewage Tanker Truck with High Pressure VAC Pump Water Ring Type 30cbm/Min Suction Cesspool Sludge Sewer Waste Vacuum Suction
| Quantity: | |
|---|---|
-
DRZ5250
-
DF
-
8705
-
Shanghai, China
-
1000
-
T/T, Western Union
20000L Vacuum Sewage Tanker Truck With High Pressure Vac Pump Water Ring type 30cbm/min
20000L vacuum tanker truck, Cesspool Emptying Truck, septic tank, septik truck, Sewage Tank, sewage tanker, Sewage Vacuum Truck, Vac Tank Truck, Vacuum Tank, Vacuum Tank Truck, Vacuum tanker Euro 3, Euro 5-6 septik truck sewage tanker Cesspool Emptying Truck
6x4 Dongfeng Vacuum Tank Truck 20M3 20000L Sewer Suction Cart
20000L Vacuum Sewage Tanker Truck With High Pressure Vac Pump Water Ring type 30cbm/min Suction Cesspool Sludge Sewer Waste Vacuum Suction
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 63000-65000 / Set |
| Packaging Details: | bulk, ro-ro, container |
| Delivery Time: | 25 days after receiving deposits |
| Supply Ability: | 50 sets per month |
Detailed Product Description
Type: | 6 X 4 Sewage Suction Tanker Truck | G. V. W. ( Kg ): | 25000 |
| Wheelbase (mm): | 5350+1350 | Tire & Quantity: | 11.00R20 & 10+1 |
| Engine: | ISD270 50 | Maximum Power: | 198kw/270hp |
| Tank Material: | Q235 Carbon Steel | Tank Volume (L): | 20000 |
6 X 4 Dongfeng Vacuum Tank Truck 20M3 20000L Sewer Suction Cart
Product Description:
Sewage suction truck is to collect, clean up the transport, sewage sludge, and avoid the secondary pollution of sanitation vehicles, new USES the vacuum pump, the suction, suction cjay, suitable for use in a sewer in the warp, excrement and urine, mud, oil and other liquid material pump, the loading and unloading.
1.Product Parameter:
Products Technical Specification | |
Type | 6 * 4 Sewage Suction Truck |
Brand | Dongfeng |
Cab | One and half row |
Vehicle Description | |
Overall dimensions (mm) | 9240 * 2500 * 3460 |
G.V.W (kg) | 25000 |
Curb weight(vehicle) (kg) | 13480 |
Loading capacity (kg) | 15000-20000 |
Max speed (Km/h) | 90 |
Engine Description | |
Engine model | ISD270 50 |
Maximum power | 198kw / 270hp |
Displacement (L) | 6.7 |
Chassis Description | |
Chassis Model | DFL1250A13 |
Wheel base (mm) | 5350 + 1350 |
F / R track base (mm) | 2040 / 1860 |
F / R overhang (mm) | 1480 / 2060 |
Approach/Departure angle (°) | 20 / 10 |
Spring plate | 8 / 10 |
Front axle / rear axle load capacity (kg) | 7000 / 18000 |
Type of fuel | Diesel |
Gear box | 6-speed with over drive |
Brake system | Air braking |
Operation control system | Power steering wheel |
Electric system | 24V |
Tires&Tire quantity | 11.00R20 & 10+1 |
Sewage Suction Tank Description | |
Tank volume (m3) | 20 m3 |
Tank material | Q235 Carbon Steel |
Thickness (mm) | Tank body:5mm End plate:6mm |
The max.inclined angle | ≥ 45° |
Tank lifting time | ≤ 45s |
Rear cover open angle | ≥ 75° |
Rear cover open time | ≤ 25s |
Vacuum pump model | 68 / 400 |
Vacuum pump manufacture | Yifeng Suizhou |
Absolute vacuum pressure | ≤ 0.007Mpa |
Effective absorption distance | ≥ 5M |
The suction pipe diameter | 100 mm |
Power takeoff form | Sandwich power takeoff,full-power output |
2. Packing and Shipping:
Truck is nude packing, shipping in container, in bulk , in ro-ro.
We will choose the best shipping type basis on truck volume, truck structure, Sail Schedule, clients' requirement for clients!
3. Company Information:
Hubei Dong Runze Special Vehicle Equipment Co., Ltd. & TIC TRUCKS INDUSTRY CO.,LIMITED is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
Our advantage:
(1) We have own factory located in Suizhou---the special truck town of China.We can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitve price.
(2) We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
(3) There is a stronge professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers.
If you have any other questions or there is anything we can do for you, pls feel freely to let me know. We are glad to provide the best service.
4. Our Service:
Left-hand drive, if you need Right-hand drives, please inform us, we will make special order for you.
We highly recommend this sewage suction tank truck. It's in an excellent condition and also with good quality and competitive price. Further information, pls feel free to cantact with me or visit our website, we will offer our best service.
If you have any requirements about special trucks, kindly let me know, I will do my best fo provide the most suitable type and competetive price for you.
Looking forward to receiving your inquiry!
Cell: 0086 152 7135 7675
Vacuum Sewage Suction Truck vacuum tanker Jetting truck SINO SHACMAN,HOWO,DFL,HINO /UD,BENZ,MAN,ISUZU 9-20m3 vacuum tanker beiben Vacuum Sewage Suction Truck
SINO SHACMAN ,DONGFENG DFL,FAW,BEIBEN NORTH BENZ , HOWO ,FOTON ,JAC ISUZU Chassis,DF NISSAN-UD Chassis,HINO Chassis, JMC Chassis,JAC Chassis, Hongyan IVECO, Hualing-CAMC Chassis,MAN chassis or tractor tank trailer and so on all are optioanl
1.Factory direct sale
2.Specialized in Trucks 10 years
3.a competitive price.
4.with CCC,ISO9001,SGS,ASME
5.chassis is optional SINO SHACMAN ,HOWO, DFL, HINO /UD, BENZ, MAN ,SUZU 4x2 ,4x4,6X4 ,6x6,8x4,8x8 .
6.Engine min horse power is 95HP - 115 hp - 120HP~ 240HP~380HP
7.the tank volume is 3000L~12000-18000L~20000L
8.the tank produce as you requiry
9. pump is vacuum pump .
10. The Rear cover can be opened.
Sewage Tank,Sewer JettingTruck,Vacuum Suction tanker , vacuum suction truck ,vacuum truck,Sewer Jet Truck ,vacuum sewage suction truck ,Septic Tank Truck ,Cesspit Emptier
