2 Pcs ISO 20FT Hydrochloric Acid tank container (PE lined tank container) to Africa

Views: 20248     Author: Tom     Publish Time: 2022-06-21      Origin: DRZ

2 Pcs ISO 20FT Hydrochloric Acid tank container (PE lined tank container) to Africa

2 Pcs ISO 20FT Hydrochloric Acid tank container  (PE lined tank container) to Africa




20FT Acid tank container

(PE lined tank container)

with extra 3 sets discharge ball

valves with flanges and camlock

fittings.With side access ladder

  It is used for transporting sulfuric acid(concentration 30%~93%) or Hydrochloric acid (< 38%)

Vessel

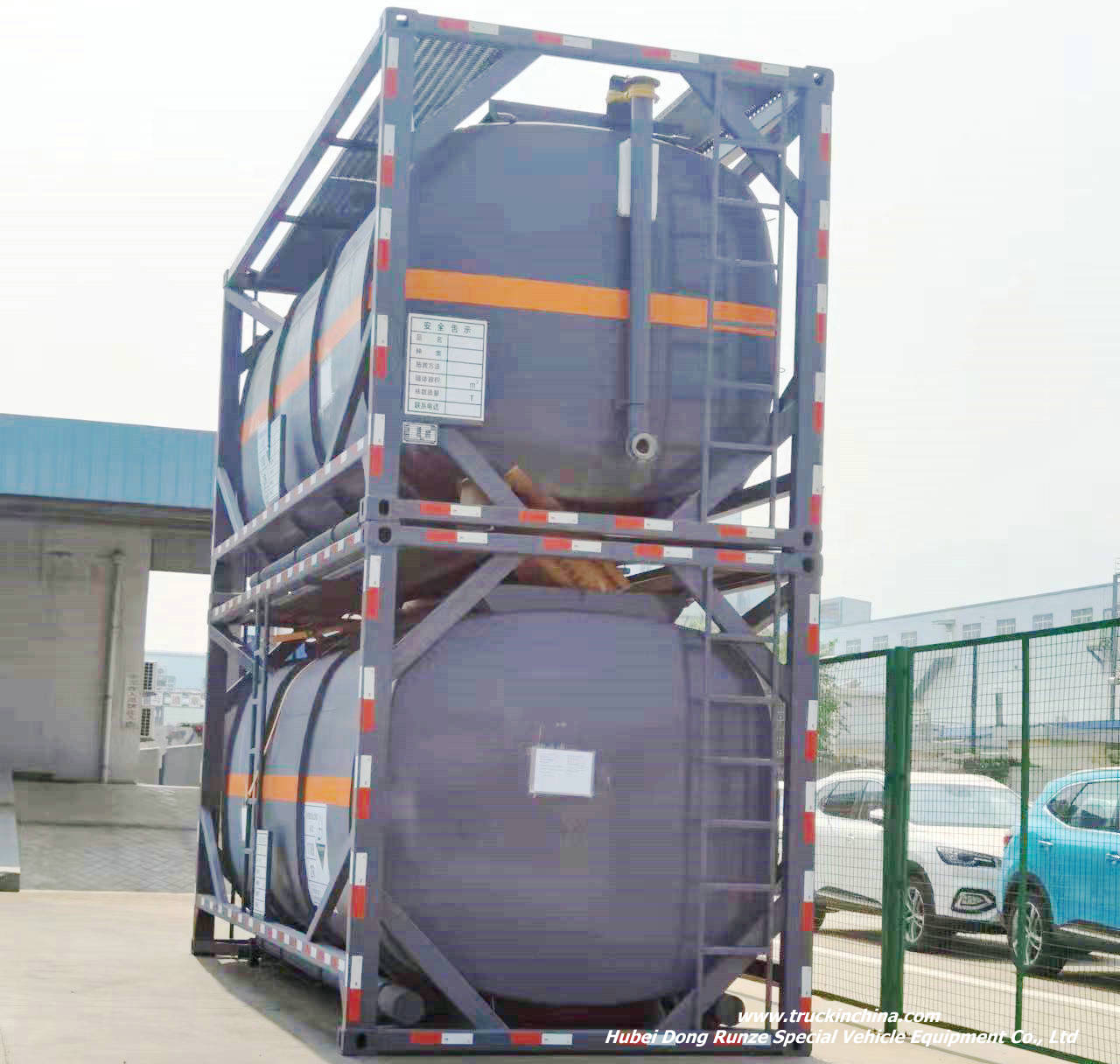

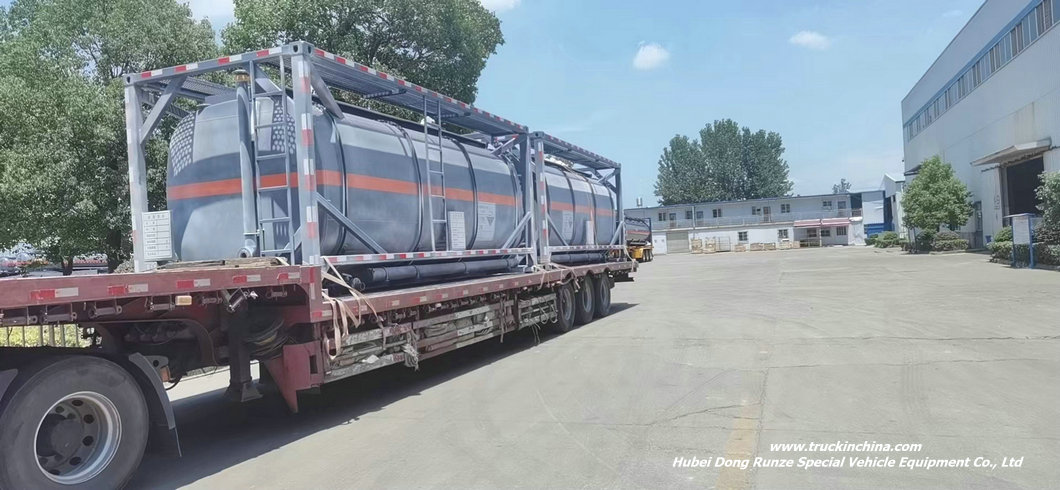

20FT HCL Acid tank container (163)20FT HCL Acid ISO tank _120FT HCL Acid tank container 2_1

OCEAN APPLAUD V22082 Port of loading LUANYUNGANG China

Transport:FROM lianyungang PORT,CHINA TO *** BY SEA

Price Term: CIF

Term of Payment: By TT

Marks

Description of goods

Quantity

N.W

g.w

MEASUREMENT

N/M

 20FT TANK CONTAINER


2UNITS


11000

KG


11000

KG

6.058*2.438*2.591m


76.6CBM

Country of origin: China

20 FT Muriatic acid Transportation ISO Container Tank. Loading c apacity. 20000L or 21000L.

 Overall dimension. 6058*2438*2591 mm (L*W*H); international 20FT ISOTank

20 feet iso tank container for diluted sulfuric acid ,Hydrochloric acid

Frame Dimensions (L x W x H)

6058 x 2438 x 2591 mm

6058 x 2438 x 2591 mm

Nominal Capacity

20000 litre (±0.75%)

21000 litre (±0.75%)

Maximum Gross Mass

36000 kgs

36000 kgs

Tare Mass

5210 kg (± 3%)

5510 kg (± 3%)

Design Temperature (Frame & Acid Tank)

-40 to +60 °C

-40 to +60 °C

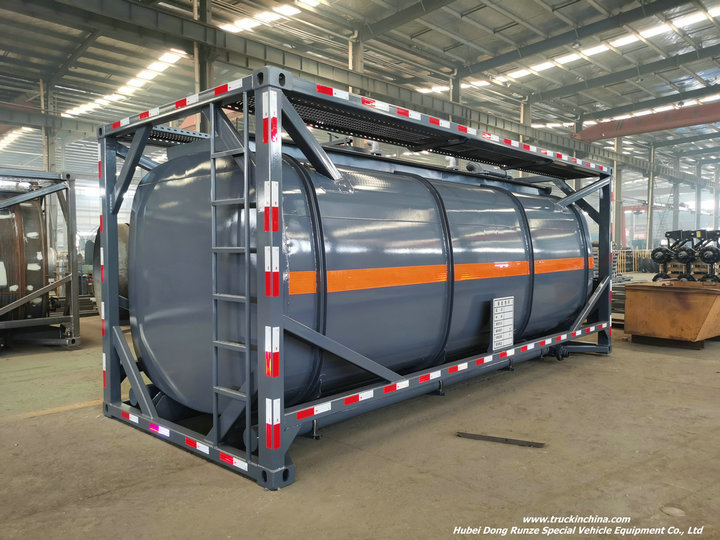

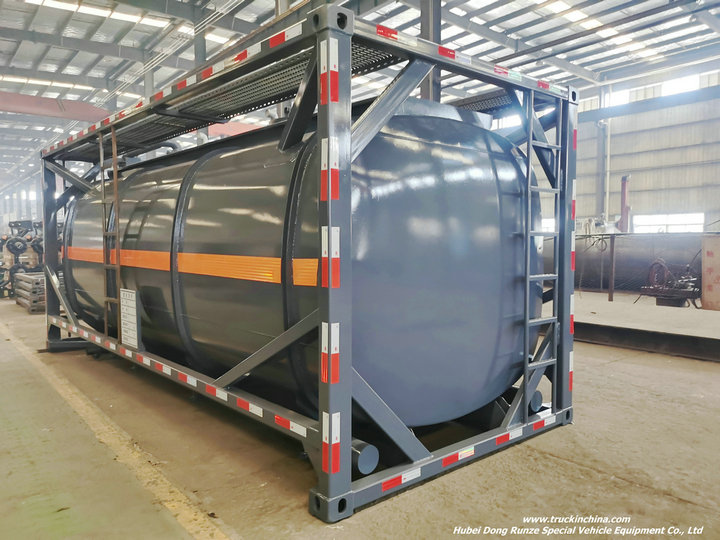

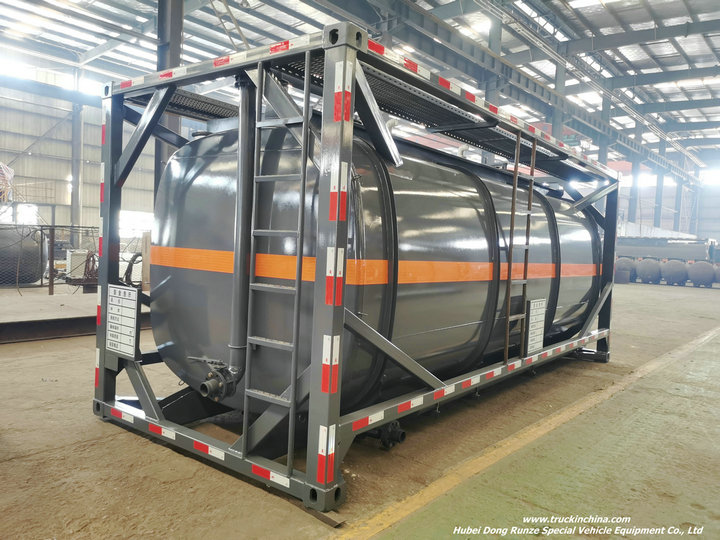

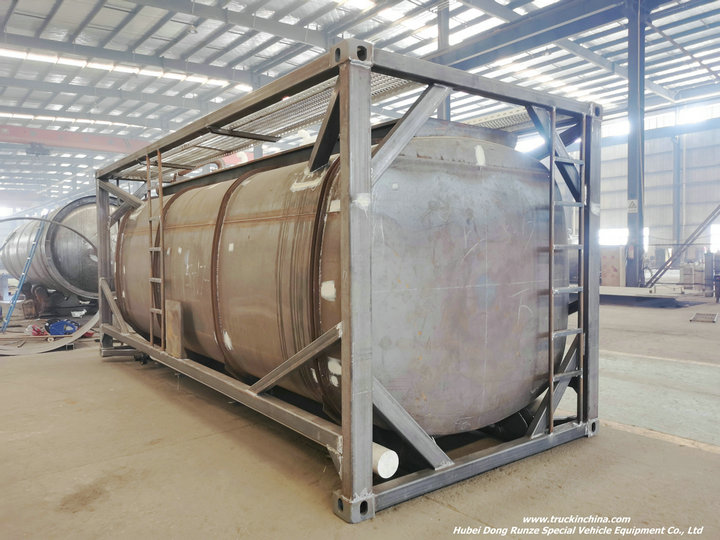

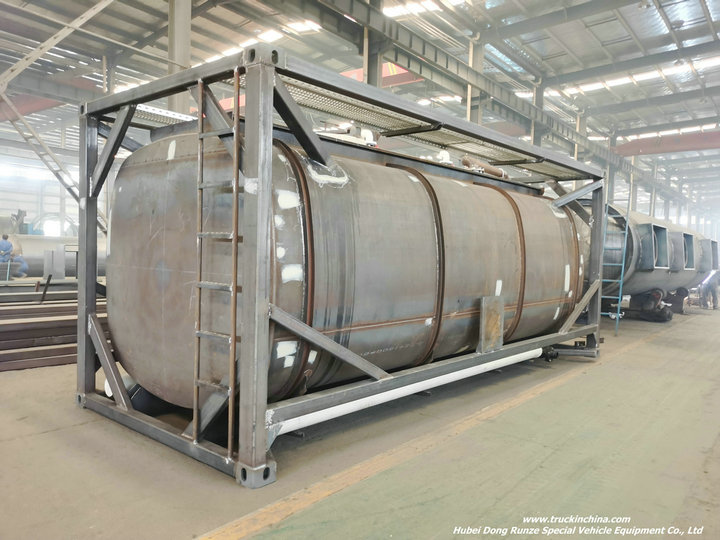

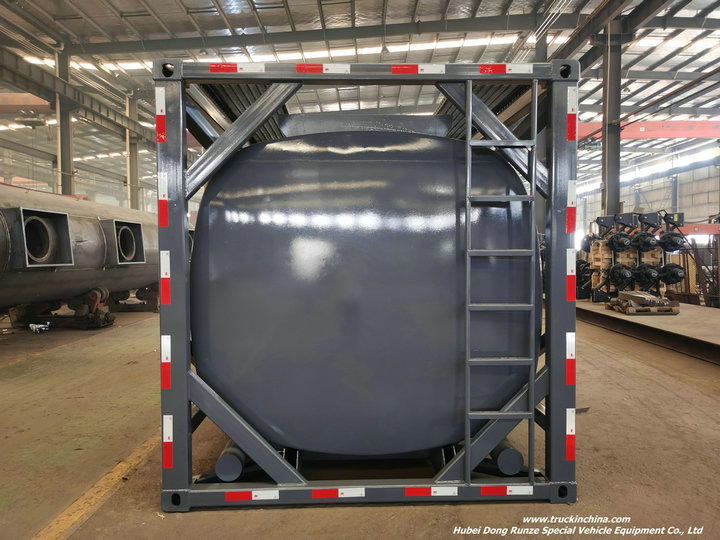

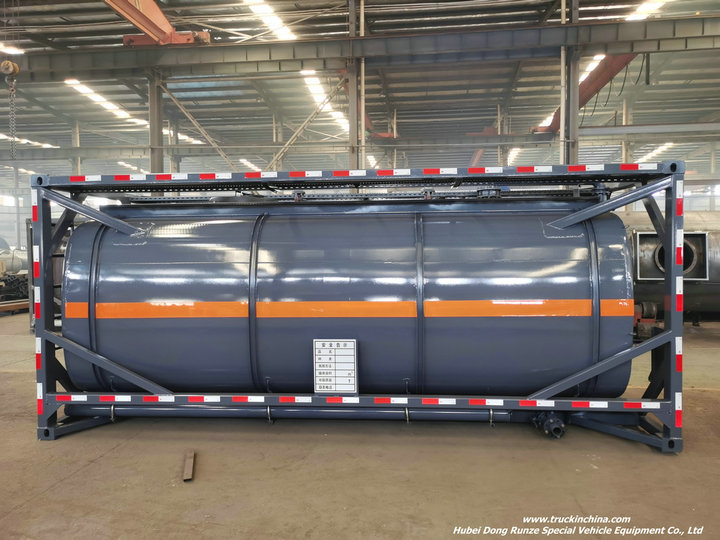

20FT HCL Acid tank container (119)_120FT HCL Acid tank container (115)_120FT HCL Acid tank container (117)_120FT HCL Acid tank container (130)_120FT HCL Acid tank container (113)_120FT HCL Acid tank container (107)_120FT HCL Acid tank container (124)_1

Tank containers should be filled accurately and according to the requirements. Excessive filling should not be allowed. The maximum filling rate should be guaranteed not to exceed 90% of the effective volume of tank containers (the effective volume of this batch of tank containers after deduction of lining is 20454L, 90%*20454=l 8408L), and calculated according to the following formula, the two values are small.

Keywords :ISO-lined Tank,lined tank, Lined LLDPE tank, hcl Tank, acid tank, tank container, 20ft tank container , iso tank,isotank, iso tank container, t14 tank, imdg tank,acid tank container,Horizontal Tank in Rectangular Frame,acid tank in  Rectangular Frame,Hydrochloric Acid tank,hydrochloric acid fluid tank, lined with Linear Low Density Polyethylene tank,T14 Sulfuric Acid Tank Container,Steel Lined LDPE Tanker,Hypochlorite Ferric tank,tanks containers for Hydrofluoric acid , FECL3  tank,Offshore Acid Tank,offshore tanks suitable for transporting acid,offshore tanks, IMO 1 tank,Ferric Chloride tank,Sodium hydrogen sulphite solution tank,20ft tank ,20ft container tank
