Product Details:
| Place of Origin: | Suizhou Hubei China |
|---|---|
| Brand Name: | Dongfeng |
| Certification: | ISO, CCC, BV, SGS |
| Model Number: | TIC5160GQW4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 32000-38000 / Set |
| Packaging Details: | bulk,ro-ro,container |
| Delivery Time: | 25 days after receiving deposits |
| Supply Ability: | 50 sets per month |
Detailed Product Description
| Tank Capacity: | 12000 L | Tank Material: | Q235 |
| Tank Shape: | Cylinder-shaped | Whole Tank Dimension: | 5200*1800 Mm |
| Whole Truck Dimension: | 8150*2500*3350 Mm | F/R Axle Load: | 1800/2695 Kg |
| Wheel Base: | 3500 Mm | Engine Power: | 180 Hp |
Description:

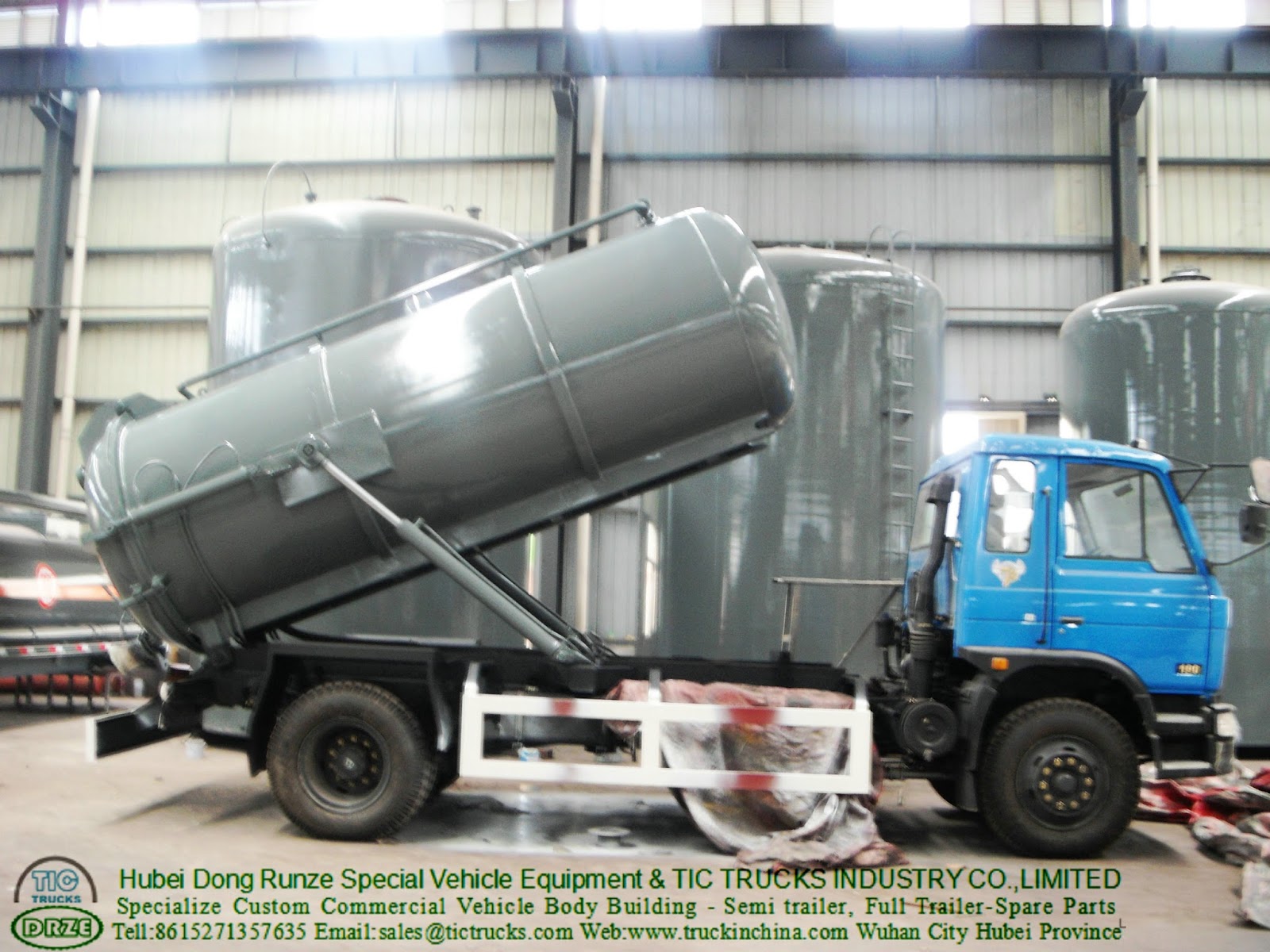

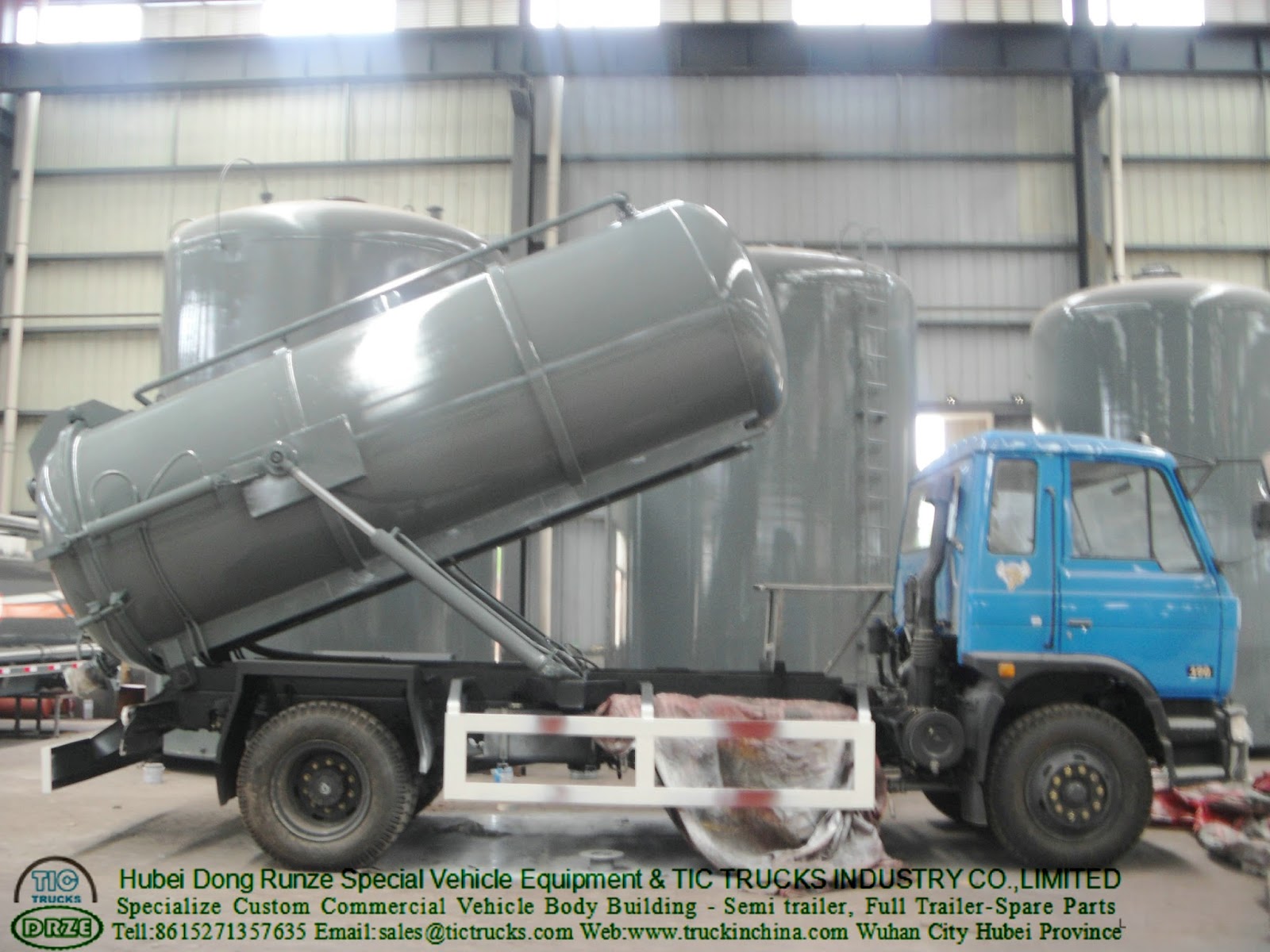

The truck is equipped with high-powered vacuum suction pump and high quality hydraulic system. With rear lid of the tank opened hydraulically, and double cylinders on both sides of the tank lifting up, the truck can dump the sewage directly through the rear lid out of the tank. Characterized by high vacuum, large capacity, high efficiency and good seal, the truck is widely used. Full tank pumping time: ≤ 5 min; suction width: ≥ 8 m.Very suitable for sucking sewer sediments, such as mud, silt, stones, bricks and other big objects.
Applications:

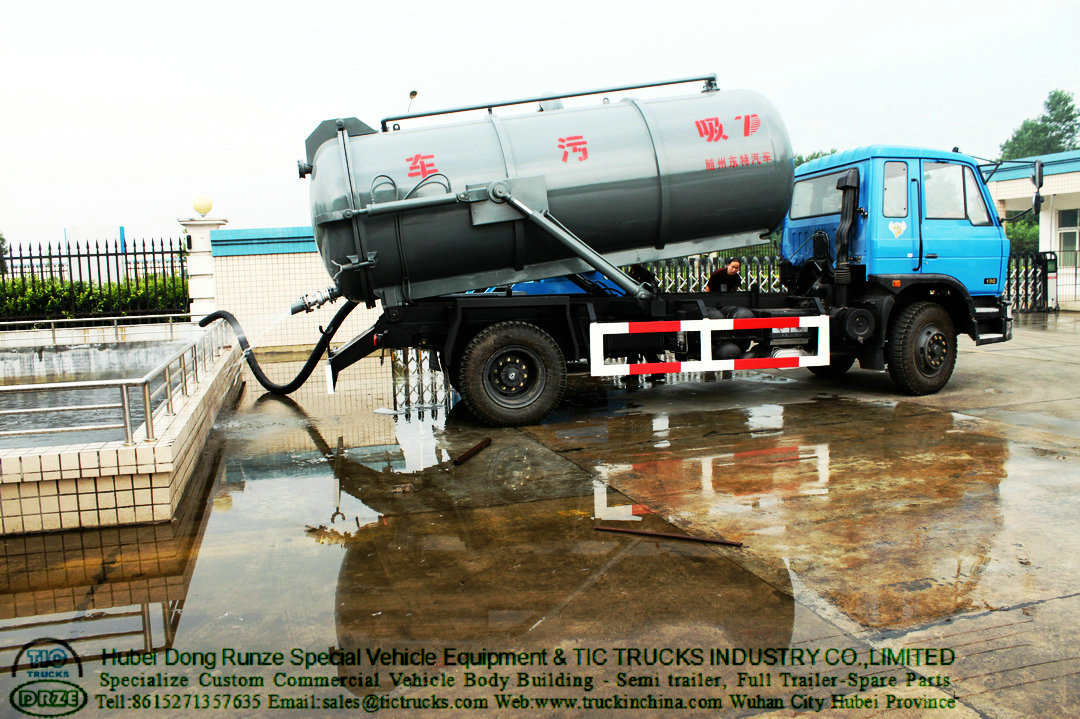

Rinsing underground sewage pipes, the collection and transportation of sludge and city life waste and building operations such as muddy water in liquid waste and other functions.
Competitive Advantage:
1. Equipped with special vacuum pump, power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment. Time for full suction < 5min
2. The Sewage Suction Trucks, special section, taking the force transmission device by rotary vane pumps, vacuum pump, ( with domestic leading technology big suction ) oil and gas separation device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system composition, and equipped with hand-washing facilities and visual dung tube.
3. The tanks bulbar and the horizontal sextant angle are greater than the material rest angle, ensuring the discharging speed.
4. The diesel engine ( air compressor unit ), providing compressed air.
Specifications:
| Truck chassis specification | Item | unit | parameter | ||
| Vehicle model | | TIC 5160GQW4 | |||
| Chassis model | | EQ1160ZZ4GJ | |||
| Overall dimensions | mm | 8150x2500x3350 | |||
| GVW | kg | Appro×16000 | |||
| Mass in working order | Appro×6805 | ||||
| Wheel base | mm | 4500 | |||
| Exhaust/hp | ml/hp | 4500/180 | |||
| Max speed | km/h | 90 | |||
| Tire specification | 9.00-20 | Engine type | ISDe180 40 | ||
| Traction system | 4×2 | Number of Tires | 6 | ||
| Number of axles | 2 | Electric system | 24V | ||
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | ||
| F/R Axle load (kg) | 6000/10000 | ||||
| Engine | The truck, diesel engine, water cooled, direct injection,180 horse power | ||||
| Special function Specification | Tank Capacity(L) | 12000 | |||
| Tank Dimension(mm) | 5200xΦ1800 | ||||

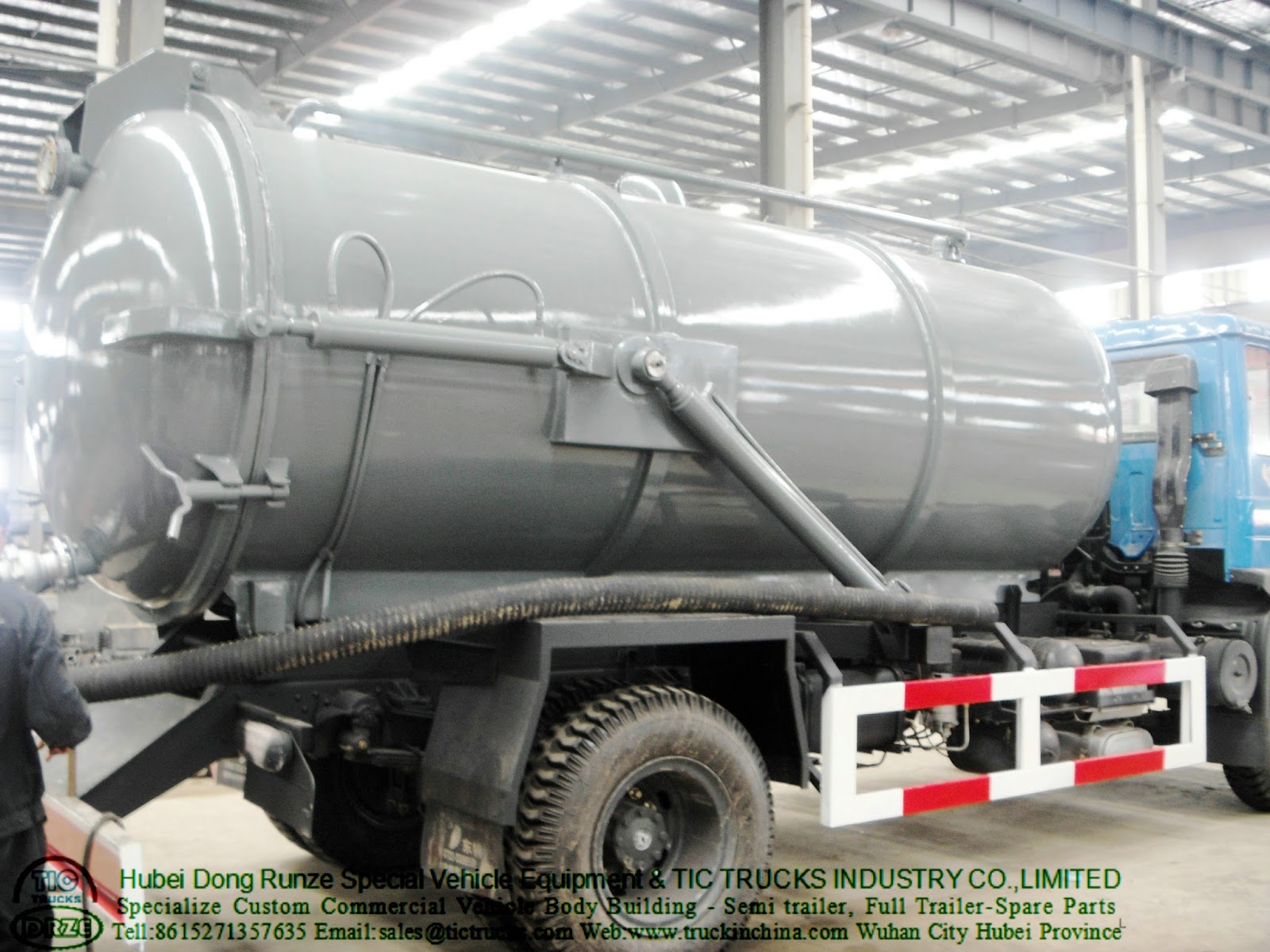

| Equipped with high-power vacuum suction sewage pump. Tanker with lifting function, with double hydraulic cylinder, rear cover can hydraulic open with self-flowing valve. Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment. | |||||
