16Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 Ready to USA

Views: 2099     Author: Tom     Publish Time: 2021-12-31      Origin: Dong Runze

16Units UN T21 Portable Tank Container 1880L Cylinder For TEAL Metal Alkyls UN3394 UN3399 Ready to USA

 16Units  UN T21 Portable Tank Container 1880L Cylinder For  TEAL Metal Alkyls UN3394 UN3399 Ready to USA

T21 TEAL C-430 Tanks  PROFORMA INVOICE D21080316

T21 TEAL tank

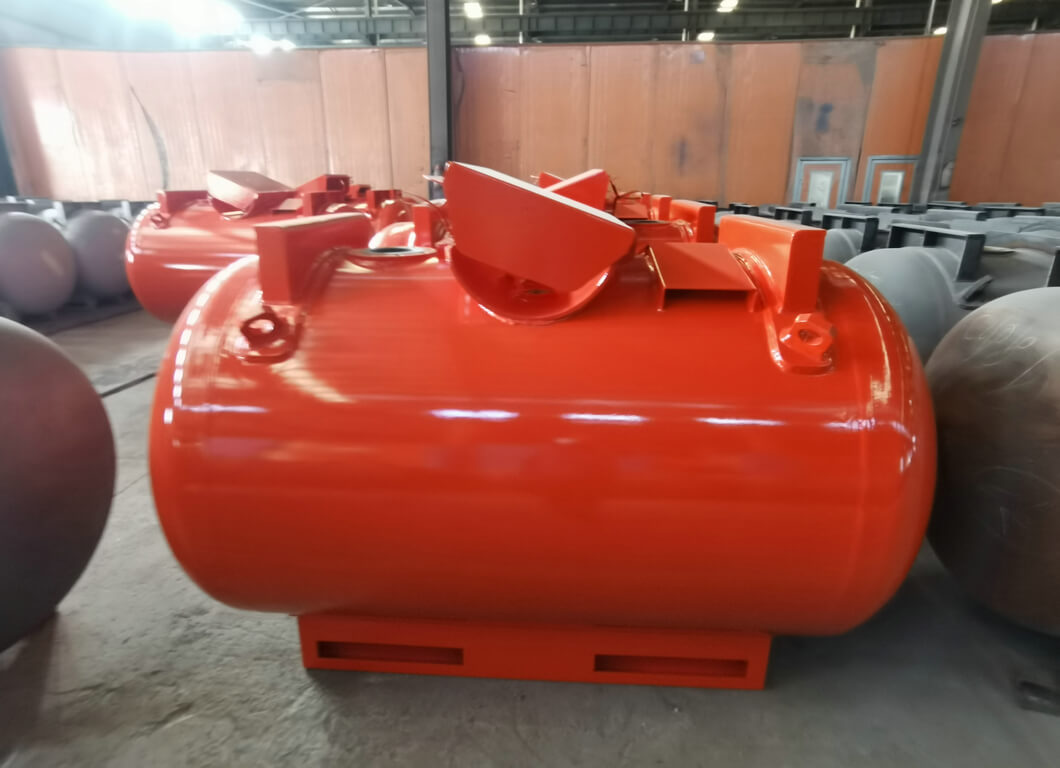

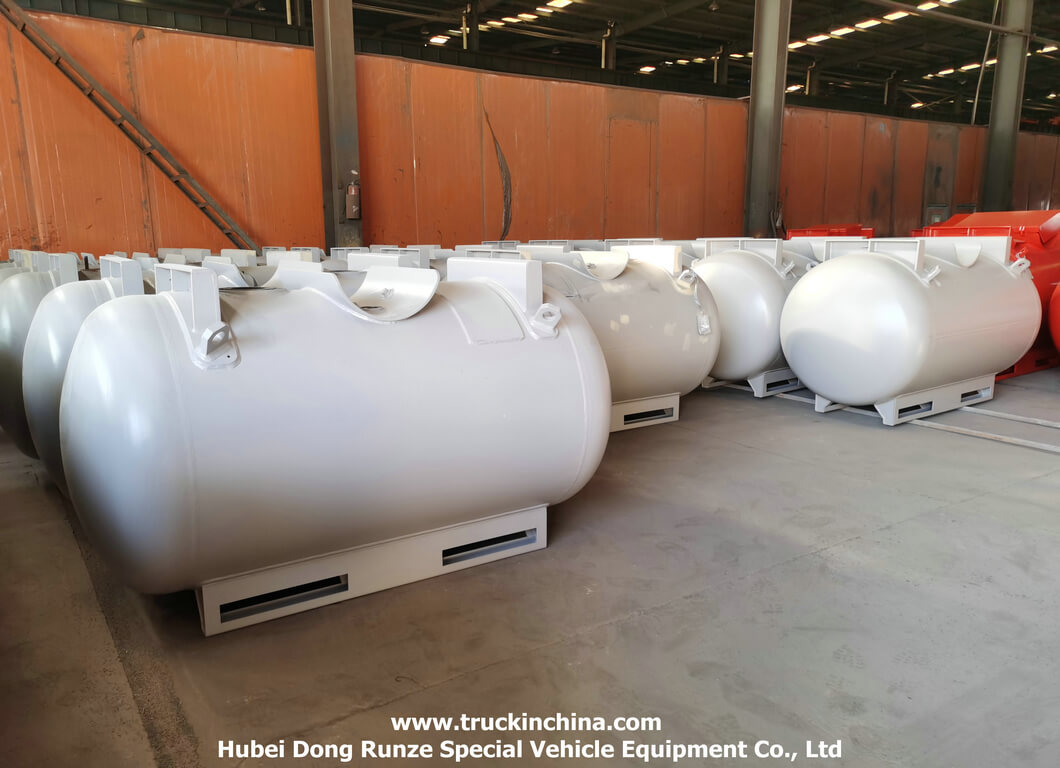

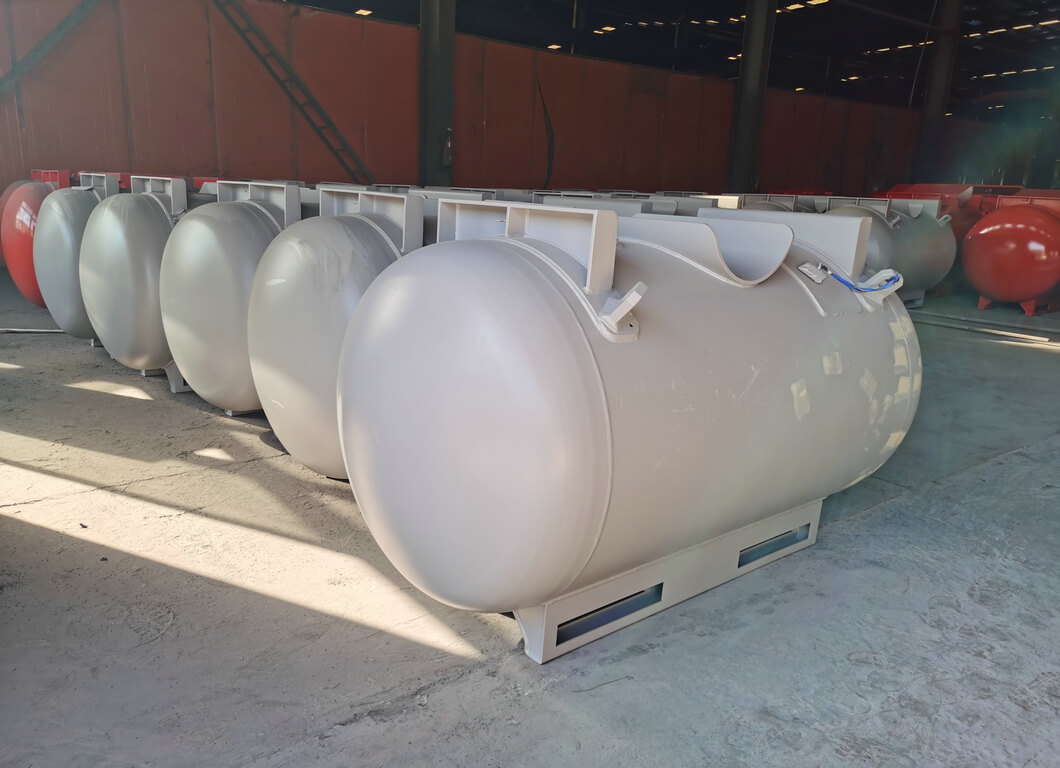

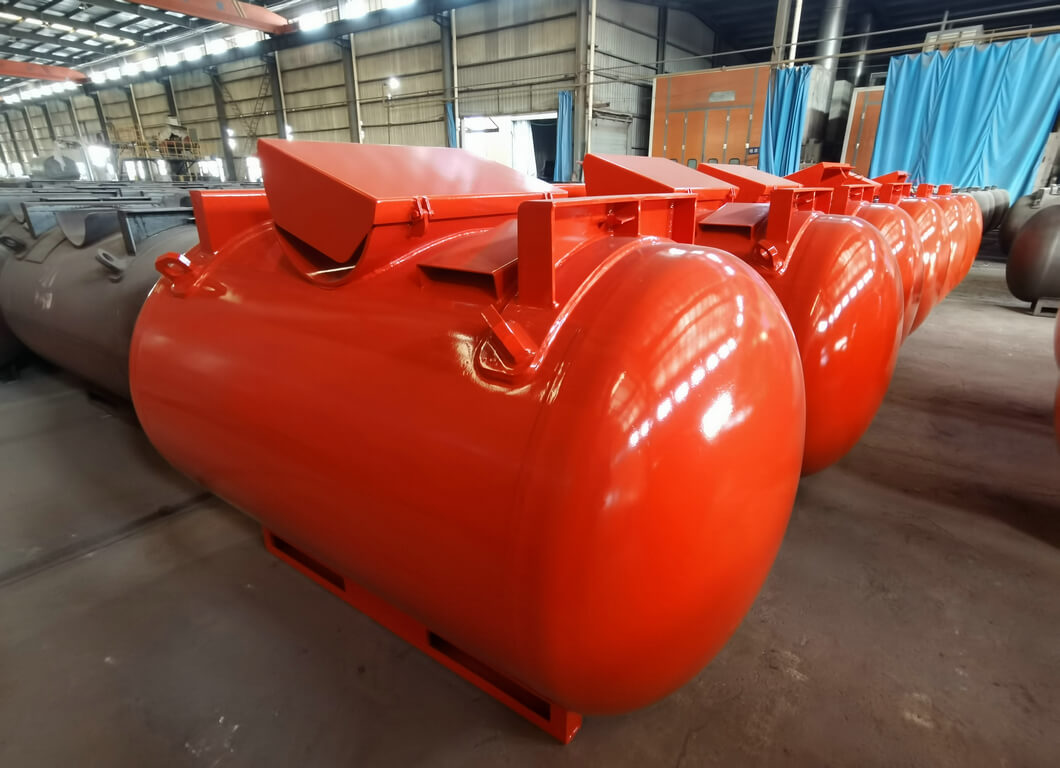

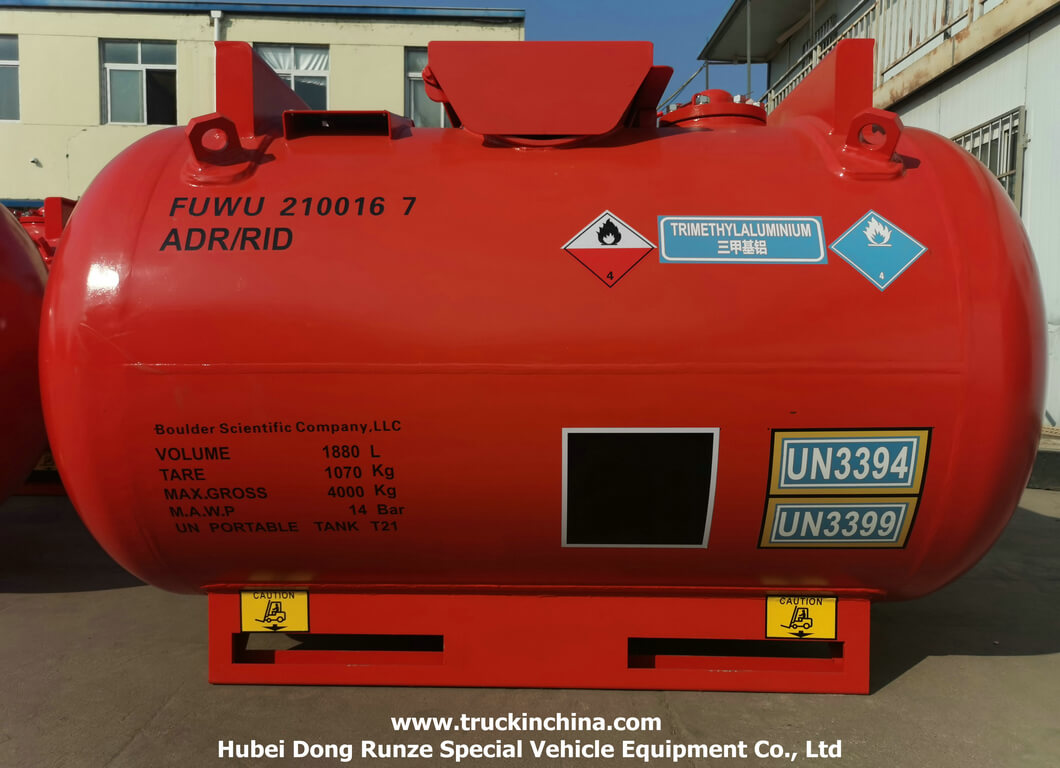

Triethylaluminum (TEAL) Alky Portable Tank Container

tank capacity 1880L/1.88m3

FOR UN3394 ,UN3399

with fusible plug in addition to the Relief valve

ADR/RID BV ASME CERTIFICATE

All Gaskets firms Klingersil, the same fittings as Nouryon company Tanks

With Rotatable Liquid Vavles And Gas Vavles , High Quality Strong Safty Valve

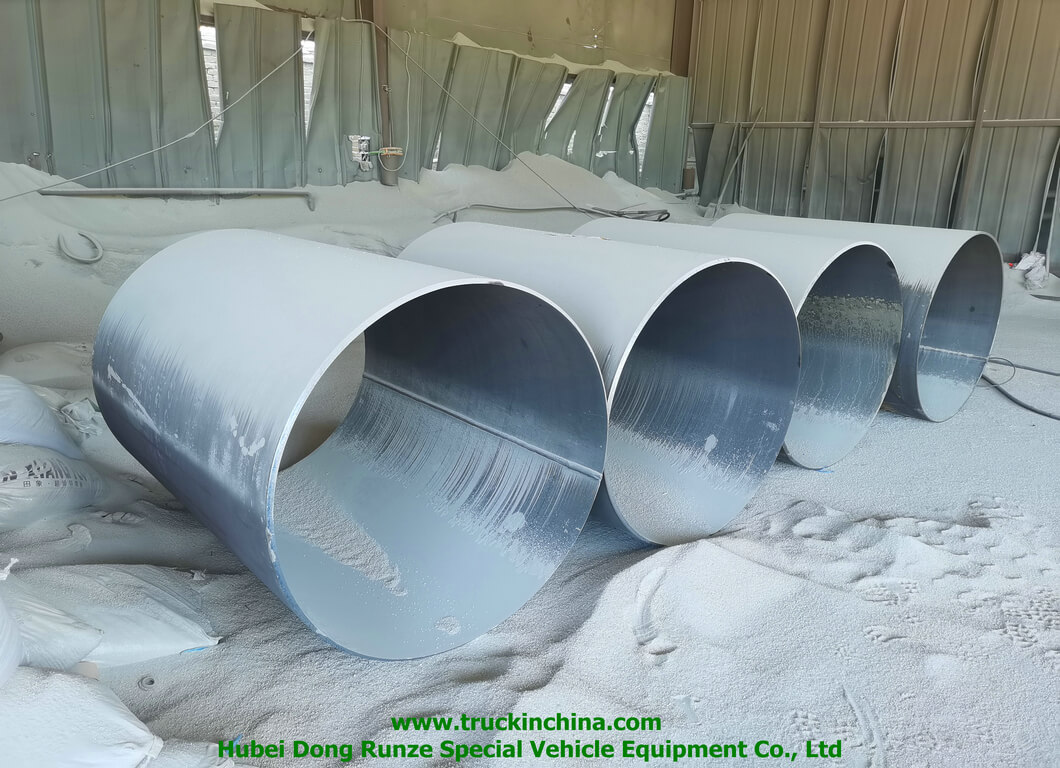

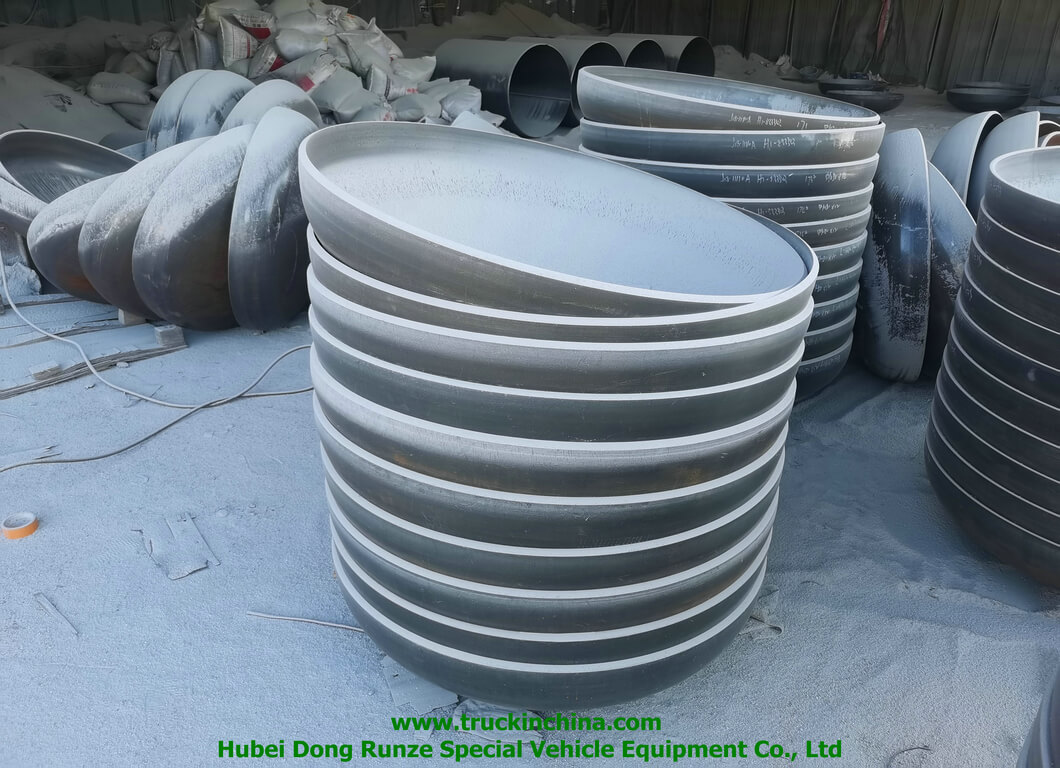

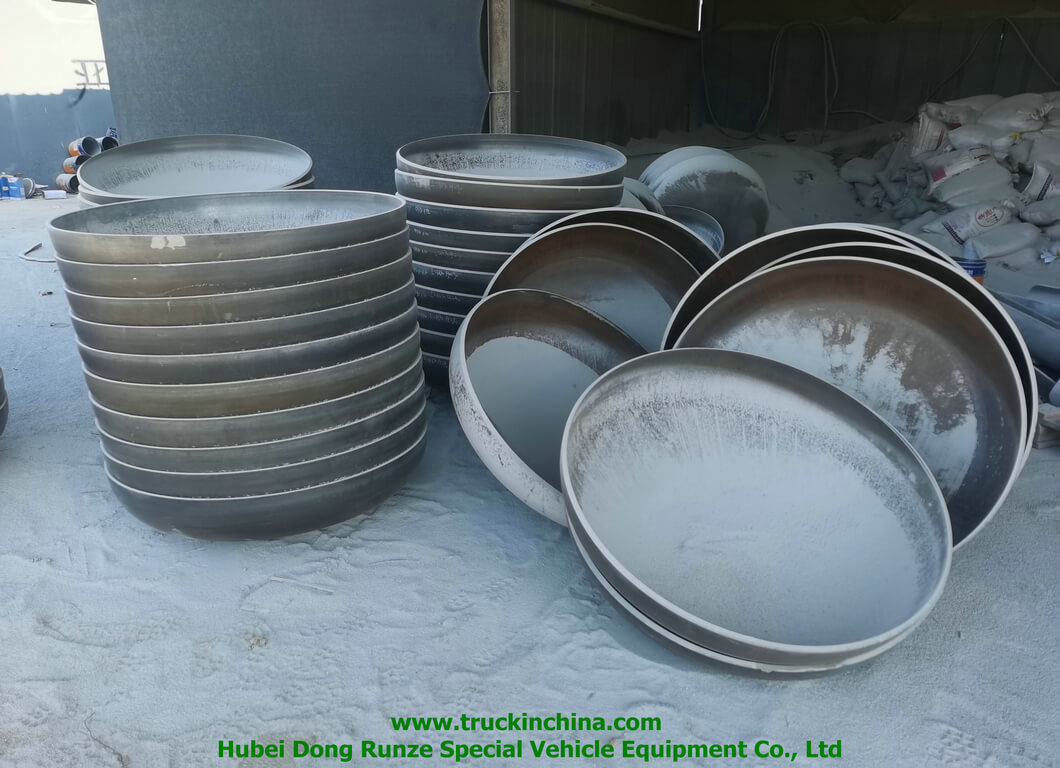

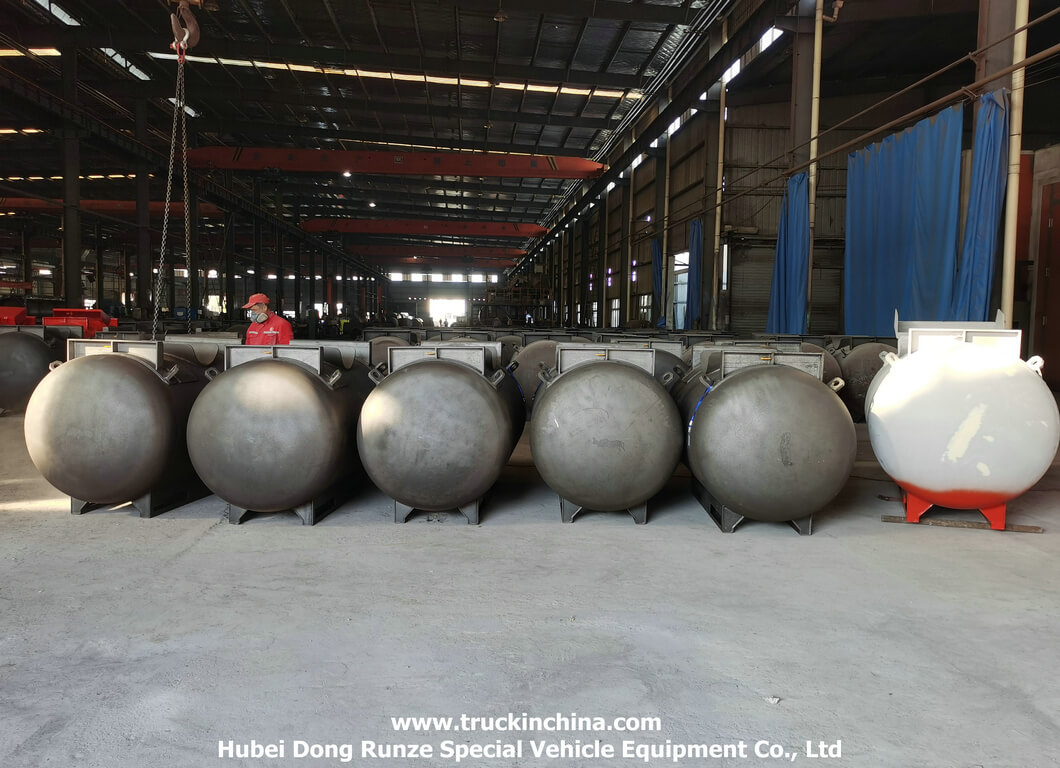

479_T21 Triethylaluminum (TEAL) Alky Portable Tank Container (116)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (107)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (113)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (5)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (28)Both Tanks inner outer shell and Dishhead sandblasted

T21 Triethylaluminum (TEAL) Alky Portable Tank Container (31)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (109)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (32)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (104)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (103)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (89)T21 Triethylaluminum (TEAL) Alky Portable Tank Container (100)

Product: UN T21 TEAL Tank

C430 Specifications
1-Water capacity:1880 litre
2-Max.Gross mass:4000kg
3-Max. Tare mass:1070kg

WATER CAPACITY

1880L  / C430

MAX GROSS MASS

4000kg

MAX TARE MAS

1070kg

EXTERNAL DIMENSIONS

2128mm*1148mm*1388mm

M.A.W.P

14bar  1.4Mpa /-0.13MPa at 65 oC

DESIGN TEMPERATURE

-40oC to +65oC

MATERIAL

SA-516M Gr.485 / 16MnDR

SHELL THICKNESS

12mm,14mm

PRESSURE VESSEL CODE

T21 UN ,IMDG,ADR/RID,49CFR,TIR,USDOT,ASME,BV

APPLICABLE CARGOS

TRIETHYL ALUMINUM UN3394 UN3399


T21 Triethylaluminum (TEAL) Alky Portable Tank Container (25)

T21 UN Portable Tanks For Transport Trimethylaluminum(TMA) Trimethylgallium(TMG), Triethylgallium(TEG)  Aluminum triethyl (TEAL)1880Liters

1880 Liters  Portable Tank T21 Portable Tank to contain TMA(Trimethyl aluminium), TEA(Triethyl aluminium), TMG(Trimethyl gallium) ,TEG(Triethyl gallium)(TMGa ,TEGa,TMIn, TMAl Cylinders)



Metal Alkyls Portable Tank Loading 1.4MT TMGa ,TEGa,TMIn, TMAl,TEAL with ASME BV CCS For Offshore Storage and Transport

TMA,TEAL,TEG,TMG,TMGa,TEGa,TMIn,TEIn,BF3,WF6,SiH2Cl2,DEZ...
High Purity Metalorganic CHEMICALS  with ASME BV Certificates

1200L T20 Small Portable Titanium Tetrachloride Tank Un 1193 - Ethyl Methyl Ketone or Methyl Ethyl Ketone - Un1838 Cl4ti

Material: s31603 10mm
Applicable medium: titanium tetrachloride un1838 iodomethane UN2644
Pressure: 10bar
Volume: 1200L
Overall dimension: 2005 * 950 * 1250 mm (suitable for: 6 sets / 20ft container, 12 sets / 40ft container)
Dead weight: 765kg
Design standard: ASME VIII IMDG Code 36-12
Third party inspection: bv ASME TS
IBC T10 Un2604 Catalyst a / E Portable Tank Cylinder L10bh 1800L C4h10bf3o with CCS Certification

T20 Cl4ti Portable Tank Container Un1838, Liquid Silicon Tetrachloride (Medium Bulk Containers)

Capacity: 3.22 m3

Diameter: 1600 mm

Height: 2200 mm

Tare weight: 1260 kg

Maximum loading weight: 5125 kg

IBC T10 Un2604 Catalyst a / E Portable Tank Cylinder L10bh 1800L C4h10bf3o with CCS Certification

T21 Un Portable Tanks for Transport Trimethylaluminum (TMA) Trimethylgallium (TMG) , Triethylgallium (TEG) Aluminum Triethyl (TEAL) 1880liters
WATER CAPACITY    1880L  / C430
MAX GROSS MASS    4000kg
MAX TARE MAS    1070kg
EXTERNAL DIMENSIONS    2128mm*1148mm*1388mm
M.A.W.P    14bar  1.4Mpa /-0.13MPa at 65 oC
DESIGN TEMPERATURE    -40oC to +65oC
MATERIAL    SA-516M Gr.485 / 16MnDR
SHELL THICKNESS    12mm,14mm
PRESSURE VESSEL CODE    T21 UN ,IMDG,ADR/RID,49CFR,TIR,USDOT,ASME,BV
APPLICABLE CARGOS    TRIETHYL ALUMINUM UN3394 UN3399

IBC T10 Un2604 Catalyst a / E Portable Tank Cylinder L10bh 1800L C4h10bf3o with CCS Certification

Teal Tma C-1980 Teal Cylinder 6745L /7495L 1980 Gallon T21 Un Portable Tank

Capacity: 7490 llitres + / - 2% (1980 Gal)
Total weight: 15000 kg
Net weight of equipment: 3425 kg
Vessel pressure and design temperature
Allowable working pressure: 12.1 bar
Design pressure: 12.1 bar
External pressure: 0.41 bar
Vessel design temperature: - 40 ºC to 65 ºC
Container material
Specification: cylinder sa-516m
Head sa-516m
Cylinder: nominal thickness = 12mm
Head: nominal thickness = 12mm
Base material sa-350m
IBC T10 Un2604 Catalyst a / E Portable Tank Cylinder L10bh 1800L C4h10bf3o with CCS Certification

Stainless Steel Spherical T22 Portable Tank 1.6cbm 316L (T22 ISOTANK Portable Pressure Vessel)

Volume: 1.6 cubic meters
Body material: 316L
External dimension (L × w × h): 1576 * 1576 * 2009 (mm)
Loading and unloading type: loading and unloading
Maximum total weight: 4200kg
Net weight of tank: 1260kg
Maximum cargo capacity: 2940kg
Loading and unloading type: loading and unloading
Design temperature: - 40 ºC ~ + 65 ºC
Design pressure: 2.0 MPa
Working pressure: 1.0 MPa
Test pressure: 3.05 MPa
IBC T10 Un2604 Catalyst a / E Portable Tank Cylinder L10bh 1800L C4h10bf3o with CCS Certification

T21 Triethylaluminum (TEAL) Alky Portable Tank Container (75)

TMAI Trimethyl Aluminium Metal Alkyls Tank 1880 Liters  Portable Tank T21  UN3394 UN3399 Cylinders Adr/Rid Organometallic Substance, Liquid, Water- Reactive

Th-1c Th-2A Catalyst IBC - Intermediate Bulk Container Catalyst Portable Tank Cylinder (IBCs Vertical)
T21 Un3394 Portable Triethylaluminum Teal Metal Alky Tank Container Cylinder

Wholesale T11, T10 IBC Catalyst Storage Tank Cylinder L4bn Bulk Container Tank for Polypropylene Polyethylene Acrylonitrile Catalyst Un 1993, Flammable Liquid

T21 Un3394 Portable Triethylaluminum Teal Metal Alky Tank Container Cylinder



TMA,TEAL,TEG,TMG,TMGa,TEGa,TMIn,TEIn,BF3,WF6,SiH2Cl2,DEZ...
High Purity Metalorganic CHEMICALS  with ASME BV Certificates
