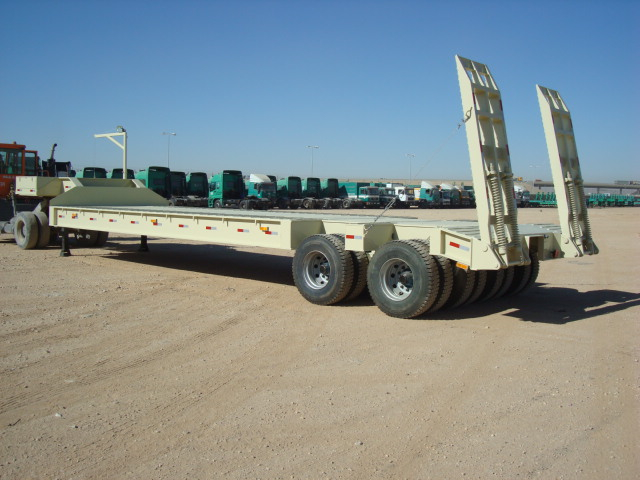

110 Tons Rigid Bogie Axles Low Bed Trailer Semi-trailer Tandem Pendel

110 Tons Rigid Bogie Axles Low Bed Trailer Semi-trailer Tandem Pendel
Availability:
Quantity:

  Two bogie axles low bed trailer Rigid suspension   Tandem pendel axles
Why choose Bogie type Lowbed Bogie axle trailer ?
1, Fit the bad Road condition well, especially for the road with some pits.
2, Overload much, more than about 40%
3, Can fit the SKD Type to save freight, and easy to assemble in destination.
4, Easy maintenance and convenience for bogie type trailer
Name: China best two axle Bogie type low bed Trailer, Low price  two axle Bogie suspension lowbed Trailer for sale, Supply two axle Bogie type lowbed Trailer, lowbed two axle Bogie type Trailer manufacturer & exporter

Description:
This type Bogie type Flatbed Trailer mainly used in various fields, such as ships, ports, airlines, highways, transfer stations, bridges, tunnels, and many other multimodal transport matched logistics systems.
bogie_trailer_s2
Market: Congo, Angola, Saudi Arabia, South Africa, Ethiopia, Algeria, Myanmar etc.




       Overall dimension        15765*3400*3090mm
       Platform effective length        11200mm
       Ground clearance        1200mm
       Wheel base        12000+1500mm
       Tare weight        20.6T
       Total weight        130.6T
       Loading capacity        110 tons
       Bogie axle        60 or 80T*2
       Suspension        Balance suspension structure
       Tyres        8.25-15/6.5v-15 or  12.00R20/8.5v-20 or Solid tires 22x13-16
       Brake system        Double pipe air brake
       Kinpin        Jost 3.5'
       Landing gear        Jost bouble speed
       Electric system        24V, 7 pin socket
       Tool box        1 set
       Painting        Base coating+surface painting

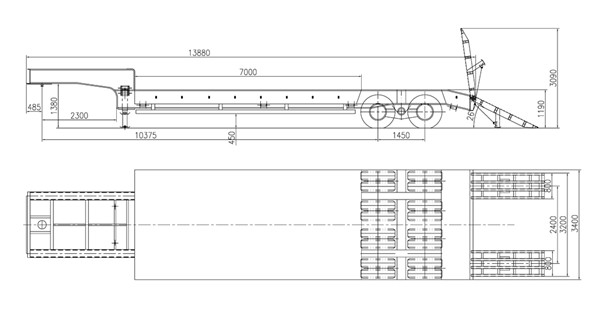

Technical Drawing:


   bogie_trailer_drawing

Tandem pendel axles

  Customization, Cost and Control Built How You Want it, at a Price You Can Afford. for sale call:+86-152 -7135-7675

 LOAD CAPACITY:     30T, 40T, 50T,60T

 LENGTH:                 12m, 13m,14m,17.5m

 AXLE:                   L1 AXLE 13T (16T, 20T)    OPTION: BPW  , ABS

 TIRE:                    11.00R20 12.00R22.5 315/80R22.5                         OPTION: 385/65R22.5 (Single tire)



Contact to get the detail and price
