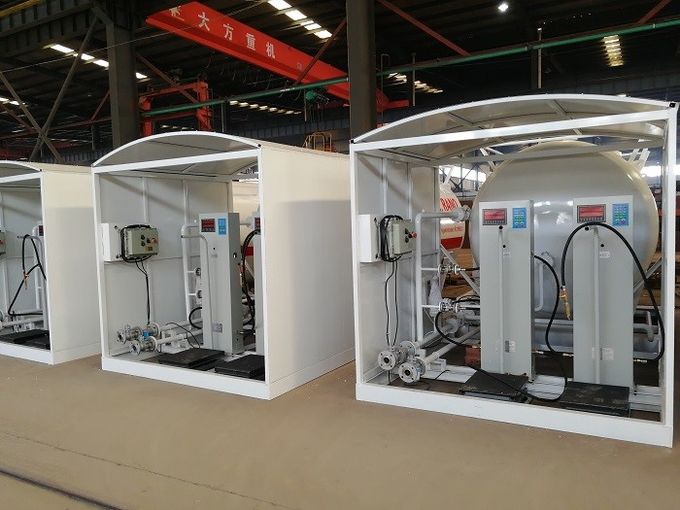

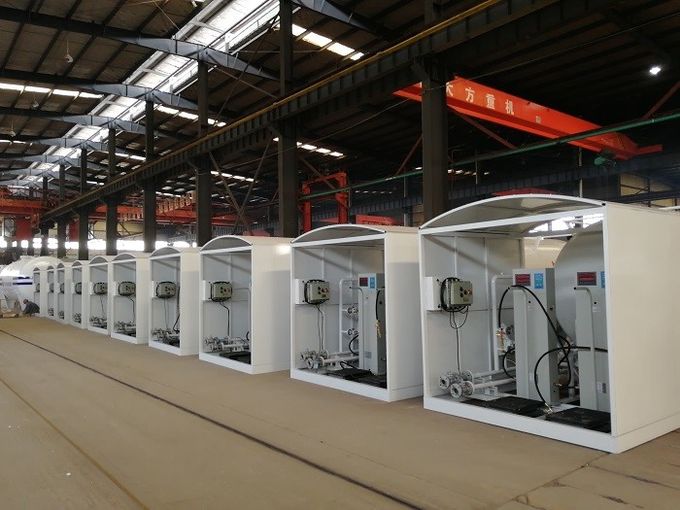

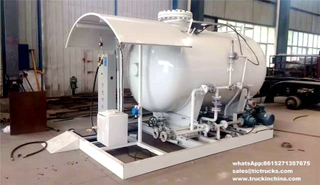

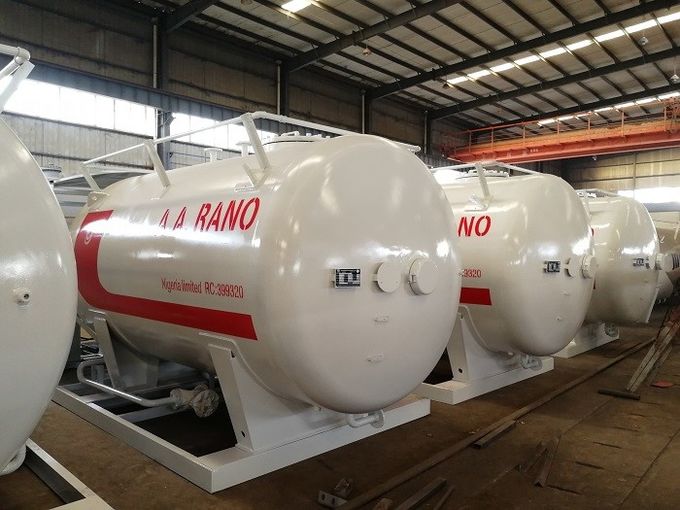

LPG tank Skid Station used for filling home use cooking gas cylinder.
Equip with 2 units LPG weight filling scales
| Name of Goods | Description of Goods | Quantity | Unit Price | Total Amount | |
| LPG skid station | LPG Mobile Filling Station for LPG with 12000 Literswith 2 filling weight scales | 10units | FOB$17,520 | FOB$175200 |
1. Storage medium of LPG Gas Filling Plant : LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of LPG Gas Filling Plant : 5000liters,10000liters,12000liters,20000liters,25000lliters,32000liters...
3. Manufacturing standards of LPG Gas Filling Plant : GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
4. Optional parts of LPG Gas Filling Plant :corken or blackmer pump and abb motor,lpg dispenser,lpg cylinder filling scale,Rochester level gauge,volume flow meter...
Specification of 10000liters LPG Gas Filling Plant 5mt Completed Propane Bottling Plant for AARANO
| 10 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 10 CBM | ||
| Filling Weight | 5000kg | ||
| Tank Weight | 2950 kg | ||
| Thickness of Shell (mm) | 10 mm | ||
| Thickness of Endplate (mm) | 10 mm | ||
| Tank Diameter (mm) | 1600 mm | ||
| Tank Dimensions (mm) (length x width x height) | 5260 x1620x2210 mm | ||
| External Dimensions (mm) (length x width x height) | As designed to Load in a 40’HQ Container | ||
| Material of Tank | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 420-590 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification/ mm | Quantity | |
| Discharge Pipe | DN50 | 1 | |
| Inflow Pipe | DN50 | 1 | |
| Outlet | DN50 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Manhole | DN450 | 1 | |
| Drain Hole | DN50 | 1 | |
| Other accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | |||
| LPG Skid Part list | |||
| Item | Model Number | Quantity | |
| LPG Tanker | 10 cbm | 1 piece | |
| Pump | 2" inlet & 2" outlet | 1 Piece | |
| Explosive-proof Motor | 380V with 220V adapter | 1 Piece | |
| filling scales | Can fill cylinder and car cylinder,double nozzles | 2 Pieces | |
| Pipes | / | 1 Sets | |
| Cut-off Valve | J41N-40 DN50 | 25 Pieces | |
| J41N-40 DN15 | 10 Pieces | ||
| Safety Valve | A42F-25 DN50 | 1 Piece | |
| Pipe Safety Valve | A21F-25 DN25 | 1 Piece | |
| Level Gauge | Float ball type | 1 Unit | |
| Discharging pipe | L=4M DN50/DN25 | 1 Piece | |
| Shock-absorbing Tube | L=500mm DN50 | 2 Pieces | |
| Flange | 2.5MPaDN15 | 20 Pieces | |
| LPG Pump & Motor Specification | |||
| Pump Brand | Chinese brand | ||
| Model | YQB15-5 | ||
| Medium | Liquid petroleum gas | ||
| Working pressure differential | ≤0.5Mpa | ||
| Flow Speed | 15.5M3/H | ||
| Applied Power | 5.5kw | ||
| Inlet & Outlet Flange | 2”NPT / 2" NPT | ||
| Motor | Chinese brand | ||
| Specification | 7.5HP(5.5KW), Explosive Proof, Dual Frequency 220V to 690V, 50Hz and 60Hz supplies applicable | ||
| LPG Filling Machine Specification | |||
2XFlow meter;2XFilling Nozzles;4XDisplay Screens;2XKeyboard; External Dimension:1000X500X2050mm Power supply:AC220V±20%(50±1HZ; Power cable:RVV3X2.5PVC Communication Cable:RVVP 4X0.5PVC shield cable; Flow Rate:1~45L/min; Rated working voltage:2.2Mpa; Gas filling preset range:0.3~9000 liters Density preset range:0.5000~0.6999; The digits numbers shown on display screen Automatic Temperature Compensation function; | |||
