10 Wheels Sinotruk HOWO Asphalt Slurry Sealer Slurry Seal Truck (5m3 Bitumen Tank 5.5m3 water tank and 16m3 Gravel Tank)
| Quantity: | |
|---|---|
- Shanghai, China
- 8000
- T/T
Road Construction 10 wheels Sinotruk Howo Asphalt Slurry Sealer Slurry Seal Truck(5m3 Bitumen Tank 5.5m3 water tank and 16m3 Gravel Tank)
Customize 6X4 Sinotruk HOWO 5m3 Bitumen Tank 5.5m3 water tank and 16m3 Gravel Tank Slurry sealer,Slurry seal truck sale
Customize Small Shacman Asphalt Synchronous Chip Sealer Truck with 6CBM Asphalt Tank
Cell: 0086 152 7135 7675
Shacman Asphalt Synchronous Chip Sealer
Shacman asphalt synchronous chip sealer truck,6 CBM asphalt sprayer truck
↵
1. Bitumen spray truck, aslo called asphalt sprayer or saphalt paving truck, is specially designed and produced for transporting or spraying liquid asphalt(Including hot asphalt, emulsified asphalt and residue),in addition it can also supply loose asphalt binder to the soil, the construction of asphalt stabilized soil pavement or pavement base.
Bitumen spray truck is a black road construction machinery, one of the main equipment for the construction of road, city roads, airports and port terminals.
2. Type of our asphalt paving truck:
a. Common type
b. Standard type
c. Smart type(domestic main components)
d. Smart type(import main components)
(See more details in the comparation table below)
3. Capacity of spraying asphalt:
Type: whole four types above can work with liquid asphalt, such as hot asphalt, emulsified asphalt and residue, etc.
Rubber asphalt: need special equipment and customized.
Spraying rate: according to equipped asphalt pump(from 300~680 liters/min)
Spraying width: 4.5~6m
Spraying area: 0.2~0.3 liters/cbm
4. Structure of our asphalt spray truck:
Automobile system, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform.
| The Parameters of the Slurry Sealing Truck | |||
| Model | DRZ5311TFCZ4 | Chassis Engine | Sinotruck 336hp |
| Chassis | HOWO ZZ1317N4667C1 | Assistant Engine | Cummins 140hp |
| Asphalt Tank | 5500 liters | Water Tank | 6000 Liters |
| Aggregate Tank | 18000 liters | Additive Tank | 260 Liters |
| Filler Tank | 1000 liters | Spreading Width | 2.4~4.2 m |
| Spreading Thickness | 5~15 cm | Lowest Working Speed | Cummins 140hp |
| Hydraulic System | American Technology | Control System | Germany Siemens Control System |
| Herb Weight | 20 Tons | Dimensions | 10.2 X 2.5 X 3.73 m |
| Additive Control | Adopting the hydrodynamic force and labor force together | ||
| Spreading Box Control | Adopting hydraulic power to controlt the angle od the mixer to suit different slopes. | ||
| Usuage Scopes | Micro surfacing, Slurry Selaing, PCA Road, Color Road, etc. | ||
| The Parameters of Equipment for Rubber Asphalt Synchronous Chip Sealer | |||||
| 16 CBM Version | 20 CBM Normal Version | 20 CBM Advance Version | 26 CBM Normal Version | 26 CBM Advance Version | |
| Asphalt Tank | 6 CBM | 8 CBM | 8 CBM | 10 CBM | 10 CBM |
| Gravel Tank | 10 CBM | 12 CBM | 12 CBM | 16 CBM | 16 CBM |
| Asphalt Pump | QGB680 high viscosity asphalt pump | QGB950 high viscosity asphalt pump | TGG185-125 asphalt pump (Belgium) | QGB950 high viscosity asphalt pump | TGG185-125 asphalt pump (Belgium) |
| Hydraulic Motor for Asphalt Pump | 05-130-BD31 | 05-130-BD31 | 05-130-BD31 | 05-130-BD31 | 05-130-BD31 |
| Hydraulic Pump | 50-20-16 | 50-20-16 | German Rexroth hydraulic pump A11V060EP20D-10L | 50-20-16 | German Rexroth hydraulic pump A11V060EP20D-10L |
| Control System | Siemens control system, computer intelligentized control, one control one. | Siemens control system, computer intelligentized control, one control one. | Siemens control system, computer intelligentized control, one control one. | Siemens control system, computer intelligentized control, one control one. | Siemens control system, computer intelligentized control, one control one. |
| Nozzles | 32 intelligentized nozzles | 32 intelligentized nozzles | 32 intelligentized nozzles | 32 intelligentized nozzles | 32 intelligentized nozzles |
| Heating Mode | Transfer oil automatic heating | Transfer oil automatic heating | Transfer oil automatic heating | Transfer oil automatic heating | Transfer oil automatic heating |
| Heating Burner | G20 (Italy) | G20 (Italy) | G20 (Italy) | G20 (Italy) | G20 (Italy) |
| Radiator | Sunrise | Sunrise | Sunrise | Sunrise | Sunrise |
| Heat Transfer Oil Pump | 40-25-160 | 40-25-160 | 40-25-160 | 40-25-160 | 40-25-160 |
| Gasoline Engine Generator | 6 kilowatt | 6 kilowatt | 5.5 Honda kilowatt | 6 kilowatt | 5.5 Honda kilowatt |
| Spreading Width | 4 meters | 4 meters | 4.5-6 meters | 4.5 meters | 4.5 meters |
| Spreading Volume | 0.3-3.5 L/m2 | 0.2-3.5 L/m2 | 0.2-4.0 L/m2 | 0.3-3.5 L/m2 | 0.3-4.0 L/m2 |
Our asphalt distributor truck for sale features and advantage
1.) Automatic asphalt distributor boasts three layers. It can adjust the spray amount according to its operational speed.

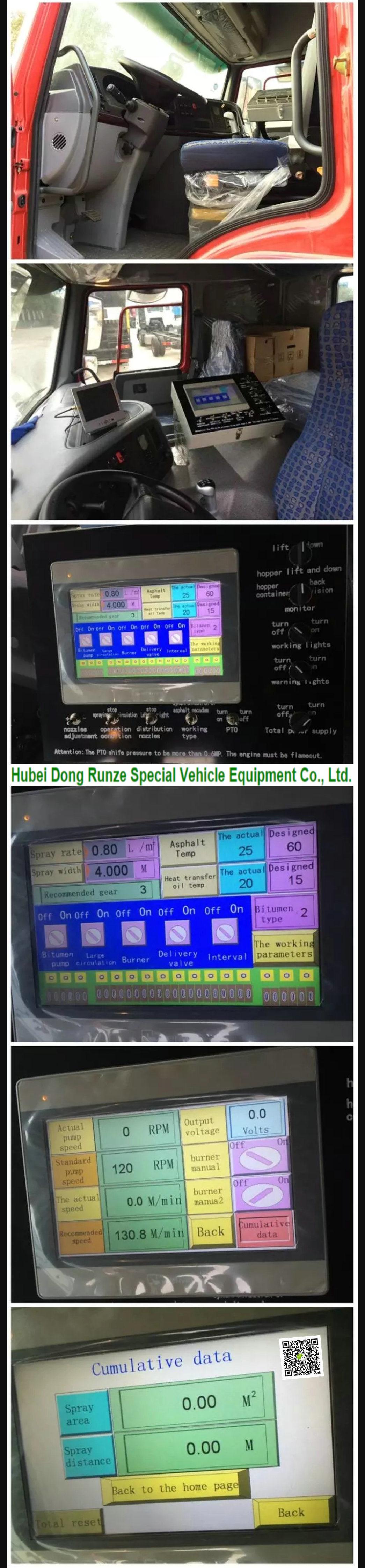

2.) The whole asphalt spraying process can be finished in the cab.
3.) Each nozzle is controlled by separate computer. The spray width can be adjusted at random.
4.) The control procedure is equipped with two control systems, cab and post operational platform to ensure the reliability of asphalt spray.
5.)The computer control system adopts modular design for lower accident rate and maintenance.
6.)The temperature of asphalt in tank is kept below or equal to two degrees per hour
7.)The distributor is equipped with automatic blowing device to shift the asphalt outside to the tank

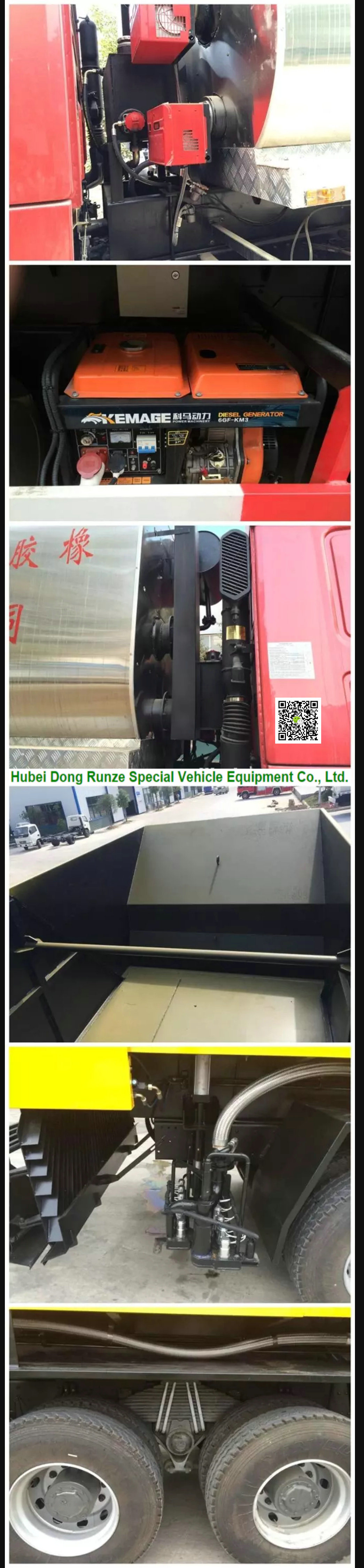

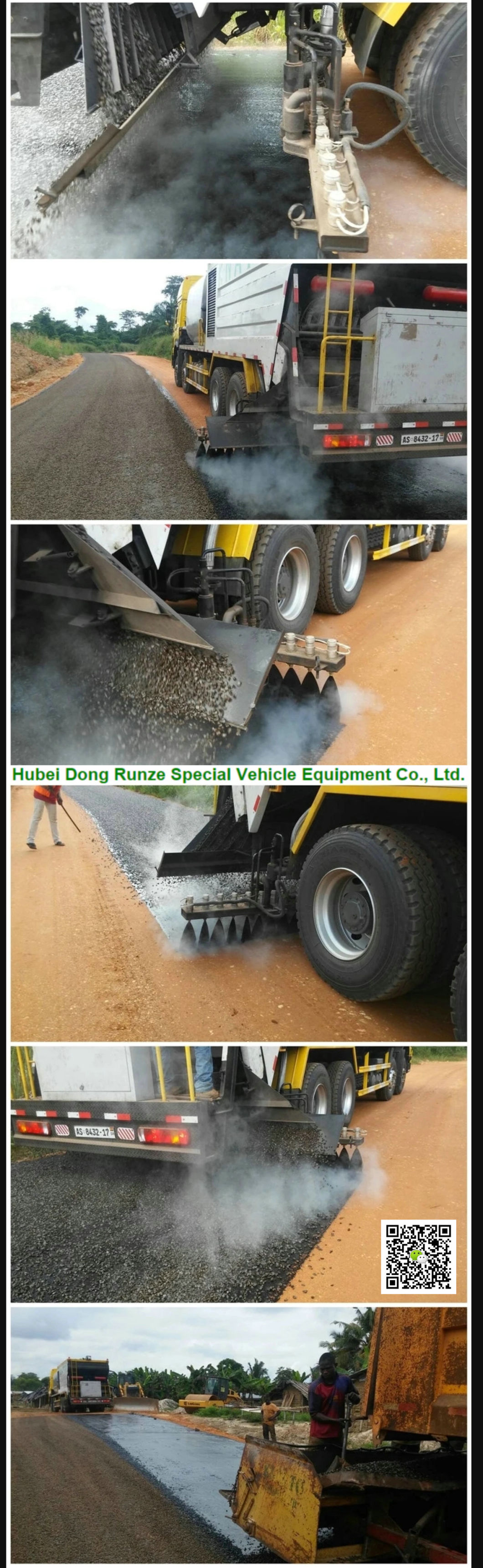

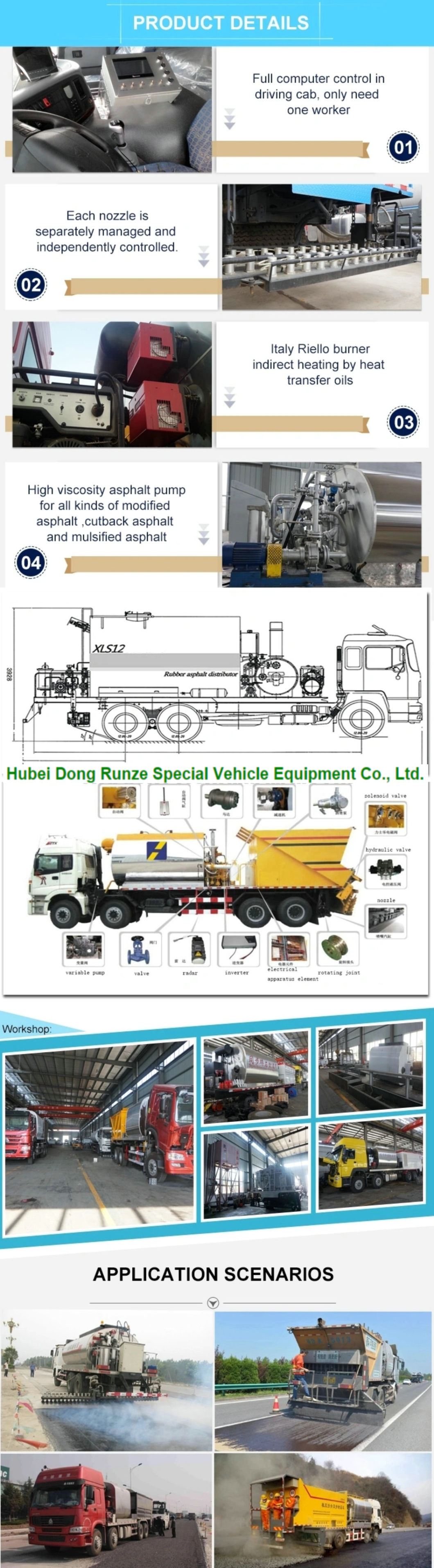

Product Photos
Parameters of Semi-Automatic Asphalt Distributor.
Model | 5251GLQ | 5162GLQ | 5161GLQ | 5120GLQ | 5111GLQ | 5090GLQ | 5081GLQ |
Truck | Cab-over-engine 6*4 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 | Cab-over-engine 4*2 |
Chassis Model | ZZ1257M4647C | DFL1160BX | BJ5163ELFFD | BJ1123VJPEG-S | EQ1110TJ12D5 | EQ1090T9ADJ3AC | HFC1081KT |
Burner model | G20 | G20 | G20 | G20 | G20 | G20 | G20 |
Asphalt capacity | 12000 | 8000 | 8000 | 6600 | 5400 | 4500 | 5000 |
Spray bar variable(m) | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-6M | 0-5.5M |
Spray bar value(kg) | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 | 0.3-3.0 |
Dimension | 10500*2496*3350 | 8995*2490*3200 | 8785*2455*3015 | 8990*2350*2855 | 7998*2260*2870 | 7445*2285*2560 | 7350*2010*2460 |
| Configuration Type | Details of Asphalt truck | |||
| Normal configuration Simple type | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Burner: G10 imported from Italy 4. Temperature control: AI-218 microcomputer temperature controller; 5. Spreading width: 1.2m ~ 4.5m, optional 6m 6. Spray control: manual adjustment 7. Asphalt pipeline compressed air cleaning function | |||
| Ordinary configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: manual flow control valve imported; 5. Burner: G10 imported from Italy 6. Temperature control: AI-218 microcomputer temperature controller; 7. Spreading width: 1.2m ~ 4.5m, optional 6m 8. Sprinkler control: manually adjust asphalt pipe 9. Asphalt pipeline compressed air cleaning function | |||
| Ordinary upgrade configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Width of Spray : 1.2m ~ 4.5m, optional 6m precise triple overlappingSpray , 9. Spraying quantity control: manually adjust asphalt nozzle; 10. Asphalt pipeline compressed air cleaning function | |||
| Semi-intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil 7. Temperature control: AI microcomputer temperature controller; 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric controln ozzle, 9. Sprinkler control: front and background potentiometer adjustment, digital display; 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration | 1. Asphalt pump: ZP230 insulation type high viscosity asphalt pump; 2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: F563 aluminum alloy gear pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7.temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function | |||
| Full intelligent configuration imported Pump |
2. Asphalt pump drive motor: GM05 series high-torque plunger motor; 3. Hydraulic pump: Germany leisler plunger variable pump; 4. Hydraulic system: imported proportional flow control valve; 5. Burner: G10 imported from Italy 6. Heating method: automatically heating by heat-conduction oil with selective heating function 7. temperature control: Germany Siemens temperature control module, computer temperature control 8. Maximum width of Spray : 4.5 meters, optional 6 meters, precise three overlapping Spray , fully electric control nozzle, 9. Sprinkling width is precisely controlled by computer: sprinkling quantity control: Germany Siemens PLC, intelligent control, sprinkling quantity and speed precise linkage, front touch screen control system. 10. Asphalt pipeline compressed air cleaning function 11.spray volume 0.2 ~ 3 kg / , 28 sets of full electric nozzle, | |||
Our products enjoy a good reputation for the good quality!
The asphalt distributor is made up by chassis, asphalt tank, asphalt pump, optional conduction oil heating system, electronic control system and spraybar system, etc.
Major features:
1) Digital display meters and instruments to indicate speed of the vehicle and the asphalt pump rotation, as well as temperature of asphalt inside the tank.
2) Possesses heat preservation, conduction oil recycling heating, transportation, spray, pumping and discharge function, etc.
3) Nozzle controlled through pneumatic joint control operation of cylinder for opening and closing.
4) Cleaning system of compressed air
5) Hydraulic power take-off of chassis or auxiliary diesel engine for drive, heated with burner, optional conduction oil recycling system.
