Views:2109 Author:DRAU ISOTANK Publish Time: 2019-05-24 Origin:http://www.truckinchina.com
10 Units New ISO 20 FT TANK CONTAINER LLDPE LINED Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%) Export to HAIPHONG VIETNAM Second times
Transport:FROM SHANGHAI PORT,CHINA TO Haiphong Port , VIETNAM BY SEA
Price Term: CIF Haiphong Port , VIETNAM
Term of Payment: By TT 10*20TK
Marks | Description of goods | Quantity | N.W | g.w | MEASUREMENT | ||
DRAU2019308 DRAU2019313 | 20 FT ISO TANK 20 FT TANK CONTAINER PE LINED TANK | 2 UNITS |
5000 KG
| 10000 KG | 6.058*2.438*2.591m
76.54CBM | ||
DRAU2019329 DRAU2019334 DRAU2019340 DRAU2019355 DRAU2019360 DRAU2019376 DRAU2019381 DRAU2019397 | 20 FT ISO TANK 20 FT TANK CONTAINER PE LINED TANK | 8UNITS |
5100 KG
| 40800 KG | 6.058*2.438*2.591m 306.14CBM |
VESSEL VOYAGE: | PORT OF LOADING: |
SITC YANTAI 1914S | SHANGHAI |
PORT OF DISCHANGE: | FINAL DESTINATION: |
HAIPHONG | HAIPHONG |
HS CODE:860900
NO. | VesselName | Voyage | POL | Schedule ETD | ETD/ATD | POD | Schedule ETA | ETA/ATA | ETB/ATB |
1 | SITC YANTAI | 1914S | SHANGHAI | 2019-05-27 | 2019-05-29 04:00 | HAIPHONG | 2019-06-01 | 2019-06-02 11:00 | 2019-06-02 13:00 |
ISOTANK Lined Plastic top view

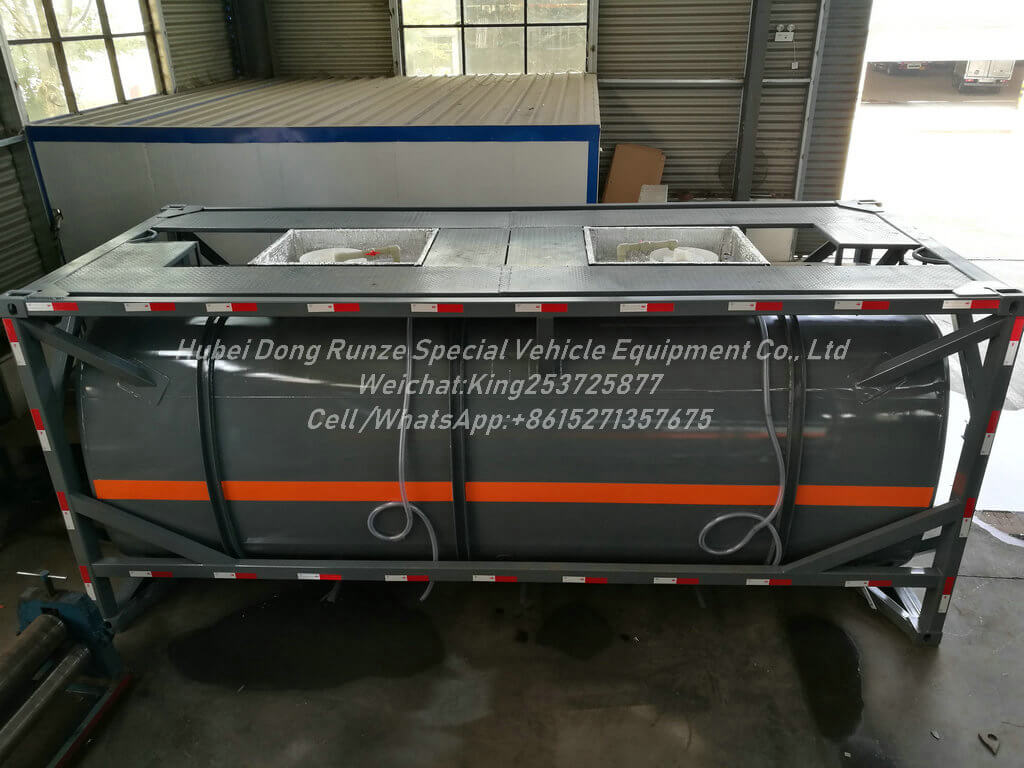

20 FT Tank Container
PE Lined Tank
Used to contain: HCl (max 35%), NaOH (max 50%), NaCLO (max 10%), PAC (max 17%), etc…
Tank Capacity: 21,000 Liters
Steel sheet 6mm, head 6mm
Liner thickness: 16mm PE
01pc butterfly valve CS/F46 and 01pc ball valve CS/F46
Steel Lined PE Tank Read for fiting Pipes dishcharge valves
Heating rotary Lining LLDPE 7042

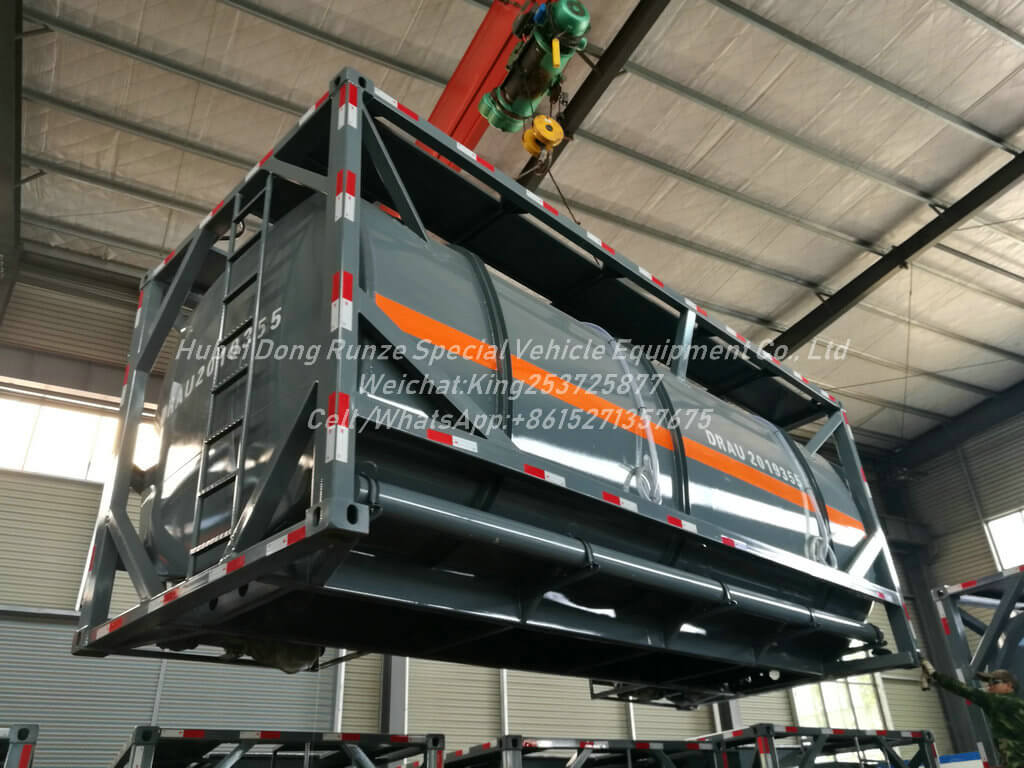

10units Tank ready for delivery
More photo for 20 FT TANK CONTAINER

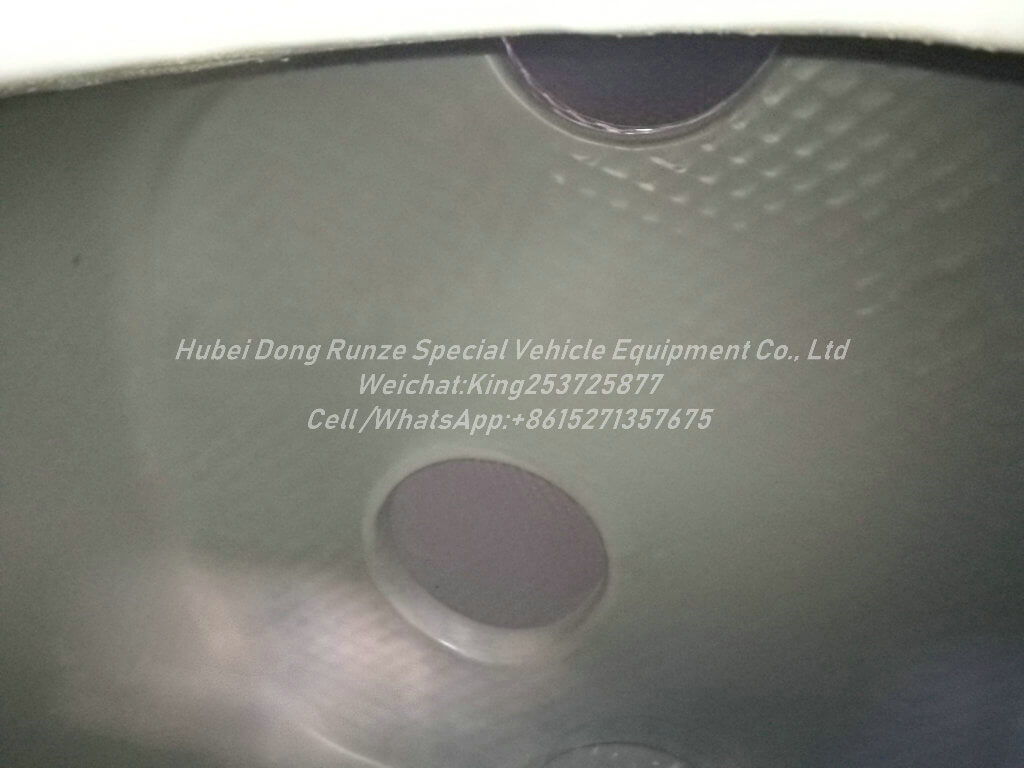

ISO Tank insied view Lined LLDPE Buffers with holes
Steel Lined PE buffers( two compartments / Partitions with holes conected)
Delivery 3 Iso tanks loading on trailers

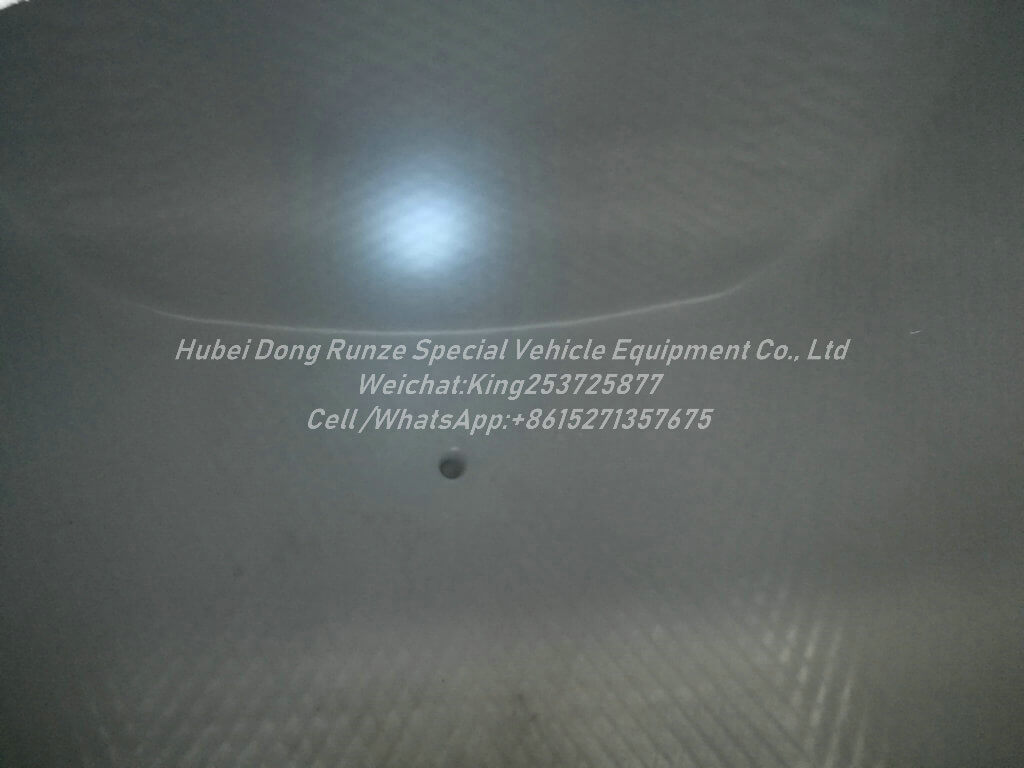

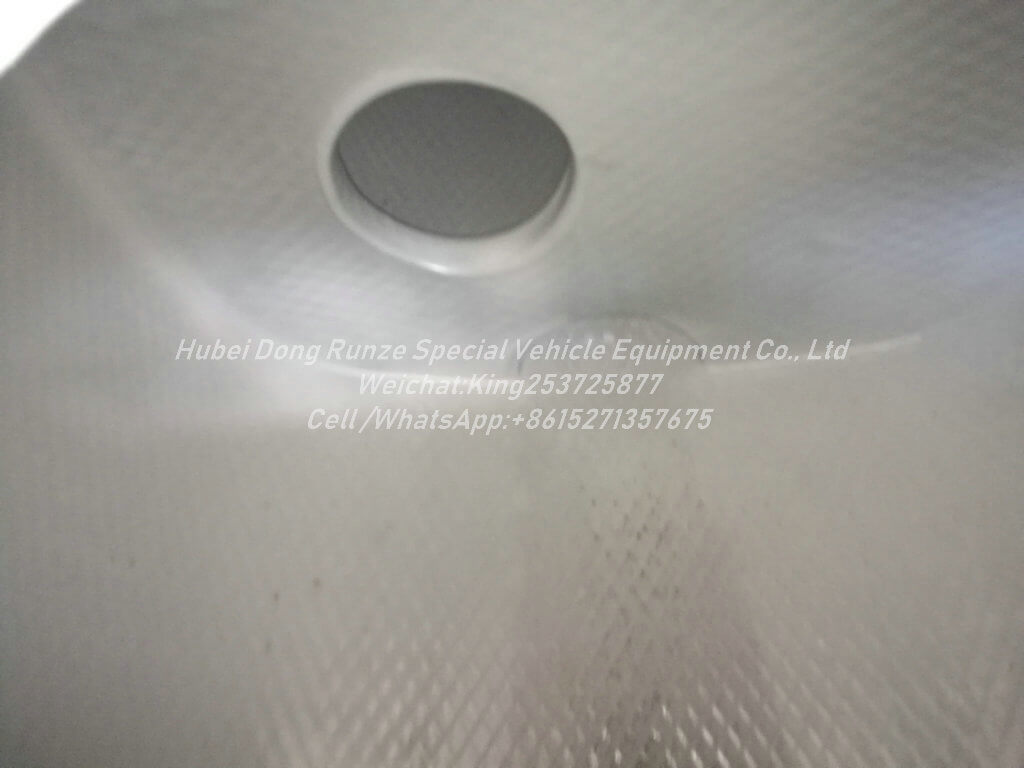

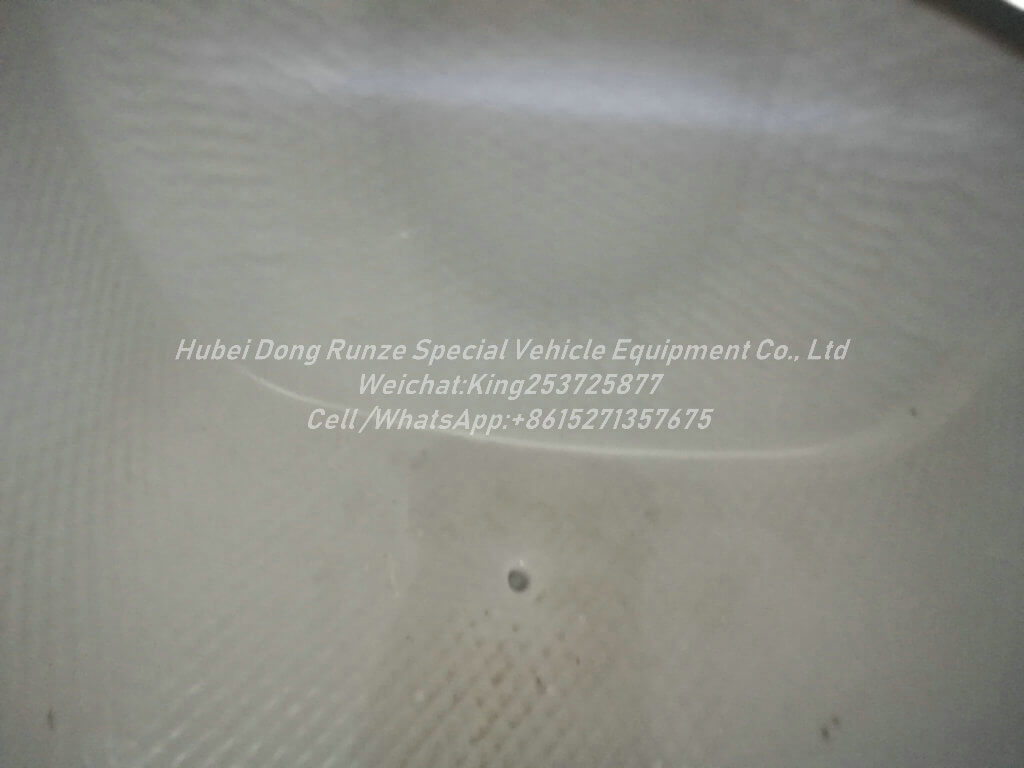

Tank insied view Lined LLDPE see discarge holes:
PE LINED TANK
